ZSJH Steel manufactures customized anchor bolts designed to securely connect steel columns, equipment bases and structural frames to reinforced concrete foundations. Our anchor bolt systems provide reliable load transfer and help maintain the stability, alignment and long-term performance of steel structures.
We supply L-shaped, J-shaped, U-shaped, straight, plate-ended and fully threaded anchor bolts. Dimensions, materials, thread lengths, surface treatments, nuts, washers and positioning templates can be customized according to project drawings.
Our anchor bolts are widely used in steel structure workshops, warehouses, factories, logistics centers, power plants, equipment foundations and other industrial construction projects.
| Item | Available Options |
|---|---|
| Product Name | Anchor Bolt / Foundation Bolt |
| Bolt Types | L-Type, J-Type, U-Type, Straight, Plate-Ended and Custom Designs |
| Material | Carbon Steel, High-Strength Steel or Stainless Steel |
| Material Grade | Q235B, Q355B or Project-Specified Grade |
| Diameter | M12–M100 or Customized |
| Length | 200–6000 mm or Customized |
| Thread Type | Full Thread or Partial Thread |
| Thread System | Metric Coarse or Fine Thread |
| Surface Treatment | Plain, Hot-Dip Galvanized, Electro-Galvanized or Custom Coating |
| Accessories | Hex Nuts, Lock Nuts, Flat Washers and Positioning Templates |
| Manufacturing Method | Thread Rolling, Machining, Cold Bending, Hot Bending, Forging or Welding |
| Inspection | Material, Dimensions, Threads, Surface Finish and Coating Thickness |
| Packaging | Bundles, Steel Pallets, Plywood Cases or Customized Export Packaging |
| Customization | Available According to Drawings and Project Requirements |

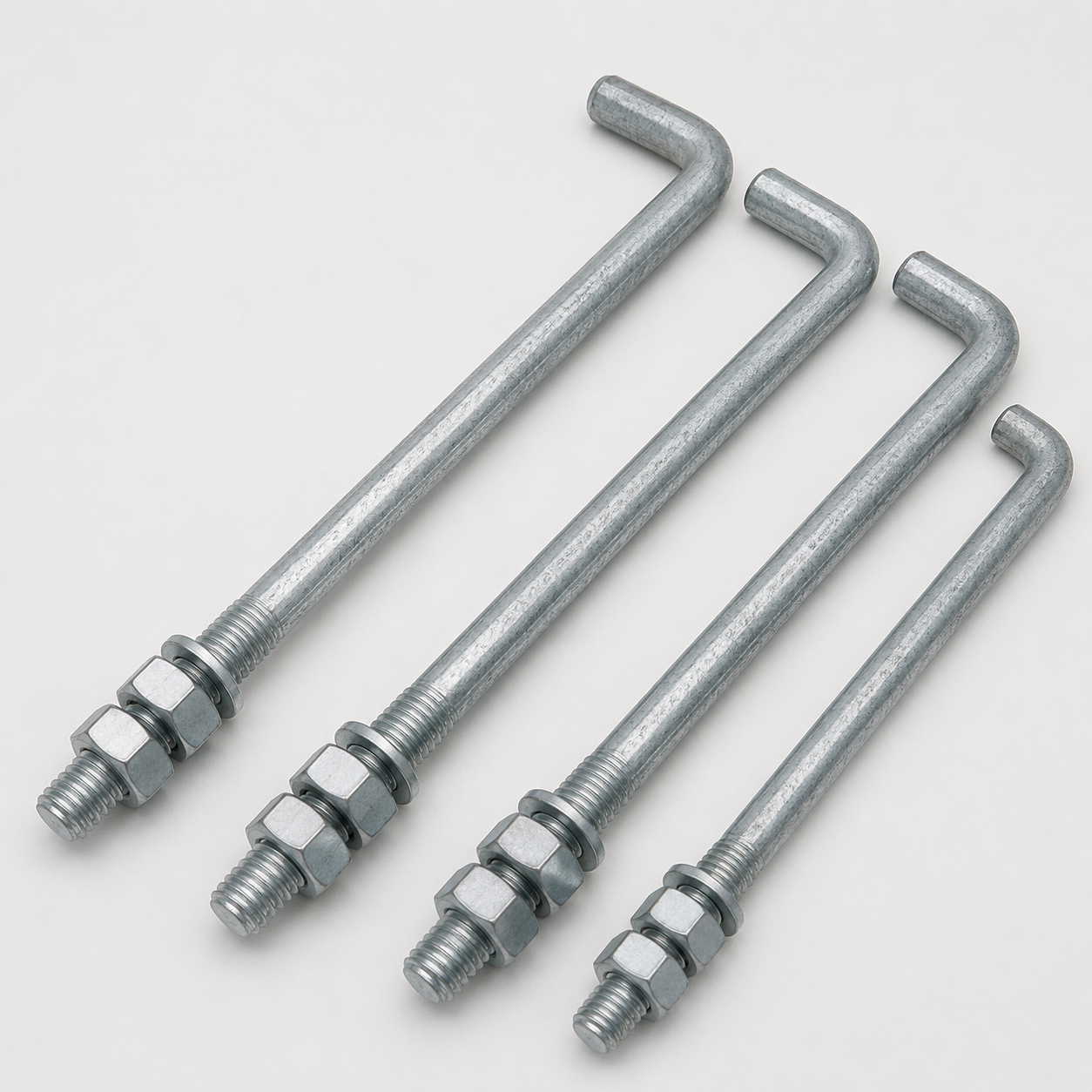

L-shaped anchor bolts feature a 90-degree bent end that provides strong anchorage inside concrete. They are commonly used for steel column bases, light industrial buildings and general foundation connections.

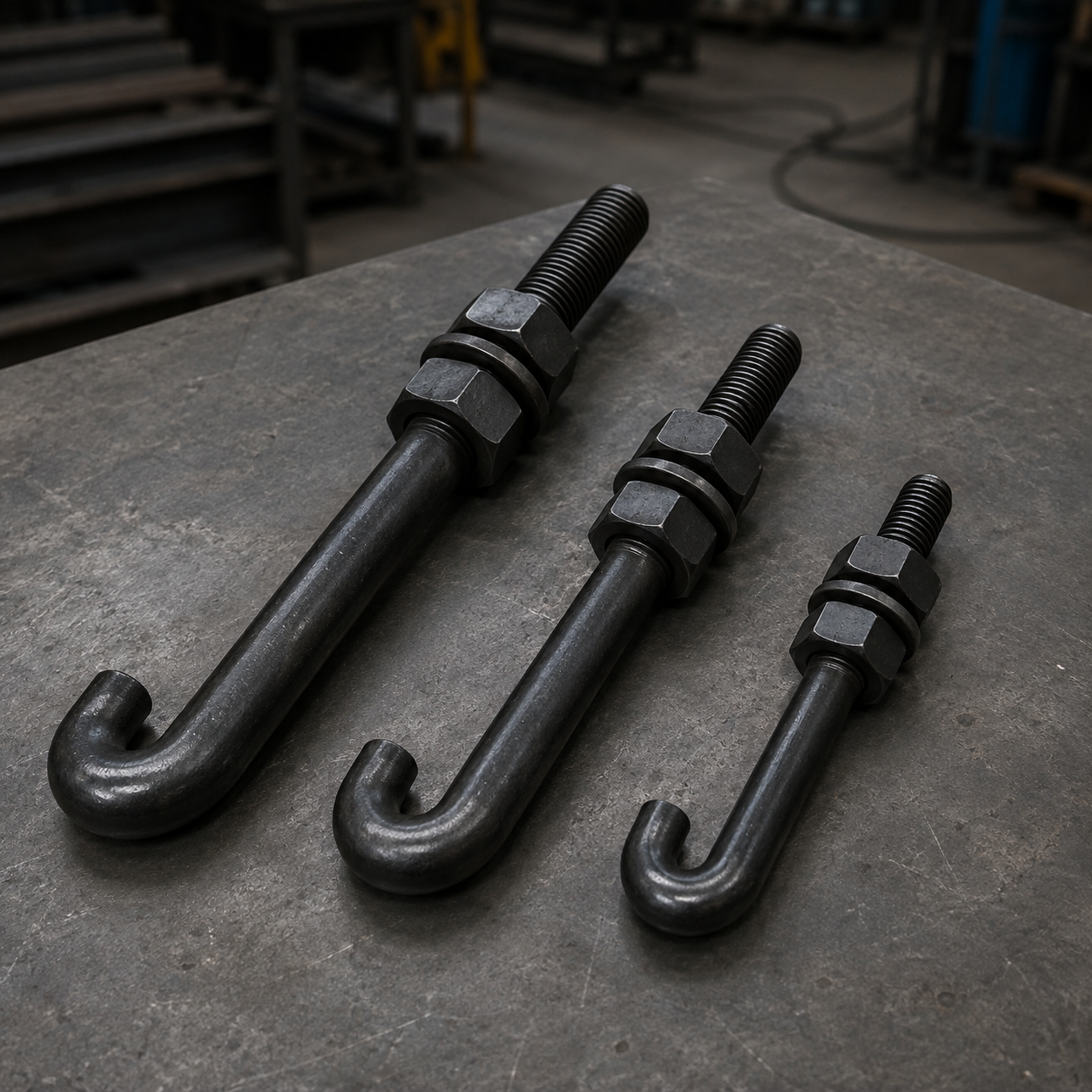

J-shaped anchor bolts have a curved embedded end that improves resistance to pull-out forces. They are suitable for structural foundations, equipment bases and prefabricated steel buildings.

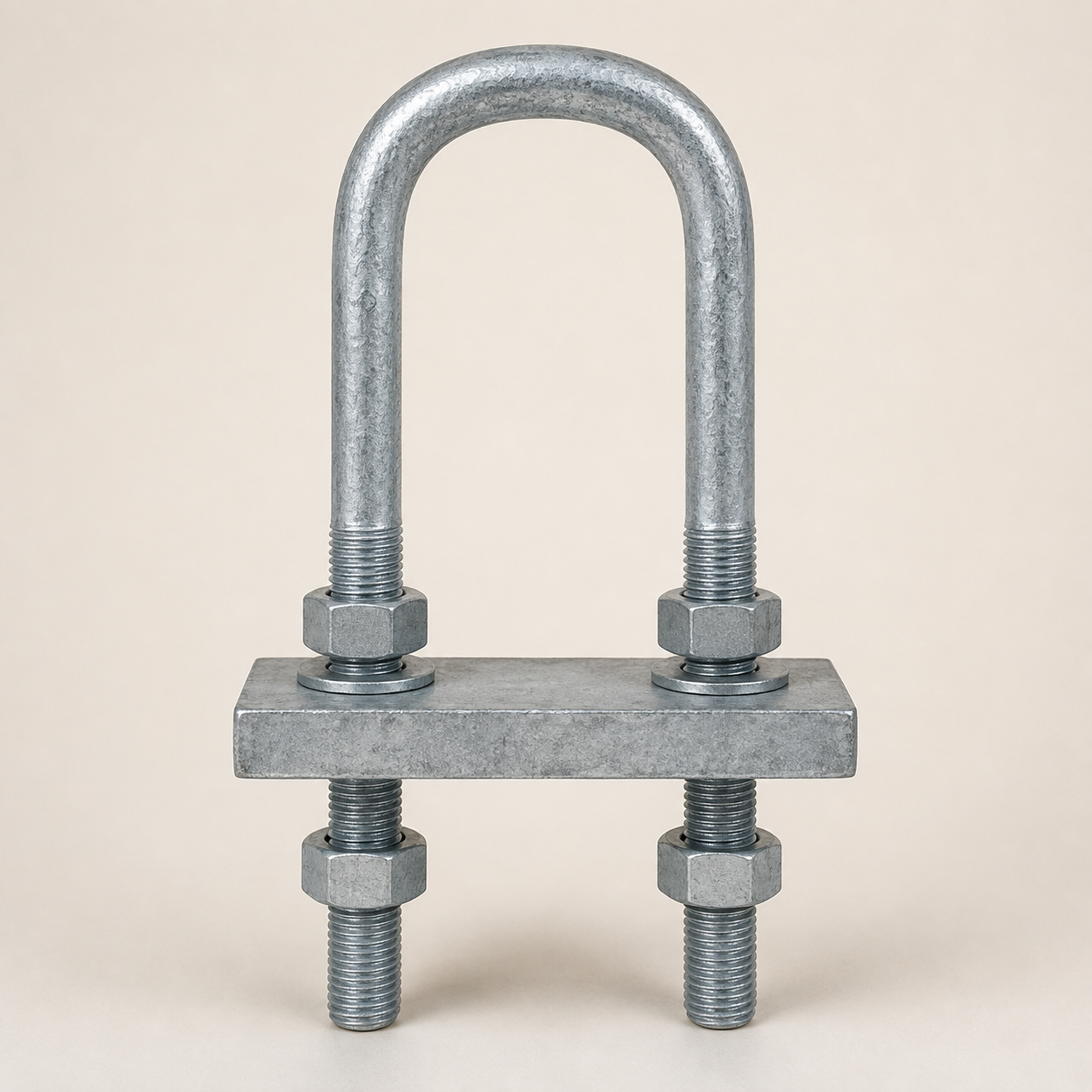

U-shaped anchor bolts are used to secure pipes, steel frames, machinery and structural components. Bolt spacing, leg length and thread length can be manufactured according to drawings.
Straight anchor bolts can be fully or partially threaded and are often used with anchor plates, sleeves or chemical anchoring systems. They are suitable for heavy structural and equipment foundations.
Plate-ended anchor bolts use a welded or forged end plate to increase the bearing area inside concrete. They are suitable for applications requiring higher pull-out resistance.
Customized production according to structural drawings
Precise bolt diameter, length and thread dimensions
Multiple anchor shapes and connection configurations
Reliable load transfer between steel columns and foundations
Hot-dip galvanized options for enhanced corrosion resistance
Complete supply with matching nuts, washers and templates
Suitable for light and heavy steel structure projects
Strict material and dimensional inspection
Export-ready packaging for long-distance transportation
Technical support for bolt layout and foundation installation
Raw material inspection
Steel bar cutting
Thread rolling or machining
Cold bending, hot bending or forging
Anchor plate welding when required
Dimensional and thread inspection
Surface cleaning and treatment
Galvanizing or protective coating
Final quality inspection
Export packaging and shipment
We manufacture anchor bolts according to your structural drawings, bolt schedules and foundation design requirements.
Anchor bolts can be supplied with matched nuts, washers, anchor plates, sleeves and positioning templates.
Materials, dimensions, threads, welding and surface treatments are inspected throughout the manufacturing process.
In addition to anchor bolts, we can supply steel columns, beams, bracing systems, purlins, connection plates, high-strength bolts and building envelope materials.

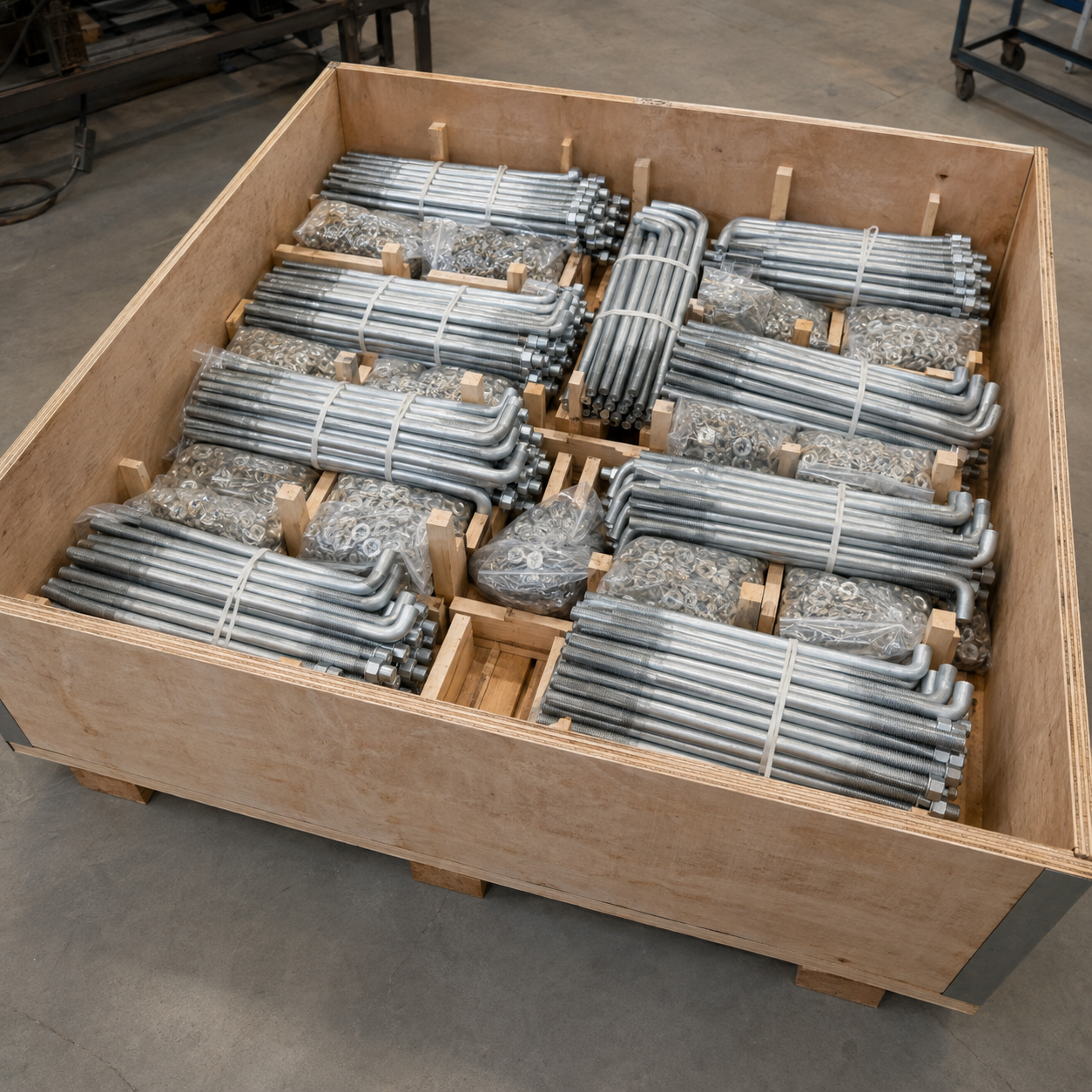

Products are securely packed in bundles, steel pallets or plywood cases to reduce damage during international transportation.
Yes. We can customize the bolt shape, diameter, length, thread, anchor plate, nuts, washers and surface treatment according to your drawings.
We manufacture L-shaped, J-shaped, U-shaped, straight, fully threaded and plate-ended anchor bolts, as well as special designs.
Yes. Hot-dip galvanizing is available for projects requiring improved corrosion protection. Coating thickness can be produced according to project requirements.

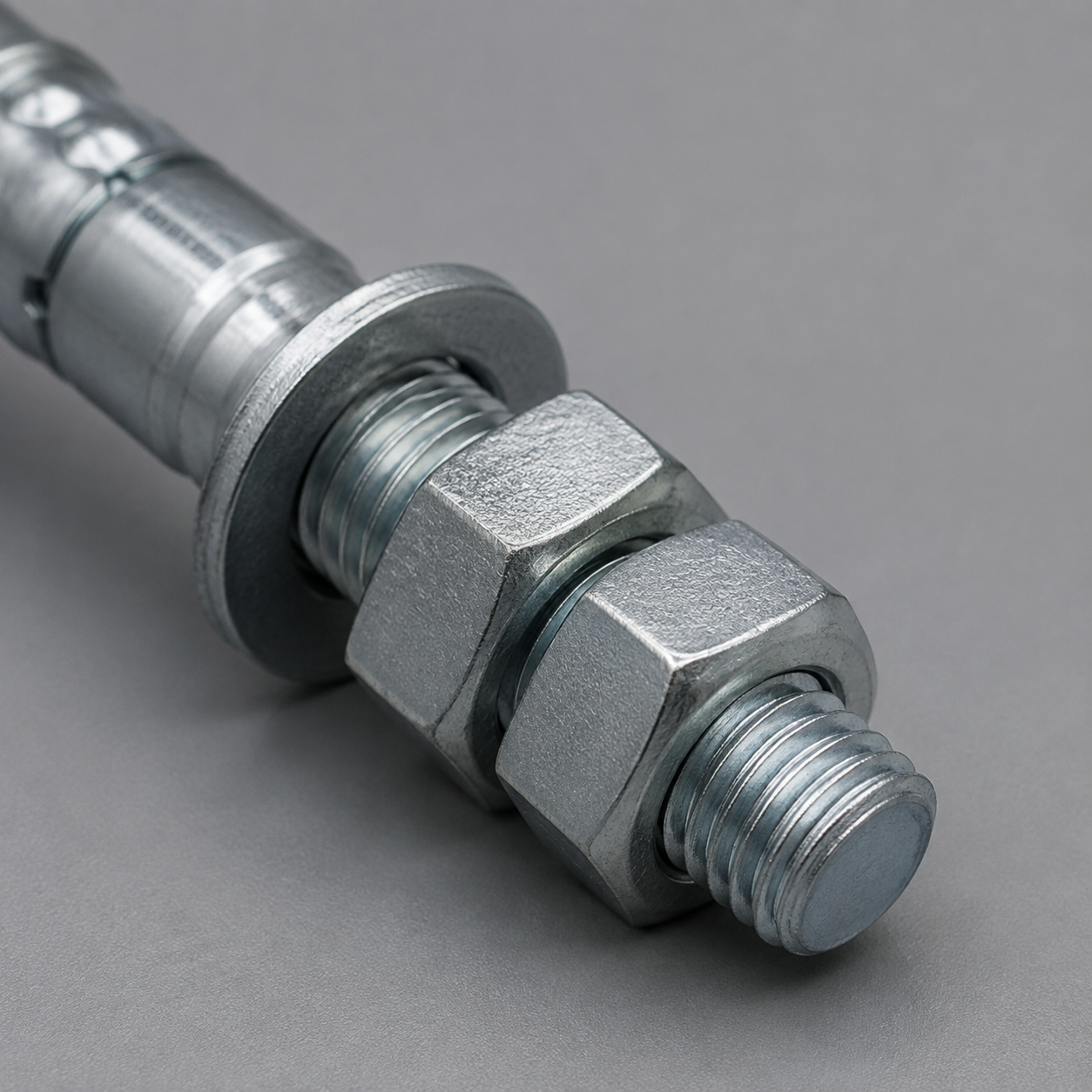

Yes. Matching hex nuts, lock nuts, flat washers and other accessories can be supplied as complete anchor bolt assemblies.

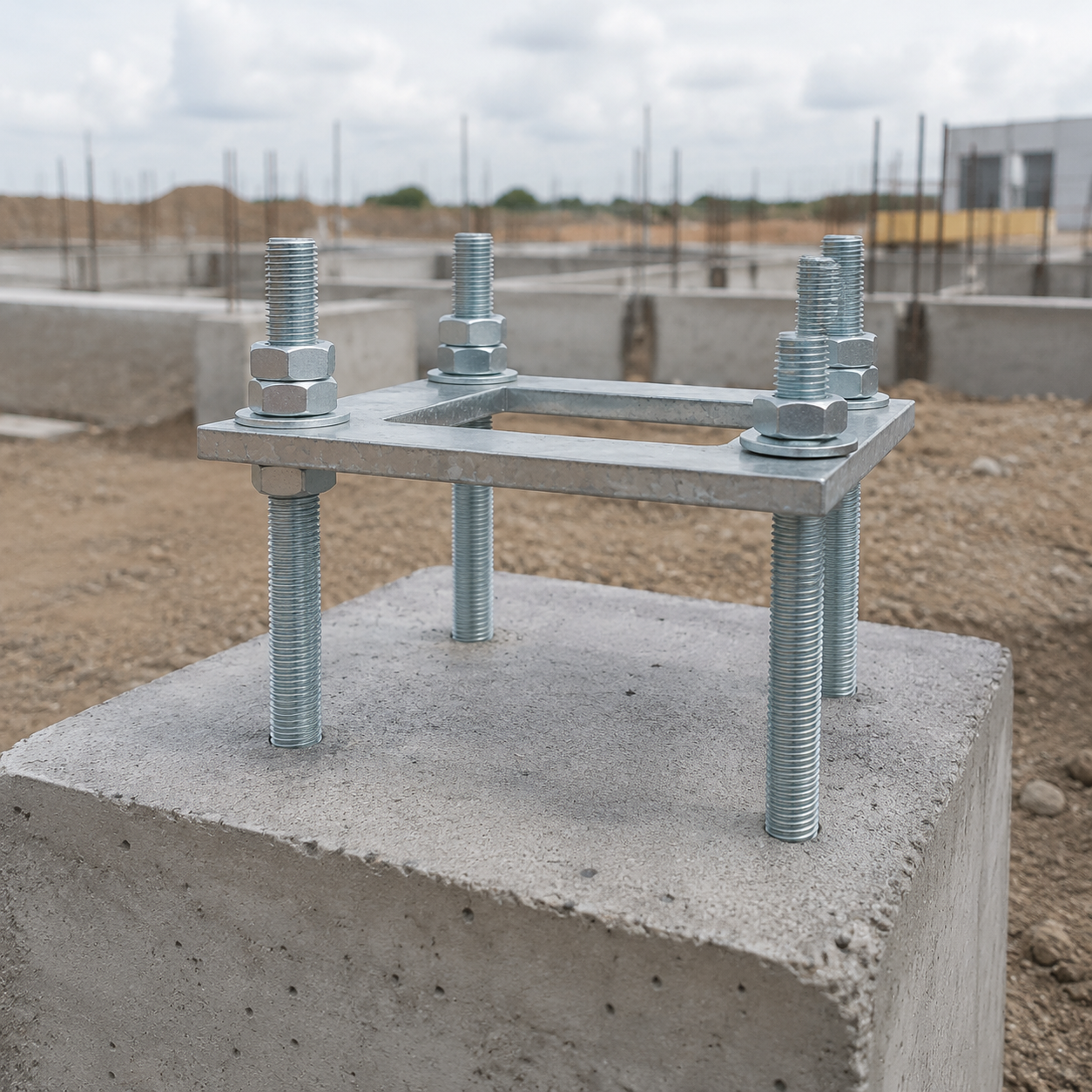

Yes. We can manufacture steel positioning templates to help maintain the correct bolt spacing and alignment during concrete foundation work.
Thread diameter, pitch, length and nut fit are checked during production and final inspection.
