1 Product Overview

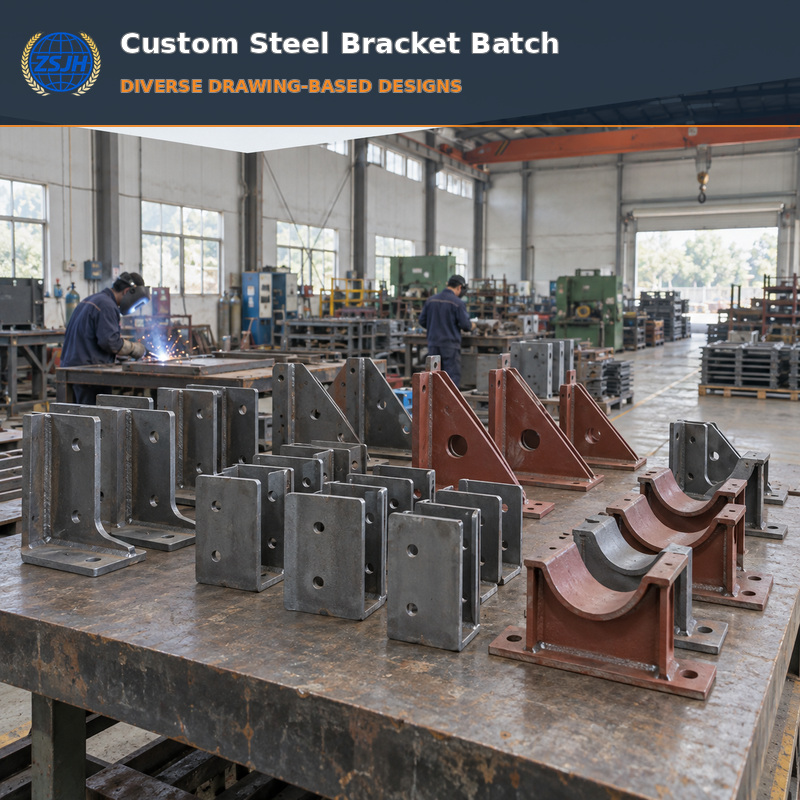

ZSJH manufactures OEM steel brackets for machinery, conveyors, enclosures and industrial equipment. The bracket is produced around the customer mounting interface, with hole positions, bend angles and welded features controlled by the approved drawing. First-article review can confirm fit before repeat batch production and customer-specific labeling.

2 Mounting geometry and part orientation

Define mounting datums, hole centers, slots, stand-off distances and contact surfaces. Left and right brackets or mirrored parts use separate part numbers where required. Clearance around bolts and tools is checked from the assembly drawing. Load-bearing brackets require a customer-approved design and service-load information.

3 Product Specifications

Final material, dimensions, acceptance criteria and included operations are defined by the approved drawings and contract.

4 Plate formed or welded construction

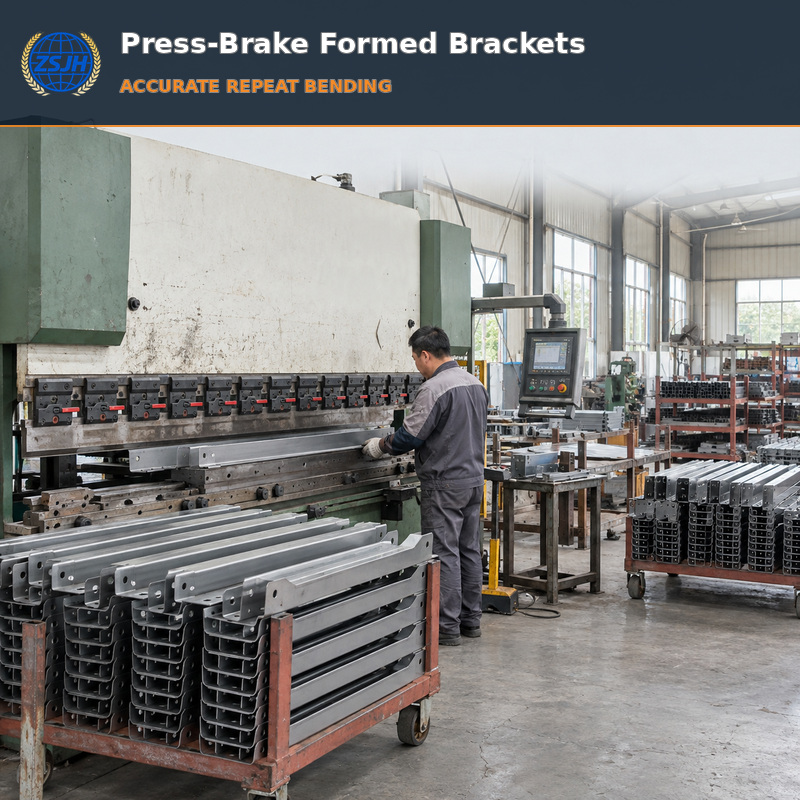

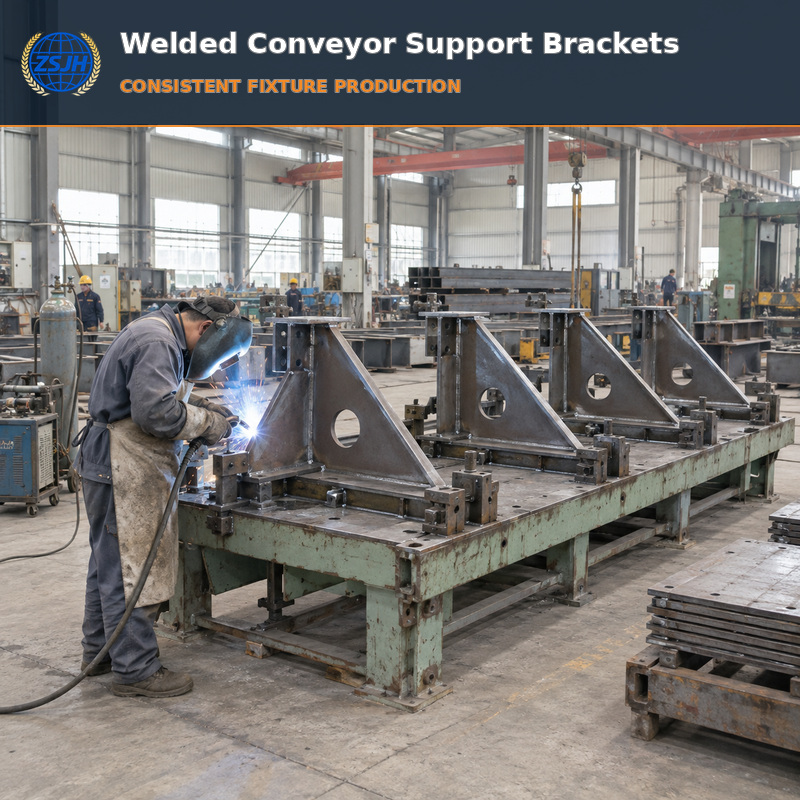

Simple plate brackets can be cut and drilled; formed brackets require bend allowance, radius and springback review. Reinforced brackets may include gussets and welded plates. The route is chosen to maintain the required interface while controlling distortion. Machining is quoted where critical contact faces need additional processing.

5 First article and controlled repeats

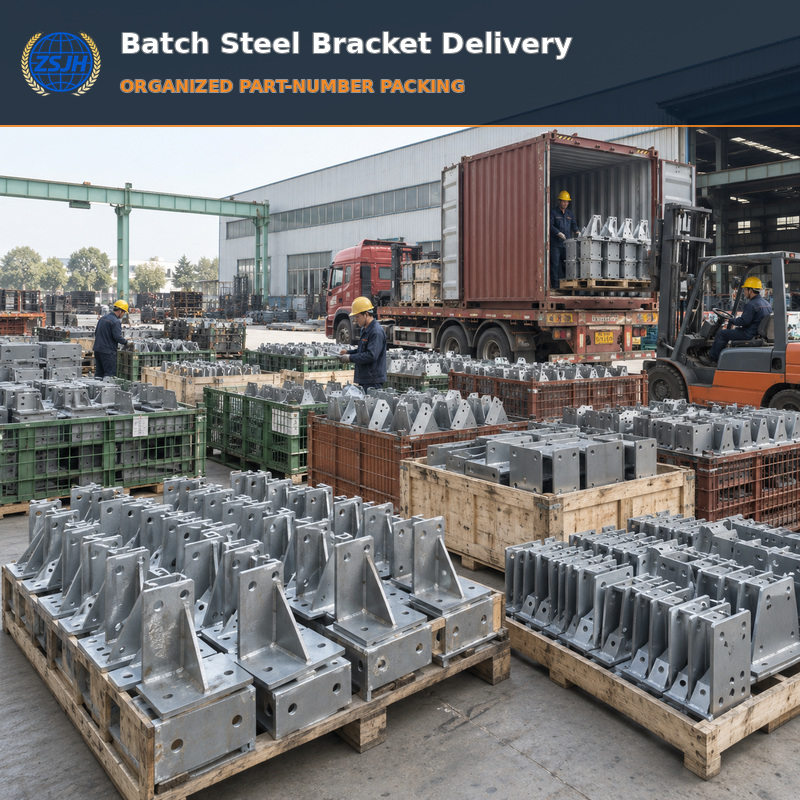

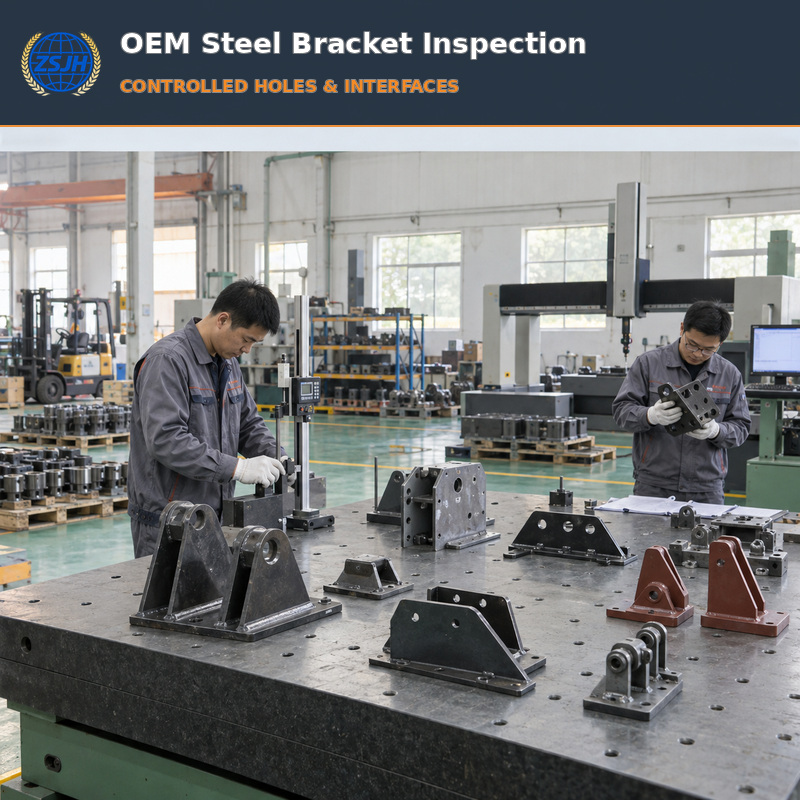

Inspect hole pitch, angle, offset, weld dimensions and the assembly interface. A mating sample or inspection fixture can be agreed for fit checks. Batch production starts after the required approval. Part revision, quantities and packaging separate similar brackets to reduce picking and assembly errors.

6 Delivery Workflow

7 FAQ

Can a sample define the bracket?

A sample supports review, but dimensions, material and tolerances must be recorded in a controlled drawing before production.

Can mirror brackets share one label?

Distinct identification is recommended where orientation affects assembly. The agreed part-number system controls packing.

8 CTA

Send your drawings, sample photos, target quantity and quality requirements to ZSJH for an OEM review and quotation for oem fabricated steel brackets.
