Our perforated profiles cover galvanized punched steel series and HDPE perforated drainage pipe. Pre‑punched standard holes allow fast assembly without on‑site drilling. Steel versions adopt hot‑dip galvanized anti‑corrosion treatment for long‑term outdoor service. Custom hole shape, hole pitch, thickness, cutting length are available for different engineering requirements, widely used for solar mounting brackets, equipment frames, warehouse racking, building support, landfill drainage and civil engineering projects.

Main Features

• Pre‑fabricated punching holes, quick bolt‑on installation, save site labor cost

• Steel material: hot‑dip galvanized finish, excellent rust‑proof for outdoor environment

• Multiple hole options: round hole, square hole, slotted oblong hole

• Flexible custom: material grade, wall thickness, hole spacing, cutting length

• High structural strength, stable load‑bearing capacity

• HDPE pipe: corrosion‑resistant, lightweight, good permeable drainage performance

Technical Parameters

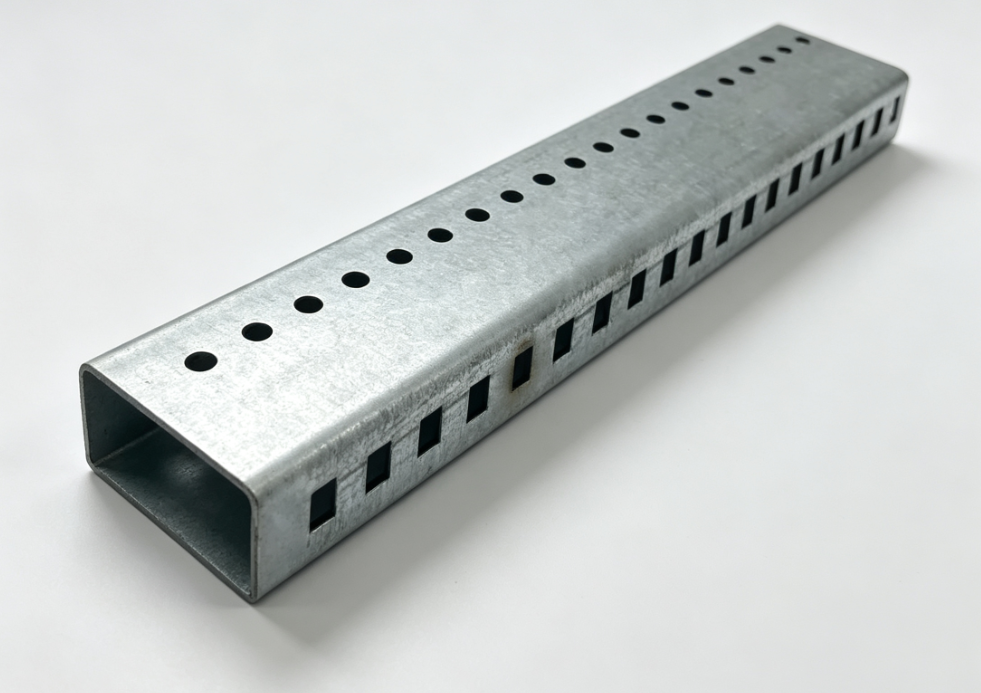

1. Steel Perforated Profiles

• Raw material: Q235B, Q355B carbon steel

• Surface treatment: Hot‑dip galvanized / pre‑galvanized

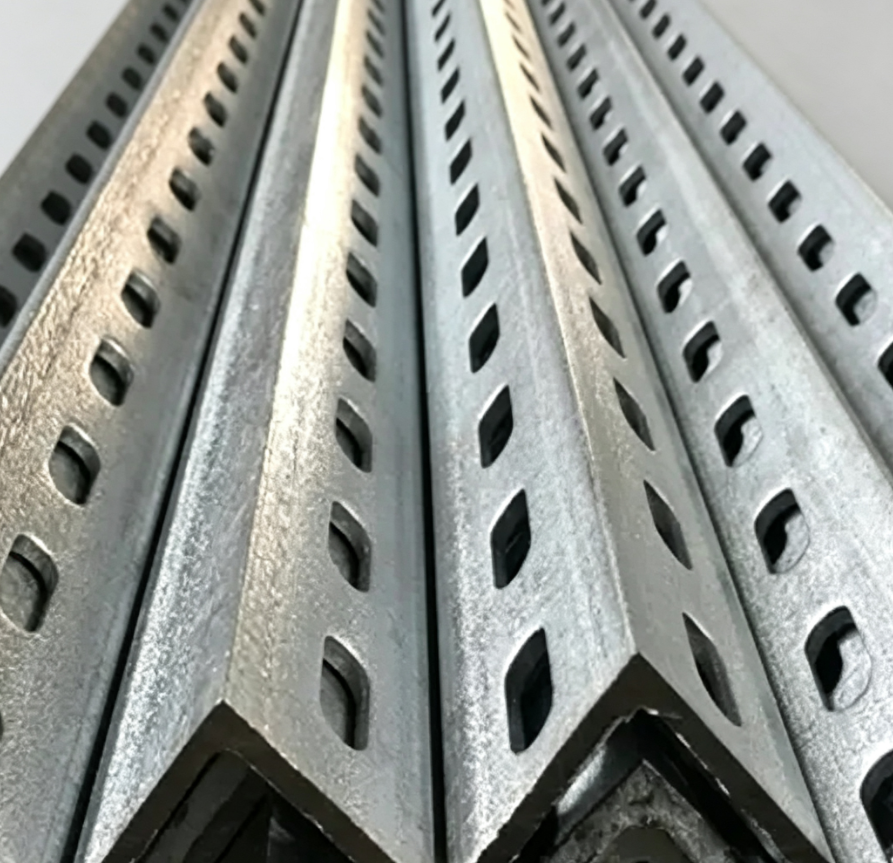

• Section: C‑channel, angle bar

• Wall thickness: 1.5‑4.0mm customizable

• Hole type: round hole, square hole, slotted hole

• Hole pitch: standard 50mm / 100mm or custom

• Length: 1m‑12m cut‑to‑length

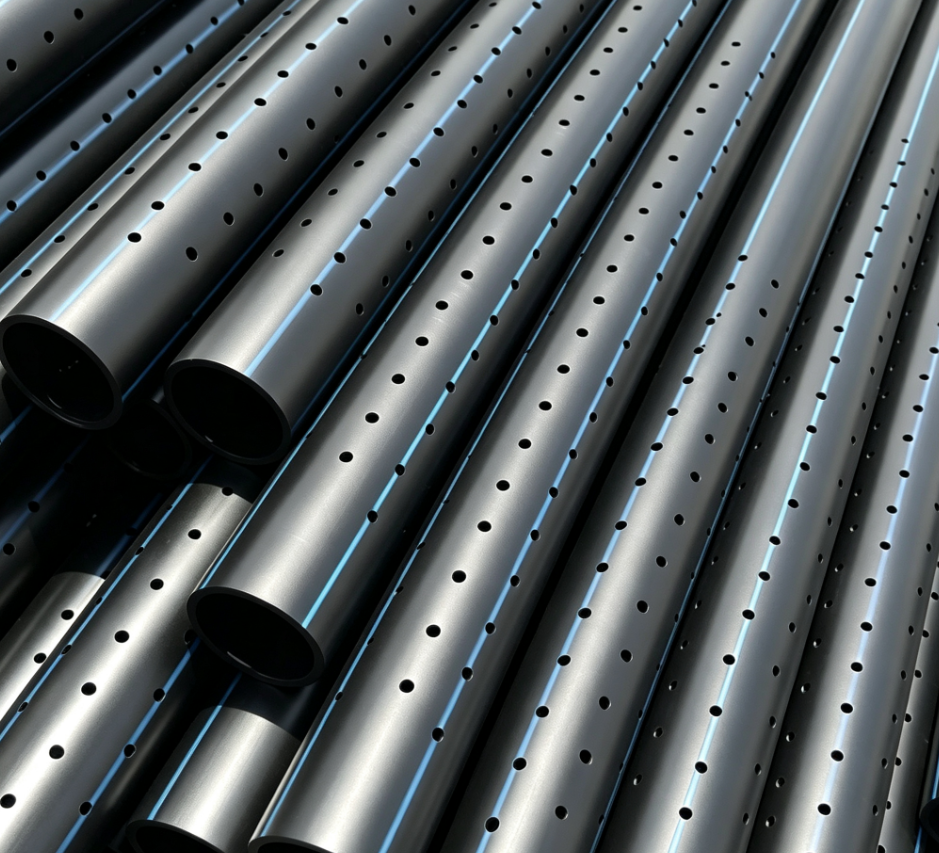

1. HDPE Perforated Drain Pipe

• Material: High‑density polyethylene HDPE

• Outer diameter: DN110, DN160, DN200 etc.

• Hole: round permeable holes

• Application: underground seepage & drainage

Application Scenarios

✅ Solar PV mounting support structures

✅ Industrial equipment frames & cabinet racking

✅ Warehouse storage shelving system

✅ Construction steel bracing & modular framework

✅ Municipal drainage, landfill seepage collection

✅ Agricultural water filtration & drainage projects

• Custom cross‑section size

• Custom hole shape, hole diameter and hole spacing

• Custom cutting length

• Custom surface treatment for steel parts

• Marking & packaging according to client’s requirement

FAQ

Q1: What is your standard hole pitch for perforated steel profiles?

Q2: Can you produce according to our drawings?

Q3: What surface treatment for steel perforated profiles?

Q4: What is MOQ?

Q5: What is the delivery port?
