This fabrication method provides greater dimensional flexibility than standard hot-rolled sections, allowing the beam height, flange width, web thickness, flange thickness, stiffeners, end plates, and connection details to be produced according to specific project requirements.

ZSJH Steel provides customized Built-Up Steel Beam manufacturing for industrial buildings, warehouses, commercial structures, equipment platforms, manufacturing facilities, and other heavy structural applications.

We support fabrication according to customer drawings, material specifications, connection requirements, and project standards.

Product Parameters

Product Advantages

Precision Plate Fabrication

Steel plates are cut and assembled according to fabrication drawings to help maintain accurate beam dimensions and connection locations.

Flexible Beam Geometry

Built-up beams can be manufactured in dimensions that are difficult to achieve with conventional rolled sections.

This makes them suitable for customized structural designs and project-specific load requirements.

Reinforced Construction

Web stiffeners, flange reinforcement plates, end plates, splice plates, brackets, and other structural components can be welded directly onto the beam.

High Structural Capacity

Heavy steel plates and customized beam sections make Built-Up Steel Beams suitable for structures requiring greater strength and stiffness.

Project-Specific Connections

Bolt holes, end plates, gussets, brackets, and connection components can be manufactured according to installation drawings.

Suitable for Batch Production

Built-Up Steel Beams can be supplied as individual customized members or as part of complete structural steel fabrication packages.

Fabrication Capabilities

Our Built-Up Steel Beam fabrication services include:

• Steel plate cutting

• Plate beveling

• Beam assembly

• Tack welding

• Longitudinal welding

• Beam straightening

• CNC drilling

• Stiffener fabrication

• End plate fabrication

• Splice plate installation

• Bracket welding

• Grinding and finishing

• Shot blasting

• Primer coating

• Final inspection

• Export packing

Production Workflow

Drawing Review → Material Preparation → Plate Cutting → Assembly → Welding → Straightening → Drilling → Secondary Component Installation → Surface Preparation → Coating → Quality Inspection → Packing

Production can be organized according to approved shop drawings and customer project schedules.

Typical Applications

Built-Up Steel Beams can be used in:

• Steel structure factories

• Industrial workshops

• Steel warehouses

• Distribution centers

• Manufacturing facilities

• Commercial steel buildings

• Multi-story structures

• Heavy equipment platforms

• Roof support systems

• Large structural frames

• Industrial mezzanines

• Processing plants

• Infrastructure structures

• Customized steel construction projects

Custom Built-Up Beam Solutions

Different projects require different structural sections.

ZSJH Steel can customize the following:

Beam Size
Beam height, flange width, web thickness, and flange thickness can be adjusted according to drawings.

Beam Length
Lengths can be manufactured according to project requirements and transportation conditions.

Stiffener Arrangement

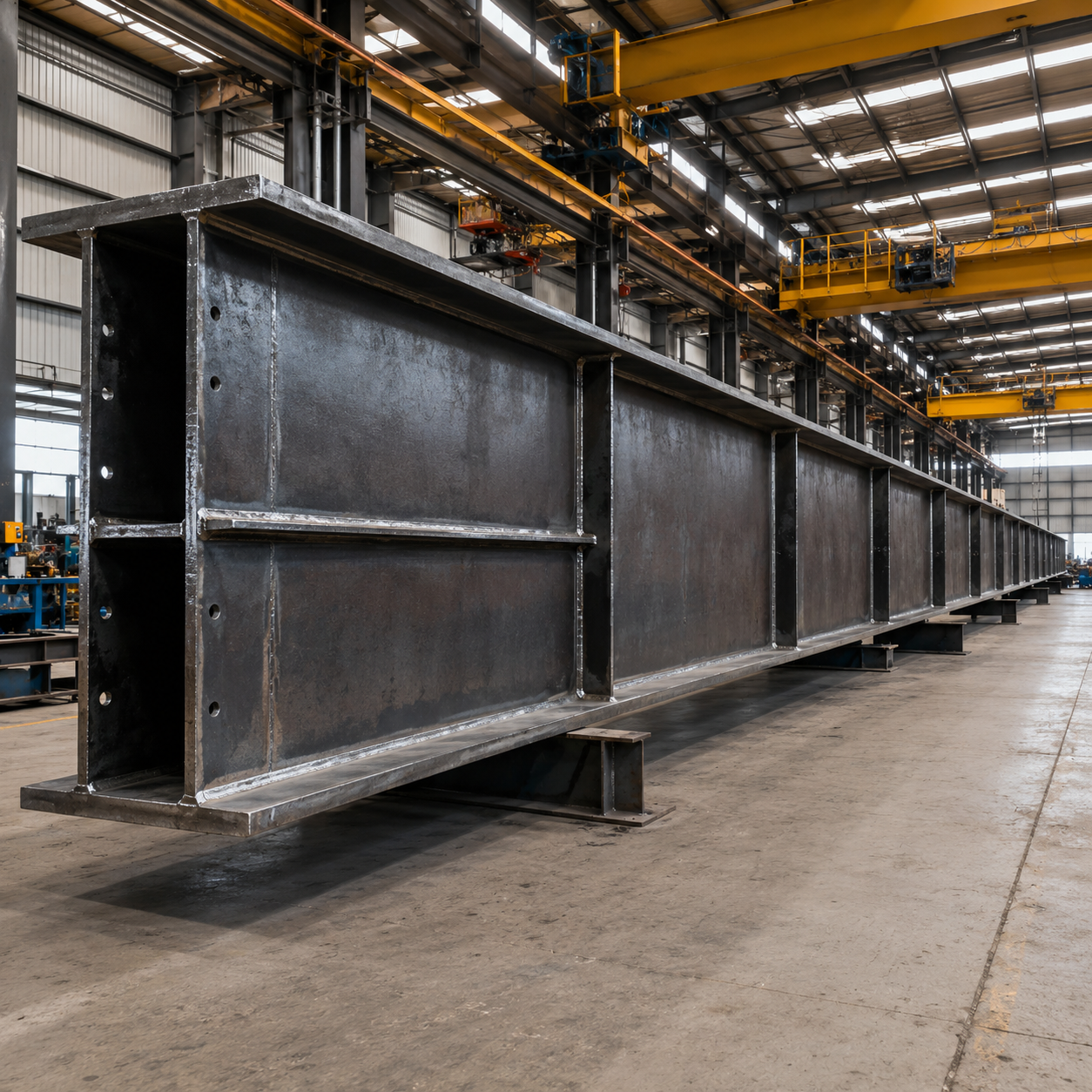

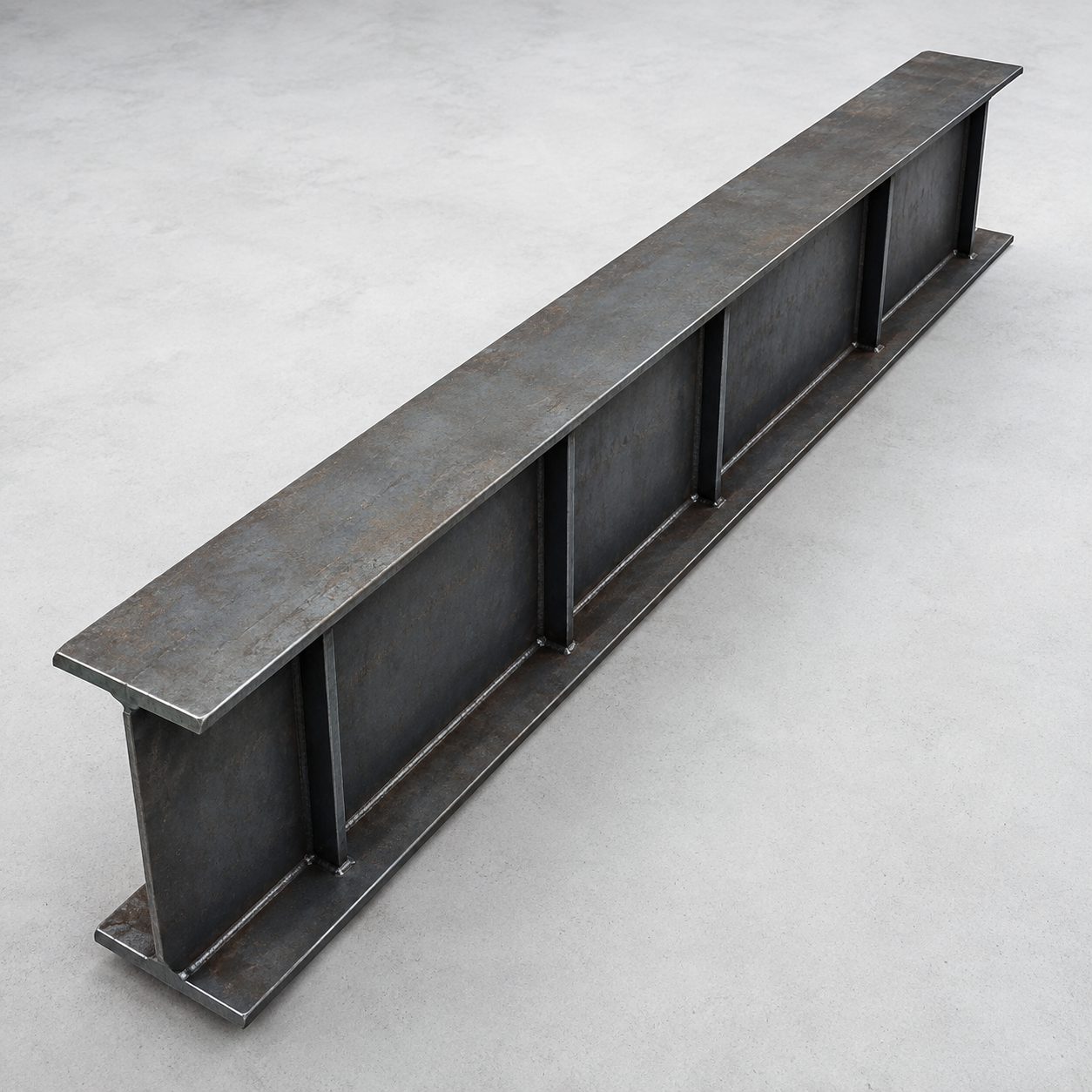

Vertical and horizontal stiffeners can be added according to structural design requirements.

Connection Components

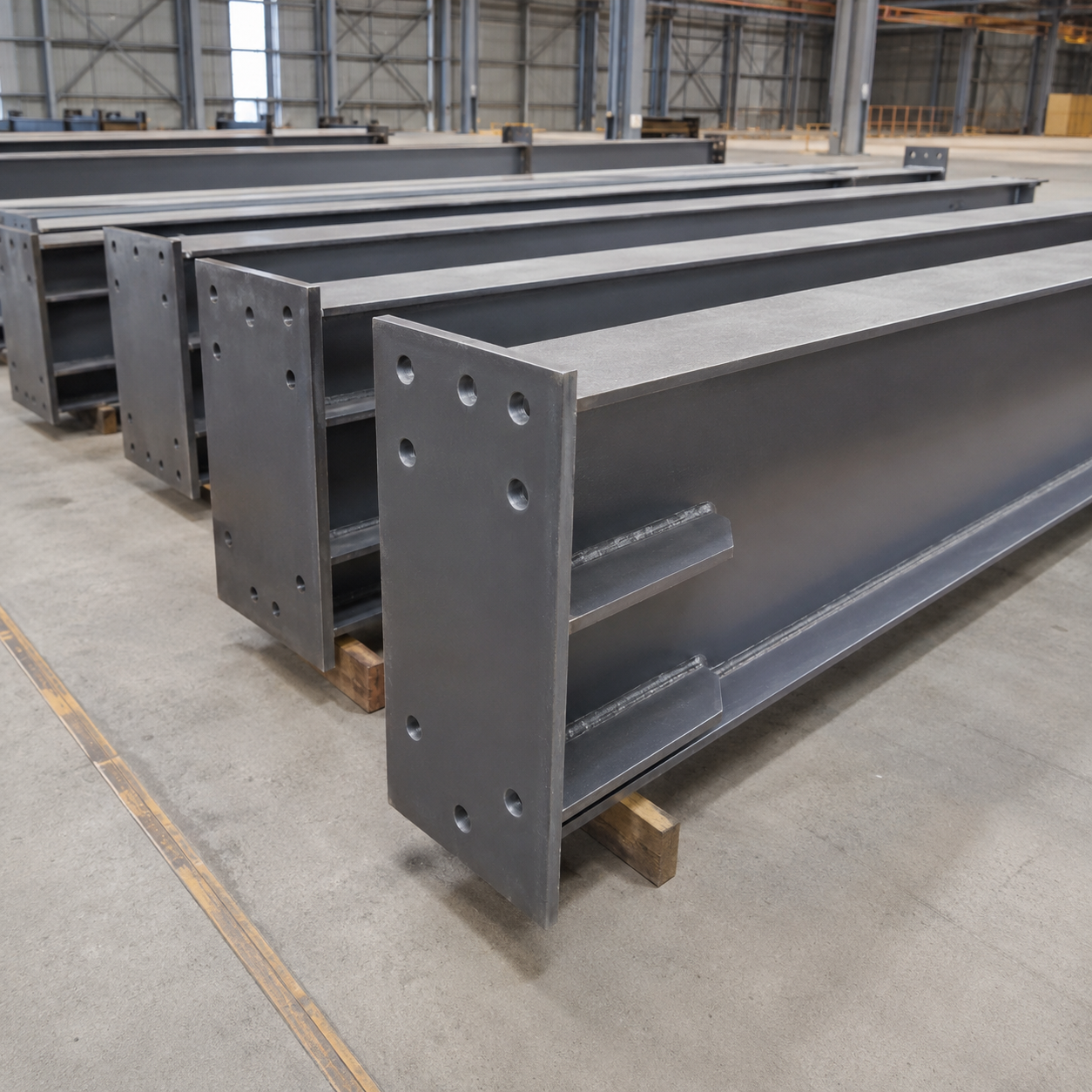

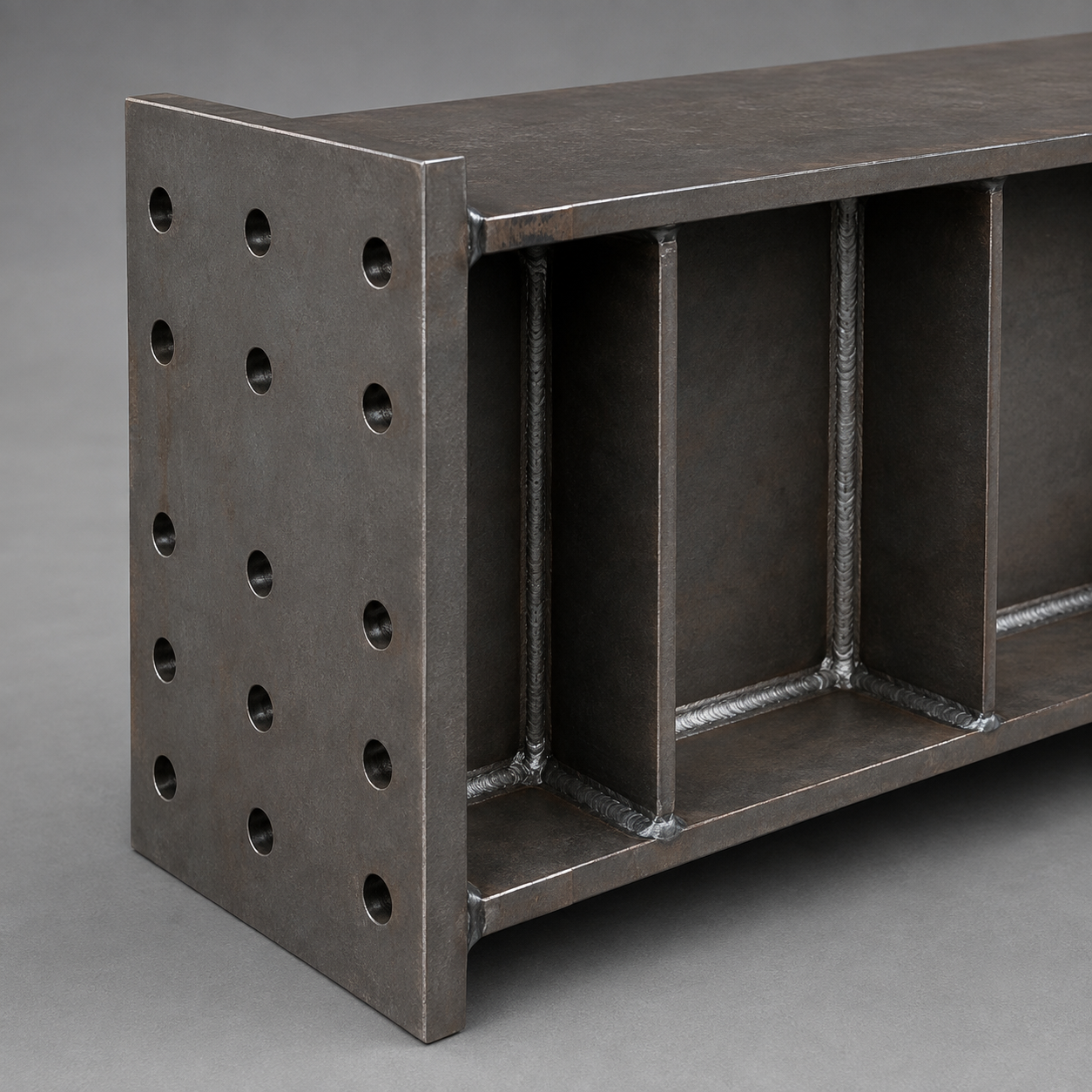

End plates, splice plates, gussets, brackets, and base connection components can be incorporated during fabrication.

Hole Layout
Bolt-hole diameter, spacing, and position can be CNC processed according to approved drawings.

Surface Protection
Different coating and corrosion-protection systems can be selected according to the installation environment.

Why Work With ZSJH Steel?

ZSJH Steel provides customized structural steel fabrication services for overseas projects.

From drawing review and material preparation to cutting, welding, drilling, surface treatment, inspection, packing, and export support, we provide an integrated manufacturing solution for structural steel components.

Our Built-Up Steel Beams are manufactured according to customer drawings and project specifications, making them suitable for contractors, fabricators, engineering companies, importers, and industrial project developers.

FAQ

Can Built-Up Steel Beams be made in non-standard sizes?

Yes. One of the main advantages of built-up fabrication is the ability to manufacture beam dimensions outside standard rolled-section sizes.

Can you manufacture beams with different flange and web thicknesses?

Yes. Flange and web plate thicknesses can be customized according to structural drawings and project requirements.

Can stiffeners be welded onto the beam?

Yes. Vertical stiffeners, reinforcement plates, connection plates, and other components can be added during fabrication.

Can you drill bolt holes before delivery?

Yes. Bolt holes and connection holes can be CNC processed according to approved fabrication drawings.
