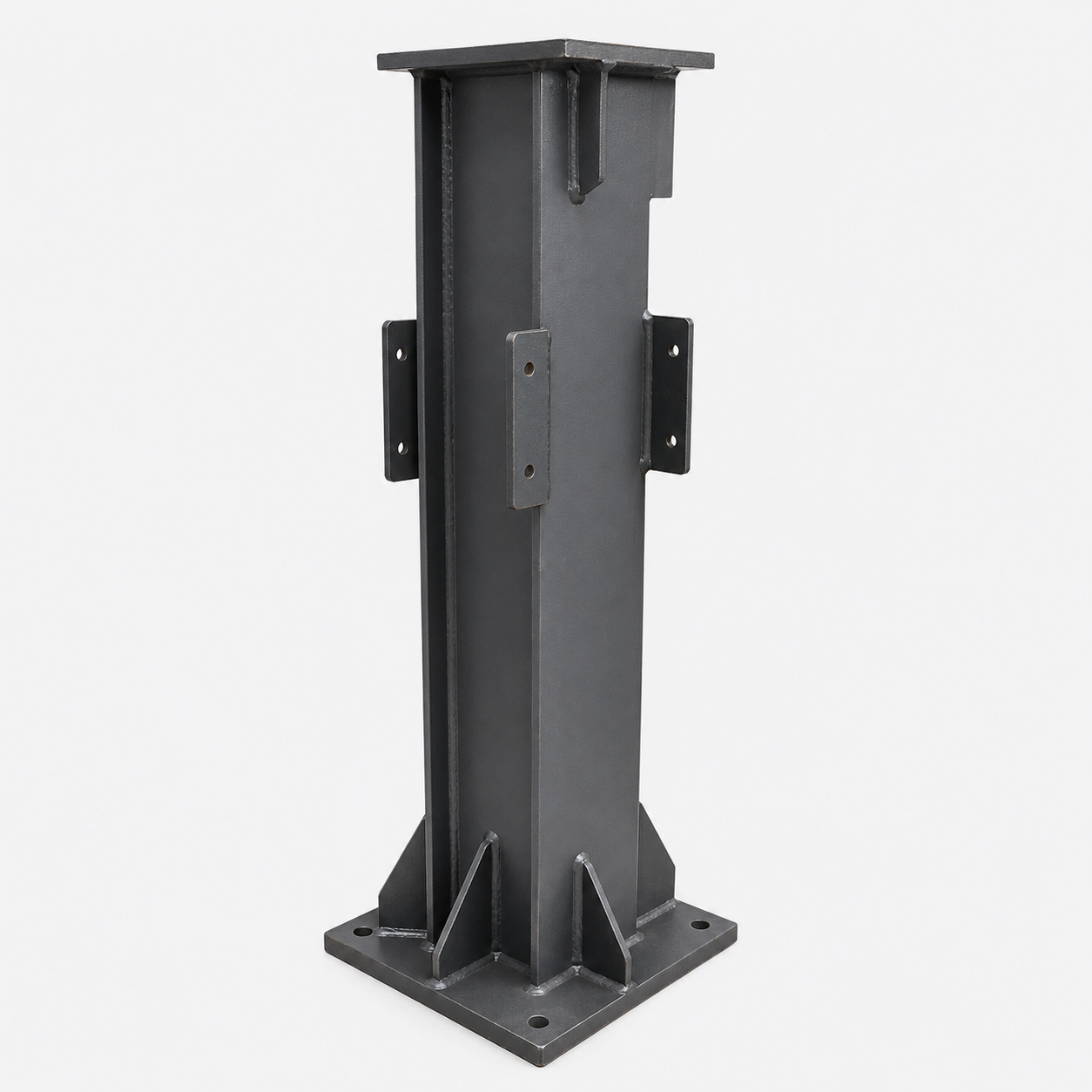

Each steel column can be manufactured according to customer drawings, structural specifications, connection requirements, and installation conditions. Components such as base plates, beam connection plates, stiffeners, gussets, splice plates, brackets, and bolt holes can be fabricated in the factory before shipment.

This helps provide accurate component dimensions and reduces additional fabrication work during site installation.

Customized Steel Column Manufacturing

We provide made-to-order steel column fabrication for different structural applications.

Available customization includes:

• Column height

• Section width and depth

• Web thickness

• Flange thickness

• Base plate size

• Top plate size

• Anchor hole position

• Beam connection plates

• Splice plates

• Stiffener plates

• Gusset plates

• Brackets

• Bolt hole diameter

• Welding details

• Surface treatment

Available Column Sections

Different section types can be manufactured depending on structural requirements.

H-Section Steel Columns

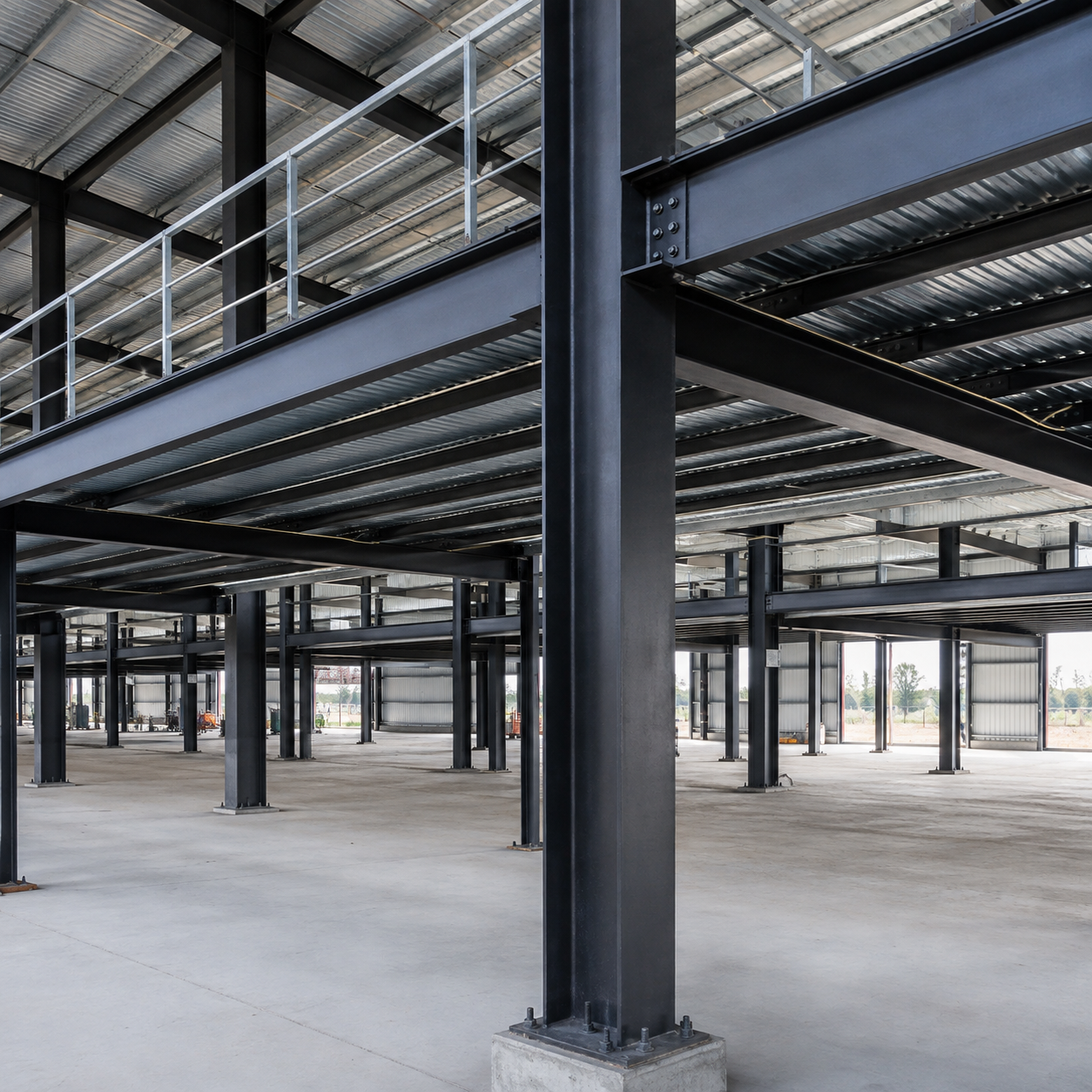

Commonly used in industrial buildings, warehouses, workshops, and steel frame structures.

Welded Built-Up Columns

Produced from steel plates for projects requiring customized dimensions or heavier structural capacity.

Box Section Columns

Suitable for applications requiring increased rigidity and compact structural profiles.

Custom Fabricated Columns

Special sections can be produced according to project drawings and connection requirements.

Steel Material Options

Available structural steel grades may include:

• ASTM A36

• ASTM A572

• ASTM A992

• Q235B

• Q355B

• S235JR

• S275JR

• S355JR

• Other equivalent grades upon request

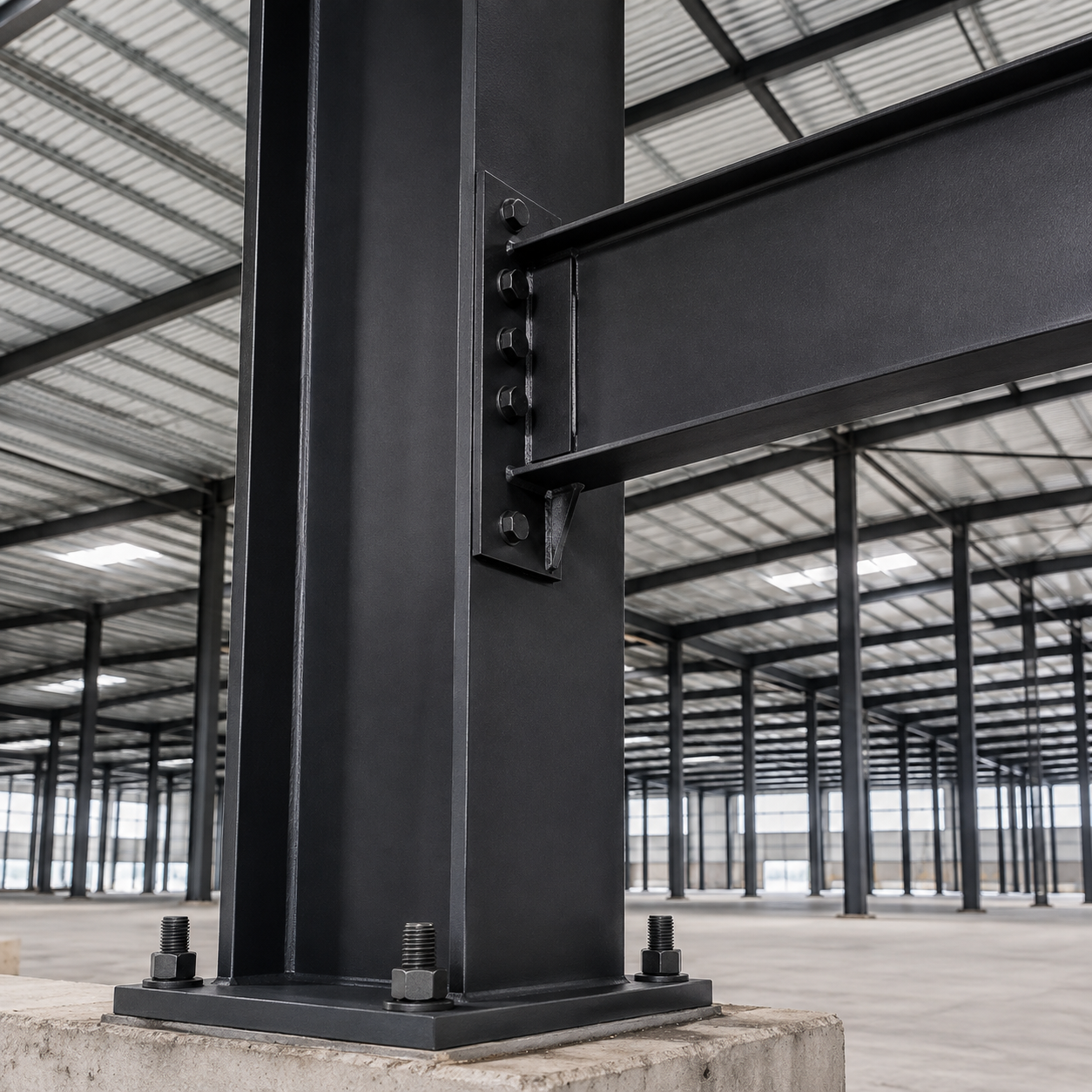

Connection-Ready Fabrication

Steel columns can be delivered with connection details completed before shipment.

Typical connection components include:

• Beam connection plates

• End plates

• Base plates

• Top plates

• Anchor bolt holes

• Splice plates

• Stiffener plates

• Gusset plates

• Cleats

• Mounting brackets

Pre-fabricated connection details can help improve installation efficiency and reduce site processing requirements.

Manufacturing Process

The typical production process includes:

Material Preparation → Cutting → Drilling → Assembly → Welding → Dimensional Inspection → Surface Preparation → Coating → Final Inspection → Packing

Surface Treatment Options

Shot Blasting

Cleans the steel surface and removes rust, oxide scale, and contaminants before coating.

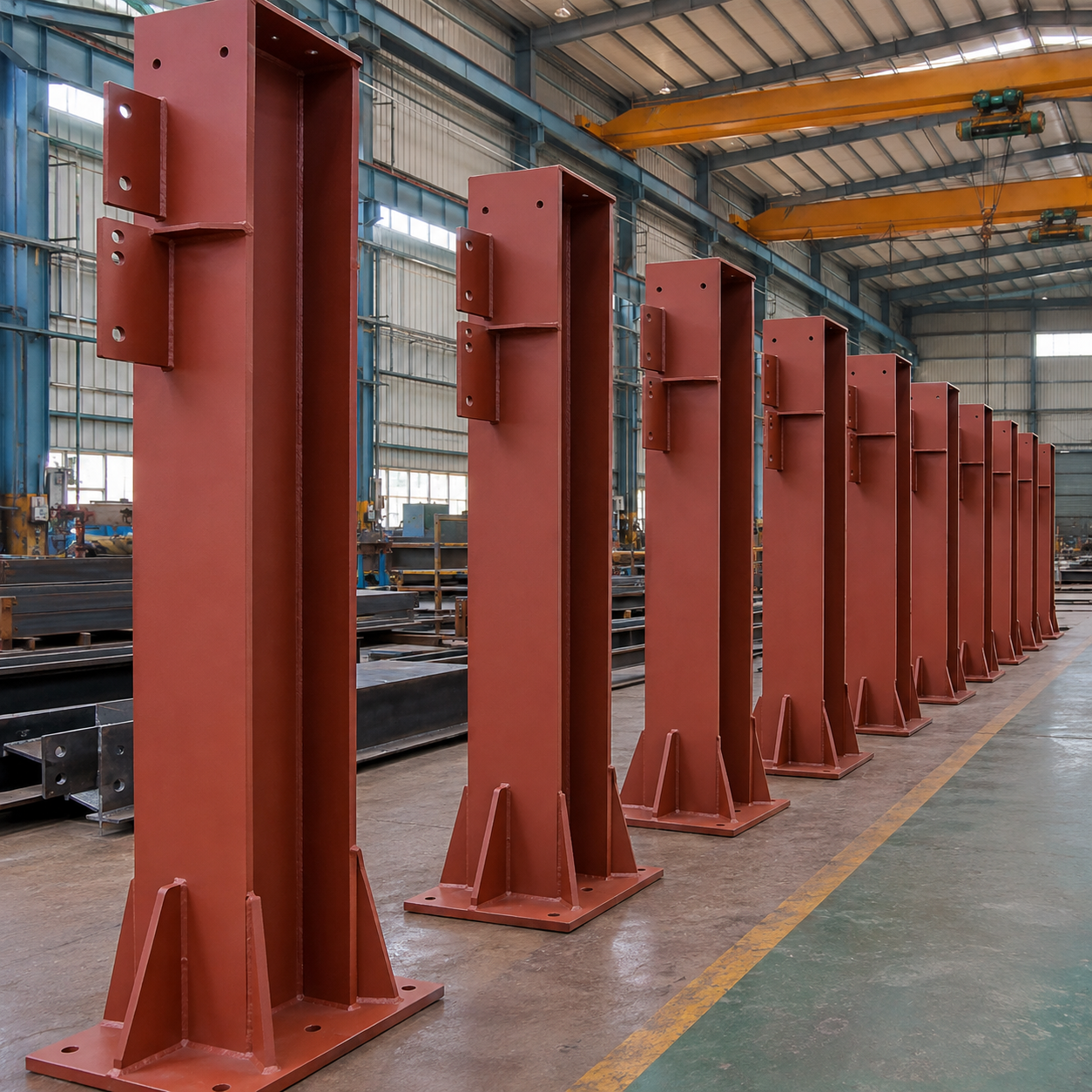

Primer Coating

Provides basic protection during transportation, storage, and installation.

Industrial Painting

Different coating systems can be applied according to project environment and anti-corrosion requirements.

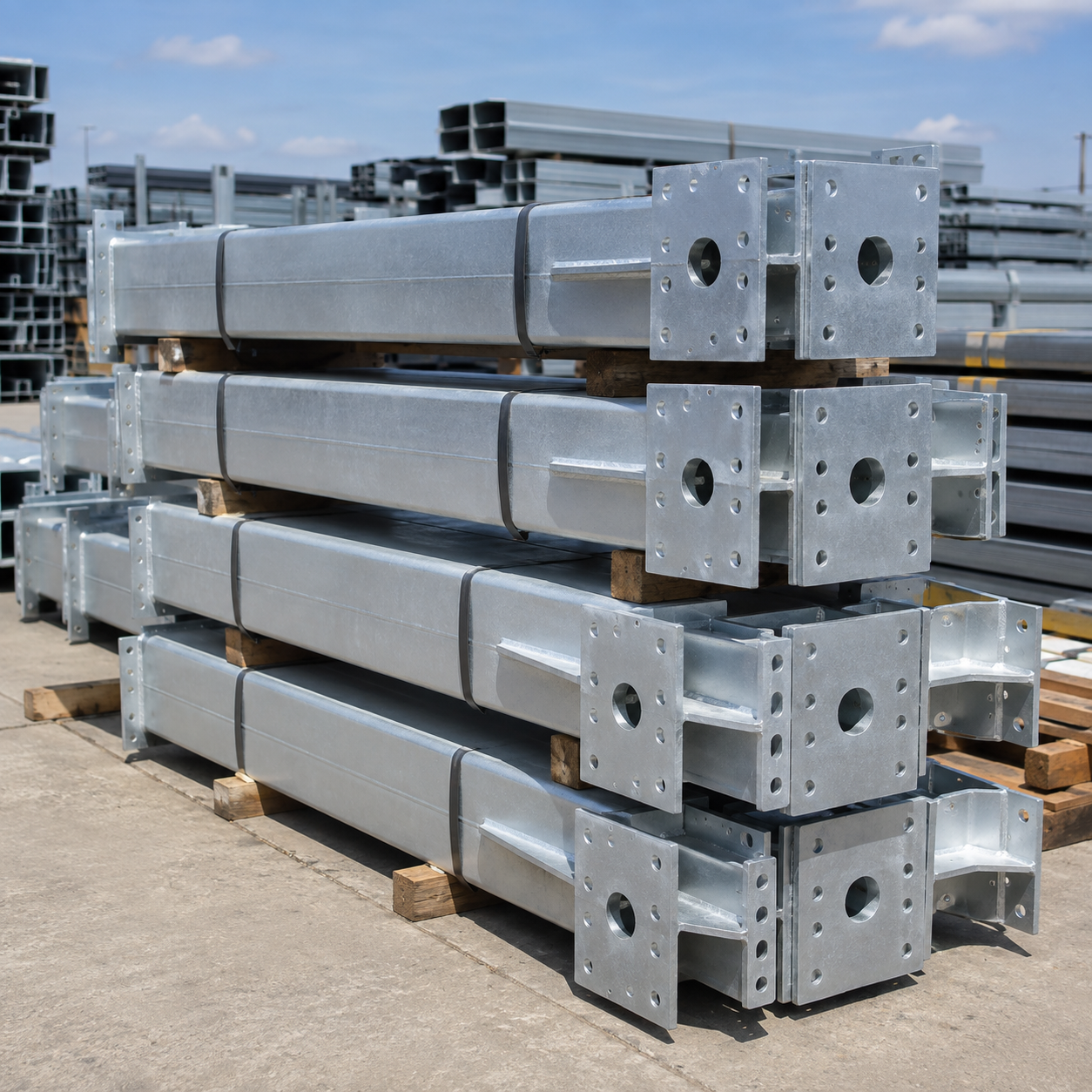

Hot-Dip Galvanizing

Suitable for outdoor, humid, coastal, or other environments requiring improved corrosion resistance.

Product Advantages

Drawing-Based Production

Steel columns are fabricated according to project drawings rather than limited to standard product dimensions.

Connection-Ready Components

Base plates, brackets, stiffeners, and bolt holes can be completed during factory production.

Reliable Structural Performance

Structural steel provides high strength and stable load-bearing performance for building frame systems.

Accurate Fabrication

Controlled cutting, drilling, assembly, and welding help maintain required dimensions and connection positions.

Flexible Surface Protection

Painting, primer coating, shot blasting, and galvanizing can be selected according to project requirements.

Export-Oriented Supply

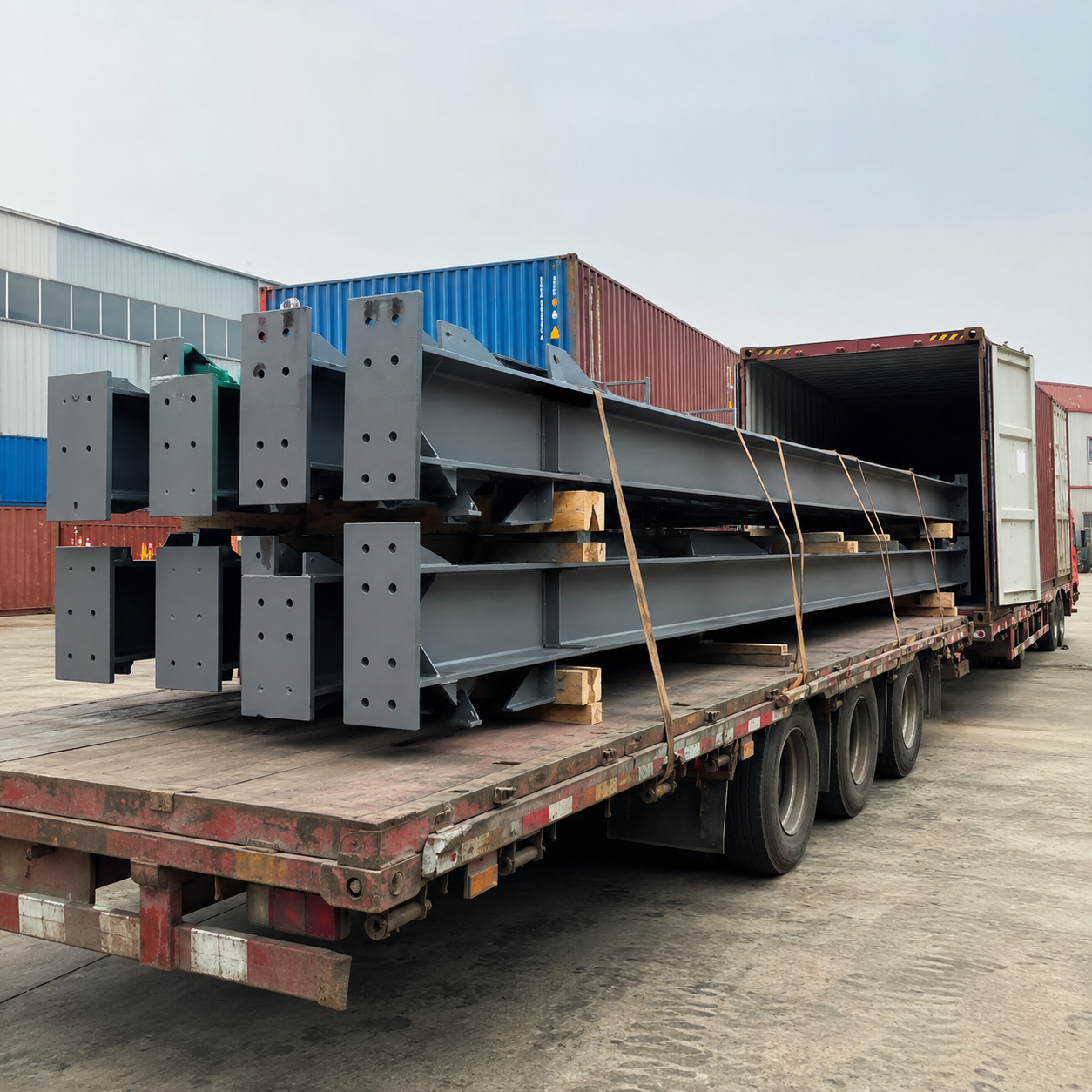

Finished steel columns can be bundled, marked, protected, and prepared for container or truck transportation.

Technical Specifications

Why Choose Our Steel Column Fabrication Service?

We provide customized fabrication from raw steel preparation to finished structural components.

Our capabilities include:

Cutting → Drilling → Welding → Assembly → Inspection → Surface Treatment → Packing → Export Delivery

Whether the project requires individual support columns or complete batches of steel frame components, production can be arranged according to drawings, quantities, material requirements, and delivery schedules.

FAQ

Can you manufacture steel columns according to our drawings?

Yes. We can fabricate columns according to structural drawings, shop drawings, fabrication drawings, and project specifications.

Can connection plates be welded before delivery?

Yes. Beam plates, splice plates, stiffeners, gussets, and brackets can be fabricated and welded in the factory.

Can anchor bolt holes be customized?

Yes. Hole diameter, spacing, quantity, and position can be produced according to drawings.

Can you manufacture different column sections?

Yes. H-section, built-up, box-section, and customized steel columns are available.

What surface treatments can you provide?

Shot blasting, primer coating, industrial painting, and hot-dip galvanizing are available.
