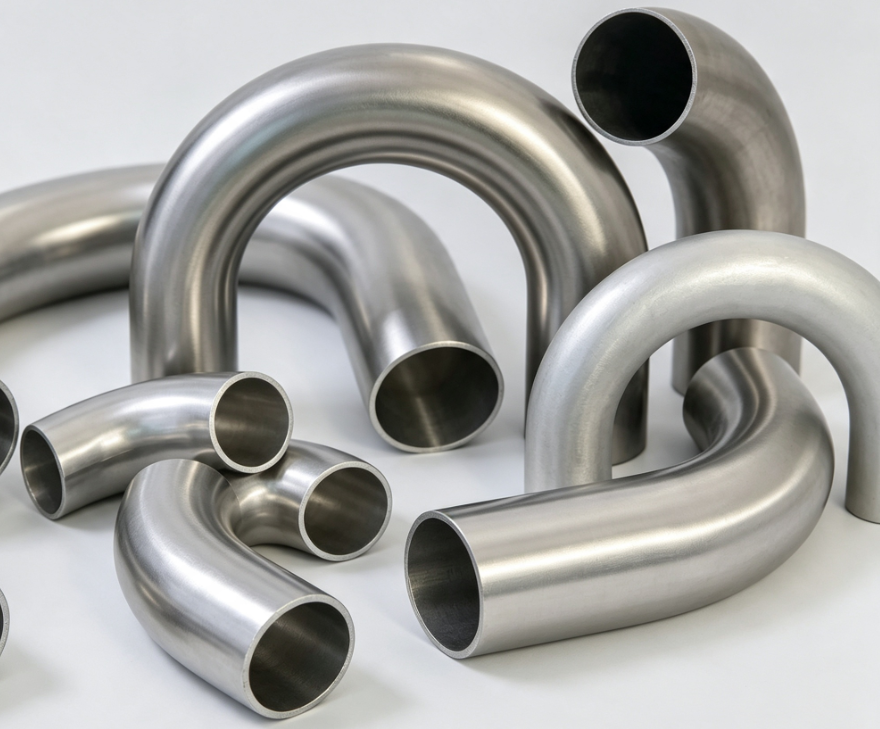

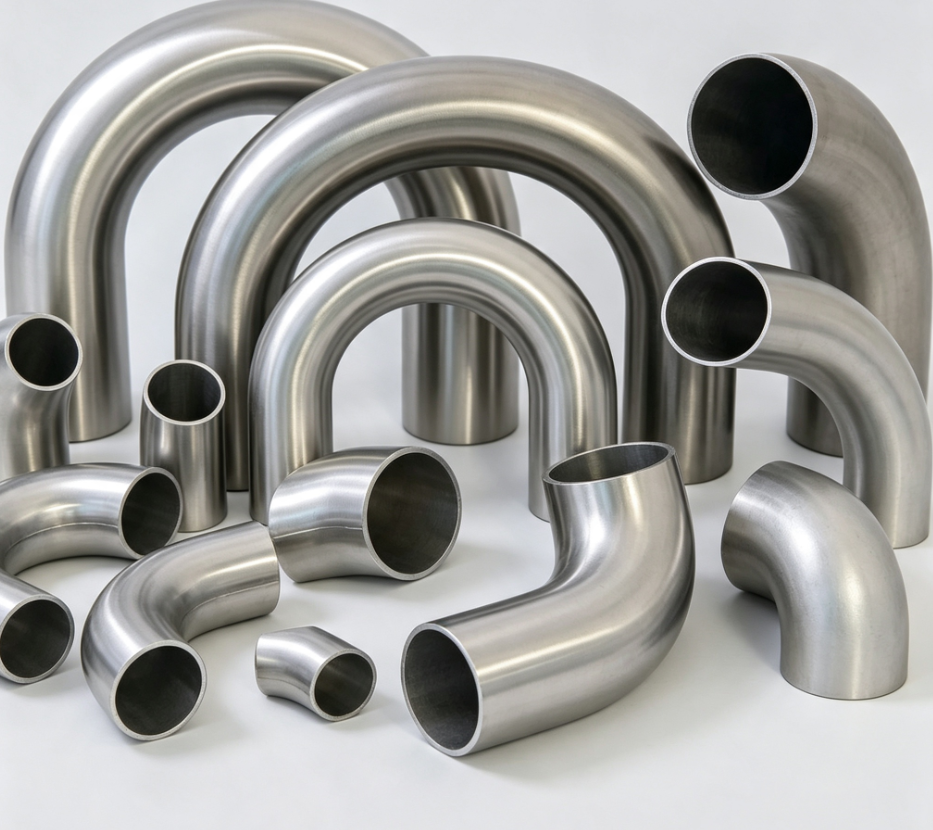

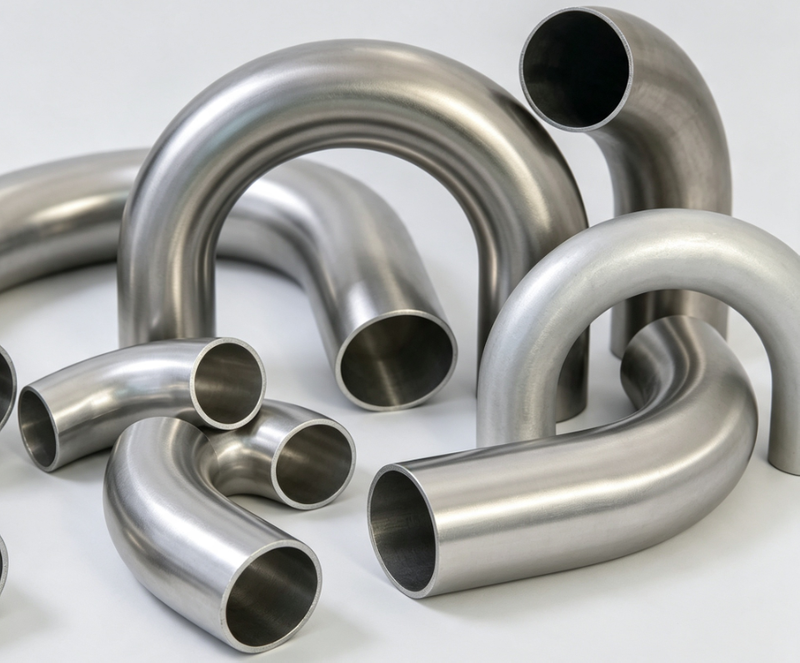

Our stainless steel pipe bends & U‑return bends are manufactured by mandrel bending / hot induction bending process. Used to change fluid direction in pipeline systems, available in 45°, 90°, 180°(U‑bend) and any custom bending angles. Smooth inner surface reduces fluid resistance and turbulence. Widely applied for heat exchanger, petrochemical, power plant, marine, food‑pharmacy processing piping systems
✅ Premium raw material: SS304 / 304L / 316 /316L / Duplex steel available

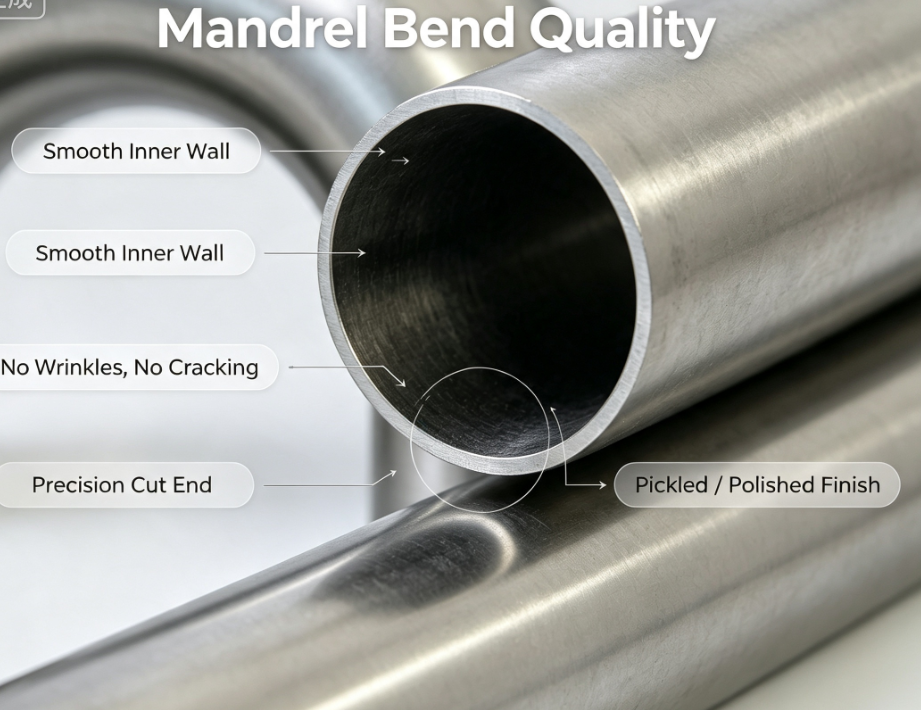

✅ Smooth mandrel bending, no wrinkles or cracking on inner wall
✅ Butt‑weld end for on‑site welding installation
✅ Custom bending radius: 1.5D,3D,5D,10D or non‑standard radius
✅ Multiple surface finish: pickled, polished, sand‑blasted
✅ Strict dimension inspection, meet ASME B16.49 & ASTM A403 standard
✅ OEM & custom drawing service supported

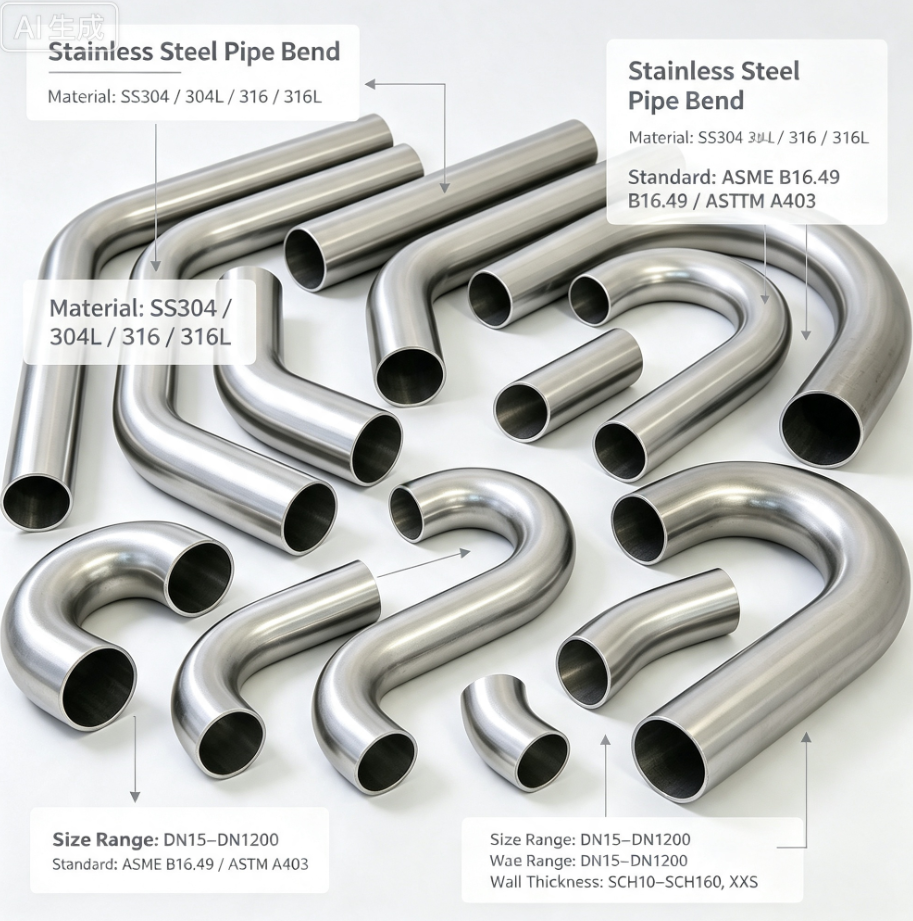

| Item | Specification |
|---|---|
| Material | SS304,304L,316,316L, Duplex 2205, Carbon steel |
| Standard | ASME B16.49, ASTM A403, ASTM A815 |
| Size Range | DN15‑DN1200 (1/2"‑48") |
| Wall Thickness | SCH10‑SCH160, XXS |
| Bend Angle | 15°,45°,60°,90°,180°(U‑bend), custom angle |
| Bend Radius | 1.5D,3D,5D,10D, custom radius |
| Connection Type | Butt‑Weld |
| Surface Treatment | Pickled & annealed, sand‑blasted, mirror polished |
| Process | Mandrel cold bend / Hot induction bend |
| Application | Heat exchanger, power plant, oil & gas, chemical, marine, food & beverage, HVAC piping |
