Steel Structure Connection System

Product Overview

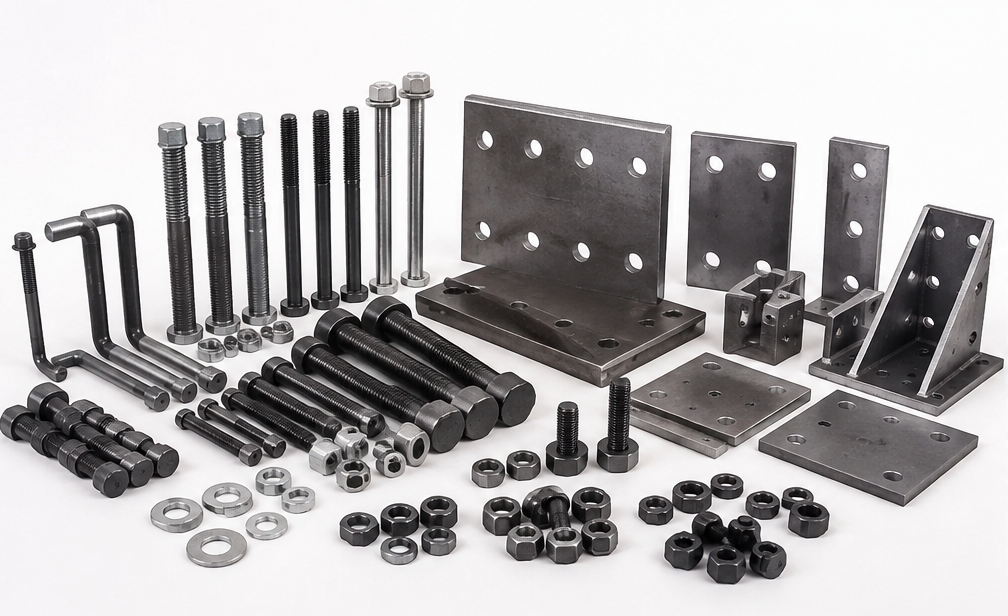

Steel Structure Connection System is a complete range of structural steel connection components designed to connect, secure, and reinforce steel members in construction and engineering projects. A complete system may include high strength bolts, anchor bolts, steel connection plates, base plates, gusset plates, splice plates, nuts, washers, and other structural steel connection accessories.

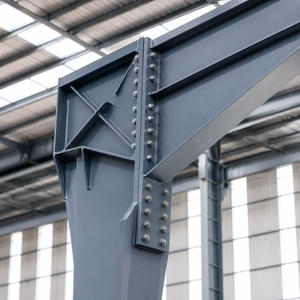

The connection system plays a critical role in transferring loads between structural members and creating stable steel frames. It is widely used for steel beam-to-column connections, column base connections, beam splices, column splices, bracing connections, truss connections, and other structural steel joints.

ZSJH Steel Structure provides customized steel connection components manufactured according to engineering drawings, CAD files, BOMs, connection details, technical specifications, and applicable project standards.

Product Types

Our Steel Structure Connection System can be configured with different components according to the structural design and connection requirements.

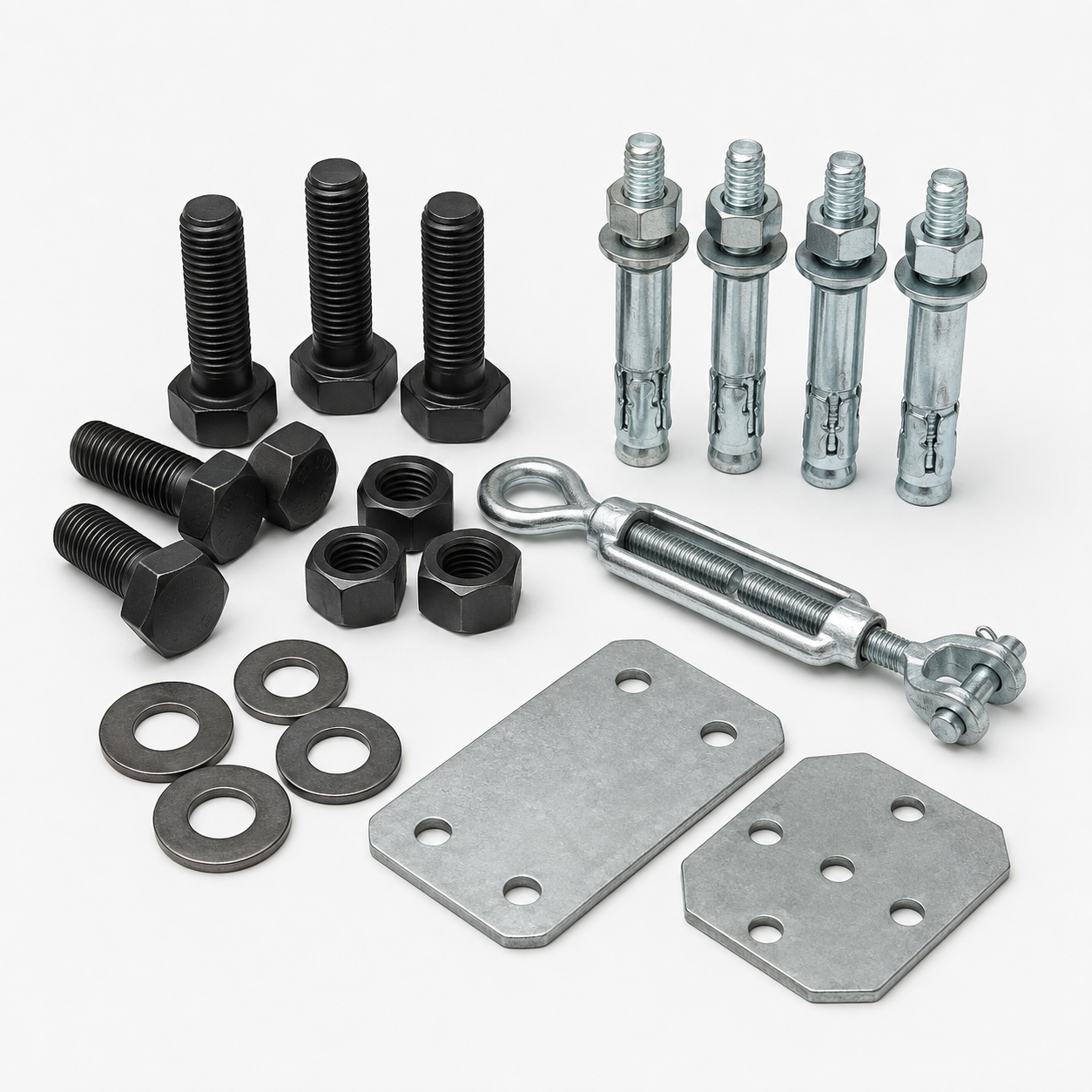

1. High Strength Bolts

High strength structural bolts are used for bolted connections between steel beams, columns, plates, and other load-bearing structural members.

Available configurations can include:

• Structural Hex Bolts

• Heavy Hex Structural Bolts

• High Tensile Bolts

• Bolt Assemblies

• Matching Structural Nuts & Washers

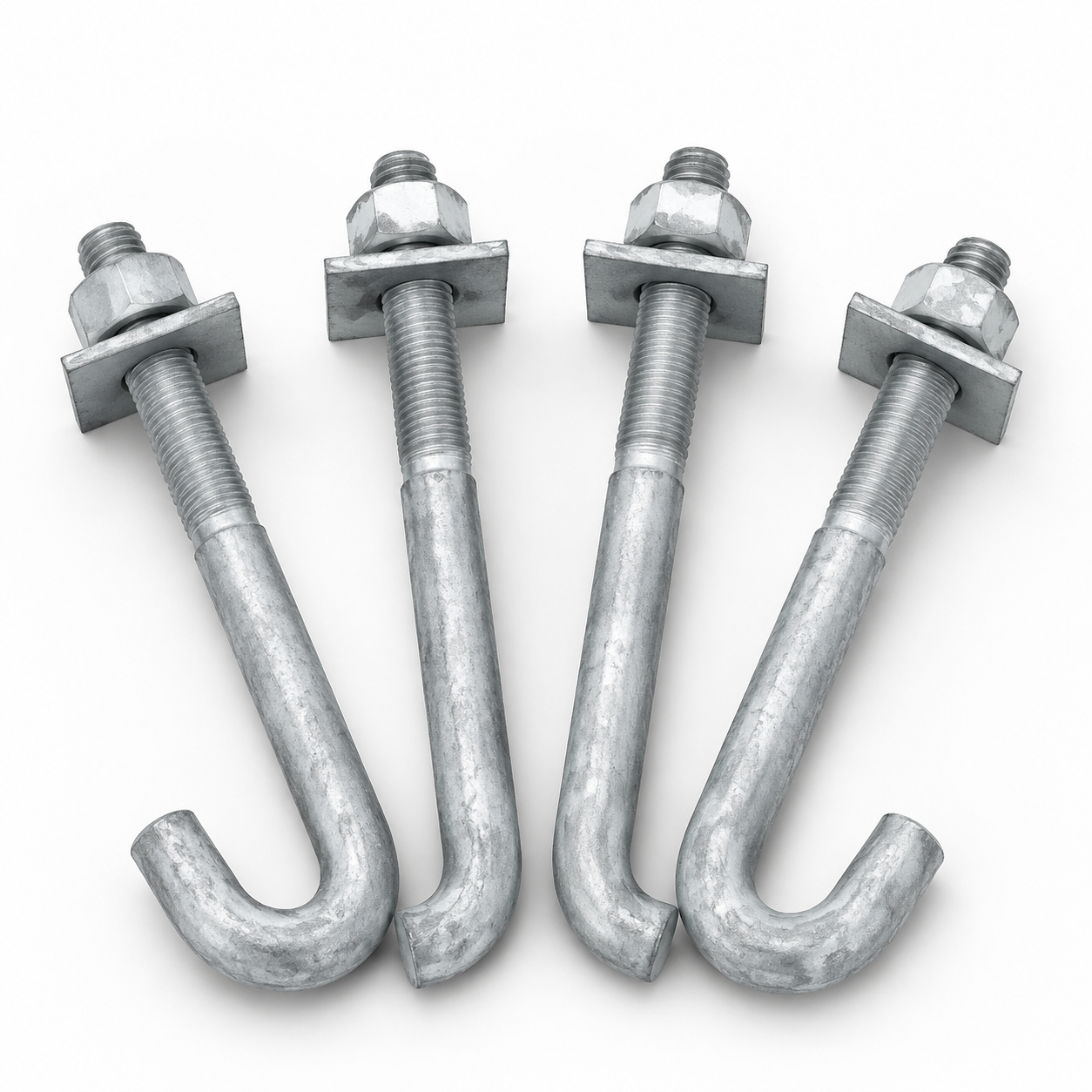

2. Anchor Bolts

Anchor bolts are used to connect steel columns and base plates to concrete foundations.

Common configurations include:

• L-Type Anchor Bolts

• J-Type Anchor Bolts

• Straight Anchor Bolts

• Customized Anchor Bolts

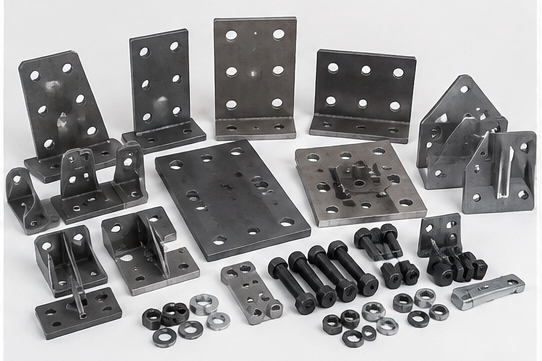

3. Steel Connection Plates

Fabricated connection plates provide connection surfaces between structural steel members.

Common types include:

• Gusset Plates

• Splice Plates

• End Plates

• Cleat Plates

• Custom Connection Plates

4. Base Plates

Steel base plates are installed beneath steel columns and work together with anchor bolts to transfer structural loads to concrete foundations.

5. Nuts & Washers

Matching nuts and washers can be supplied with structural bolts to form complete bolt assemblies for steel structure installation.

Product Specifications

Materials & Strength Grades

Steel connection components can be manufactured from suitable carbon steel, structural steel, or alloy steel according to project specifications.

Common structural steel grades may include:

• ASTM A36

• ASTM A572

• S235JR

• S275JR

• S355JR

• S355J2

• Q235B

• Q355B

Structural bolts can be supplied in strength grades such as 8.8 and 10.9, where applicable to the specified standard and project requirements.

Material grades, mechanical properties, bolt grades, and applicable standards are confirmed according to the customer's engineering requirements before production.

Dimensions & Custom Specifications

One of the key advantages of our Steel Structure Connection System is its project-specific customization capability.

We can manufacture components according to:

• Bolt Diameter

• Bolt Length

• Plate Length

• Plate Width

• Plate Thickness

• Bolt Hole Diameter

• Hole Quantity

• Hole Spacing

• Hole Position

• Edge Distance

• Slot Dimensions

• Connection Configuration

• Component Quantity

For non-standard steel connection components, customers can provide CAD drawings, PDF drawings, shop drawings, BOMs, or detailed specifications for production.

Connection Methods

Bolted Steel Connection

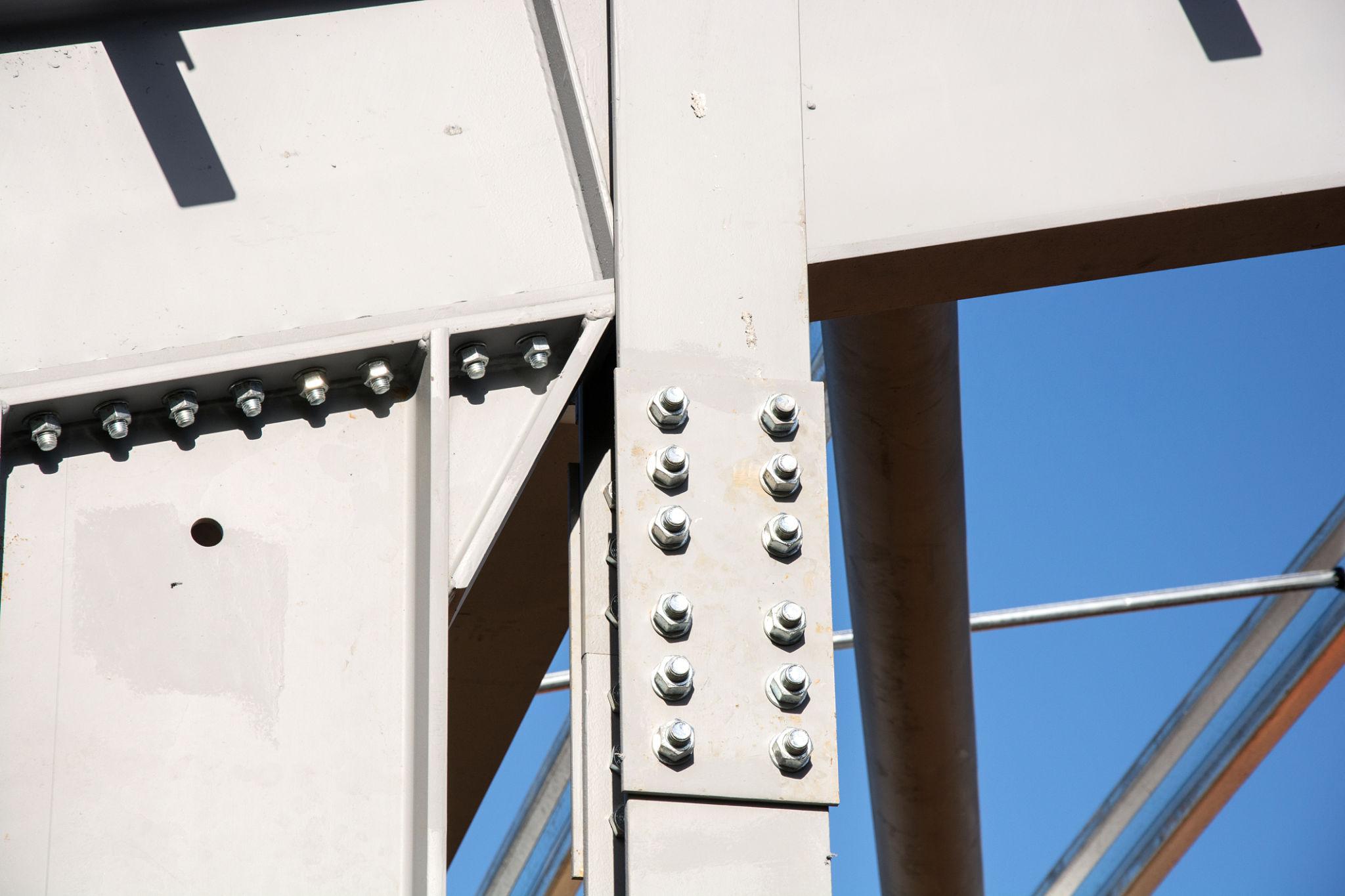

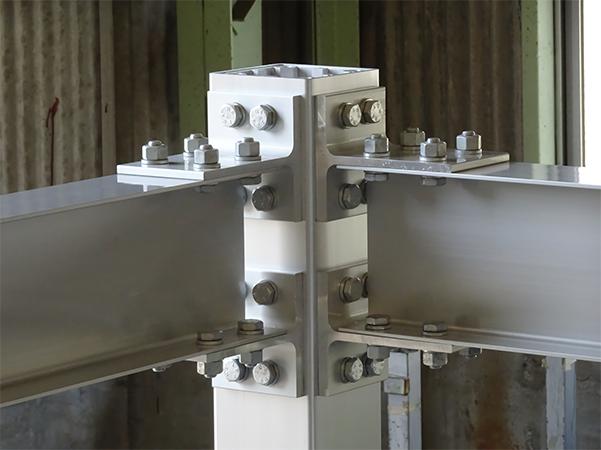

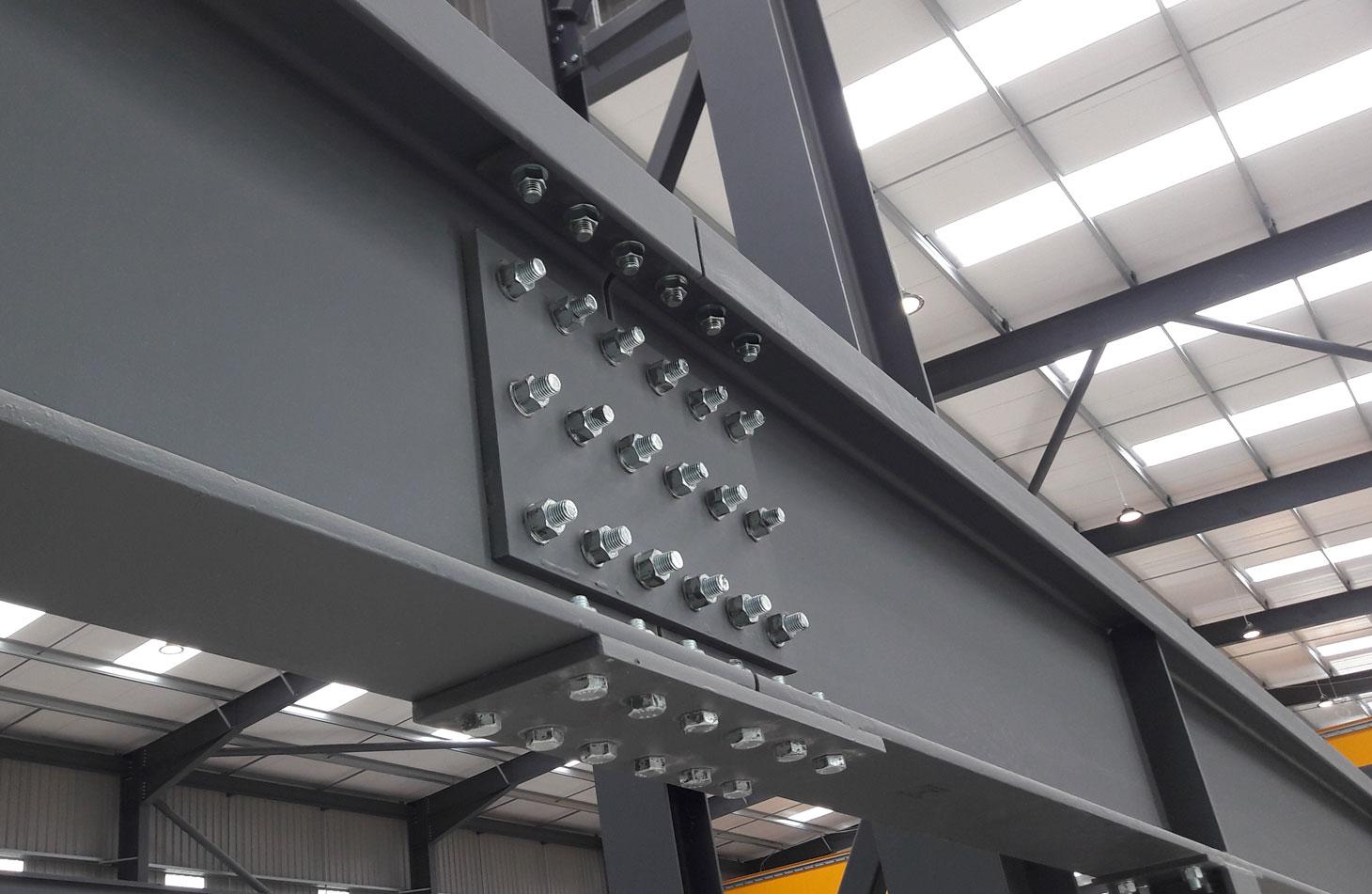

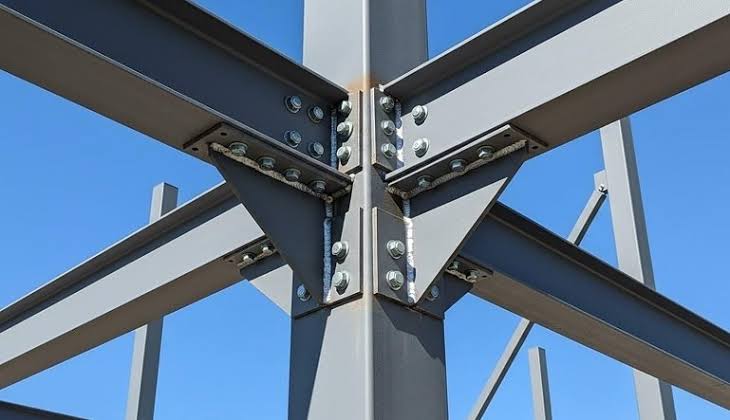

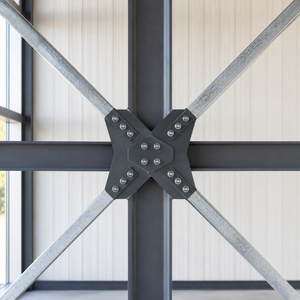

Bolted connections use high strength bolts, nuts, washers, and connection plates to connect structural steel members.

Common applications include:

Beam-to-Column Connections, Beam Splices, Column Splices, Bracing Connections, Truss Connections, and Structural Frame Connections.

Welded Steel Connection

Connection plates, base plates, and other fabricated steel components can also be manufactured for welded structural connections according to engineering drawings and welding specifications.

Column Base Connection

A typical column base connection may include:

Steel Column + Base Plate + Anchor Bolts + Nuts + Washers + Concrete Foundation

This connection transfers loads from the steel column into the foundation.

Precision Fabrication

Accurate fabrication is essential for steel connection components because incorrect dimensions or bolt-hole positioning can create difficulties during steel structure erection and installation.

Our fabrication capabilities include:

• CNC Plasma Cutting

• CNC Laser Cutting

• CNC Drilling

• Hole Punching

• Plate Cutting

• Slot Cutting

• Welding

• Grinding

• Shot Blasting

• Primer Coating

• Protective Painting

• Hot-Dip Galvanizing

Fabrication parameters can be controlled according to the approved engineering drawings and project specifications.

Surface Treatment

Different surface treatment options can be supplied depending on the project environment and corrosion protection requirements.

Plain / Black Finish

Suitable for applications where additional corrosion protection is not required or where further coating will be applied.

Primer Coating

Provides basic corrosion protection and can be used as part of a multi-layer structural steel coating system.

Protective Painting

Coating systems, colors, and paint specifications can be customized according to project requirements.

Hot-Dip Galvanizing

Provides enhanced corrosion resistance and is suitable for outdoor, humid, or exposed steel structures.

Applications

Steel Structure Connection Systems are widely used in:

Steel Structure Buildings

For connecting primary and secondary structural steel members.

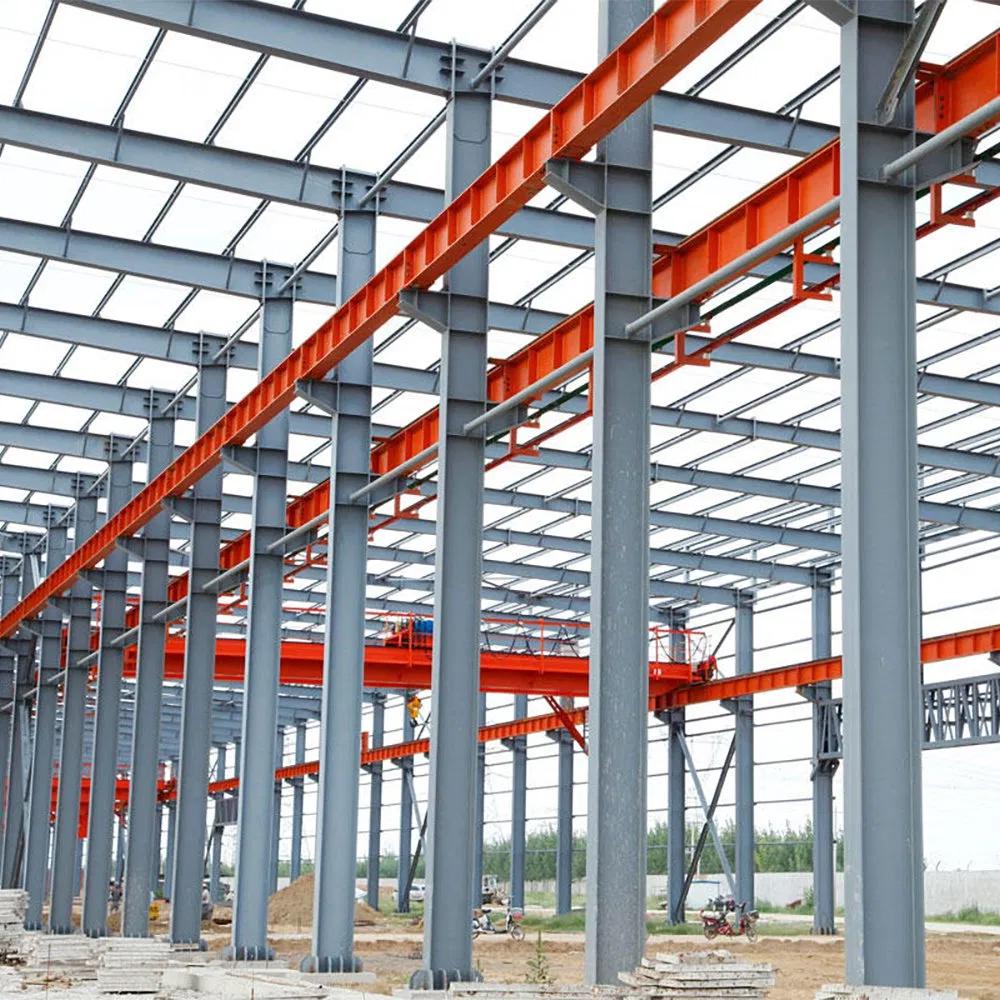

Steel Warehouses

Used in beam-to-column connections, bracing systems, column bases, and roof structures.

Industrial Workshops

Suitable for heavy-duty steel frames and industrial building structures.

Commercial Buildings

Used for structural steel frames, columns, beams, and connection joints.

Prefabricated Steel Buildings

Provides standardized or customized connection components for fast steel structure assembly.

Steel Bridges

Structural bolts, connection plates, splice plates, and other components can be used in bridge steelwork according to project specifications.

Steel Trusses

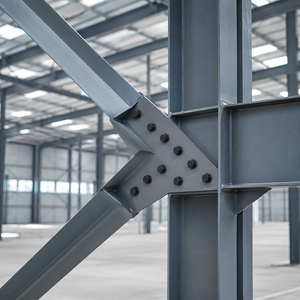

Gusset plates and structural bolts are commonly used to connect truss members.

Infrastructure Projects

Suitable for various structural steel and heavy engineering applications.

Key Features & Advantages

Complete Connection System

We can supply multiple structural connection components from one source, including high strength bolts, anchor bolts, connection plates, base plates, gusset plates, splice plates, nuts, and washers.

Customized Manufacturing

Dimensions, materials, strength grades, bolt-hole patterns, plate thicknesses, surface treatments, and connection configurations can be customized according to project requirements.

Precision Processing

CNC cutting, drilling, punching, and other fabrication processes support accurate production of customized steel connection components.

Flexible Connection Solutions

Components can be configured for bolted connections, welded connections, column base connections, beam splices, bracing connections, and other structural joints.

International Standards

Products can be manufactured according to applicable ASTM, EN, DIN, JIS, GB, or customer-specified standards, subject to technical confirmation.

Complete Accessories

Matching nuts, washers, bolts, anchor bolts, and other steel structure connection accessories can be supplied together to simplify procurement.

Quality Control

Quality control is carried out according to the confirmed product specifications and project requirements.

Inspection may include:

• Raw Material Verification

• Material Grade Verification

• Plate Thickness Inspection

• Dimensional Inspection

• Bolt Diameter Inspection

• Bolt Length Inspection

• Thread Inspection

• Bolt Hole Diameter Inspection

• Hole Position Inspection

• Welding Inspection

• Surface Treatment Inspection

• Quantity Verification

• Packaging Inspection

Inspection reports and relevant quality documentation can be provided according to customer and project requirements.

Why Choose ZSJH Steel Structure?

Direct Steel Structure Manufacturer

ZSJH Steel Structure is a steel structure manufacturer and supplier providing structural steel fabrication and connection components for international construction projects.

Our manufacturing experience covers both structural steel members and the connection components required for fabrication and erection, allowing us to better understand the requirements of complete steel structure projects.

Drawing-Based Production

We support production based on:

• CAD Drawings

• PDF Drawings

• Shop Drawings

• BOM / Material Lists

• Connection Details

• Technical Specifications

• Project Standards

This allows us to manufacture customized connection components rather than relying only on standard products.

One-Stop Procurement

Customers can source a wide range of structural connection products from one manufacturer:

High Strength Bolts → Anchor Bolts → Connection Plates → Base Plates → Gusset Plates → Splice Plates → Nuts → Washers

This can simplify purchasing, production coordination, packaging, and international shipment.

Customized Project Support

Whether you require a small quantity of custom connection plates or a complete connection component package for a large steel structure project, we can evaluate the drawings and specifications and provide a suitable manufacturing solution.

Export-Oriented Supply

Products can be prepared according to international shipment requirements, with customized packing, labeling, quantities, project identification, and shipping marks available according to customer requirements.

Packaging & Delivery

Steel Structure Connection Components are packaged according to their dimensions, weight, quantity, surface treatment, and transportation requirements.

Available packaging options include:

• Steel Pallets

• Wooden Pallets

• Wooden Cases

• Cartons

• Bundled Packing

• Customized Export Packaging

Product identification can include:

Part Number | Project Number | Product Type | Size | Quantity | Customer Reference

This helps customers identify components efficiently during receiving, storage, and on-site installation.

Customized Steel Structure Connection System

Looking for a reliable supplier of Structural Steel Connection Components for your next project?

ZSJH Steel Structure can manufacture and supply High Strength Bolts, Anchor Bolts, Steel Connection Plates, Base Plates, Gusset Plates, Splice Plates, Nuts, Washers, and other structural steel connection accessories according to your engineering requirements.

Send us your CAD drawings, PDF drawings, BOM, connection details, material grade, dimensions, required standards, quantity, and surface treatment requirements.

Our team can review your specifications and provide a customized quotation and production solution.
