Product Description

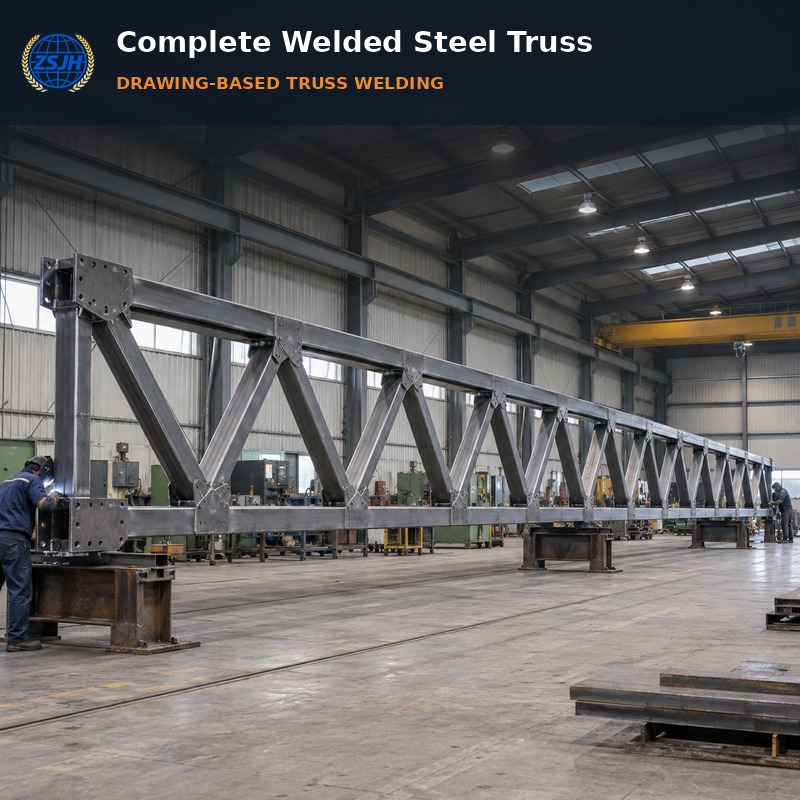

This service is intended for customers who need specific steel members or joint forms welded by a qualified fabrication team. ZSJH reviews material grade, thickness, joint design, welding position, access, distortion control and inspection requirements before production. The workflow can include fit-up, tack welding, preheating where specified, controlled welding, cleaning, visual inspection, dimensional checks and reporting. Finished customer components remain the customer's specified product; ZSJH provides the welding process and related fabrication support.

Service Specifications

Service Features

· Component-specific welding support

· Drawing and joint-detail review

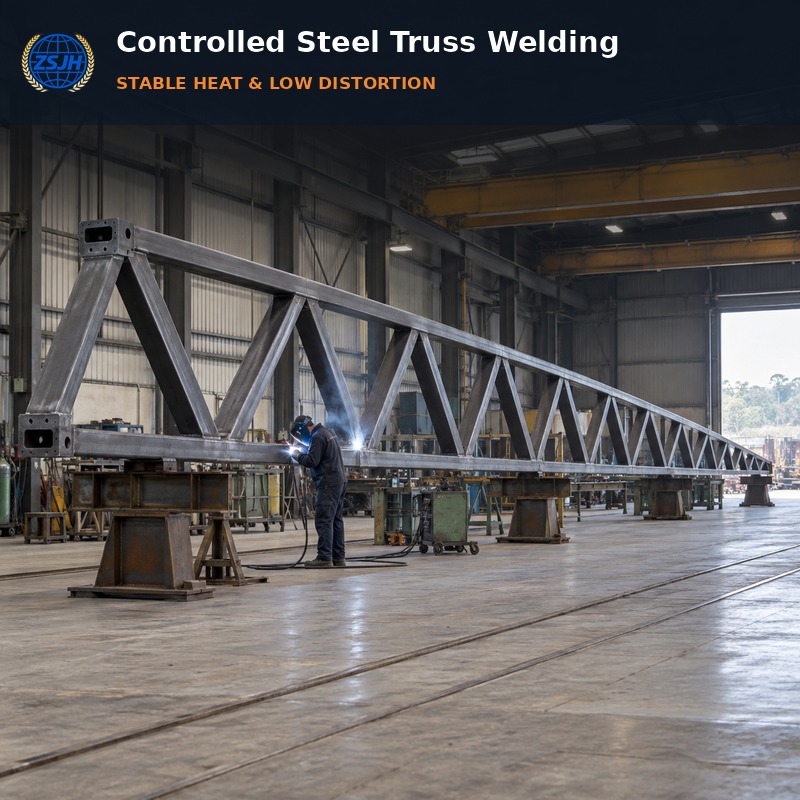

· Controlled heat input and distortion management

· Weld cleaning and visual inspection

· Traceable records and revision control

Applications

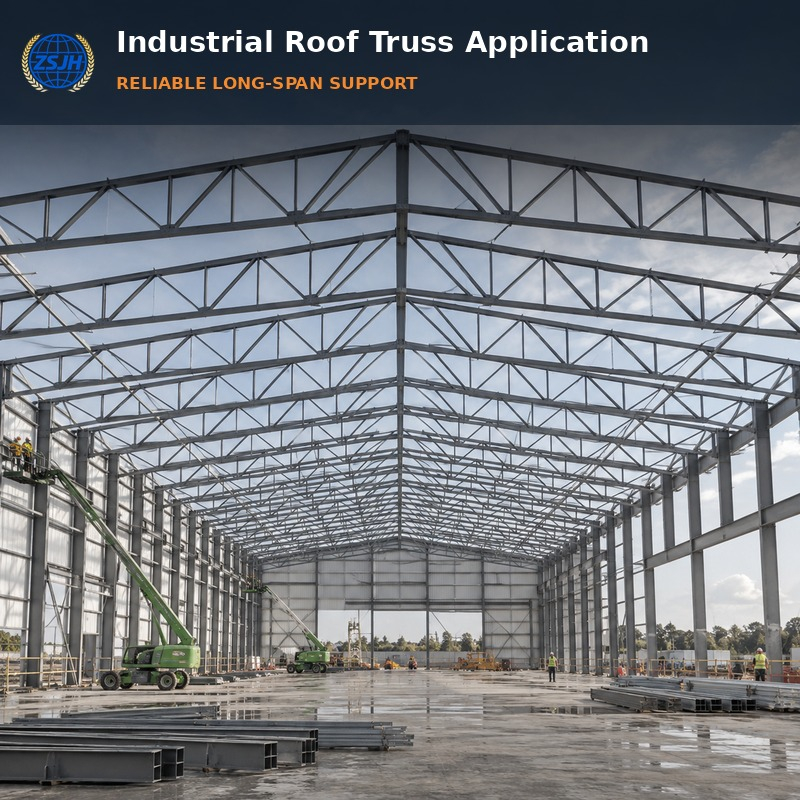

· Roof trusses

· Pipe trusses

· Space frames

· Bridge trusses and industrial trusses

Customization Capability

Weld type, joint preparation, weld size, welding position, consumables, preheat, interpass control, sequence, tolerances, inspection level, repair procedure and documentation can be customized for steel truss welding service.

Welding and Quality Process

· Review drawings, materials and joint details

· Confirm fit-up, weld access and sequence

· Prepare and align customer components

· Complete tack welding and production welding

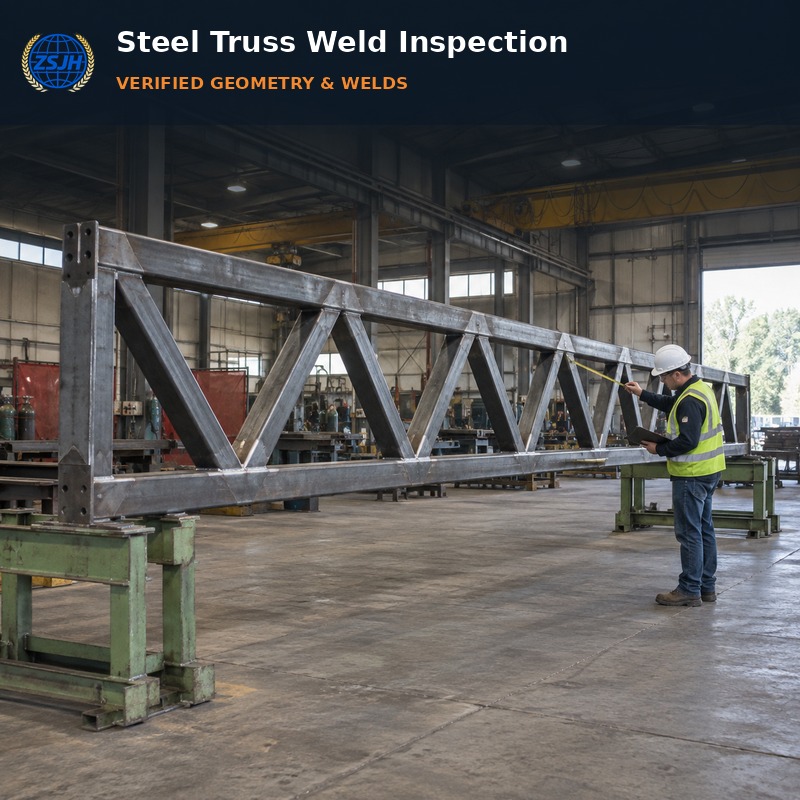

· Clean welds and perform specified inspection

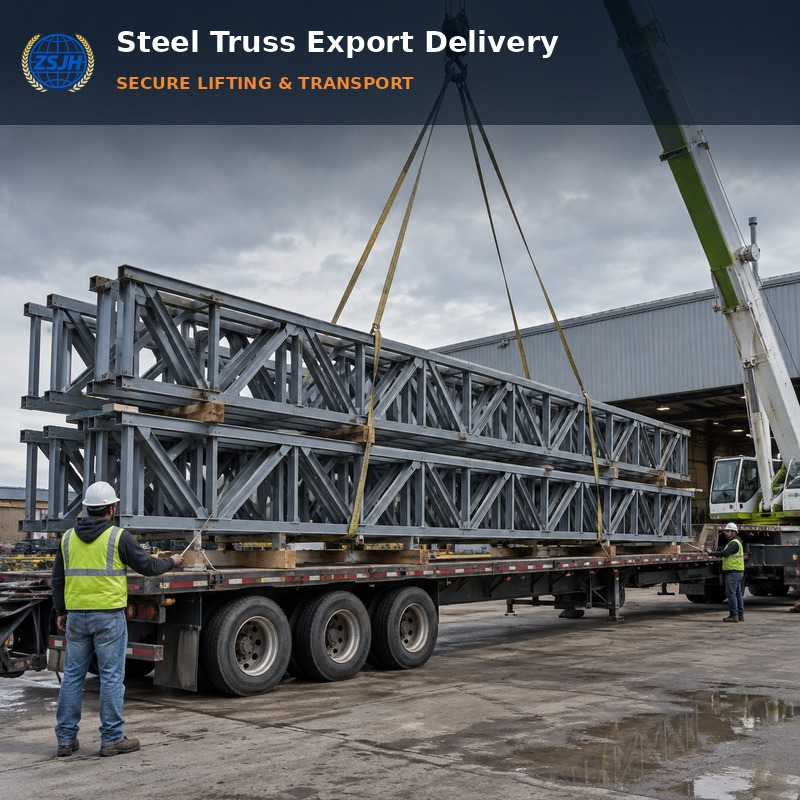

· Record results, identify parts and return or pack components

CTA

Send your steel member drawings and welding requirements to ZSJH for a review of the steel truss welding service and a processing quotation.
