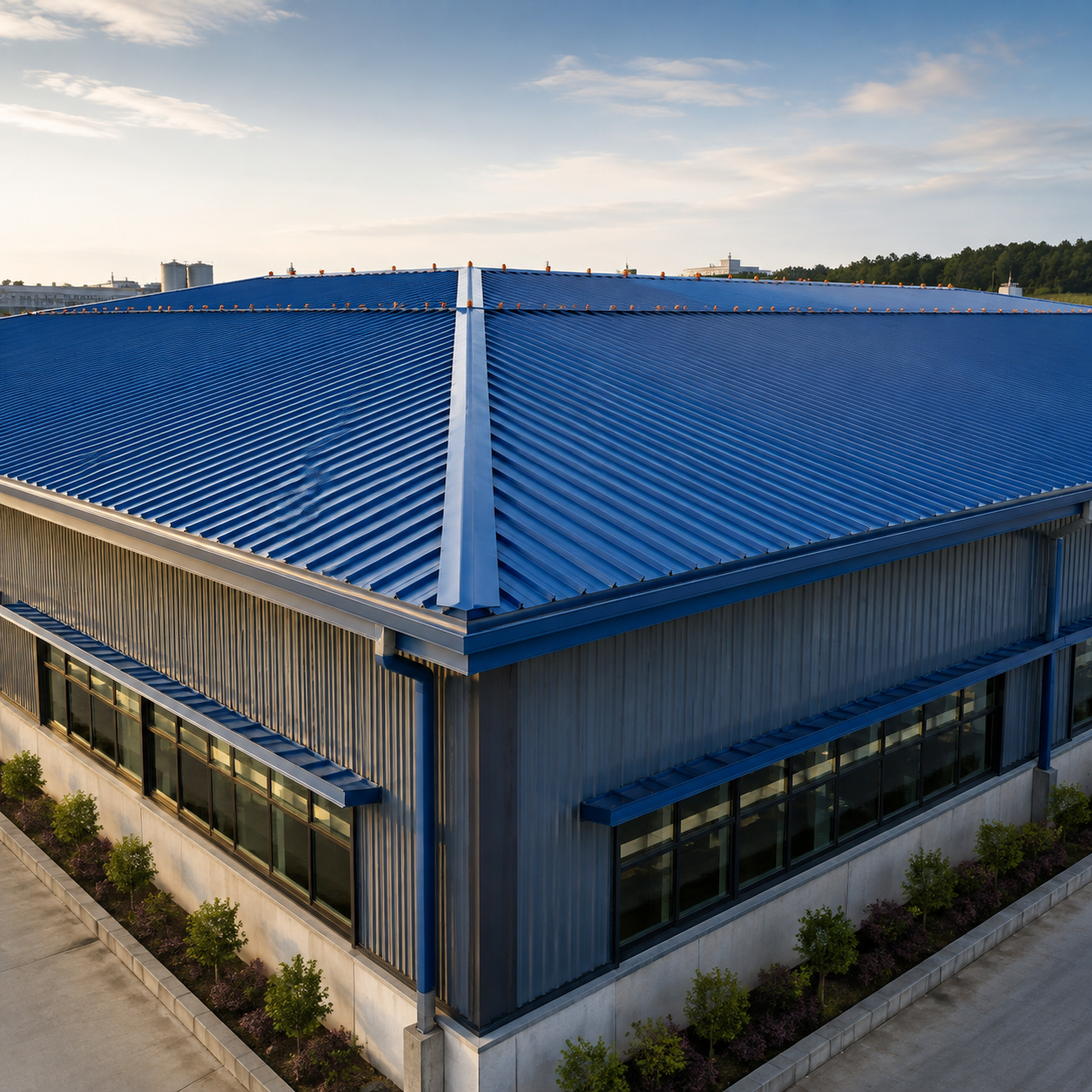

Our Roof Panel System is an integrated roofing solution developed for steel structure buildings that require reliable weather protection, efficient installation and long service life. The system can include profiled steel sheets, insulated roof panels, concealed fixing components, ridge covers, edge flashings, gutters, sealants and other project-specific accessories.
Unlike ordinary roofing sheets, a complete roofing system considers panel profile, joint design, roof slope, wind resistance, thermal performance and rainwater drainage as part of one coordinated solution. This helps improve installation accuracy and reduces the risk of leakage at panel overlaps, ridges, eaves and roof openings.
We manufacture roof panels according to architectural drawings, structural layouts and project environmental conditions. Different metal substrates, coatings, profiles, colors and insulation materials are available for industrial plants, warehouses, logistics centers and prefabricated buildings.

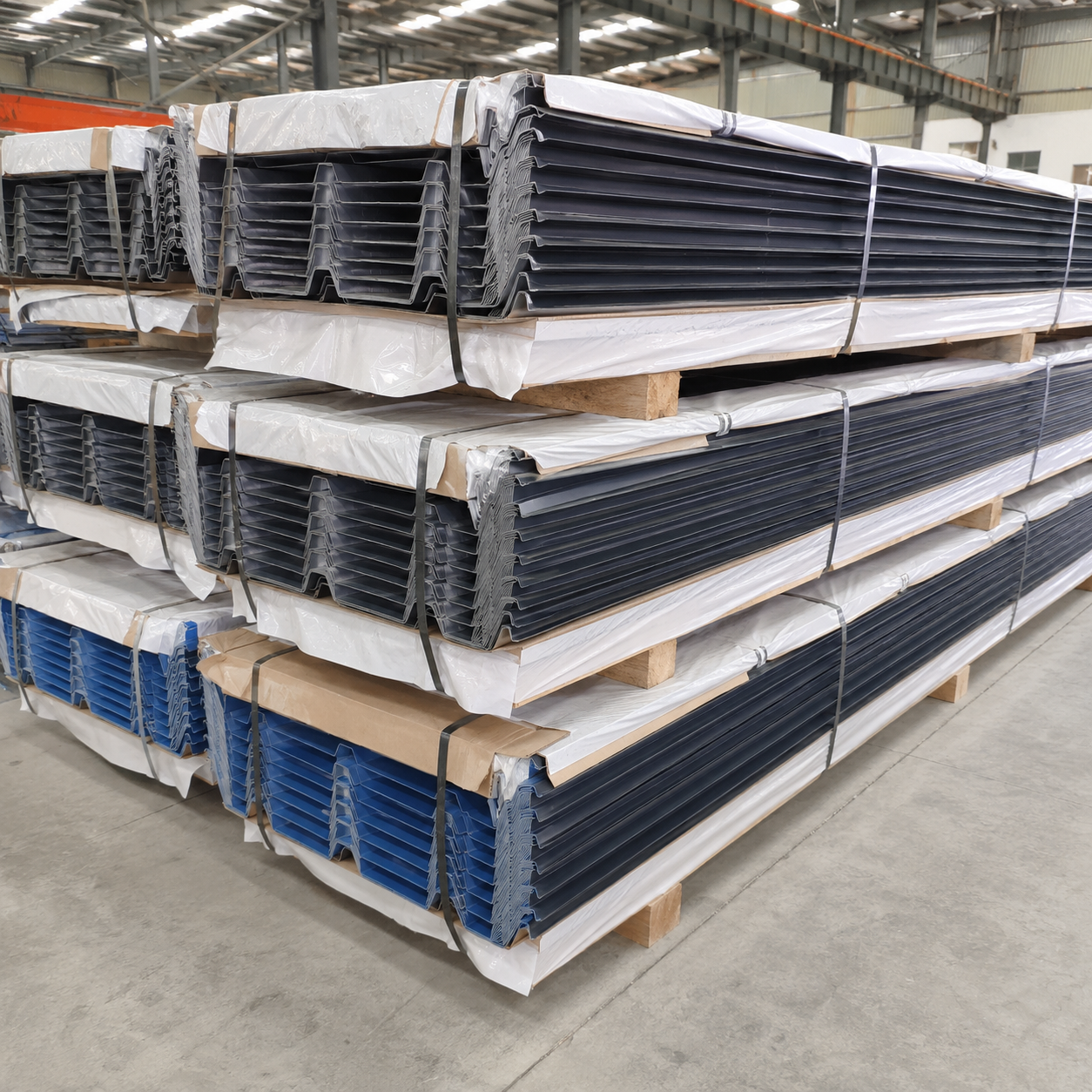

Long profiled panels reduce the number of horizontal overlaps and create a clean, continuous roof surface. They are suitable for large industrial and commercial buildings.
The fixing components are positioned beneath the panel surface, reducing exposed fasteners and improving the appearance and waterproof performance of the roof.

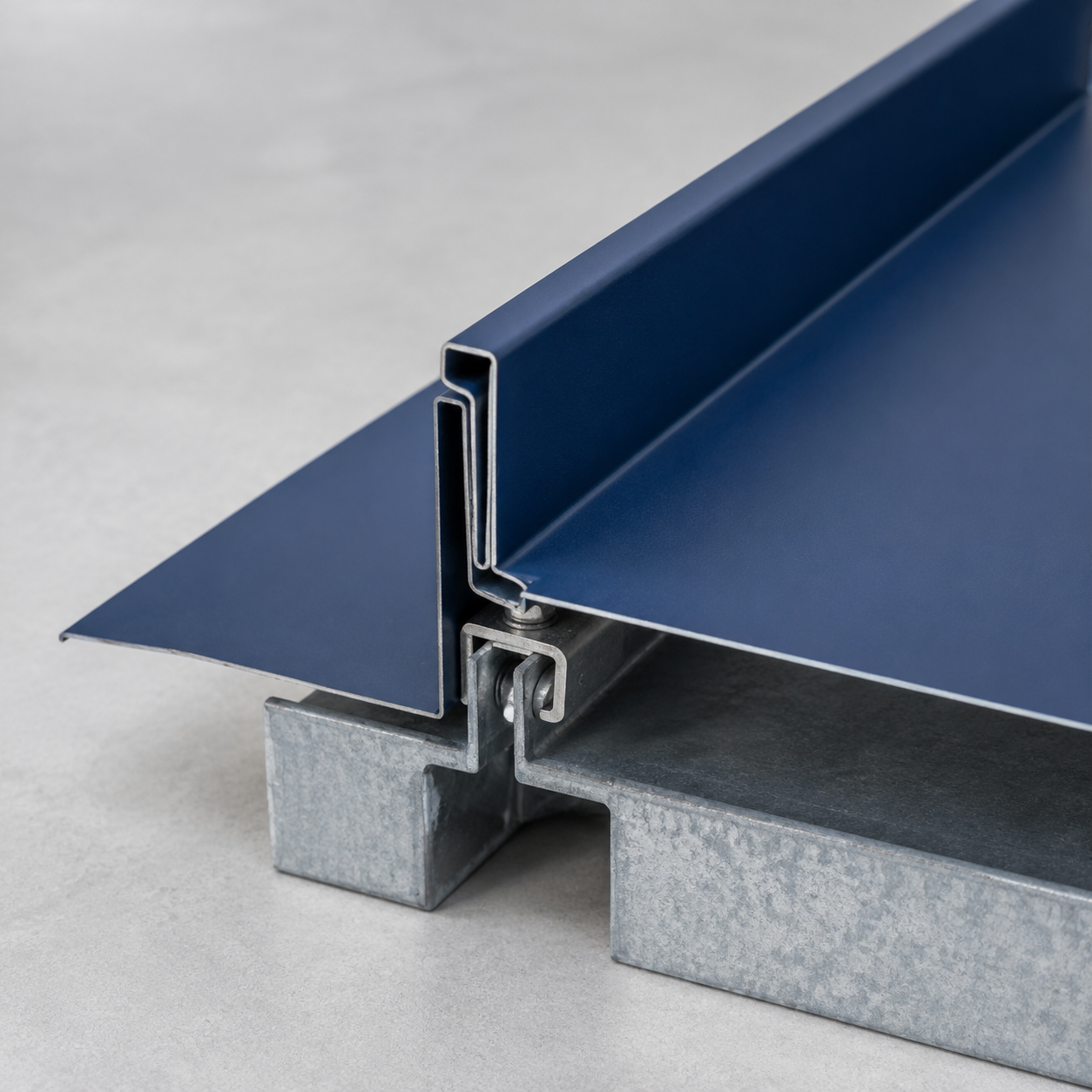

Standing seam panels use raised mechanical joints that allow controlled thermal movement. This configuration is suitable for large roof areas and buildings exposed to changing temperatures.
Insulated panels combine metal outer layers with a thermal insulation core. They help improve indoor temperature control, reduce energy consumption and minimize condensation.

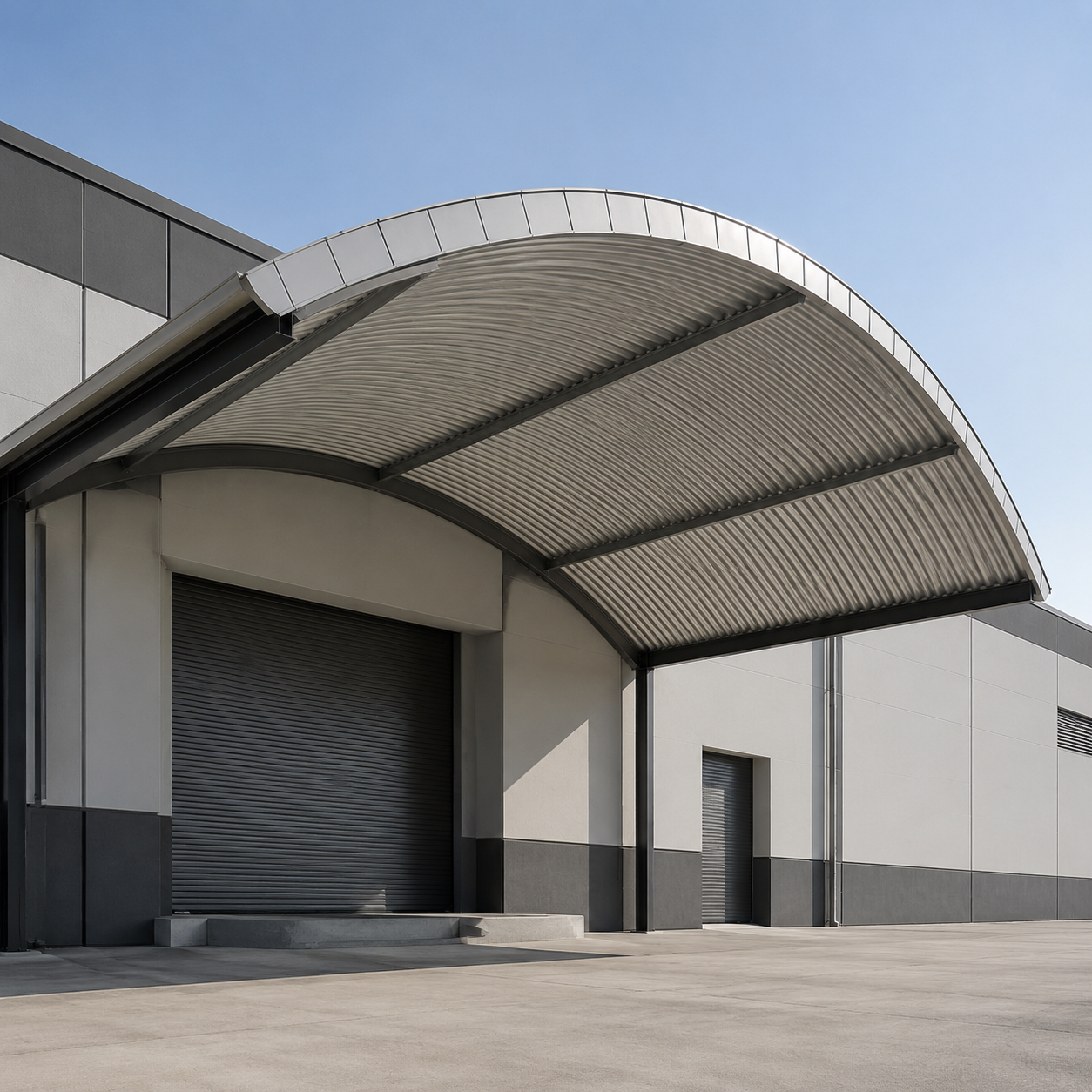

Curved metal panels can be manufactured for arched entrances, canopies, sports buildings and architectural roof designs.

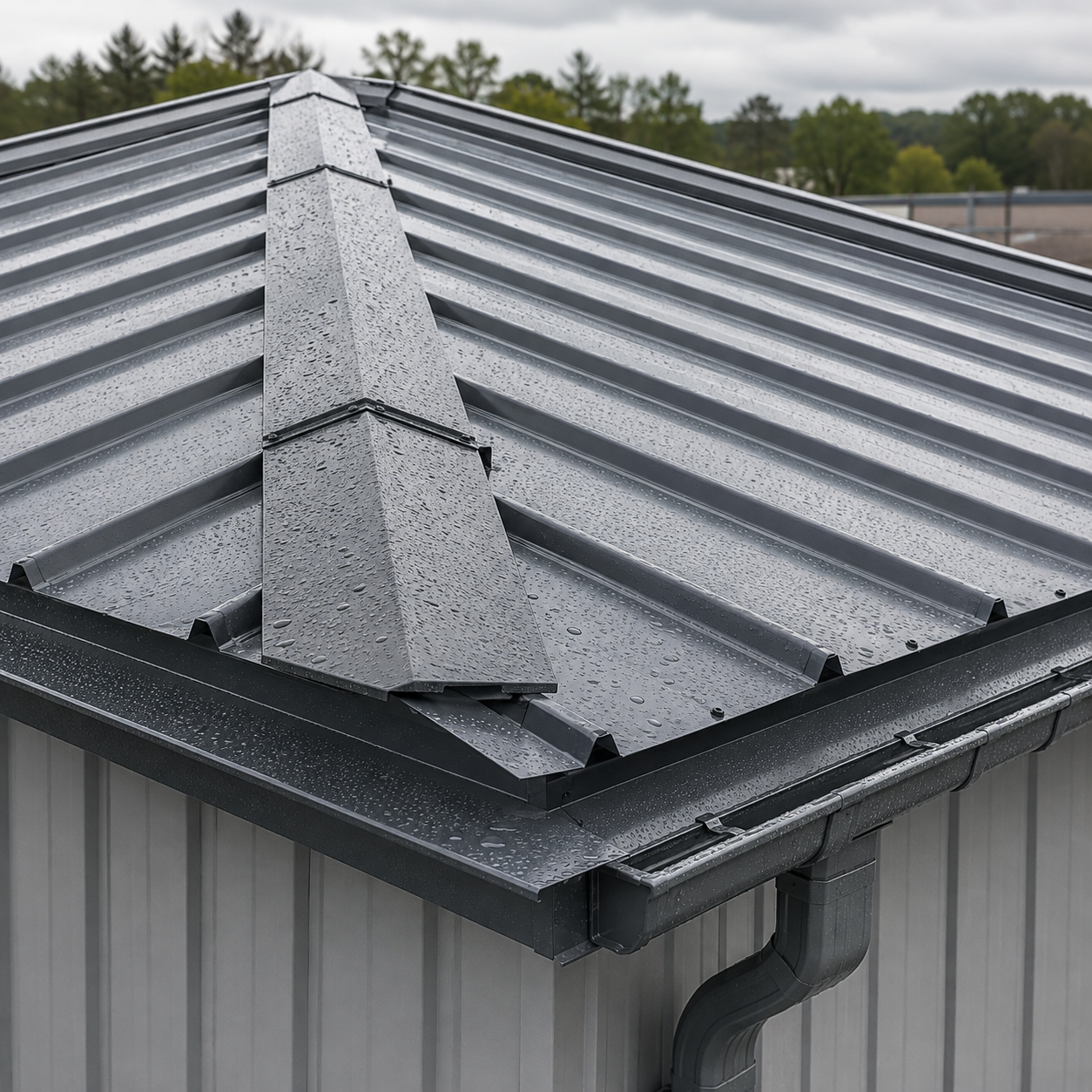

Raised ribs, sealed overlaps and coordinated flashing details help direct rainwater toward the gutter system and reduce water penetration.
Panel profiles and fixing systems can be selected according to roof height, purlin spacing, wind conditions and project design requirements.
Standing seam and concealed-fix systems allow the roof surface to expand and contract under temperature changes without excessive stress.
Insulated panel configurations help reduce heat transfer through the roof and create a more stable indoor environment.
Protective metallic and organic coatings help resist corrosion, fading and daily environmental exposure, reducing long-term maintenance requirements.
Consistent panel lines, concealed connections and matching accessories create a professional and uniform roof finish.
| Category | Available Selection |
|---|---|
| Metal Substrate | Galvanized steel, galvalume steel or pre-painted steel |
| Panel Thickness | Normally 0.4–1.2 mm |

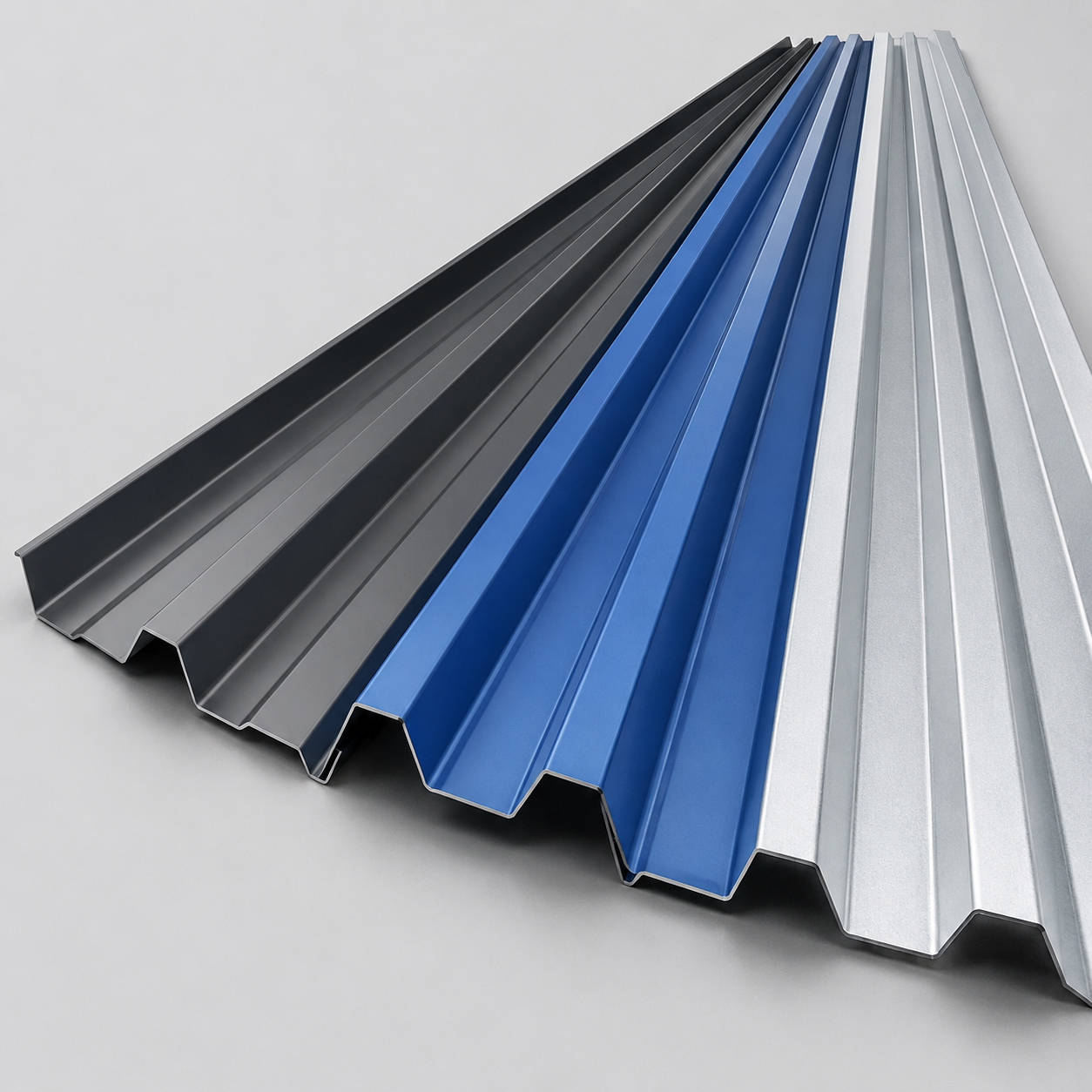

| Panel Profile | Trapezoidal, corrugated, standing seam or customized |
| Panel Length | Produced according to roof layout and transport conditions |
| Coating Options | Polyester, SMP, HDP or PVDF |
| Insulation Materials | PIR, PU, rock wool or EPS |
| Insulation Thickness | 30–150 mm |
| Installation Method | Exposed fastener, concealed fastener or mechanical seam |
| Available Colors | Standard or project-specific colors |
| Supporting Accessories | Flashings, gutters, ridge caps, clips, screws and sealants |
To improve installation efficiency and system compatibility, we can provide:

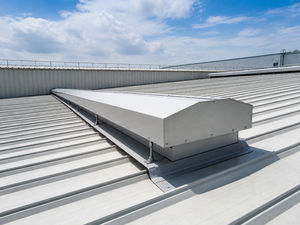

Ridge covers and ventilated ridge components
Eave, verge and parapet flashings
Internal and external gutters
Downpipes and drainage fittings
Self-drilling screws and concealed clips
Waterproof sealing tapes and closures
Rooflight and skylight panels
Pipe penetration flashings
Anti-condensation backing
Solar mounting accessories
The system can be used for:
Manufacturing plants
Steel structure warehouses
Distribution and logistics buildings
Food processing facilities
Agricultural storage buildings
Aircraft maintenance hangars
Shopping and exhibition buildings
Cold storage projects
Prefabricated workshops
Existing roof renovation projects
The correct roof coating should be selected according to the building environment. Standard polyester coatings are suitable for many general industrial applications, while HDP or PVDF coatings can provide improved color retention and environmental resistance.
For coastal, humid or chemically exposed projects, we can recommend suitable metallic coatings, paint systems and panel details based on the required service conditions.
As a steel structure manufacturer and exporter, we can supply the roof panel system together with the main steel structure, purlins, wall cladding, insulation materials and building accessories.
This coordinated supply approach helps reduce compatibility problems, simplify purchasing and improve overall project delivery efficiency.
Please provide the roof dimensions, architectural drawings, panel type, required thickness, insulation requirements, preferred color and project location.
Our team will prepare a customized roofing proposal, material list and quotation based on your project requirements.
