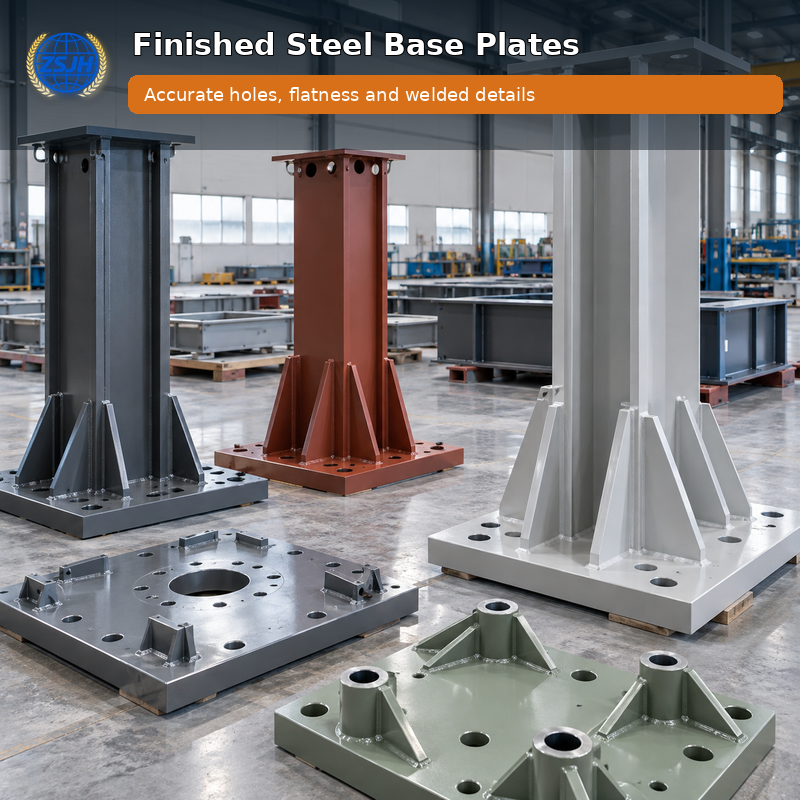

Product Overview

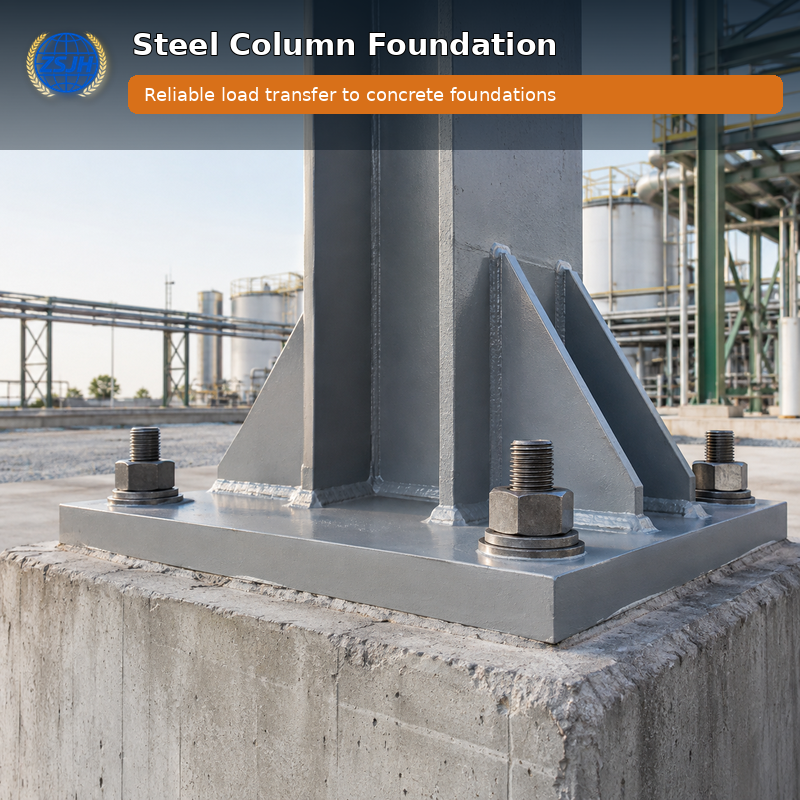

Steel column base plates and equipment foundation plates are used to transfer column or equipment loads to concrete foundations. The products can be cut, drilled, grooved, beveled, and surface-treated according to drawings, while coordinating anchor bolt holes, leveling details, and stiffening features. ZSJH Steel supplies finished steel plate products rather than a standalone cutting-only operation.

Typical Specifications

Key Features

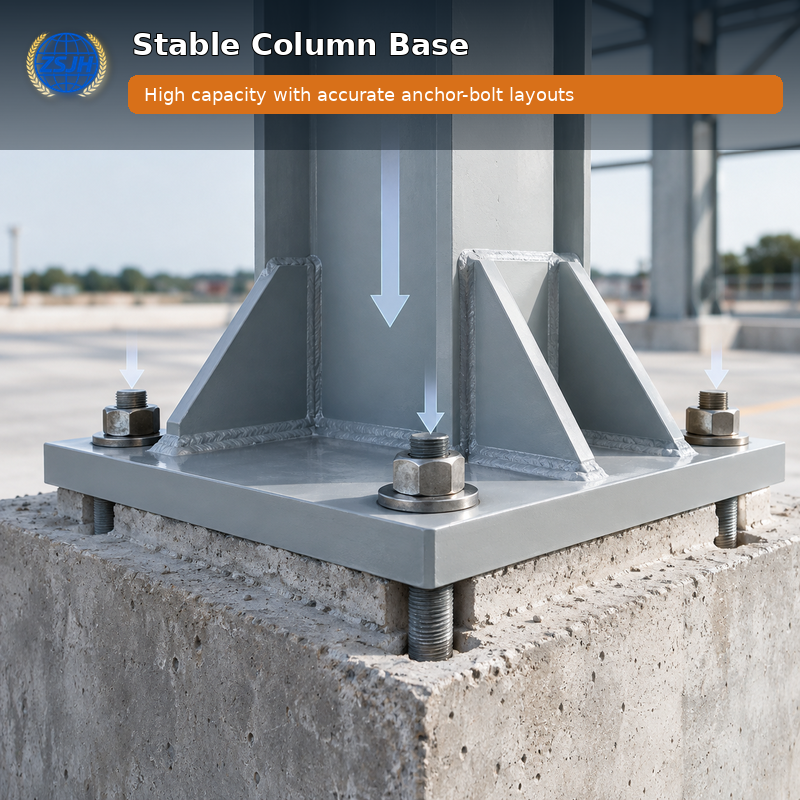

• Accurate anchor-bolt and leveling-hole layouts

• Custom thickness and edge preparation

• Welded ribs or sleeves can be added

• Flatness and hole position inspection

• Ready for site bolting or embedment

Applications

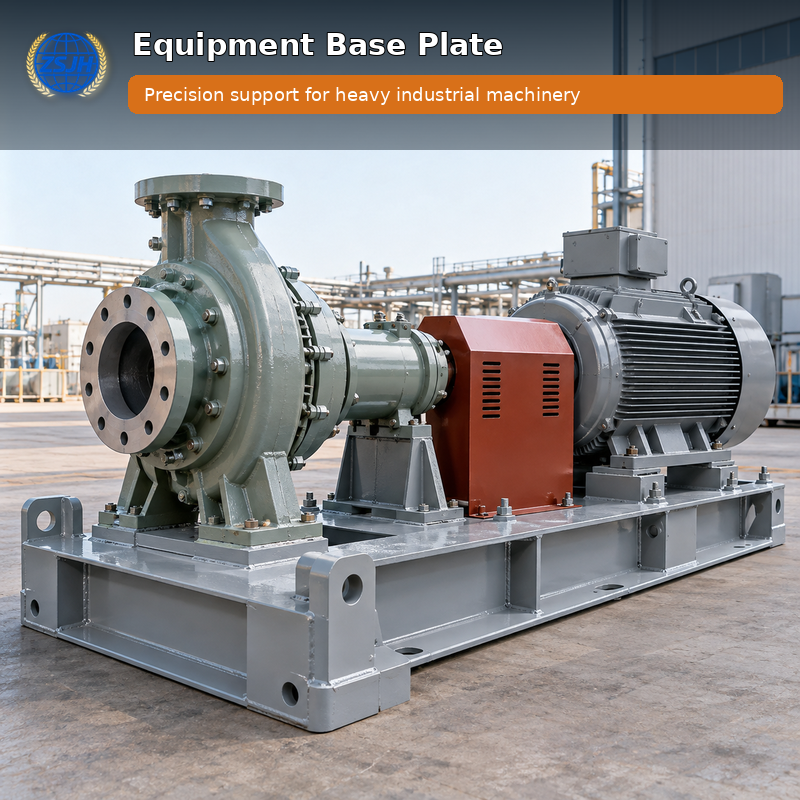

Industrial steel columns, equipment foundations, support frames, machinery skids, pipe racks and heavy platforms.

Customization Capability

We manufacture from customer drawings or approved shop drawings. Custom options include steel grade, thickness, outline, hole diameter and pitch, slots, notches, bevel angles, weld details, machined surfaces, flatness tolerance, coating system, piece marks and packing by assembly zone.

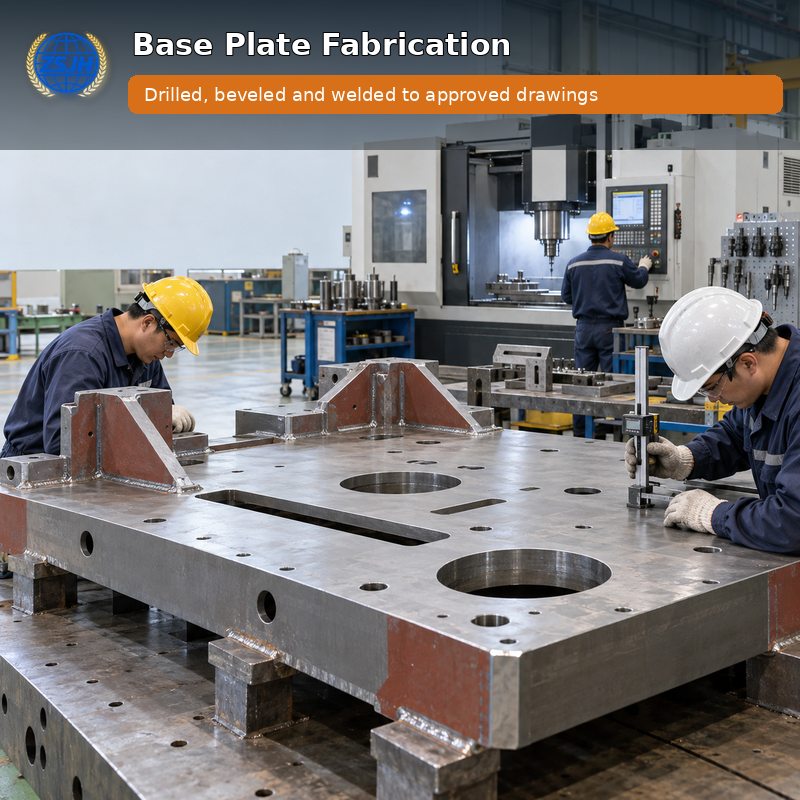

Manufacturing and Quality Control

1. Review drawings, standards, tolerances and finished-part requirements.

2. Verify material certificates and maintain traceability.

3. CNC cut the plate outline and internal features.

4. Drill, slot, notch, bevel or machine as specified.

5. Assemble and weld ribs, tabs or subcomponents where required.

6. Straighten and inspect dimensions, flatness, holes and interfaces.

7. Perform specified visual and non-destructive weld inspection.

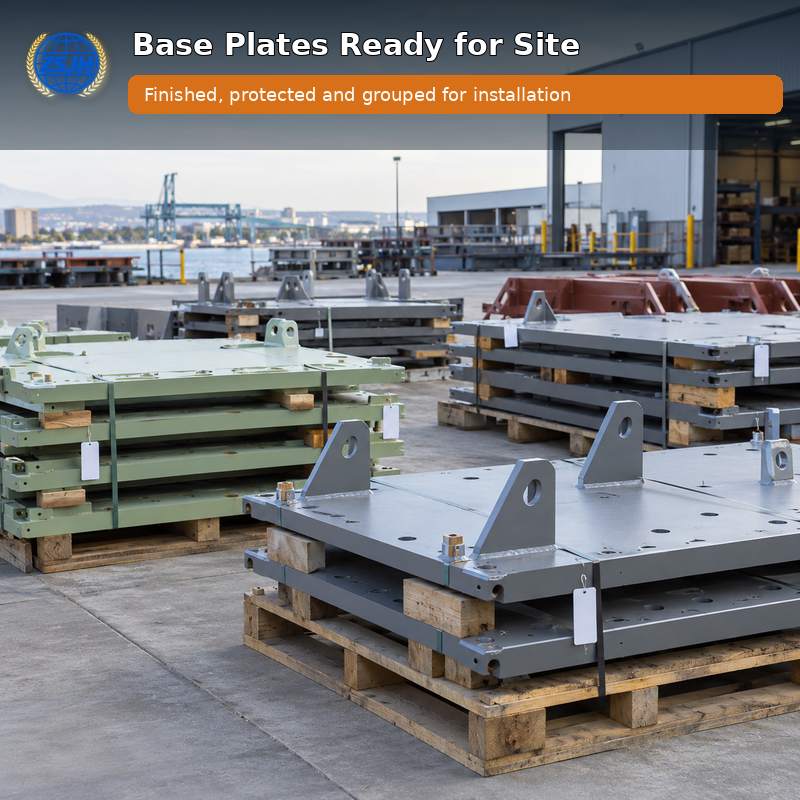

8. Blast, coat, mark, document and pack the finished plate product.

FAQ

Is this page for cutting-only service?
No. Steel Plate Fabrication pages describe finished steel plate products that may include cutting, drilling, slotting, beveling, welding and surface treatment. Cutting-only work belongs to the separate CNC Steel Cutting Service category.

Can the parts be delivered with holes and weld preparation completed?
Yes. Hole groups, slots, notches and bevels can be completed before delivery according to approved drawings.

What information is needed for quotation?
Please provide drawings, material grade, plate thickness, quantities, processing details, inspection level, coating, packing and delivery location.

CTA

Send your steel plate drawings and finished-part requirements to ZSJH Steel for a fabrication review and quotation.
