The system can be supplied with corrugated steel sheets, insulated sandwich panels, metal cladding panels, flashing, trims, fasteners and sealing accessories. Different panel profiles, insulation materials, thicknesses and colors are available to meet the architectural, thermal and environmental requirements of each project.
All wall components can be manufactured according to project drawings and delivered as a coordinated package, helping reduce on-site cutting, installation time and material waste.

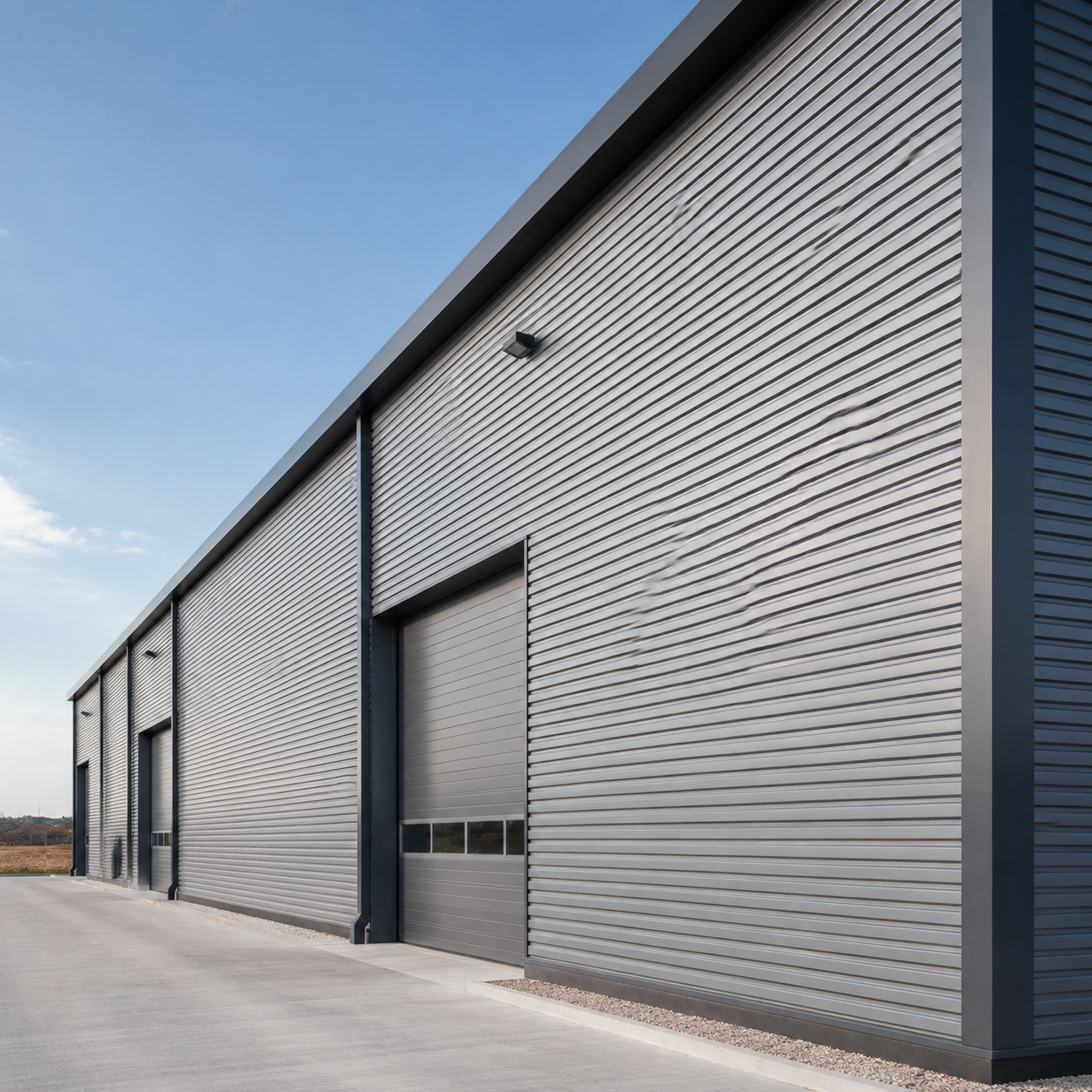

Lightweight and economical profiled steel sheets suitable for warehouses, workshops, storage buildings and agricultural structures. Galvanized or pre-painted coatings provide reliable corrosion and weather resistance.

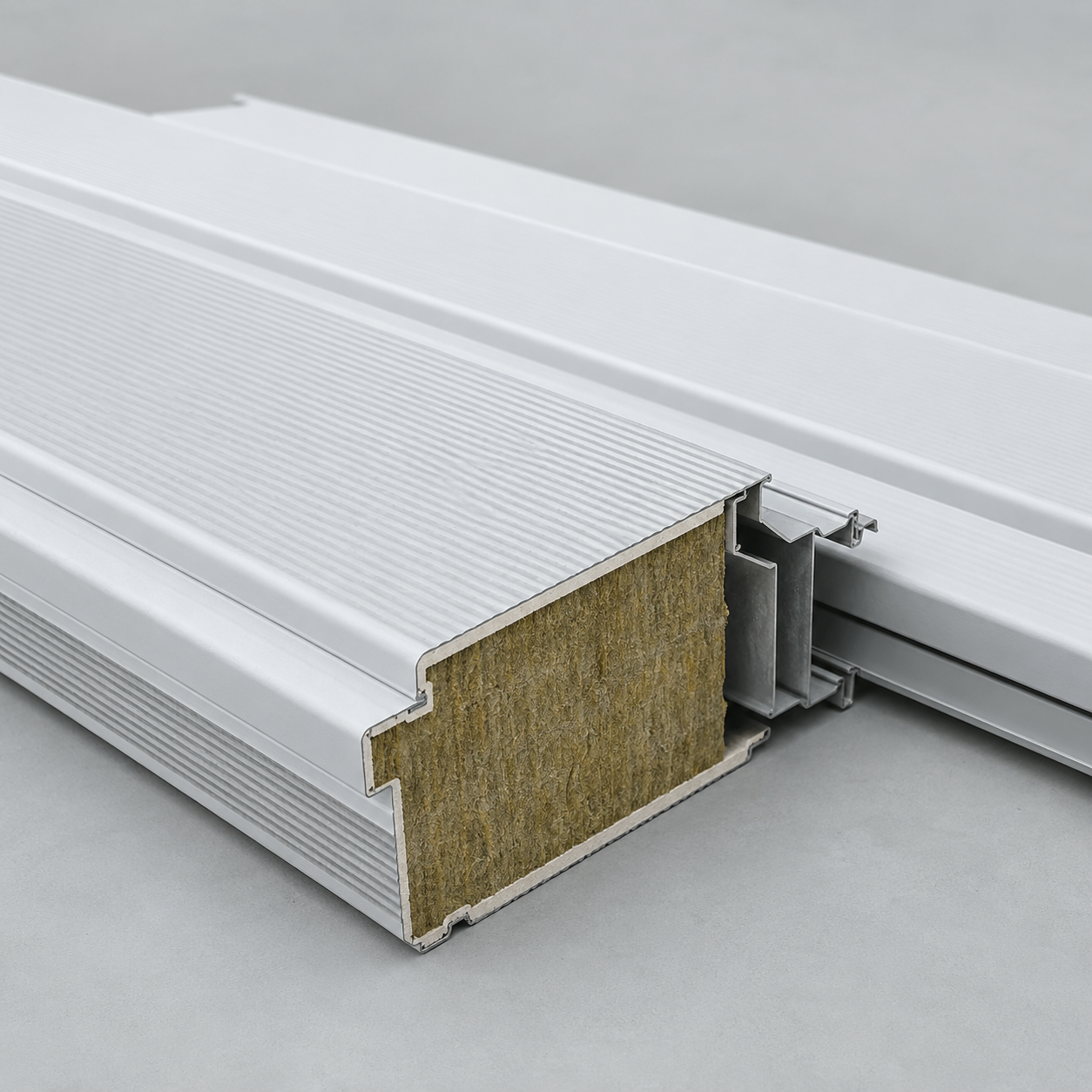

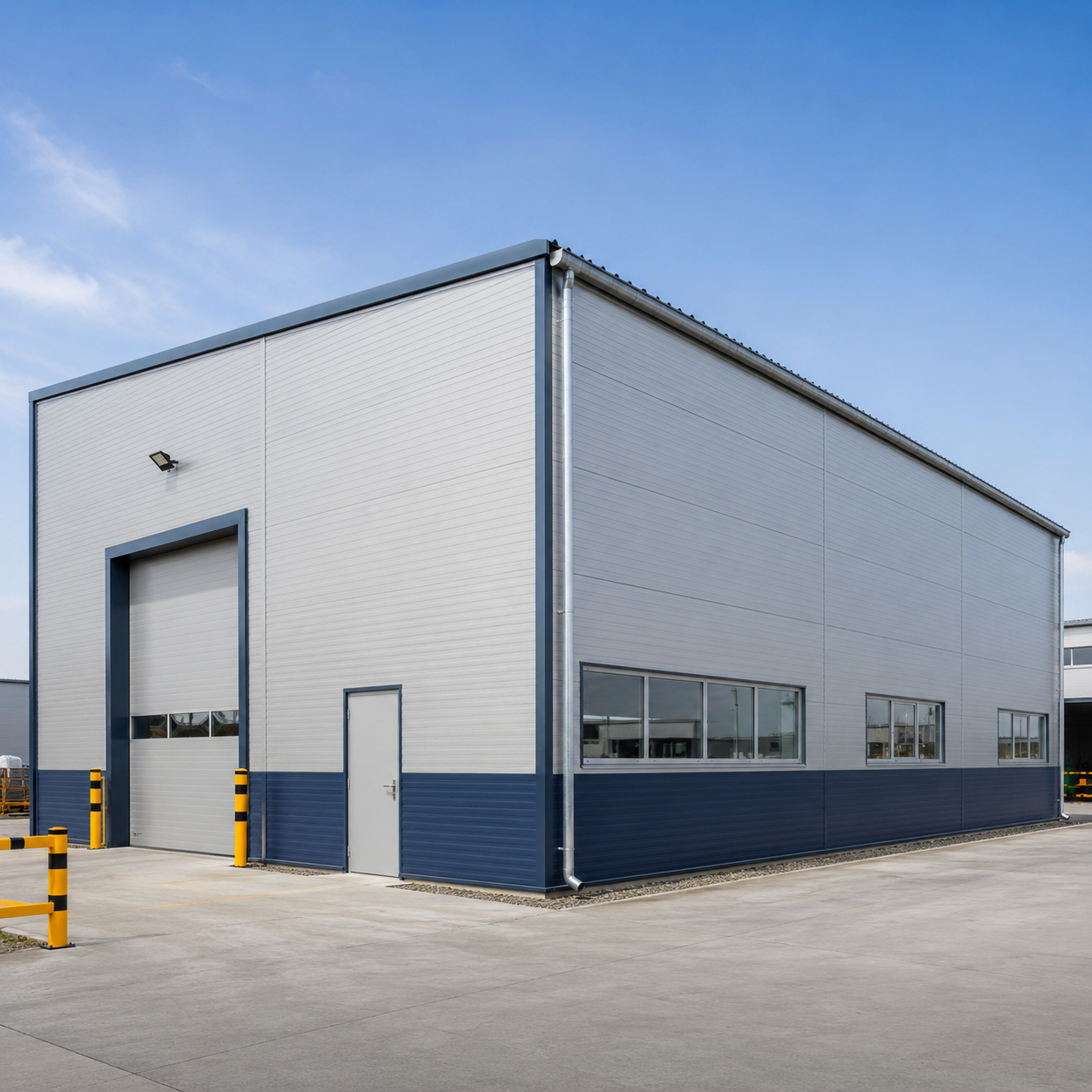

Composite wall panels consisting of two metal facings and an insulated core. Available core materials include EPS, rock wool, glass wool and polyurethane, depending on the required thermal insulation and fire-performance level.

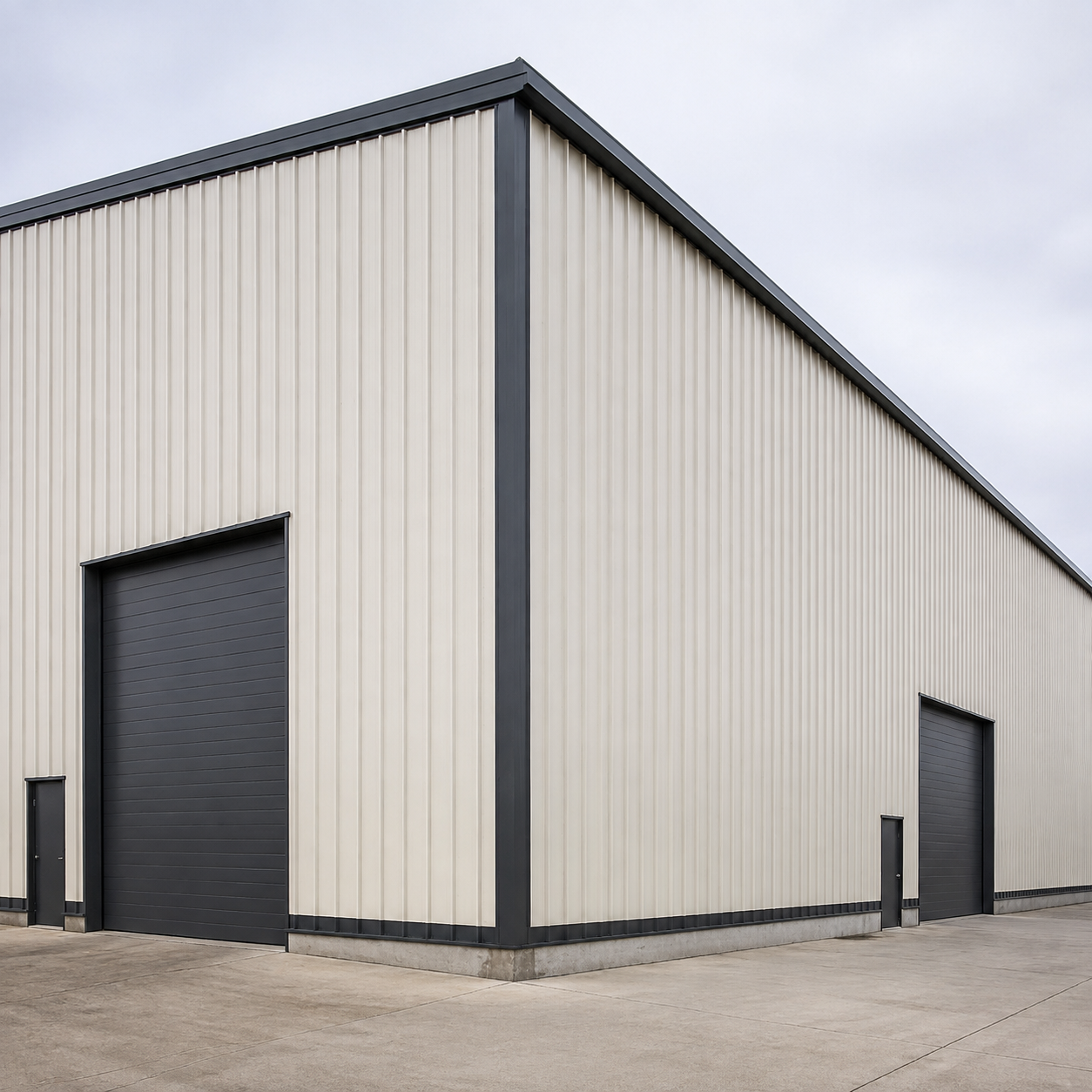

Modern wall cladding panels with various profiles, colors and surface finishes. They can be installed vertically or horizontally to create a clean and professional building appearance.
| Item | Available Options |
|---|---|
| Panel Type | Corrugated sheet, sandwich panel or architectural cladding |
| Base Material | Galvanized steel or pre-painted galvanized steel |
| Steel Sheet Thickness | Commonly 0.4–1.0 mm |
| Sandwich Panel Thickness | Commonly 50–150 mm |
| Insulation Core | EPS, rock wool, glass wool or polyurethane |
| Surface Coating | PE, SMP, HDP or PVDF |
| Panel Installation | Vertical or horizontal |
| Available Colors | Standard RAL colors or customized colors |
| Accessories | Flashing, corner trim, ridge trim, fasteners and sealants |
| Panel Length | Customized according to drawings and transportation limits |
| Production | Custom manufactured according to project requirements |
We provide wall panels, trims, flashings, fasteners, sealants and other matching accessories as one coordinated building-envelope package.
Proper panel overlaps, flashing details and sealing systems help prevent rainwater penetration and improve the long-term weather resistance of the building.
Insulated sandwich panels help reduce heat transfer and outside noise, creating a more comfortable and energy-efficient interior environment.
Prefabricated panels are cut and prepared according to the project drawings, allowing efficient assembly and reducing labor requirements at the construction site.
A wide selection of panel profiles, coatings, textures and RAL colors is available to match different architectural and branding requirements.
Galvanized and pre-painted coatings protect the steel panels against moisture, corrosion, sunlight and demanding environmental conditions.
Our engineering team can assist with panel selection, wall layout, connection details, material quantities and accessory coordination.
A complete steel building wall system may include:
Exterior steel wall panels
Insulated sandwich panels

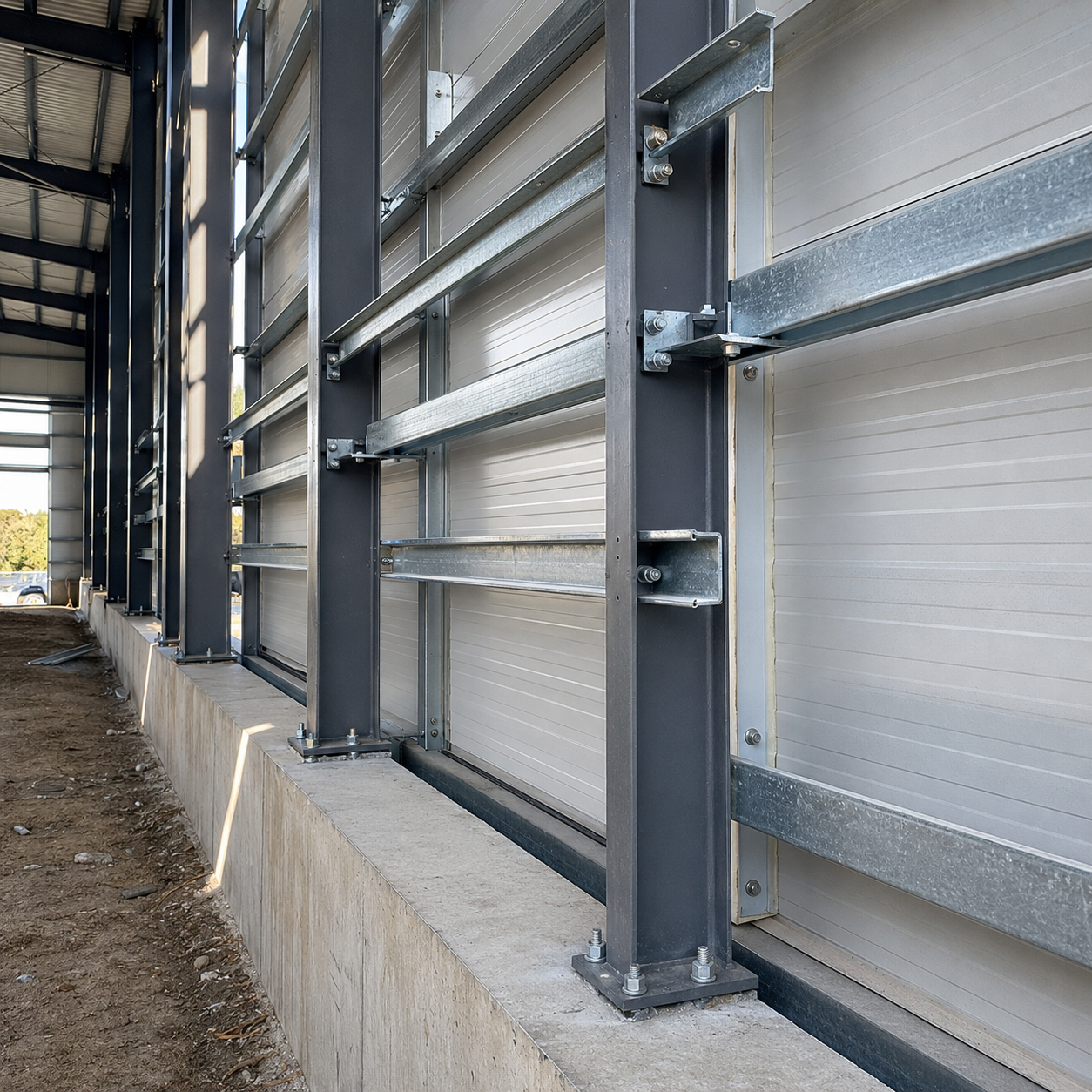

Wall girts and supporting members

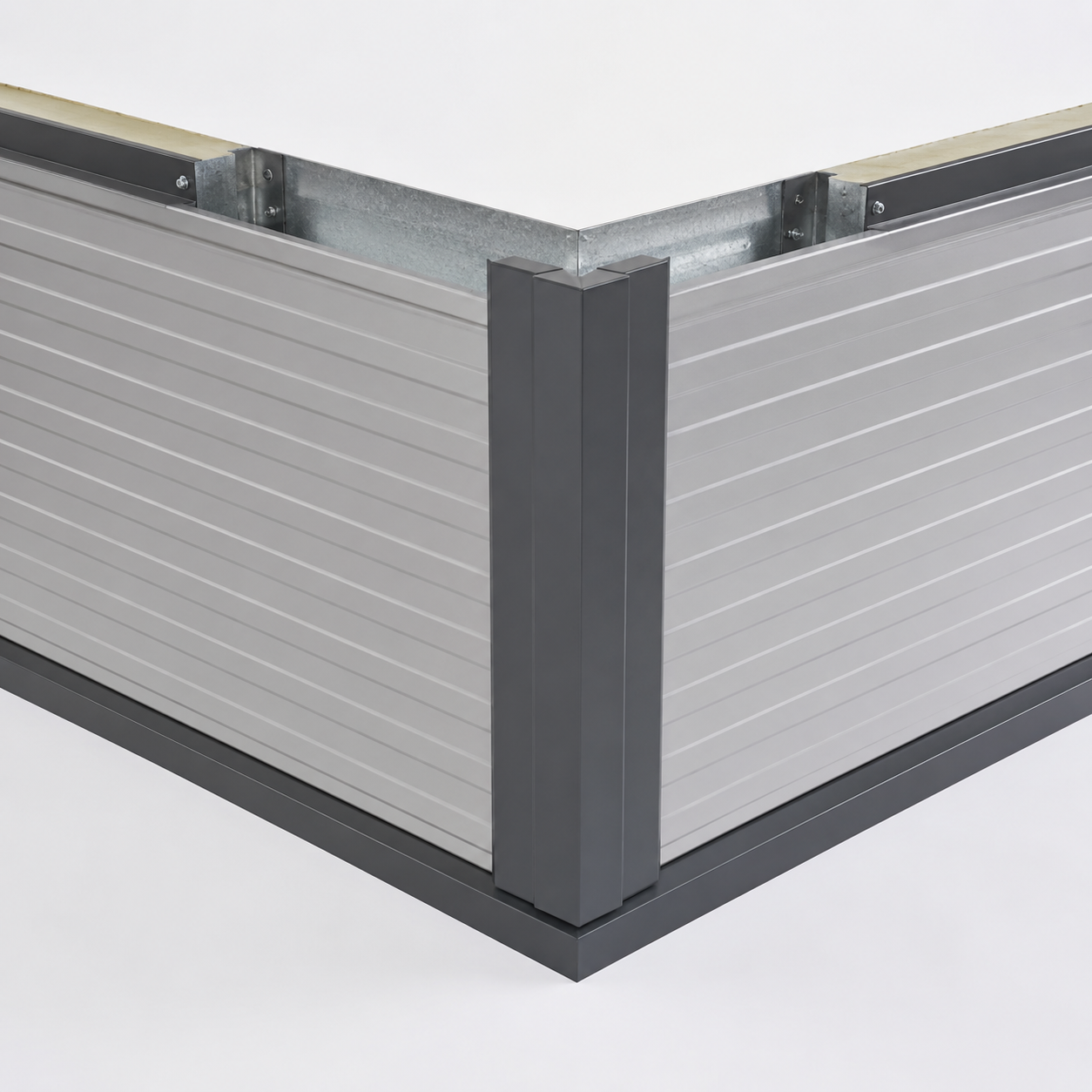

External and internal corner trims
Door and window flashings
Base flashing and water-resistant details
Expansion joint covers
Self-drilling screws and fasteners
Sealing tapes and weatherproof sealants
Decorative cladding components
The wall panels can be supplied with galvanized, pre-painted or other project-specific surface treatments. Colors can be selected from standard RAL options to match the roof system, doors, windows and corporate identity of the building.
For coastal, humid or industrial environments, suitable coatings can be selected according to the expected corrosion conditions.
Corrugated steel sheets are suitable for economical and non-insulated buildings. Sandwich panels are recommended when thermal insulation, sound insulation or improved interior comfort is required. We can recommend the appropriate solution based on your building use and local climate.
Yes. Panel length, thickness, profile, insulation material, surface coating and color can be customized according to the project drawings and design requirements.
Yes. We can supply trims, flashings, fasteners, sealing tapes, sealants and other installation accessories as part of a complete wall-system package.
Yes. Depending on the selected panel profile and architectural design, the panels can be installed vertically or horizontally.
The panels are bundled with protective materials and securely packed to minimize scratches, deformation and moisture exposure during loading and international transportation.
Yes. Please send us your architectural drawings, wall elevations, panel specifications and project requirements. Our team will review the information and prepare a customized production and quotation proposal.
Looking for a reliable wall solution for your steel building project?
Send us your drawings, panel specifications, required quantities and project location. ZSJH Steel will provide a customized Steel Building Wall System, technical support and a competitive factory-direct quotation.
