ZSJH Steel supplies custom steel connection plates for beams, columns, trusses and bracing systems. Manufactured to approved drawings, our components support bolted and welded assemblies with project-specific dimensions, hole patterns and surface finishes.
ZSJH

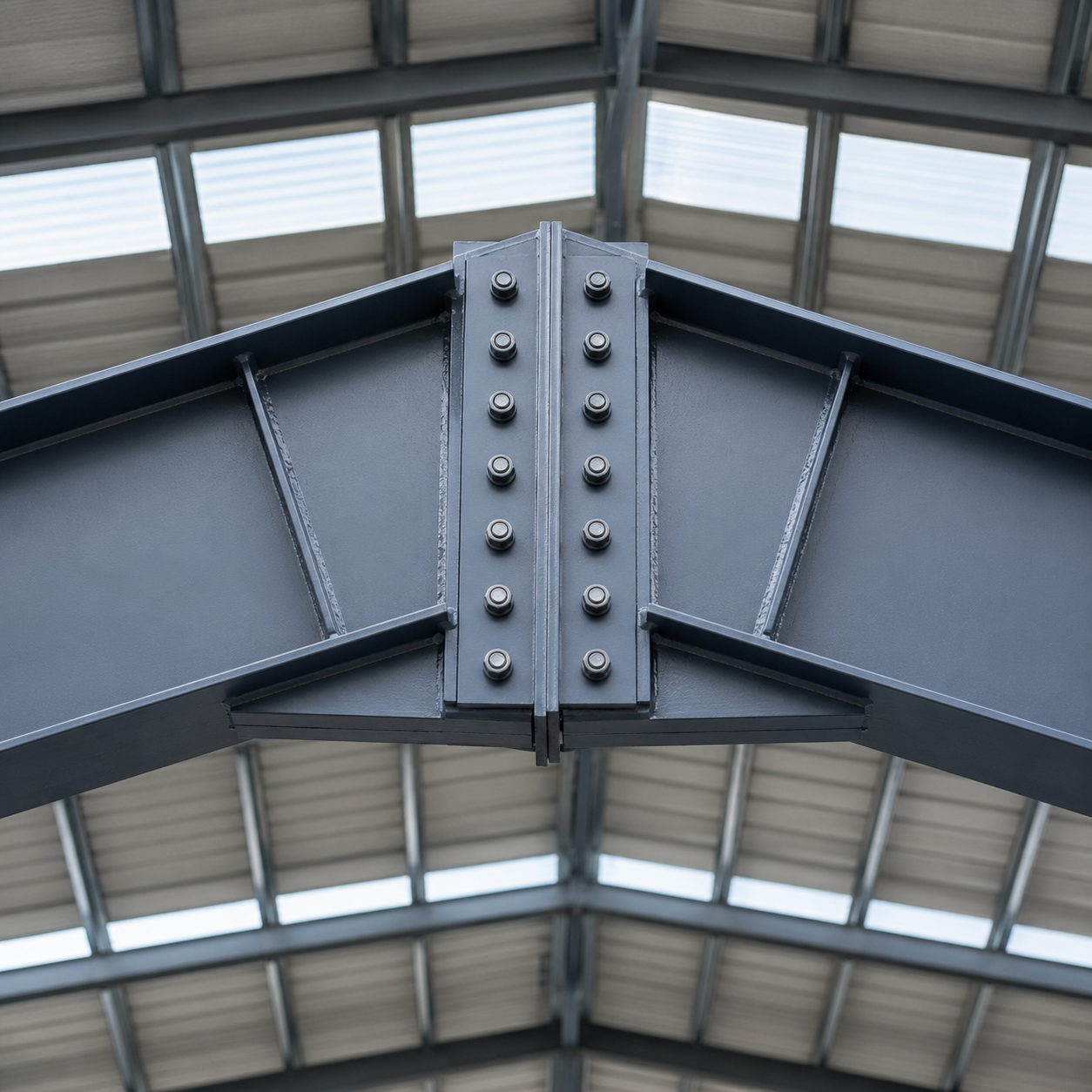

A steel plate connection joins structural members through a designed arrangement of plates, bolts and/or welds. From beam end plates and column splice plates to bracing gussets and column base plates, each component is detailed for its intended position within the steel structure.
ZSJH Steel provides drawing-based fabrication for contractors, steel fabricators and project procurement teams. Plate profiles, thicknesses, hole layouts and welded details can be coordinated with the surrounding steelwork to support fit-up and site assembly.
Components can be supplied as individual plates or incorporated into fabricated assemblies, depending on the agreed scope. Material selection, connection capacity and installation requirements remain subject to the approved project design.
Plate dimensions, edge profiles, hole diameters and bolt spacing are manufactured according to approved fabrication drawings.
Connection plates can be prepared for site bolting, shop welding or a combination of both, as specified by the connection designer.
Cutting, drilling, edge preparation and welding requirements are reviewed together to help maintain component compatibility and reduce avoidable fit-up work.
Uncoated, shop-primed, painted or hot-dip galvanized finishes may be specified according to the environment and project requirements. Finish compatibility with bolts, welds and connection contact surfaces must be confirmed before production.
Part marking, quantity checks and packing arrangements can be coordinated with the project schedule to simplify receiving and sorting on site.
| Component | Typical Use |
|---|---|

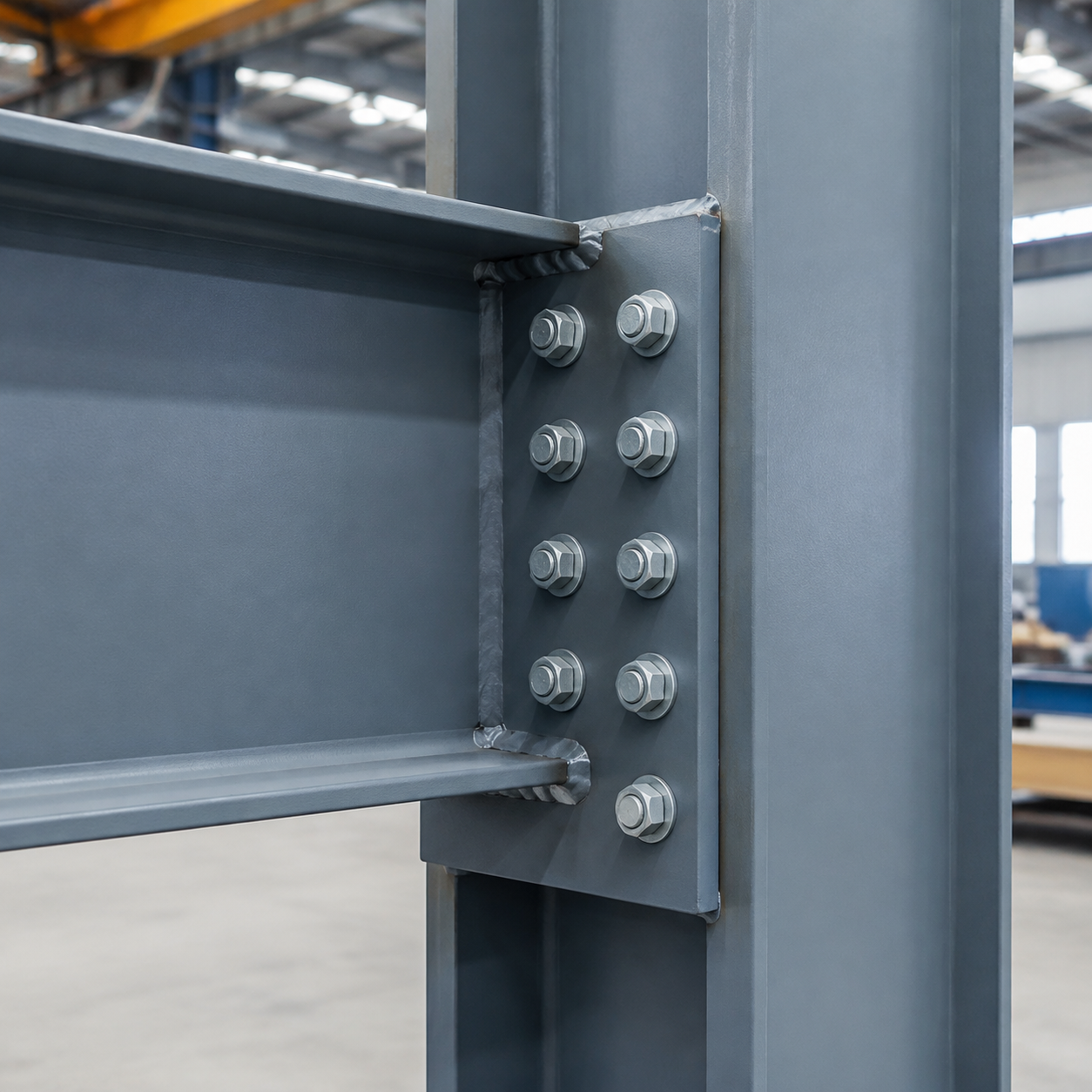

| End plates | Connecting beam ends to columns or other members |

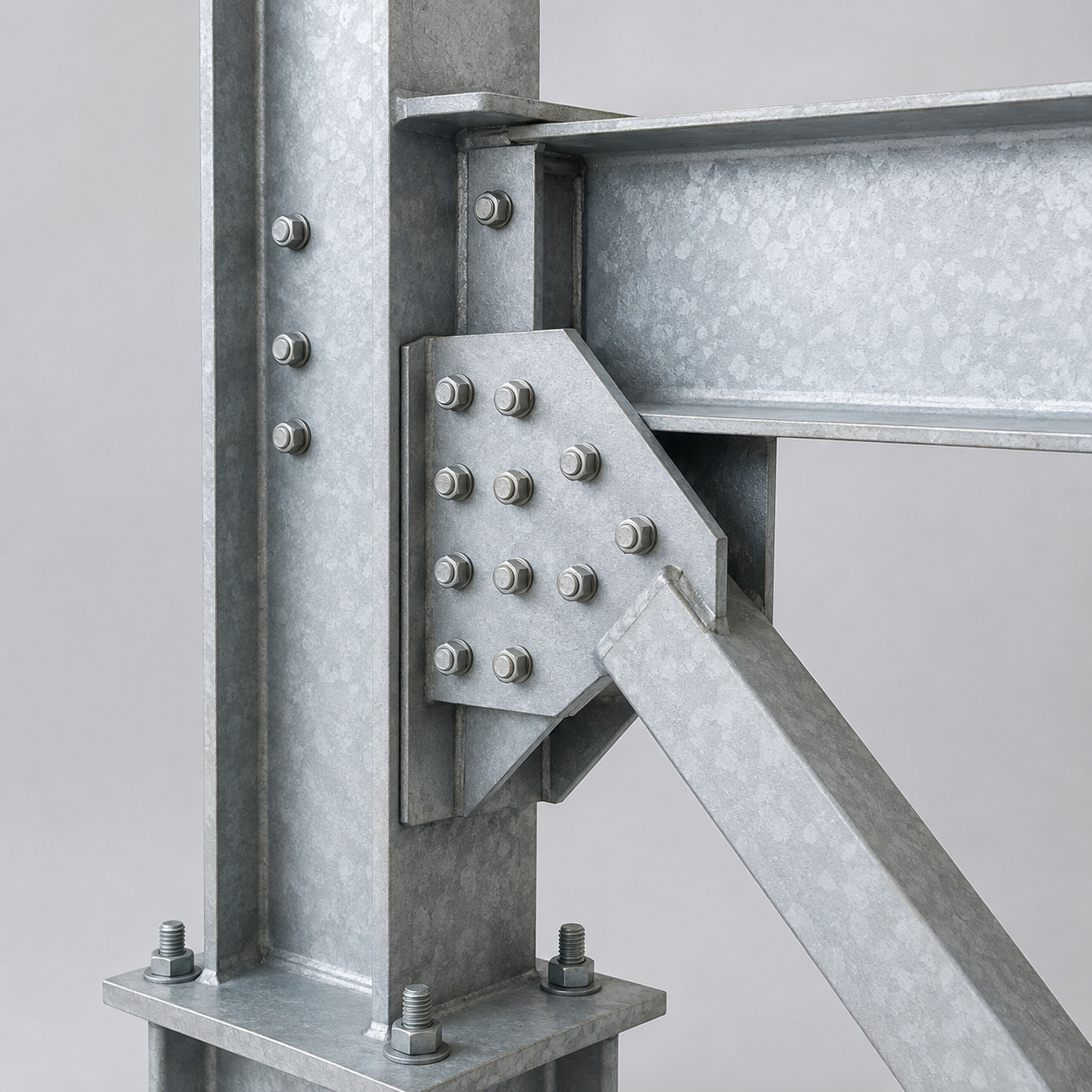

| Gusset plates | Connecting bracing members and truss members at nodes |

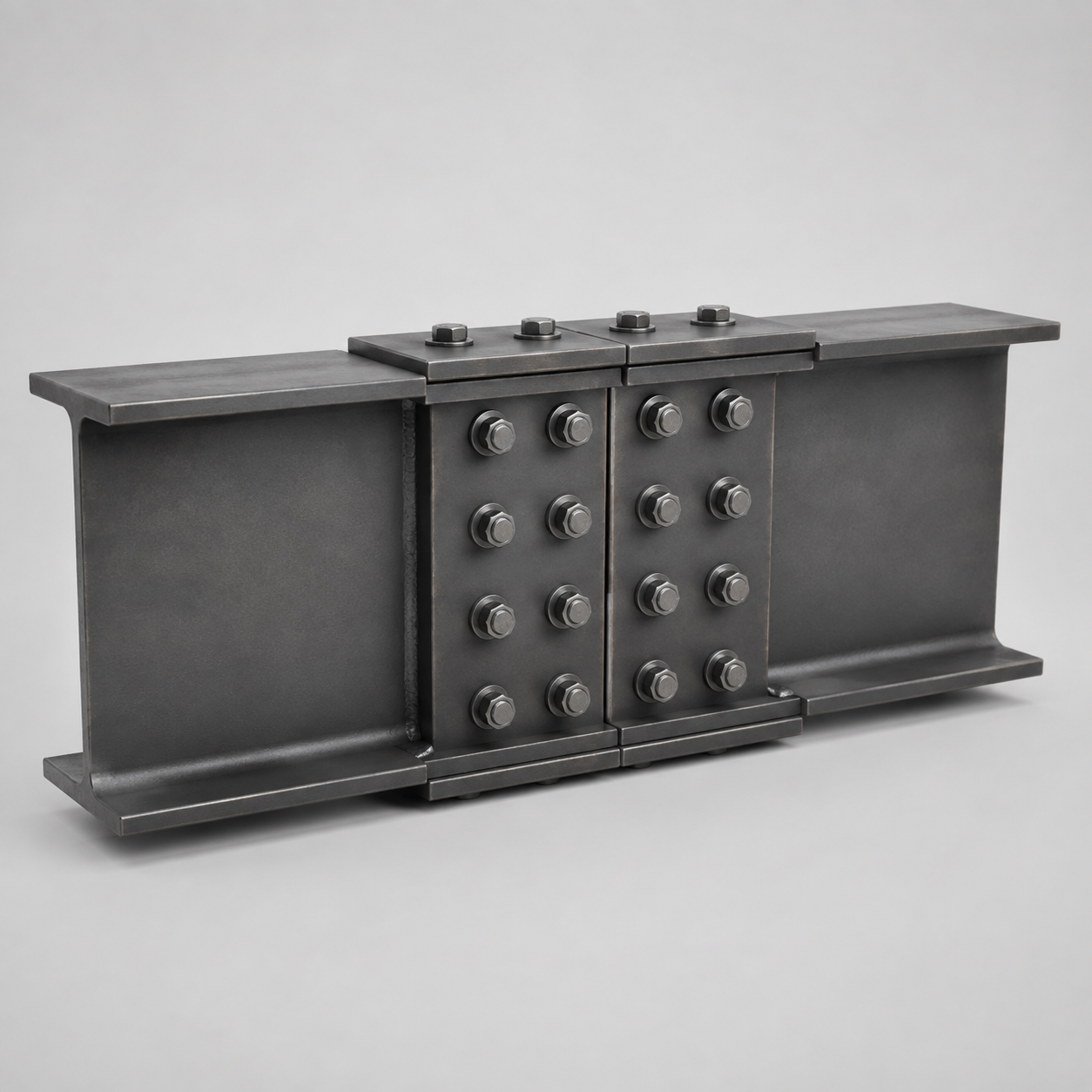

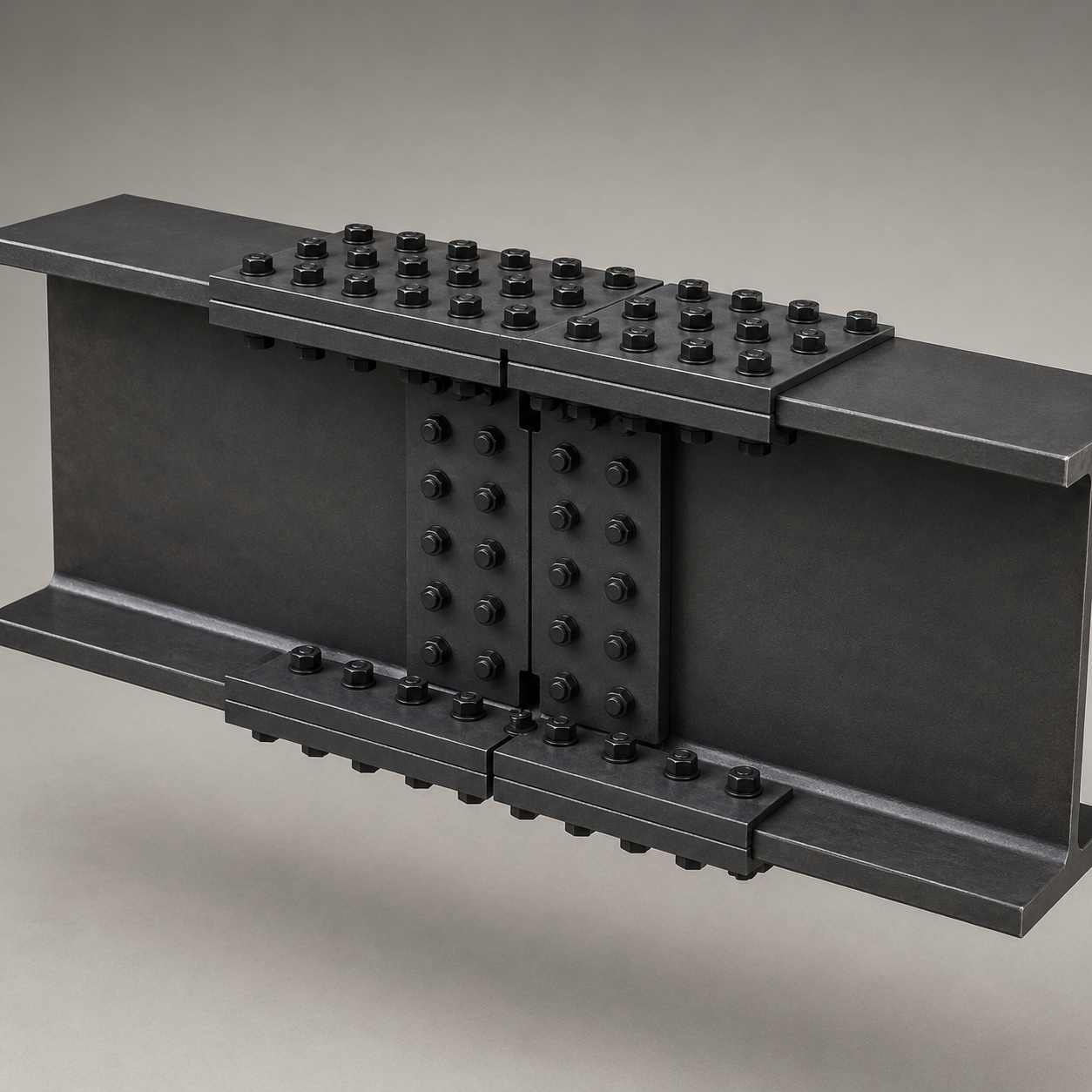

| Splice plates | Joining beam or column segments |

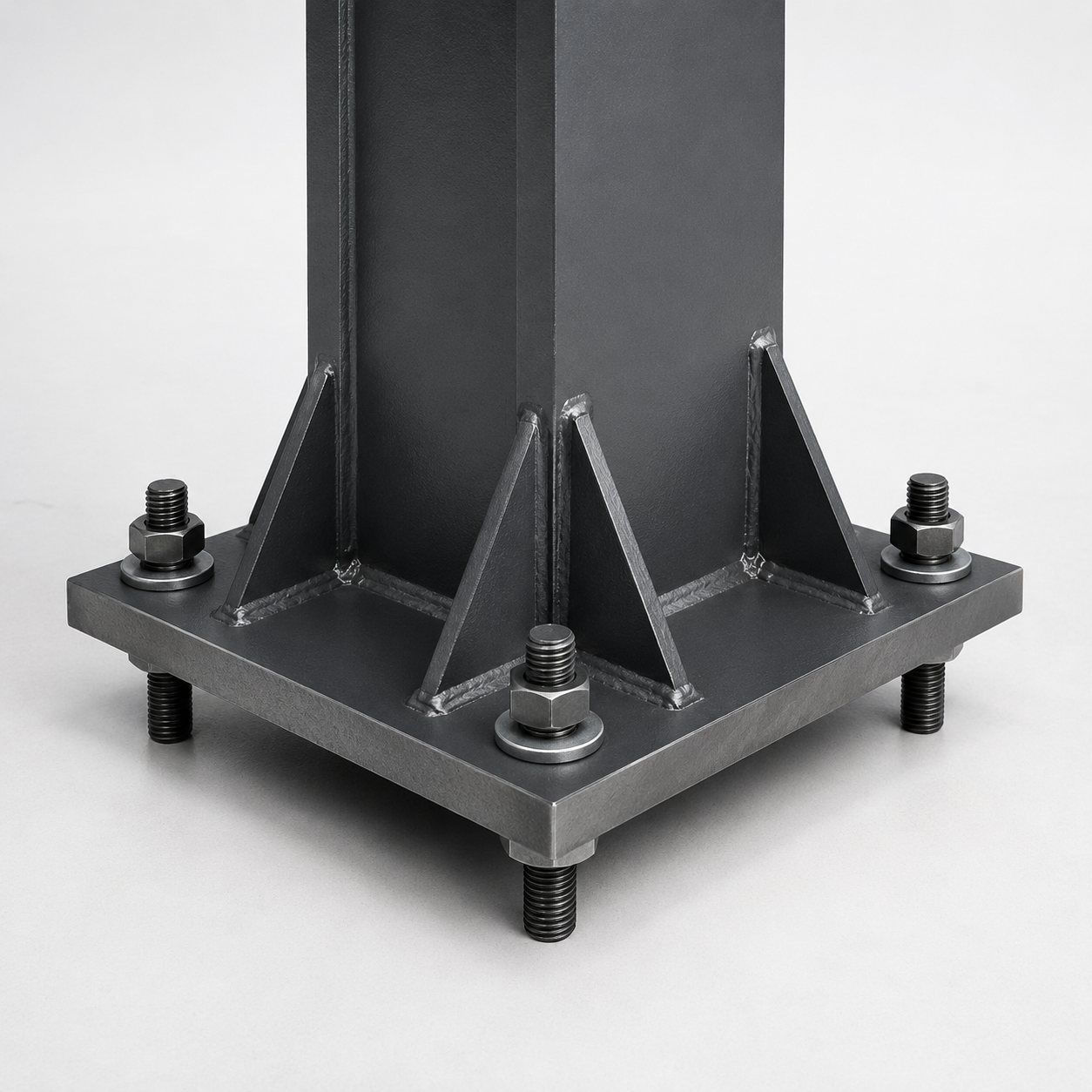

| Base plates | Forming the steel column interface with its foundation |
| Shear connection plates | Connecting beam webs to supporting members |
| Stiffener plates | Providing local reinforcement where required by the design |
| Item | Available Configuration |

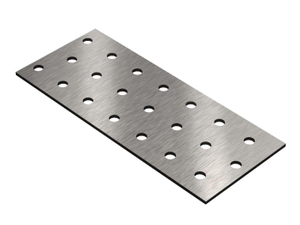

| Product | Custom structural steel connection plates |
| Material | Structural carbon steel; grade specified by the project |
| Plate thickness | According to connection design and approved drawings |
| Length and width | Custom dimensions |
| Plate shape | Rectangular, triangular or custom-cut profiles |
| Hole configuration | Round holes or approved slotted holes, as detailed |
| Connection method | Bolted, welded or combined assemblies |
| Surface condition | Uncoated, primed, painted or galvanized, subject to confirmation |
| Supply form | Loose plates or fabricated assemblies |
| Inspection scope | Material documentation, dimensions, hole locations and welds where applicable |
| Packing | Bundles, pallets or crates according to component size and shipping requirements |
Steel warehouses and logistics buildings
Industrial workshops and production facilities
Steel roof trusses and bracing systems
Mezzanine floors and equipment platforms
Multi-storey steel frames
Extensions and strengthening projects, subject to engineering review
Inspection can include material identification, plate dimensions, thickness, flatness, hole position, edge condition and weld quality where applicable. Coating checks and additional testing are defined in the agreed inspection plan. Documentation requirements should be specified when requesting a quotation.
Yes. Send your fabrication drawings, material requirements, quantities and surface finish specifications. Any missing details should be resolved before production begins.
These must be determined by the project structural engineer or connection designer. Selection depends on loads, member geometry, material properties and the complete bolt or weld arrangement.
They can be included in a coordinated steelwork package. Plates may be shipped loose or shop-welded into assemblies, according to approved drawings and the agreed supply scope.
Fasteners can be quoted separately or included when specified. Confirm their grade, size, finish, quantity and installation requirements with your inquiry.
Send your connection drawings, bill of quantities, material grade, surface finish requirements and delivery destination to ZSJH Steel. We will review the fabrication scope and prepare a project-specific quotation.
Send Your Drawings to Discuss Your Steel Connection Requirements.
