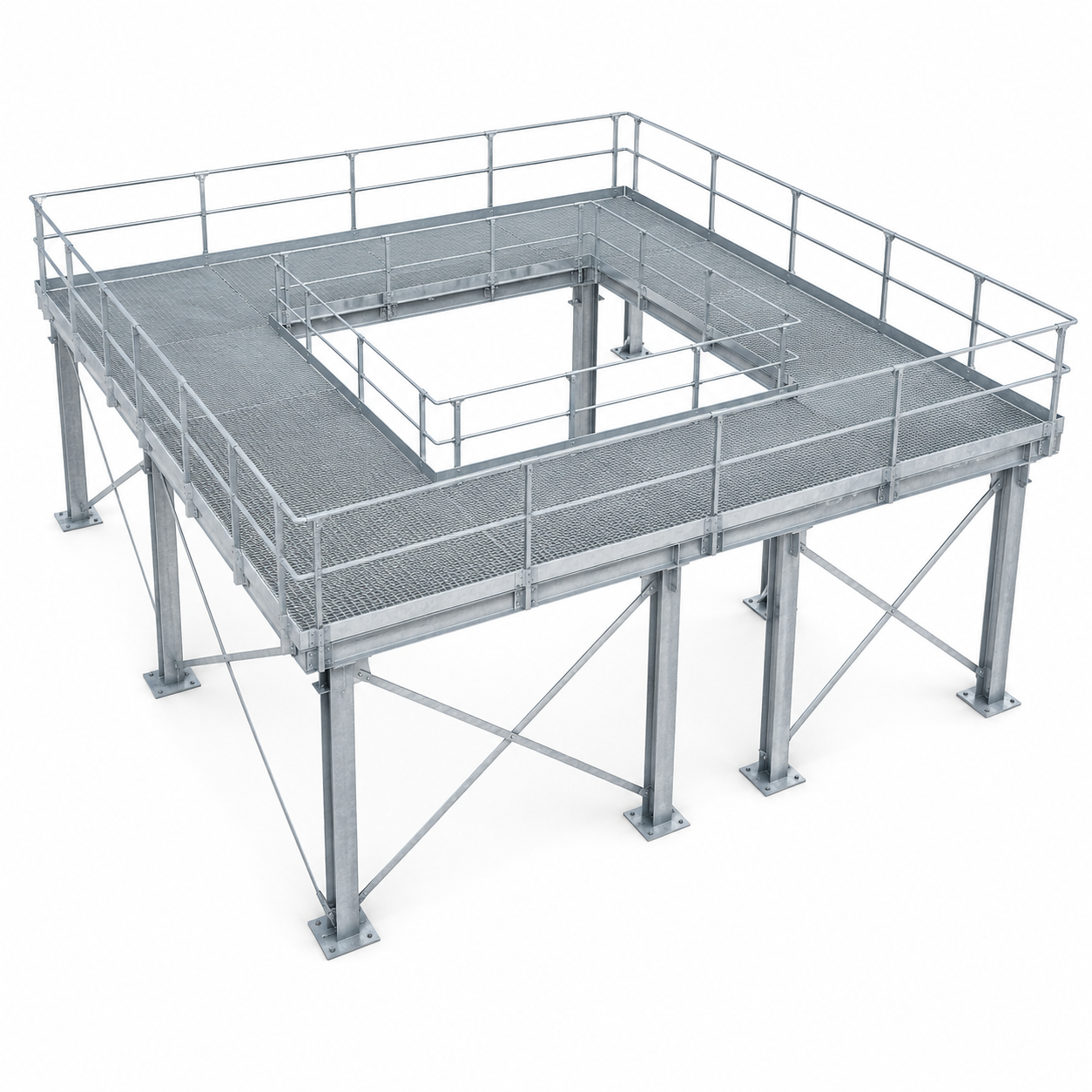

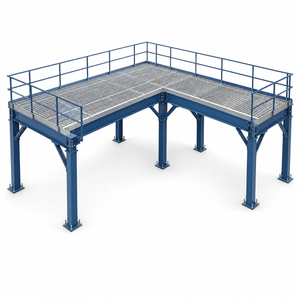

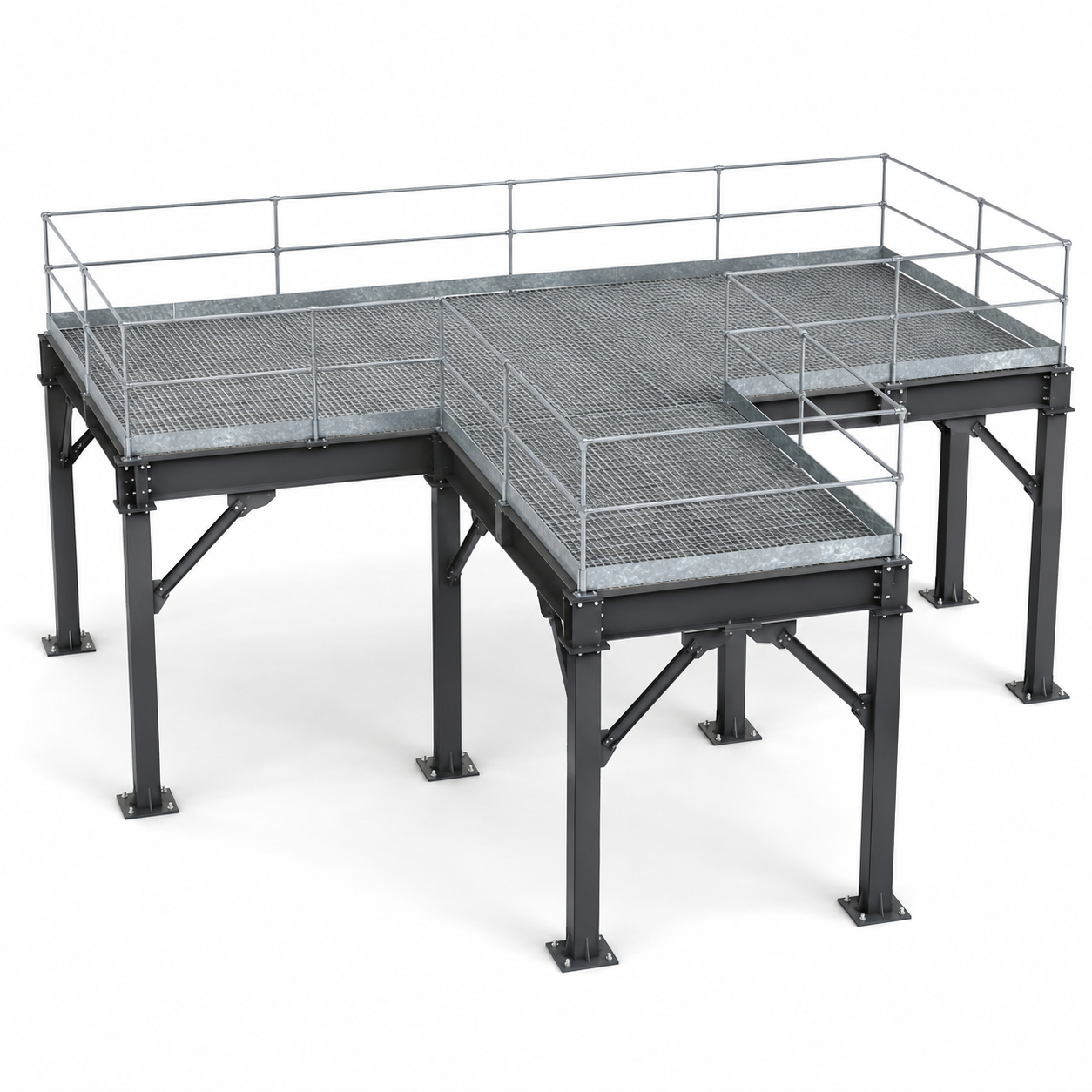

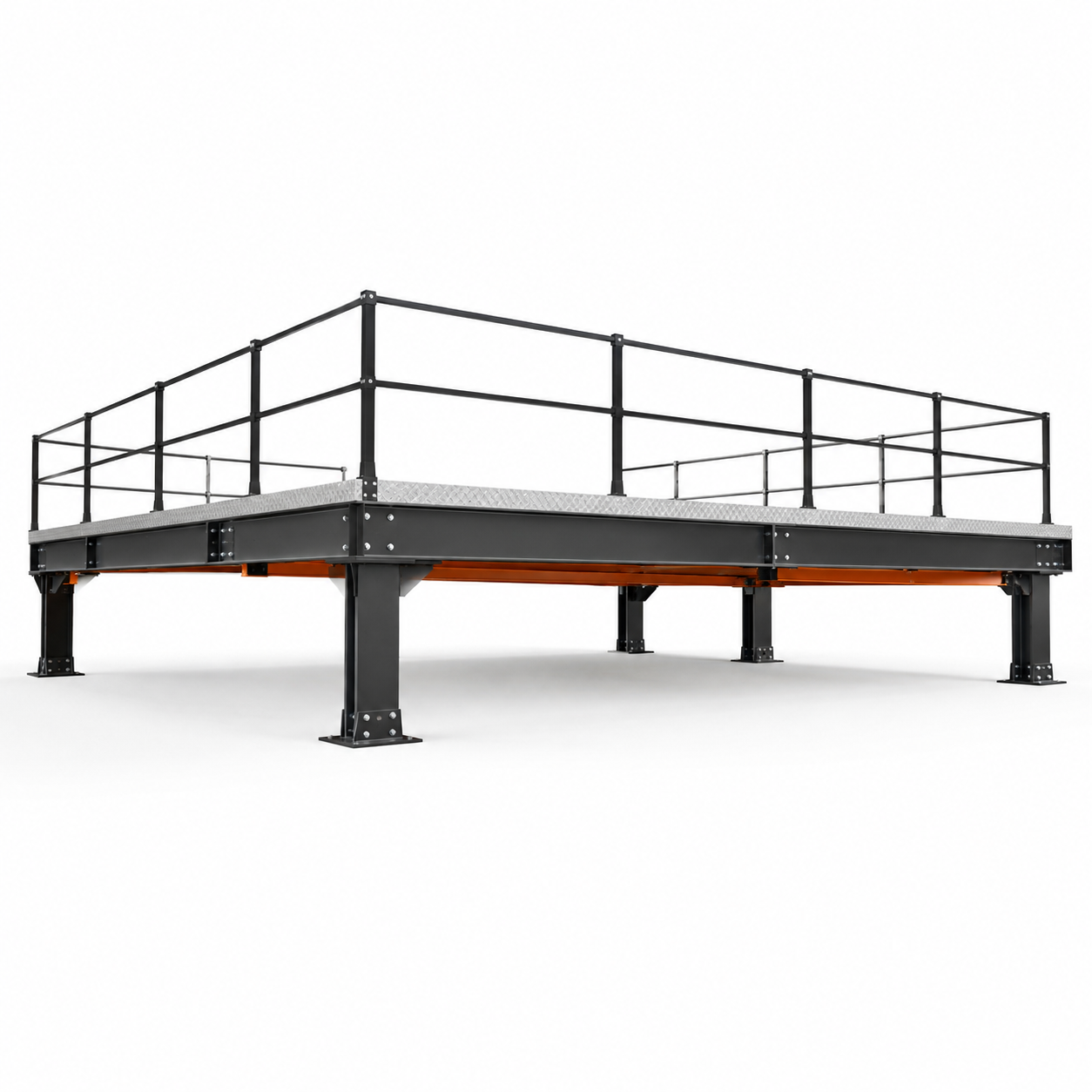

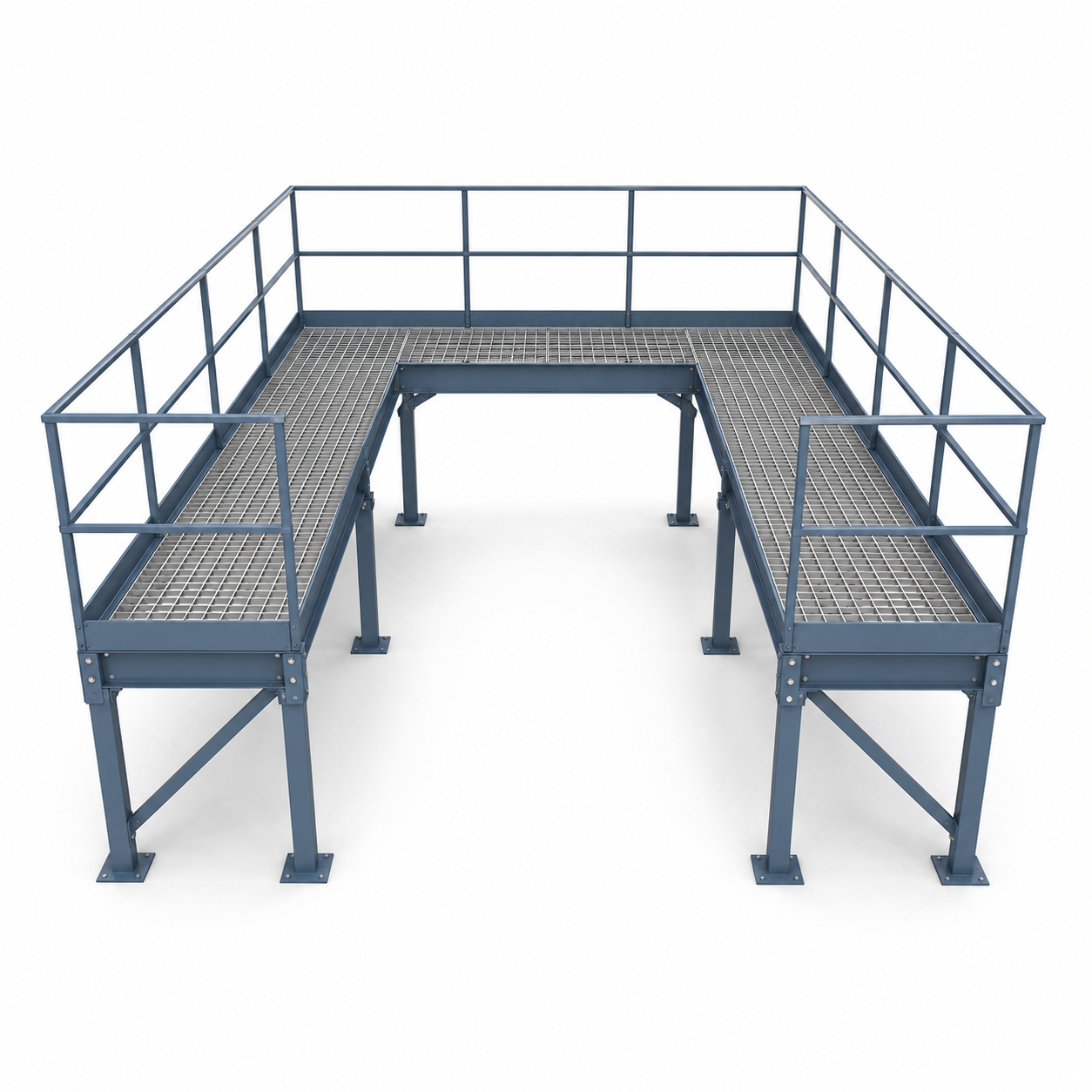

The system uses load-bearing steel columns, main girders, secondary beams, floor panels and lateral bracing to form a stable elevated working area. Every platform is manufactured according to the customer’s layout, operational requirements and approved fabrication drawings.

Compared with conventional concrete construction, prefabricated steel platforms offer faster installation, lower structural weight and greater flexibility for future modification or relocation.

Main Benefits

• Engineered according to project-specific loads

• Suitable for new and existing industrial buildings

• High strength with relatively low structural weight

• Prefabricated components reduce site construction

• Flexible openings for equipment and pipelines

• Easy connection with existing production systems

• Replaceable floor panels and guardrail sections

• Convenient inspection and maintenance

• Suitable for containerized international delivery

• Customized dimensions, colors and surface finishes

Product Details

Manufacturing Process

1. Review the project layout and technical requirements.

2. Complete structural calculations and detailed drawings.

3. Purchase and inspect steel materials.

4. Cut, drill and assemble structural components.

5. Perform welding and dimensional inspection.

6. Apply blasting and surface treatment.

7. Mark every component for site installation.

8. Pack and load the structure for export.

Quality Assurance

Quality inspections cover raw materials, component dimensions, hole positions, weld appearance, surface preparation and coating thickness. Material certificates and inspection documents can be supplied with the order.

Pre-assembly and third-party inspection can also be arranged when required.

FAQ

Can you manufacture according to our drawings?

Yes. We can fabricate according to PDF, DWG or other approved engineering drawings.

Can you provide the structural design?

Yes. Please provide the platform dimensions, equipment loads, operating requirements and installation environment.

Can the platform connect to an existing building?

Yes. Connection points can be designed after reviewing the existing structure and site conditions.

Which floor material should we choose?

Steel grating is suitable for ventilation and drainage. Checker plate provides a solid working surface, while composite decking is suitable for applications requiring greater floor stiffness.

Can equipment bases be included?

Yes. Equipment mounting plates, reinforced beams and customized support frames can be fabricated as part of the platform.
