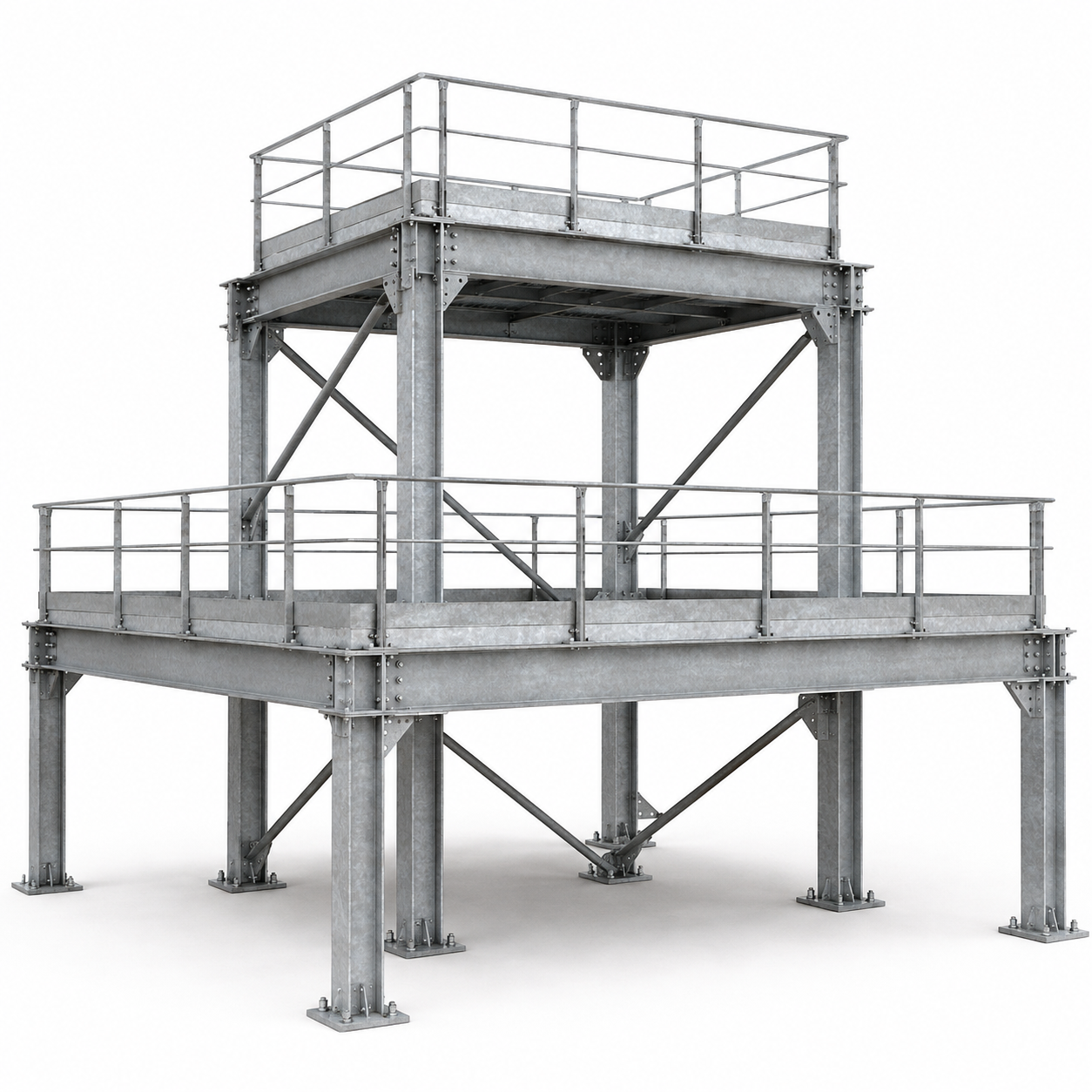

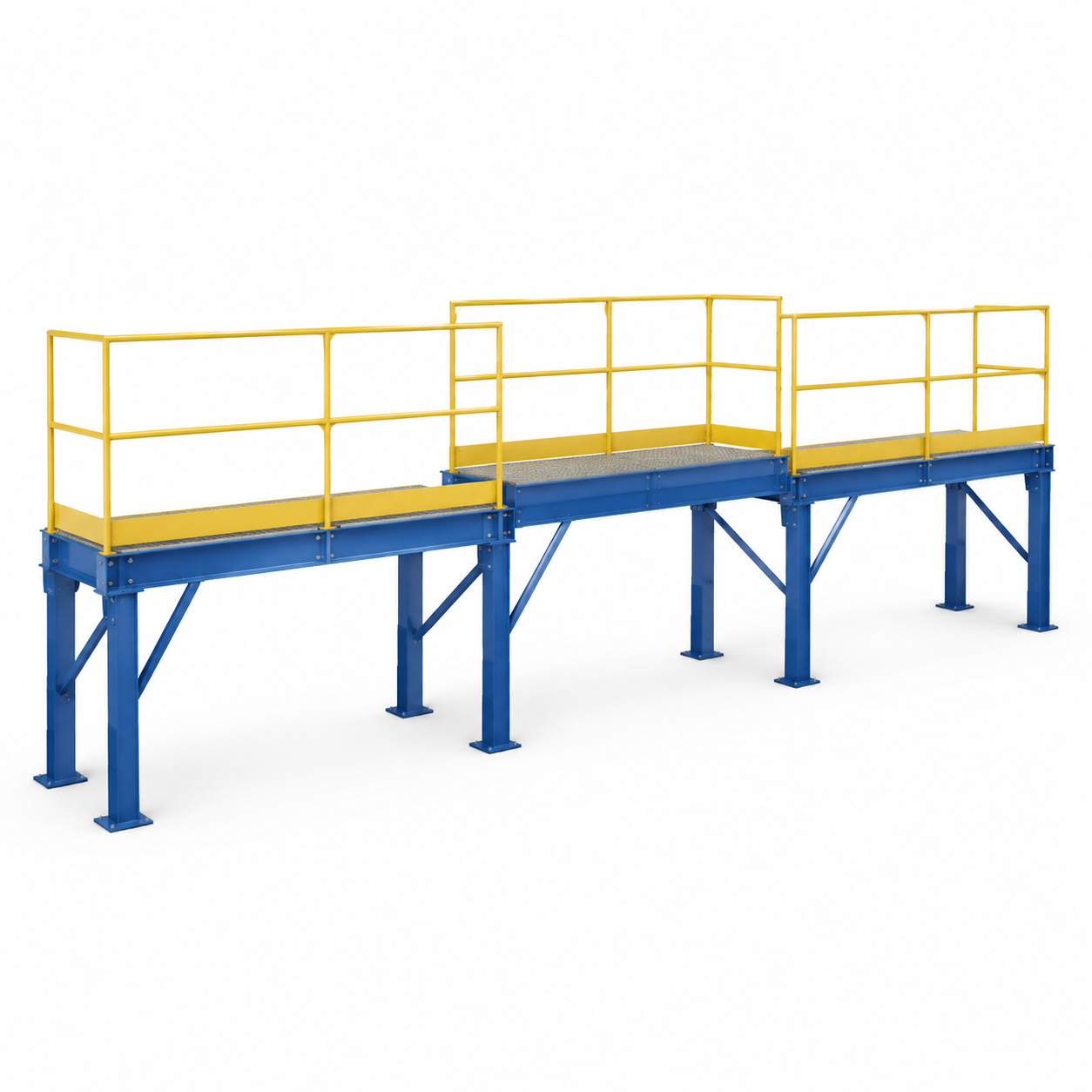

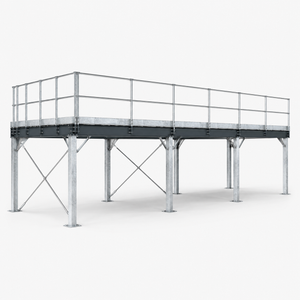

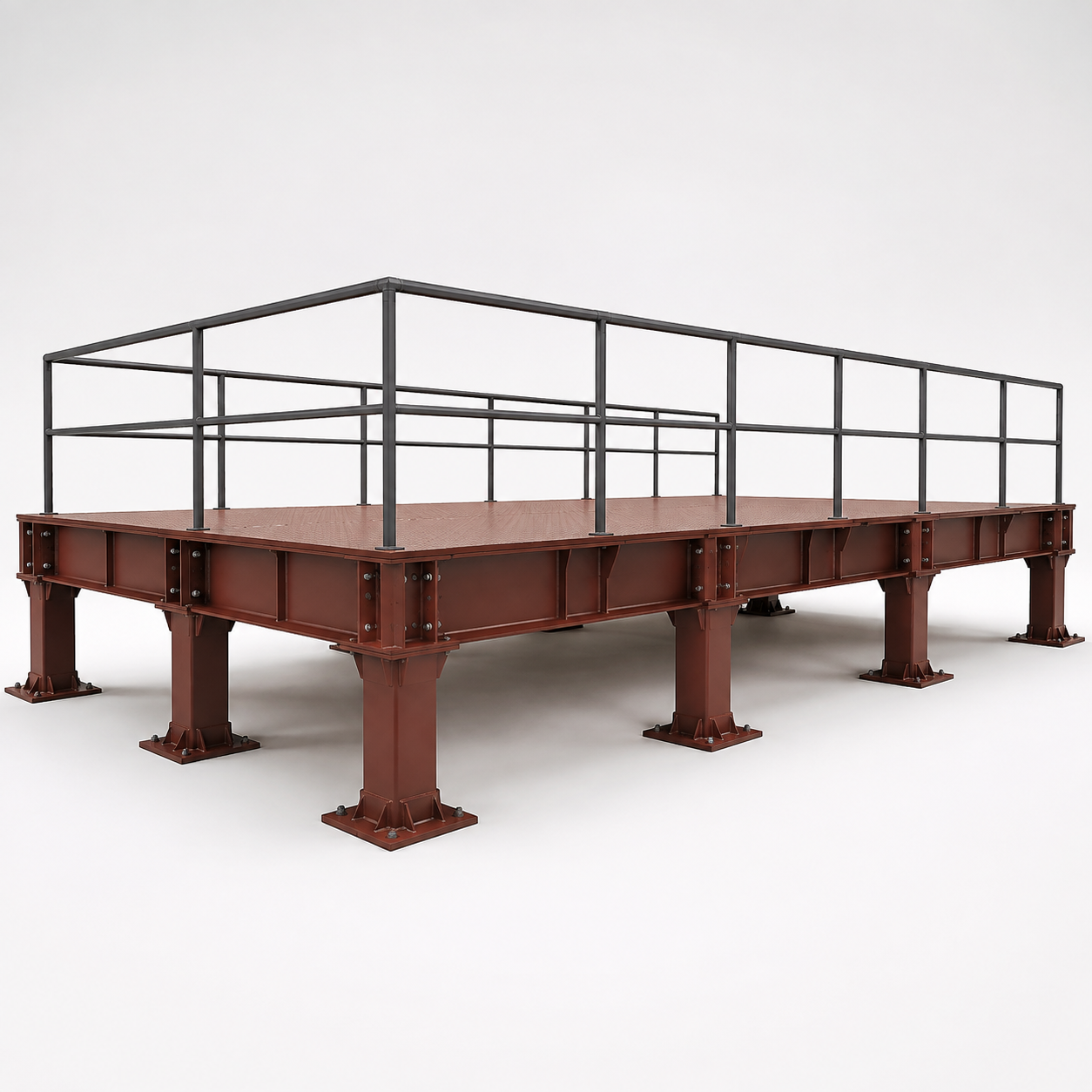

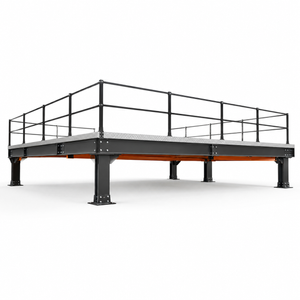

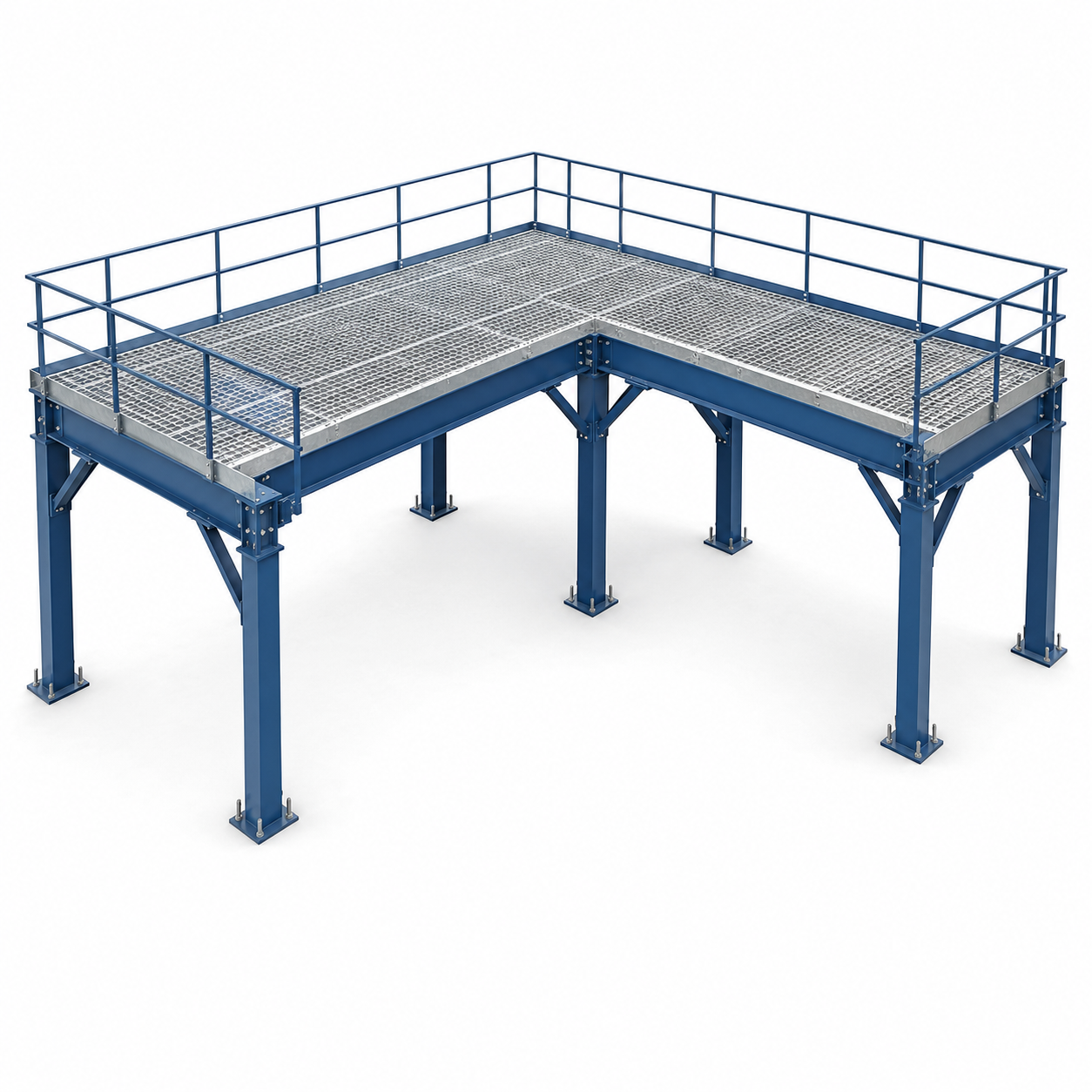

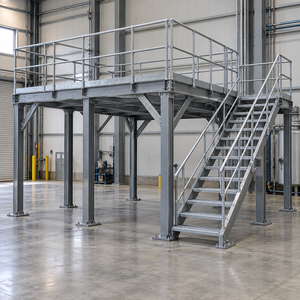

The Modular Steel Platform System provides an efficient way to create additional working, storage or equipment space without expanding the existing building footprint.
The structure is prefabricated from steel columns, primary beams, secondary beams, bracing and floor panels. Components are processed in the factory and connected mainly by bolts at the project site, helping reduce installation time and on-site welding.
ZSJH Steel can customize the platform according to the required dimensions, operating loads, equipment arrangement, factory layout and environmental conditions.
Maximizes unused vertical space
Suitable for heavy equipment and storage loads
Modular structure for fast site assembly
Flexible column spacing and platform dimensions
Easy to extend or modify in the future
Multiple floor panel options
Reliable bolted and welded connections
Indoor and outdoor surface treatments
Convenient export and container transportation
Complete fabrication and installation drawings
| Parameter | Specification |
|---|---|
| Product Name | Modular Steel Platform System |
| Main Material | Q235B, Q355B or customized |
| Structural Form | Columns, beams, bracing and floor system |
| Platform Size | Manufactured according to drawings |
| Platform Height | Customized |
| Load Capacity | Determined by structural calculations |
| Floor Options | Steel grating, checker plate or composite deck |
| Guardrail | Carbon steel or galvanized steel |
| Connection Method | Bolted, welded or combined |
| Surface Finish | Painted or hot-dip galvanized |
| Color | Customized according to RAL color |
| Access System | Staircase or ladder available as an option |
| Production Method | Cutting, drilling, welding, blasting and coating |
| Packaging | Seaworthy bundles or steel frames |
| Installation Support | Drawings and online technical guidance |
For an accurate quotation, please provide:
Platform length, width and height
Required load capacity
Column spacing requirements
Equipment weight and location
Preferred floor material
Indoor or outdoor installation environment
Project drawings or layout plans
Required surface treatment
If drawings are unavailable, our engineering team can develop a preliminary solution based on your project information.
Yes. The structure can be calculated according to equipment weight, operating loads, vibration and maintenance requirements.
Yes. A modular layout can be prepared to allow future platform extensions or equipment changes.
Yes. Hot-dip galvanizing is recommended for outdoor, humid and corrosive environments.
Yes. Guardrails, toe boards, floor panels, connection plates and bolts can be supplied as part of the complete system.
Custom steel platforms normally require approximately 20–30 days after the drawings are approved. The actual schedule depends on quantity and specifications.
