The product is developed from approved fabrication and erection drawings. ZSJH reviews mate
rials, member sizes, interfaces, weld details, tolerances and delivery requirements, then completes part preparation, fit-up, welding, assembly, dimensional checks, marking and packing. The final product can be divided into practical modules according to lifting, transport and site erection limits.
Specification | Project Options |
Product type | Completed welded industrial skid frames |
Main components | base beams, cross members, mounting plates, equipment supports and lifting provisions coordinated to layouts |
Material | Carbon steel or structural steel as specified |
Fabrication | Shop fit-up, welding, assembly and inspection |
Finish | Primer, paint, galvanizing or specified protection |
Delivery | Marked and packed components ready for the next project stage |
· Completed welded structure or component
· Drawing-based dimensional and interface control
· Factory assembly reduces site adjustment
· Custom members, plates, connections and finishes
· Piece marking and revision traceability
· Pump

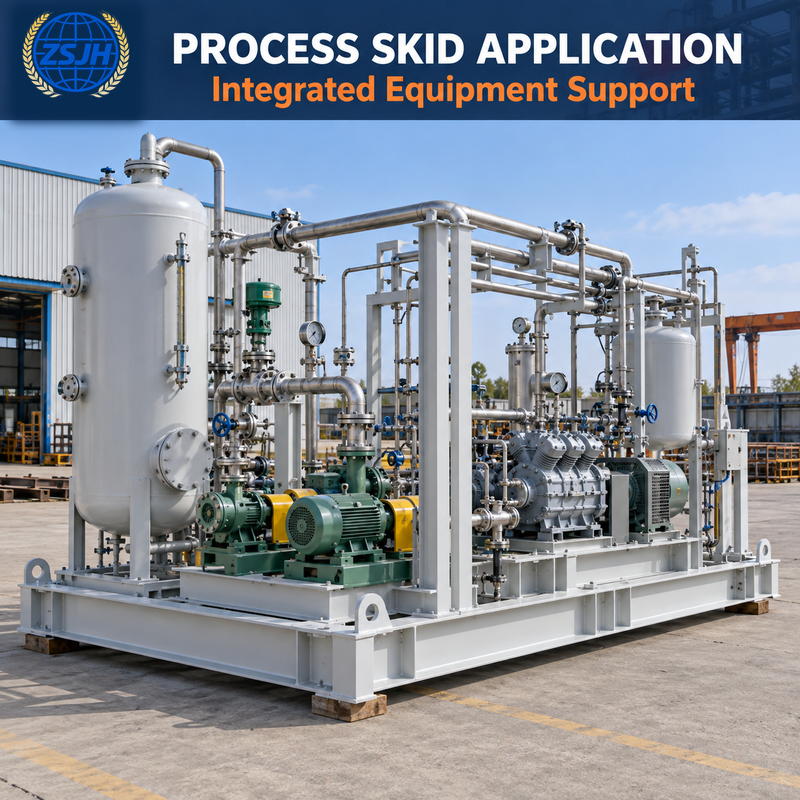

· Compressor skids, tanks, piping packages, power equipment
· Factory-built modules
Overall dimensions, section sizes, plate thickness, connection interfaces, weld details, tolerances, lifting points, coating system, marking and packing can be customized to approved drawings and project requirements for welded industrial skid frames.
· Review approved drawings and project interfaces
· Material identification and part preparation

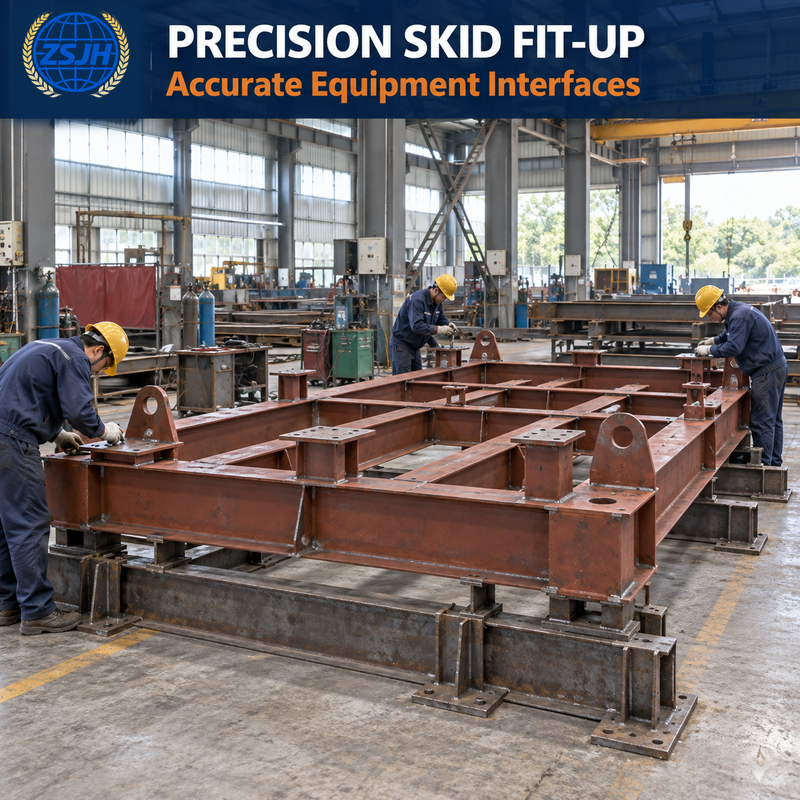

· Fit-up of members, plates and nodes

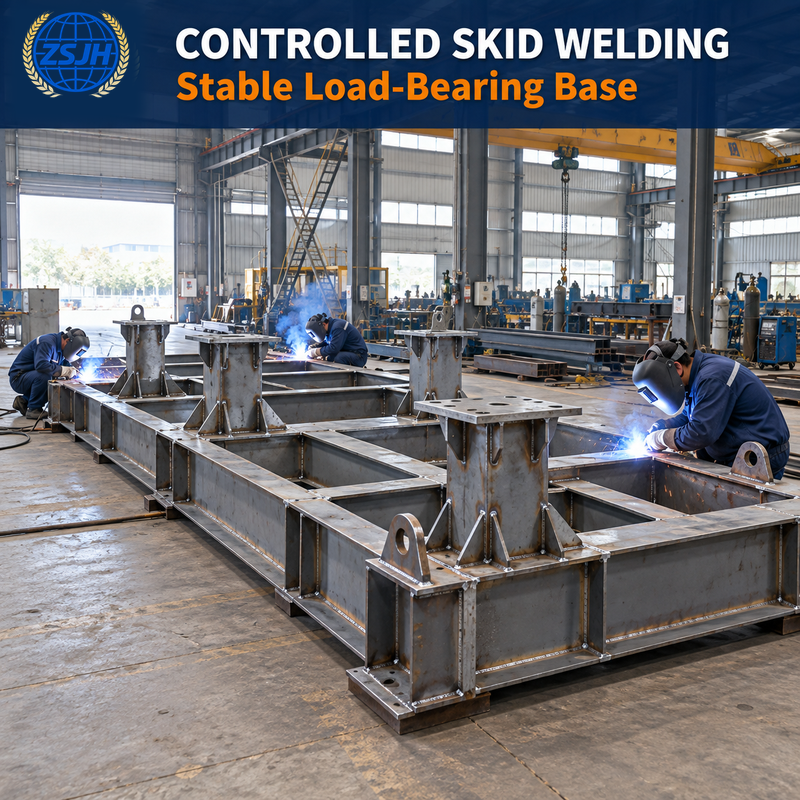

· Controlled shop welding and assembly

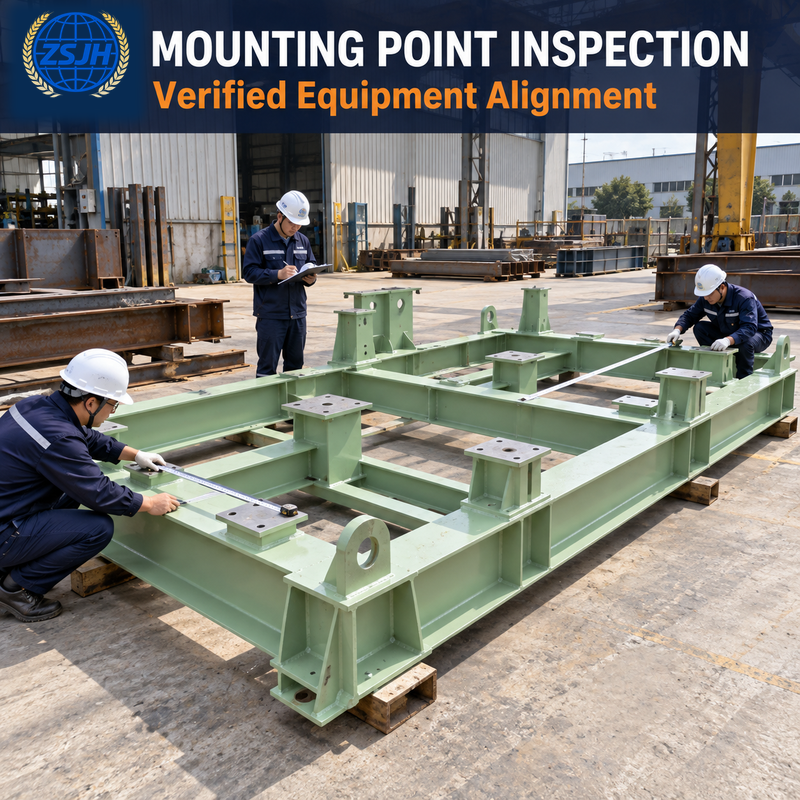

· Dimensional, visual and interface inspection

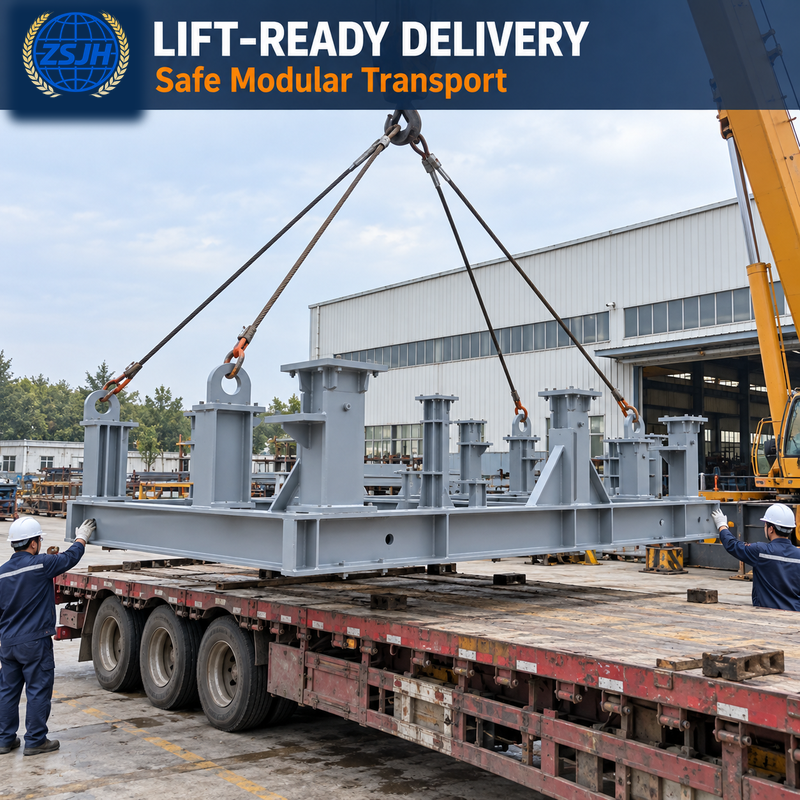

· Marking, surface treatment, packing and delivery
Send your approved drawings and project requirements to ZSJH for a review of the welded industrial skid frames and a detailed quotation.
