The product is developed from approved fabrication and erection drawings. ZSJH reviews materials, member sizes, interfaces, weld details, tolerances and delivery requirements, then completes part preparation, fit-up, welding, assembly, dimensional checks, marking and packing. The final product can be divided into practical modules according to lifting, transport and site erection limits.
Specification | Project Options |
Product type | Completed welded lattice steel structures |
Main components | chords, diagonal members, transverse members, gussets and end connections assembled as finished sections |
Material | Carbon steel or structural steel as specified |
Fabrication | Shop fit-up, welding, assembly and inspection |
Finish | Primer, paint, galvanizing or specified protection |
Delivery | Marked and packed components ready for the next project stage |

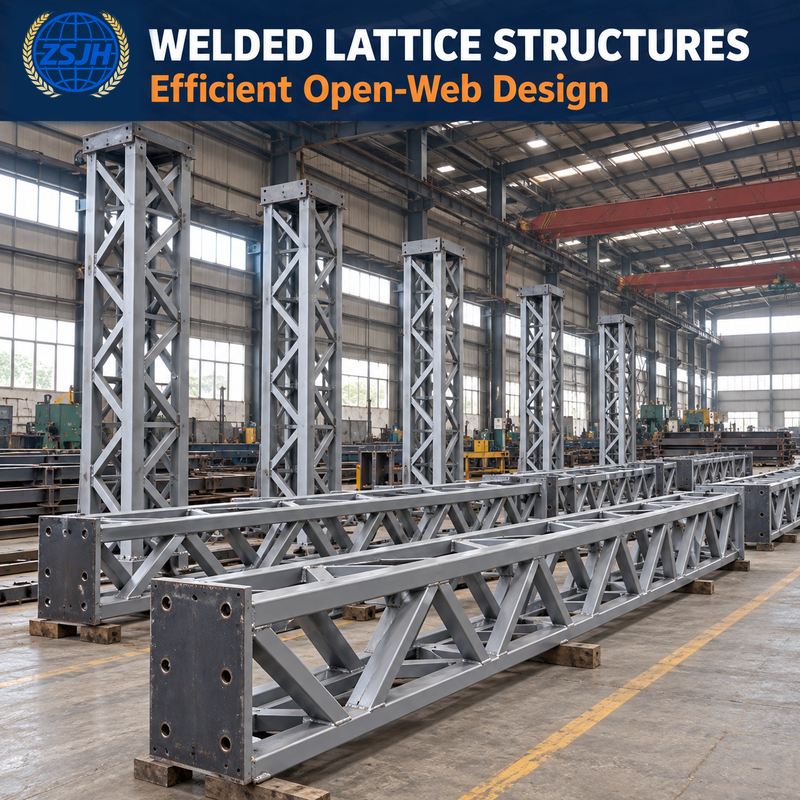

· Completed welded structure or component
· Drawing-based dimensional and interface control
· Factory assembly reduces site adjustment
· Custom members, plates, connections and finishes
· Piece marking and revision traceability

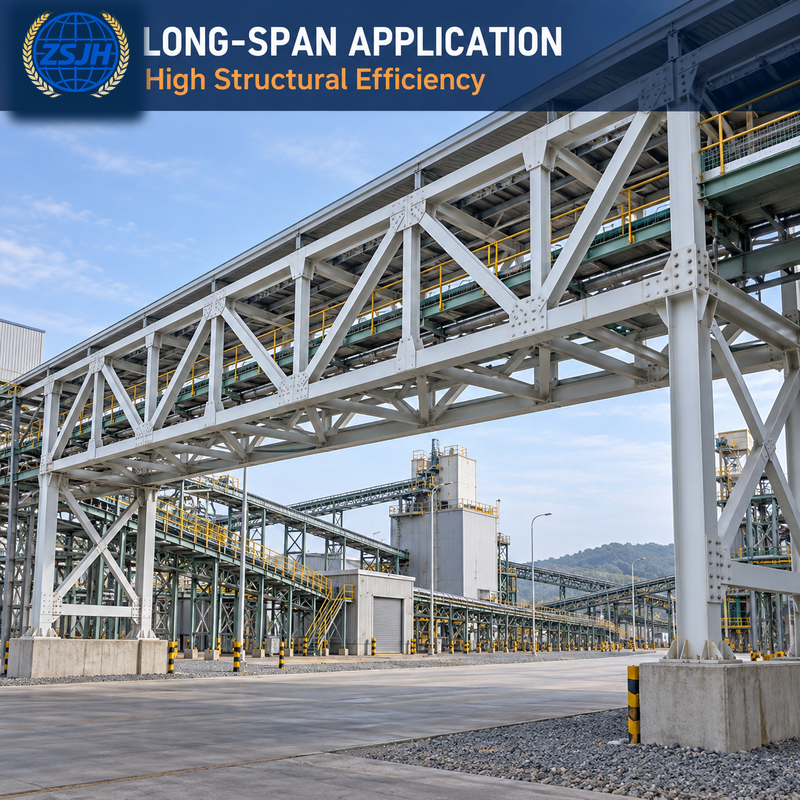

· Lattice columns, towers, long-span trusses, conveyor supports, pipe racks
· Infrastructure frames
Overall dimensions, section sizes, plate thickness, connection interfaces, weld details, tolerances, lifting points, coating system, marking and packing can be customized to approved drawings and project requirements for welded lattice steel structures.
· Review approved drawings and project interfaces
· Material identification and part preparation

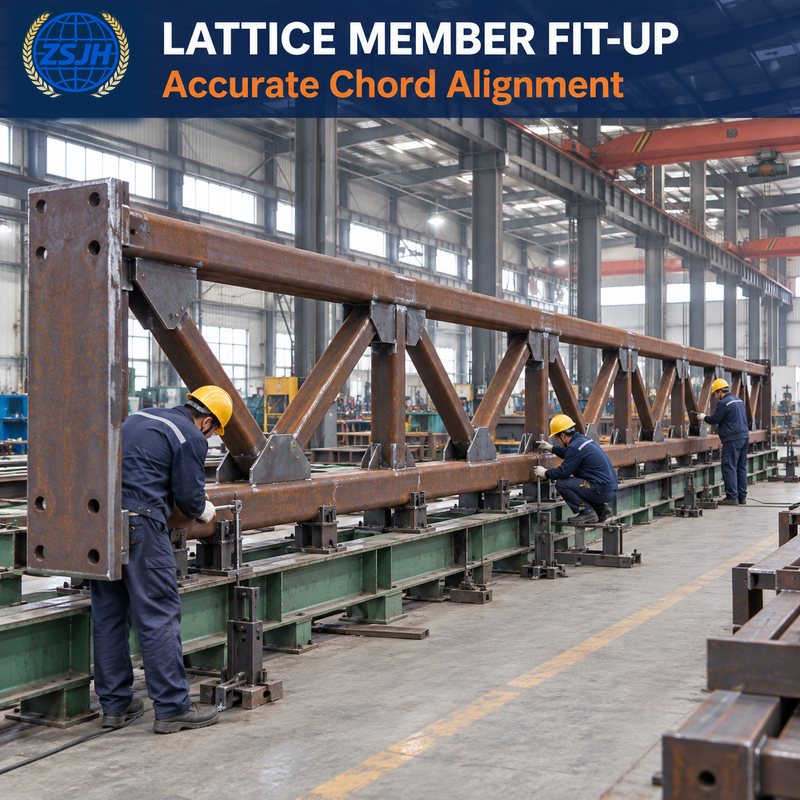

· Fit-up of members, plates and nodes

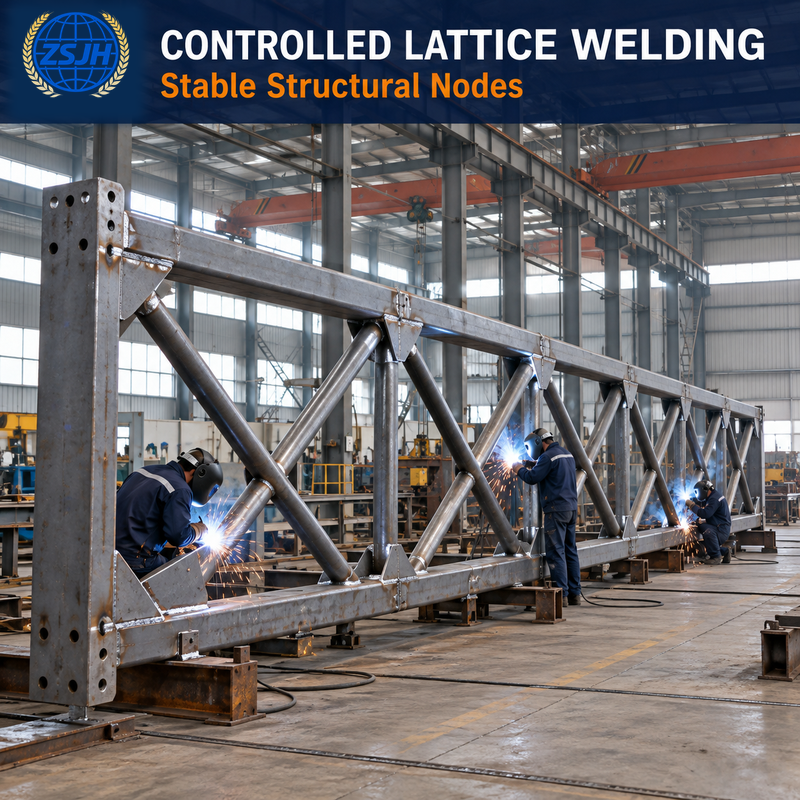

· Controlled shop welding and assembly
· Dimensional, visual and interface inspection

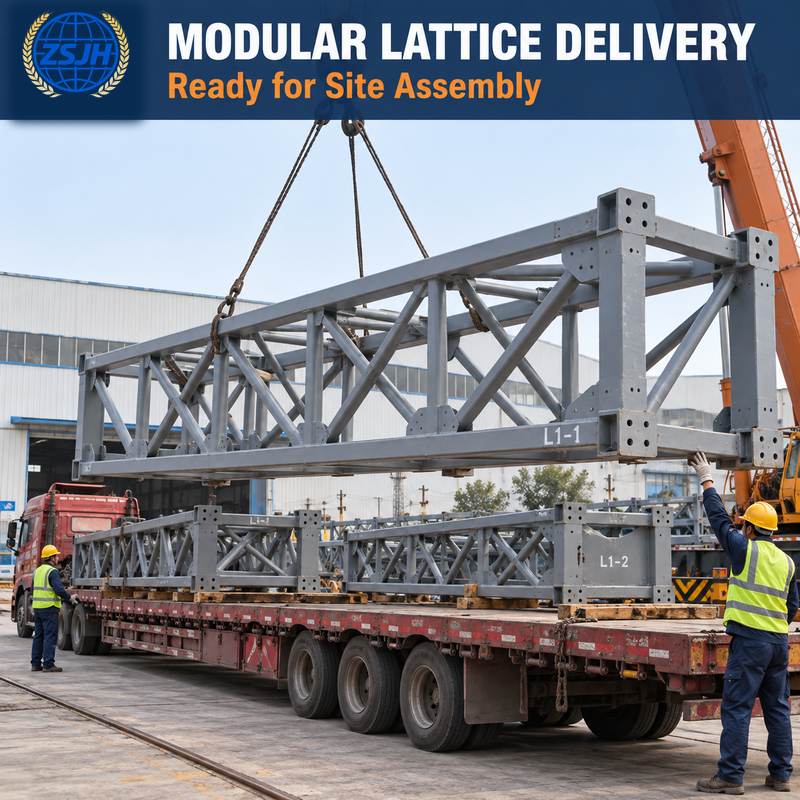

· Marking, surface treatment, packing and delivery
Send your approved drawings and project requirements to ZSJH for a review of the welded lattice steel structures and a detailed quotation.
