Product Overview

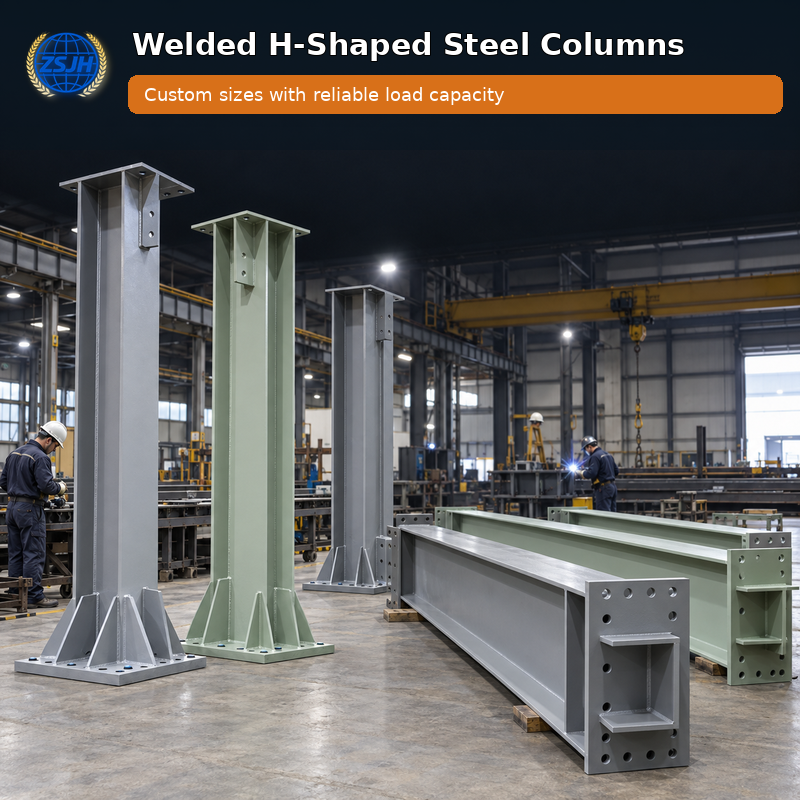

These columns provide an efficient open section for axial compression, bending and combined actions. Shop-fitted base plates, cap plates, splice plates, stiffeners and CNC holes support fast erection and accurate connection fit-up. ZSJH Steel controls material traceability, assembly alignment, welding, straightening, inspection, coating and marking from drawing review to dispatch.

Typical Specifications

Key Features

• Efficient H-section for axial and combined loading

• Non-standard dimensions fabricated from plate

• Shop-fitted plates, stiffeners and connection holes

• Controlled welding sequence limits distortion

• Piece marks simplify site erection

Applications

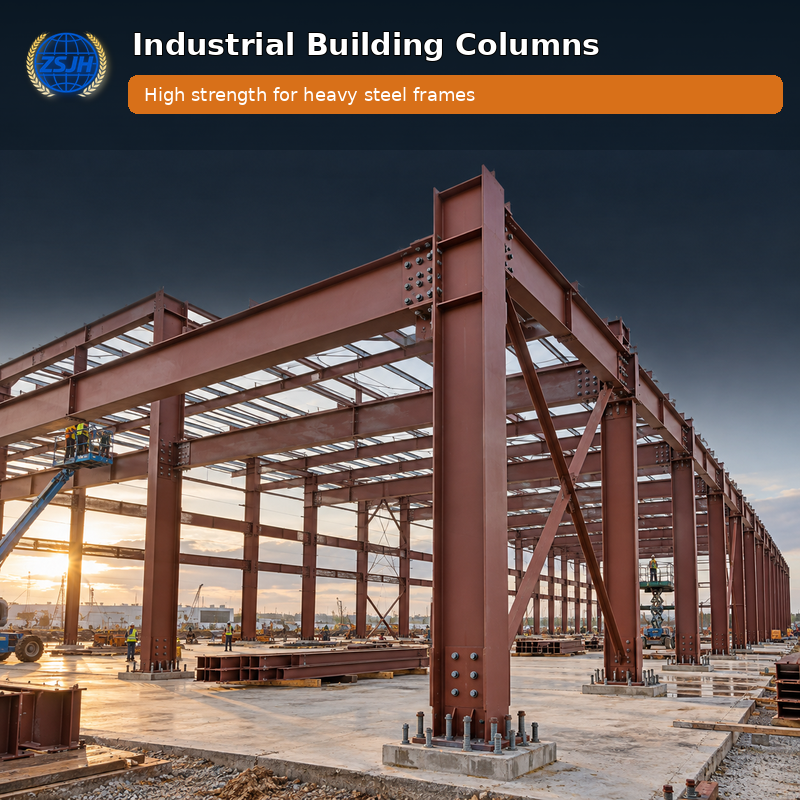

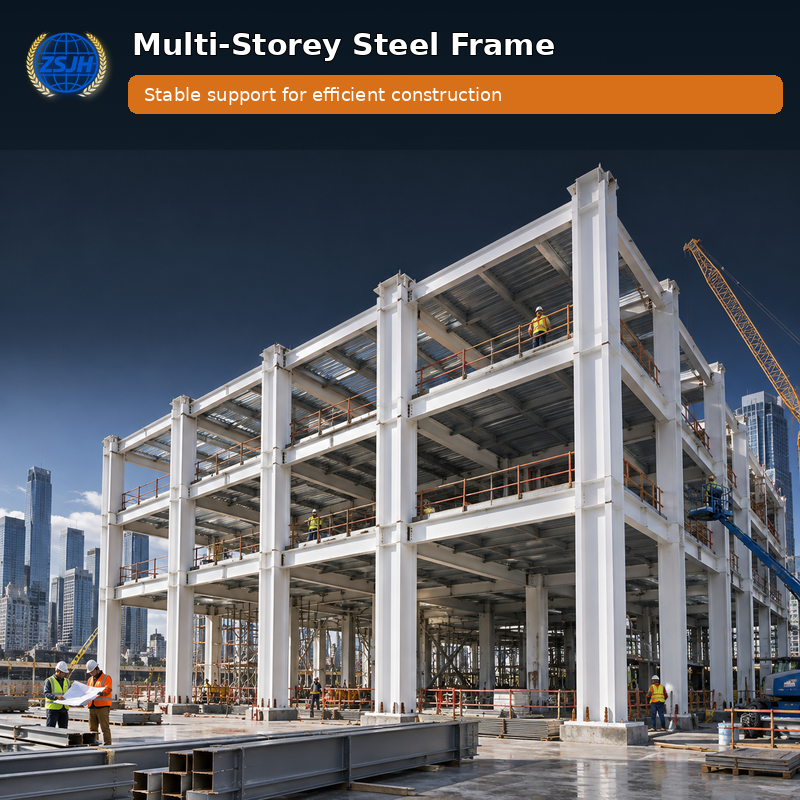

Industrial workshops, warehouses, multi-storey steel buildings, equipment support frames, pipe racks, platforms and portal-frame columns.

Customization Capability

We fabricate from customer drawings or approved shop drawings. Customization can include section dimensions, plate thickness, steel grade, length, base and cap assemblies, splice locations, stiffener layout, holes, weld category, tolerances, coating system, lifting points and shipping splits. The technical review checks manufacturability, erection sequence and transport limits before release.

Manufacturing and Quality Control

1. Review drawings, standards, loads, tolerances and inspection requirements.

2. Verify steel certificates and maintain piece or heat-number traceability where required.

3. CNC cut plates, tubes, chords, lacing members and connection parts.

4. Assemble against controlled datums and fixtures.

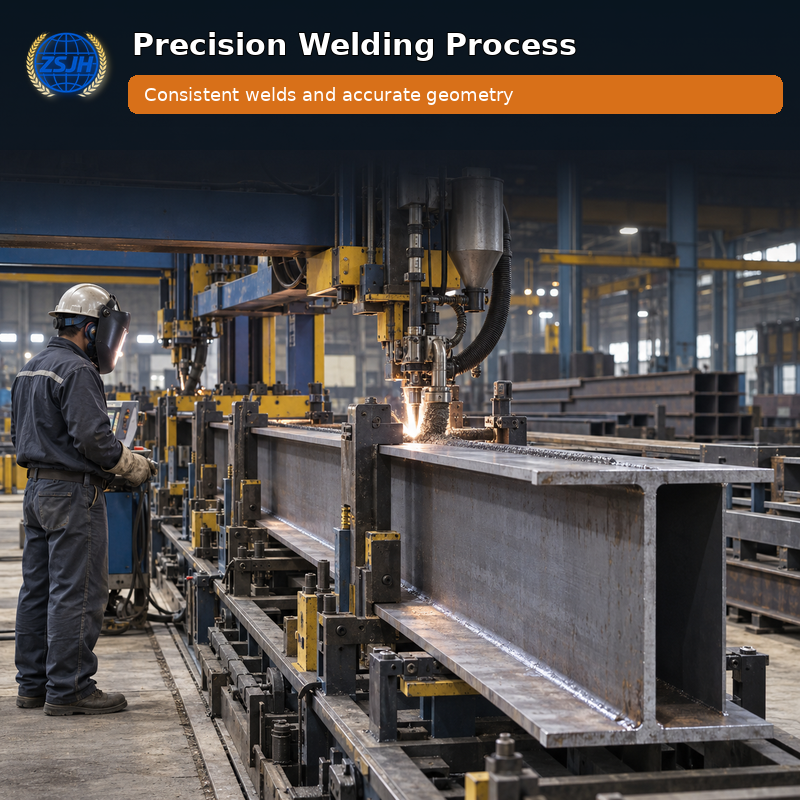

5. Complete qualified welds in a planned sequence to control distortion.

6. Install plates, stiffeners, diaphragms, lacing or branch details.

7. Straighten and inspect geometry, interfaces, welds and holes.

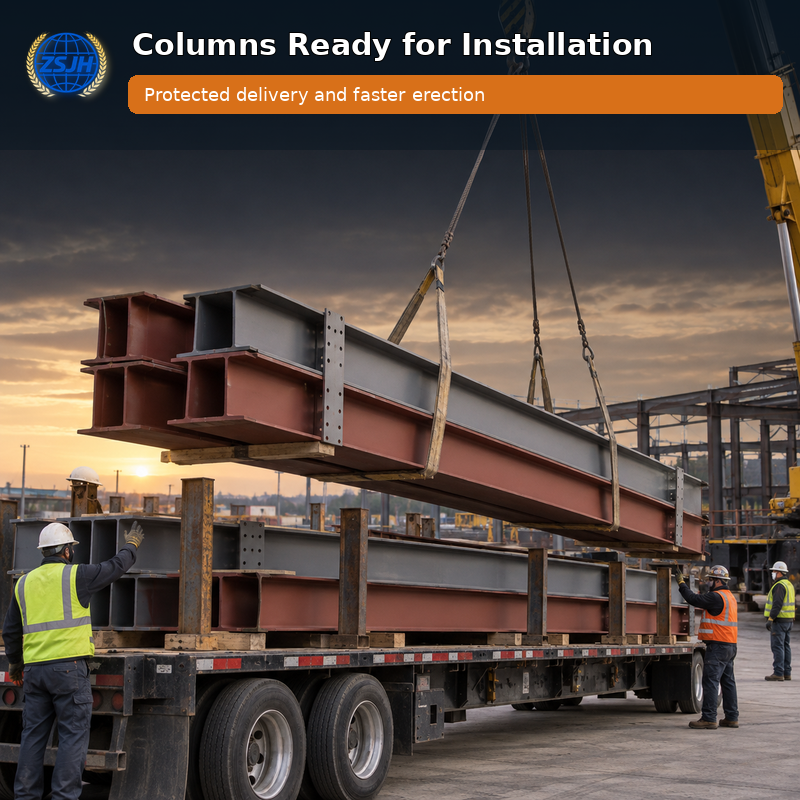

8. Blast, coat, mark, document and pack by erection sequence.

FAQ

Can these steel columns be made to non-standard dimensions?
Yes. Section geometry, plate thickness, length and connection details are fabricated to approved project drawings within production and transport limits.

Can base plates and connection holes be completed in the factory?

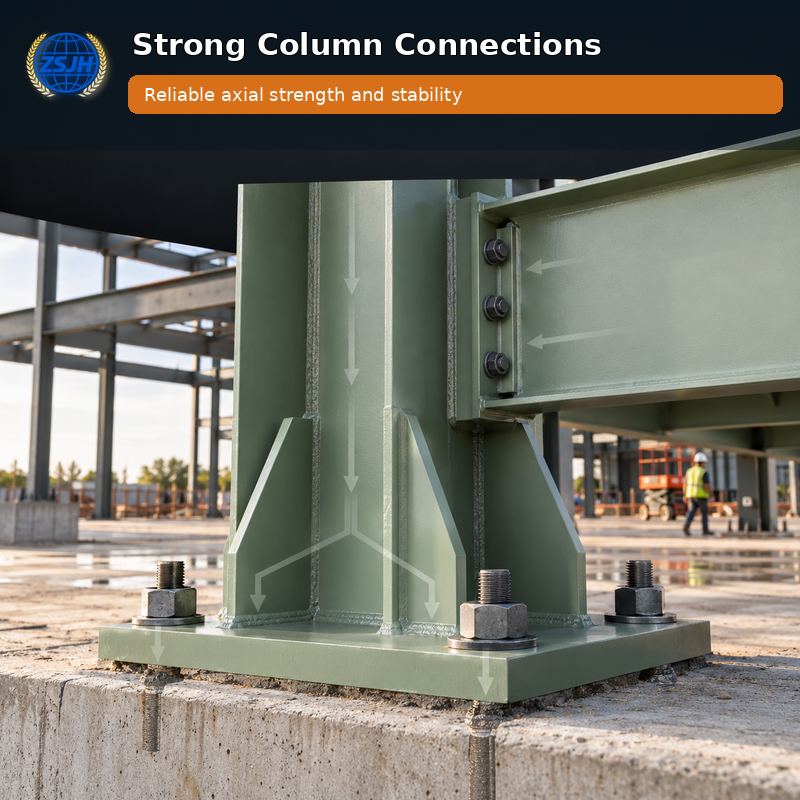

Yes. Base assemblies, cap plates, splice plates, stiffeners and CNC holes can be integrated into the column package.

What information is needed for quotation?
Please send drawings, quantities, steel grade, design or fabrication standard, inspection level, coating system, delivery location and required schedule.

CTA

Send your steel column schedule or drawings to ZSJH Steel for a manufacturability review and project-specific quotation.
