Cold formed steel sections provide an efficient solution for projects requiring high structural performance, reduced weight and accurate factory-made components.
ZSJH Steel produces standard and customized profiles from quality-controlled steel coils. Through precision roll forming, punching and cut-to-length processing, we manufacture ready-to-install steel sections for roofing systems, wall support systems, modular buildings, light steel framing, solar structures and industrial applications.
Customers can order standard C, U and Z sections or submit drawings for specially designed profiles with customized folds, stiffening ribs, holes, slots and protective coatings.
Lightweight structural solution
High load-bearing efficiency
Precise and repeatable profile geometry
Custom sections manufactured from drawings
Pre-punched holes for faster installation
Flexible lengths and steel thicknesses
Galvanized and coated surface options
Suitable for automated, large-volume production
Easy to bundle, transport and install
Complete fabrication and export support
| Profile | Main Characteristics | Typical Uses |
|---|---|---|

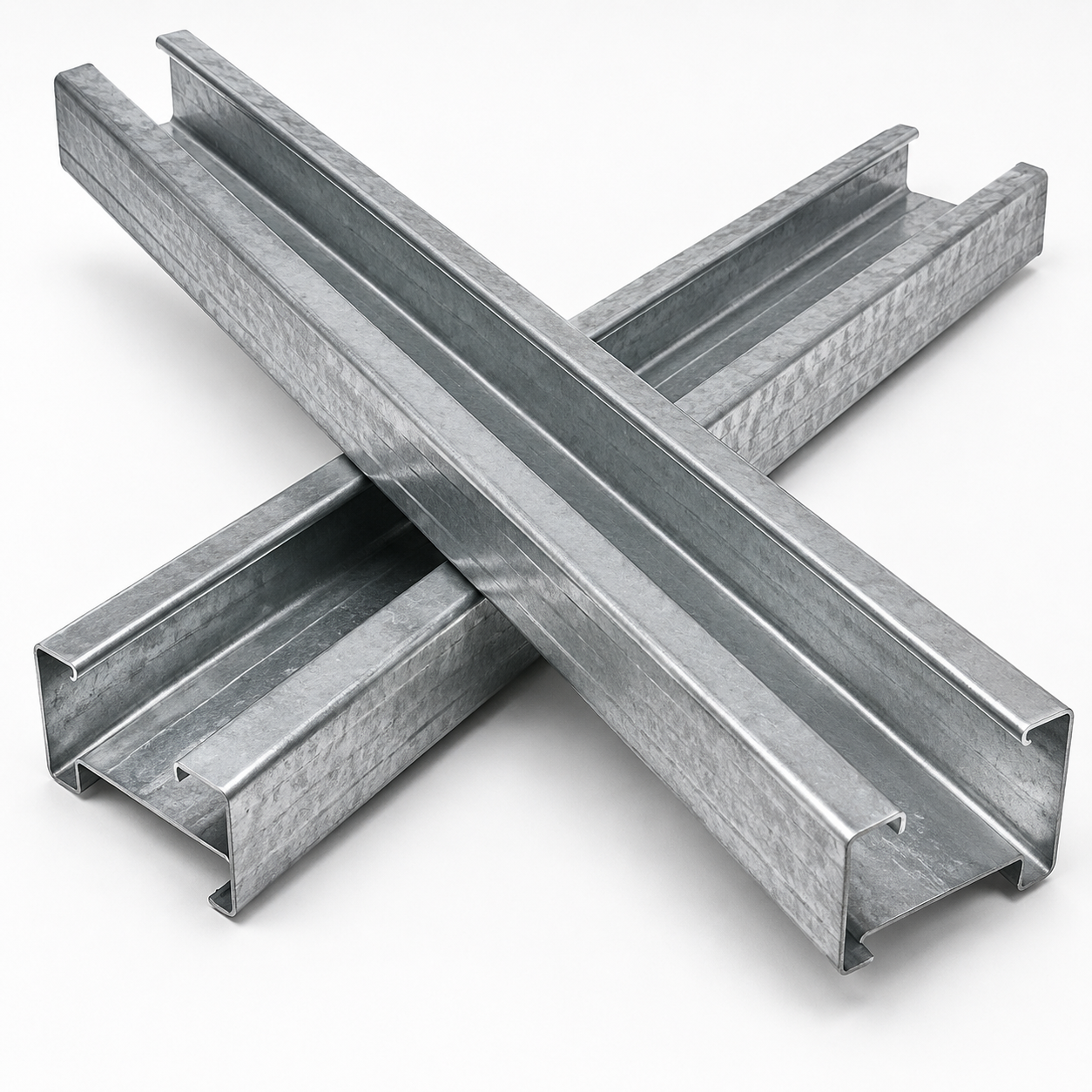

| Lipped C Section | Open channel with inward return lips | Roof purlins, wall girts and framing |
| Plain U Channel | Simple open track profile | Tracks, guides and edge members |
| Z Section | Offset flanges for overlapping installation | Continuous roof and wall purlin systems |

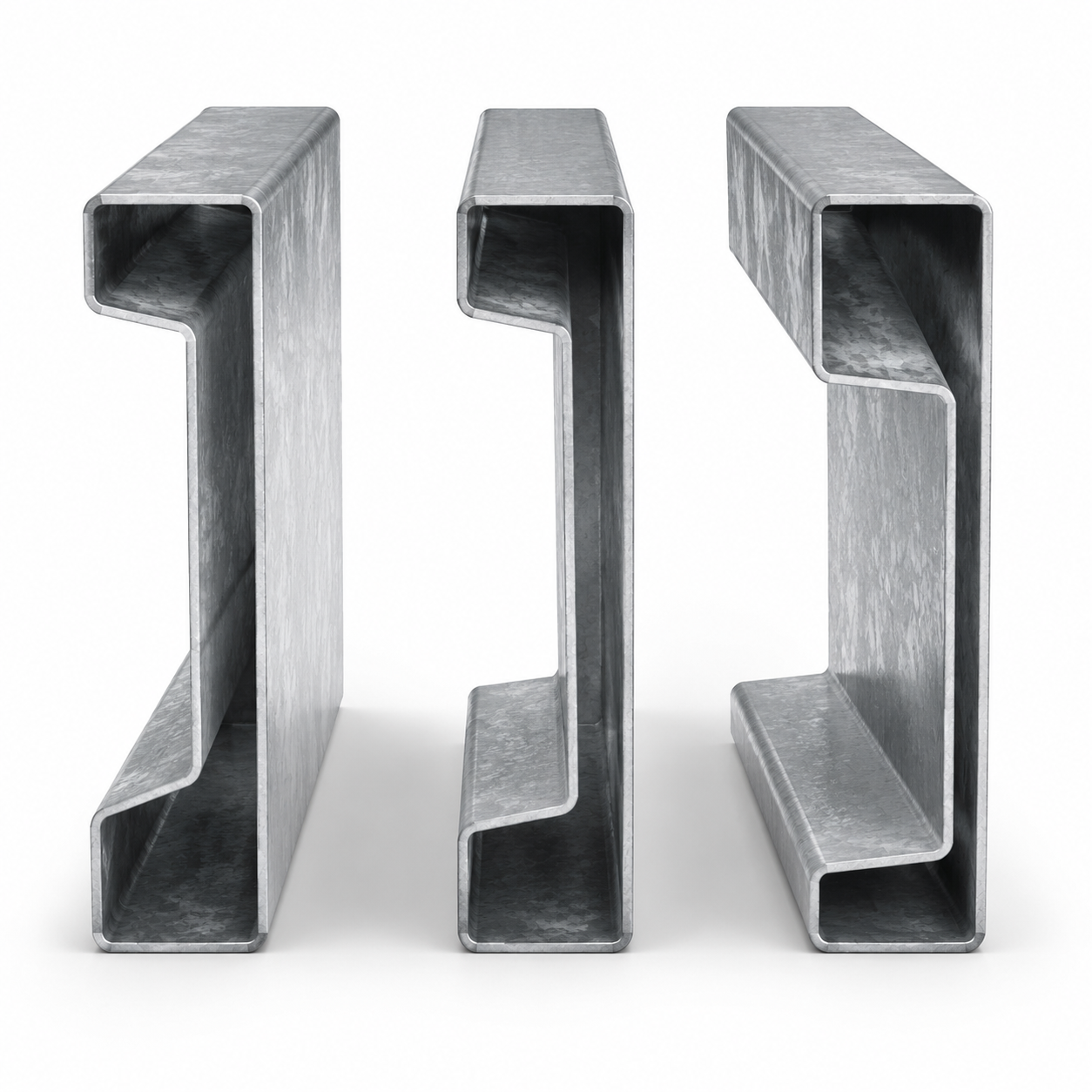

| Sigma Section | Multiple folds for increased stiffness | Long-span framing and storage systems |

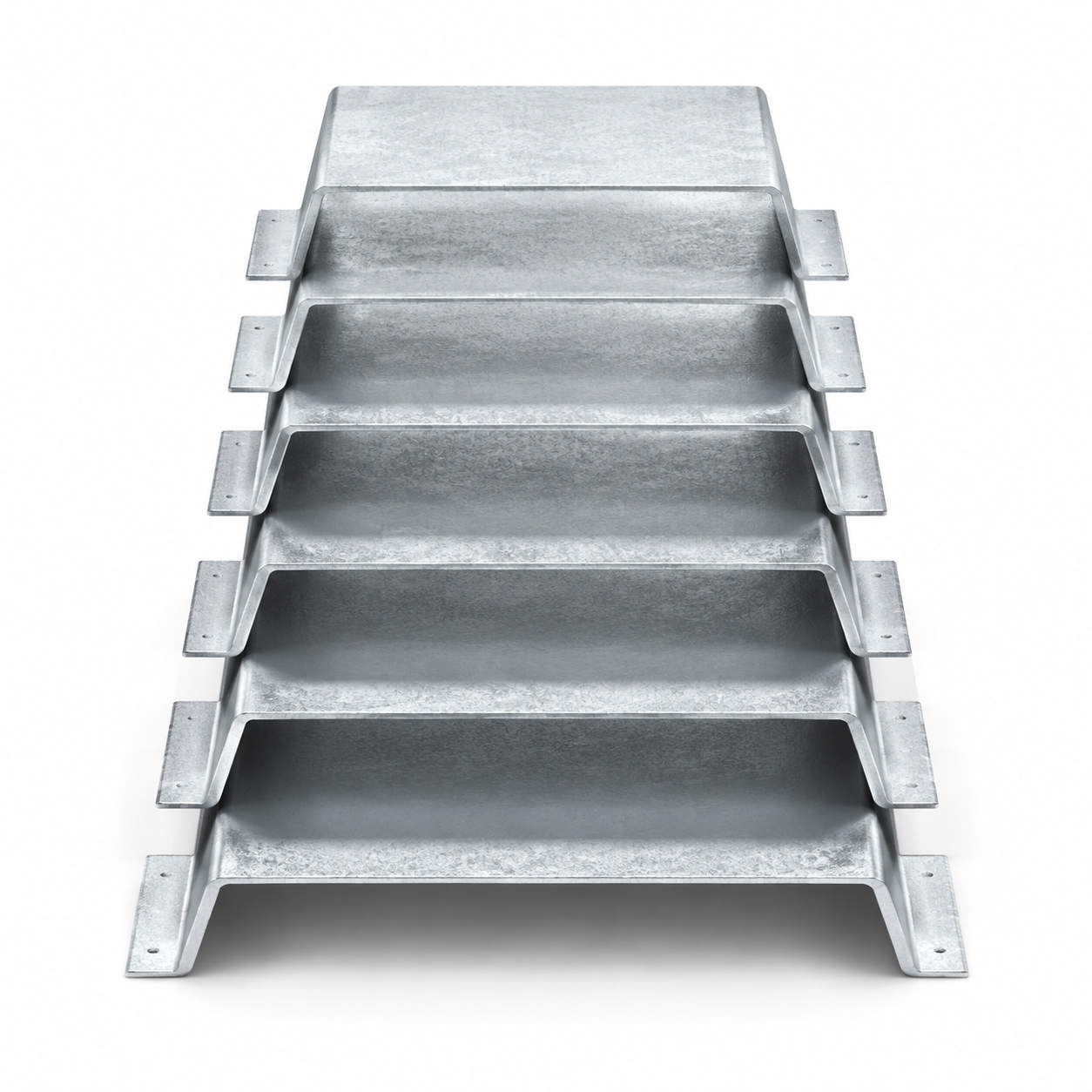

| Hat Section | Raised center with mounting flanges | Cladding, ceilings and façade support |
| Omega Profile | Symmetrical folded profile | Partitions, equipment and interior framing |

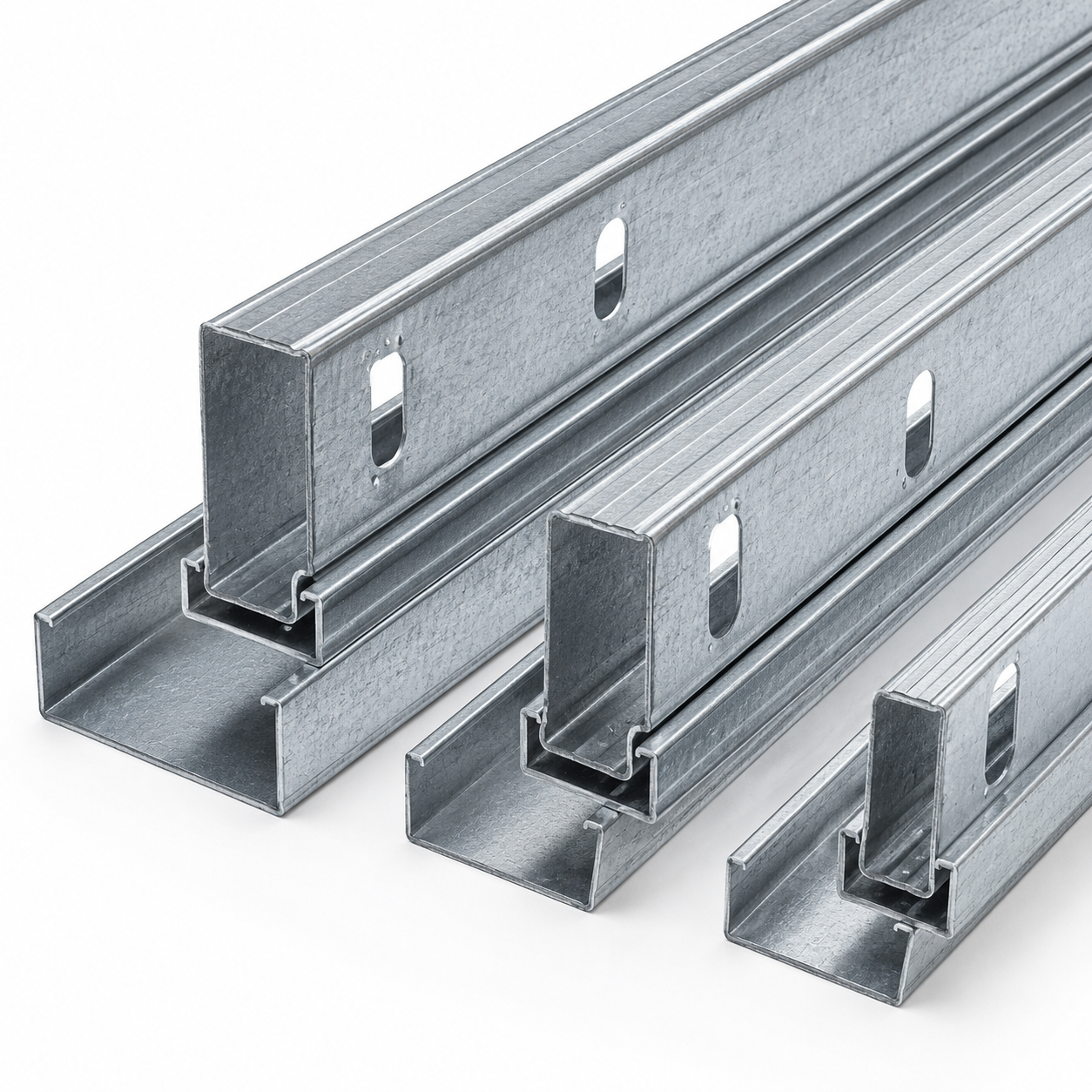

| Slotted Channel | Pre-punched mounting slots | Mechanical and electrical support systems |
| Custom Profile | Special folds and asymmetric geometry | OEM and project-specific applications |
| Specification | Available Range |
| Material | Carbon Steel or Galvanized Steel |
| Common Steel Grades | Q235, Q355, S235, S355 or Equivalent |
| Typical Thickness | 1.0–6.0 mm |
| Typical Profile Height | 40–400 mm |
| Typical Flange Width | 20–150 mm |
| Length | Customized According to Drawings |
| Cross-Section | C, U, Z, Sigma, Hat, Omega or Custom |
| Hole Pattern | Round, Oval, Square, Slotted or Custom |
| Zinc Coating | Z80–Z275 or Project-Specified |
| Surface Treatment | Mill Finish, Galvanized, Primer, Paint or Powder Coating |
| Processing | Roll Forming, Punching, Cutting, Drilling and Bending |
| Tolerances | According to Approved Technical Drawings |

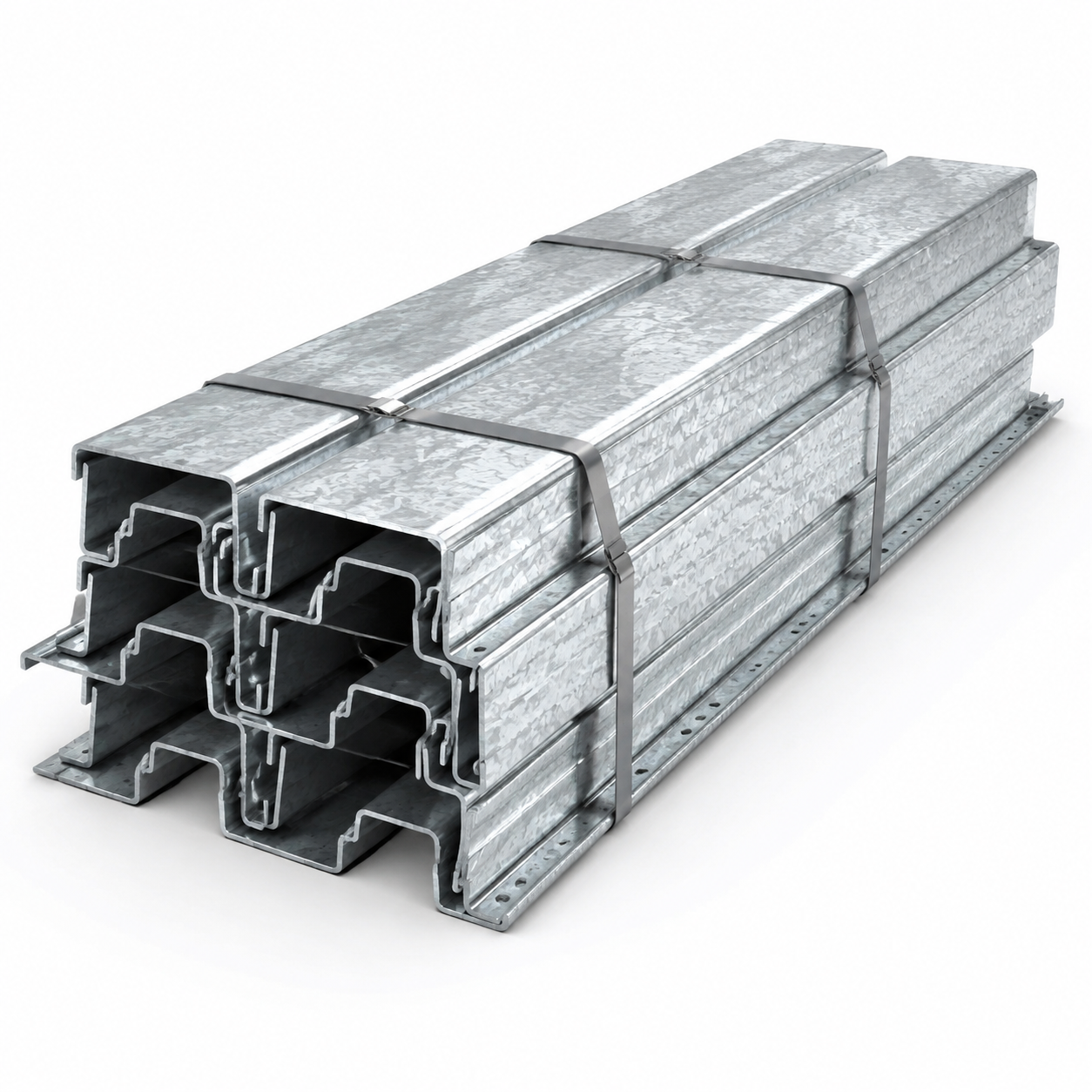

| Packaging | Bundled Export Packaging |
C and Z sections support roofing sheets and transfer roof loads to the primary steel frame. Z sections can be overlapped at supports for continuous-span construction.
Cold formed channels provide secondary support for wall cladding, insulation systems and exterior panels in industrial buildings.
C studs, U tracks and custom profiles can be used for walls, floors, roofs and supporting frames in light gauge construction.
Accurate dimensions and standardized connection holes make cold formed profiles suitable for repeatable factory production and rapid on-site assembly.
Galvanized C channels, slotted profiles and custom mounting sections can be supplied for rooftop and ground-mounted solar systems.
Perforated upright profiles and reinforced cross members are suitable for warehouse shelving and industrial storage systems.
Hat channels, omega profiles and furring channels support façade panels, ceilings, partitions and decorative wall systems.
Customized profiles can be produced for equipment enclosures, machinery supports, conveyor systems, doors, windows and other industrial products.
For special projects, our team evaluates the complete section design before production.
The customization process includes:
Reviewing the profile drawing or sample
Confirming material grade and thickness
Checking bending radii and section geometry
Evaluating roll-forming feasibility
Confirming holes, slots and tolerances
Developing production tooling when required
Producing and inspecting trial samples
Confirming the sample before batch production
| Item | Typical Arrangement |
| MOQ for Standard Profiles | Approximately 2 Tons |
| MOQ for Custom Profiles | Approximately 5 Tons |
| Standard Product Lead Time | Approximately 7–15 Days |
| Custom Production Lead Time | Approximately 20–30 Days |
| Large Project Orders | Confirmed According to Quantity and Schedule |
| Payment Terms | Agreed According to Contract |
| Inspection Documents | Available According to Order Requirements |
| International Shipping | Container and Project Shipment Support |
Direct supply from an experienced steel manufacturer
Standard and non-standard profile production
Engineering review before manufacturing
Automated roll-forming and punching equipment
Strict dimensional and material inspection
Flexible surface-treatment solutions
Export packaging and logistics coordination
Support for steel buildings and complete projects
Responsive English-language technical service
Long-term supply support for international customers
Yes. Please send the section drawing, steel thickness, required length and estimated quantity. We will evaluate tooling and production feasibility before quotation.
C sections are commonly used for simple-span systems, while Z sections can be overlapped at supports for continuous-span arrangements. The final selection should follow the structural design.
Yes. Holes and slots can be punched during production according to the approved drawing.
Yes. Pre-galvanized materials and other corrosion-protection options can be supplied based on the required project environment.
Yes. Required tolerances should be indicated on the drawings and confirmed during the technical review before production.
