OEM Cold Formed Steel Profiles and Made-to-Drawing Roll Formed Sections

OEM Cold Formed Steel Profiles and Made-to-Drawing Roll Formed Sections

Material: Carbon steel or metallic-coated steel coil to approved specifications
Thickness: Reference 1.0–6.0 mm, subject to section and tooling review
Surface: Uncoated, pre-galvanized, primer, paint or powder coating
Color: Metallic finish or specified paint/powder color
Order model: OEM customization, trial quantities and repeat batches
Minimum order: Confirmed by material use, tooling and order quantity

Brand:
ZSJH


Availability:



Inquire Add to Basket

Product Description

1 Overview

ZSJH Steel supplies made-to-drawing steel profiles for building suppliers, contractors, equipment manufacturers and distributors. Cold roll forming progressively shapes sheet or coil at room temperature, producing long members with specified webs, flanges, lips and returns. Orders can combine custom section geometry with holes, slots, reinforcing ribs, end notches and fixed lengths, supplied as unfinished sections or finished project components.

Cold Formed Steel Section (13)

2 Benefits

Complex open sections can integrate mounting and stiffening features that would otherwise need separate parts. Approved tooling supports repeatable geometry for recurring OEM orders. Cut lengths and prepared holes help match installation interfaces, while coordinated forming and finishing reduce the number of processing suppliers a buyer needs to manage. Actual weight, stiffness and cost benefits depend on the designed section, batch size and material specification.

3 Profiles

Supply option	Product configuration

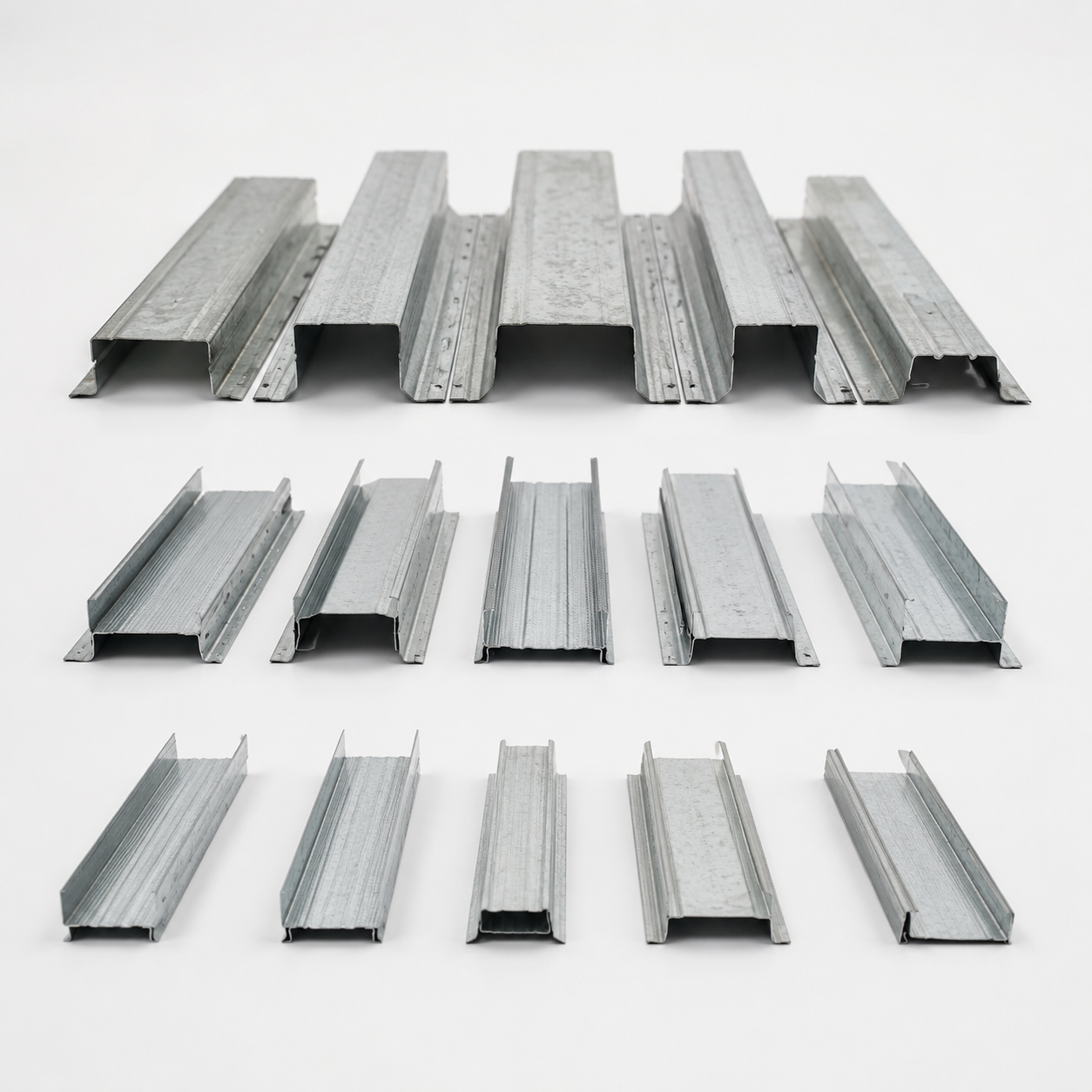

Standard sections	C, U, Z, hat, omega and sigma sections where tooling is suitable.
Modified sections	Standard forms with special lengths, end cuts, holes or coatings.

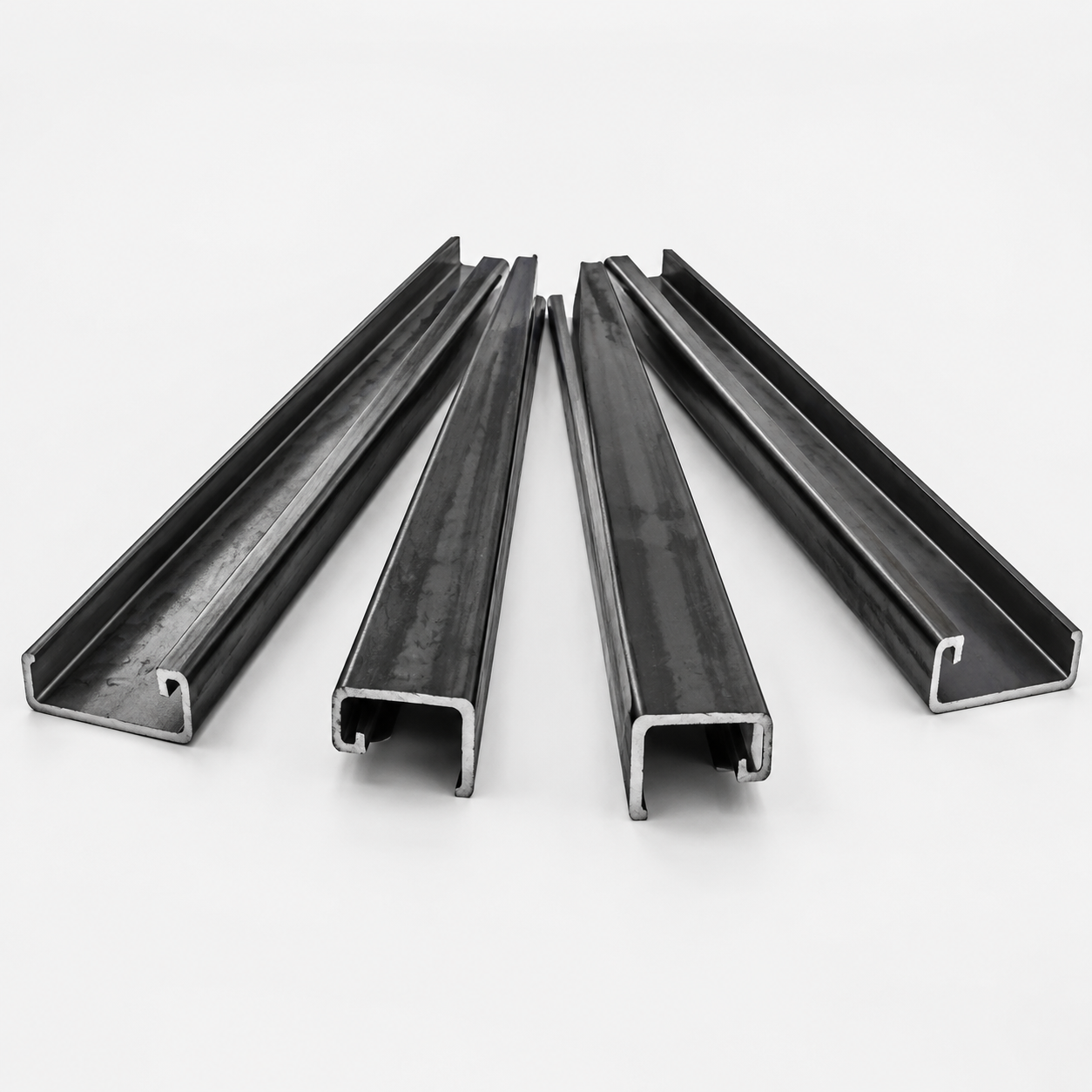

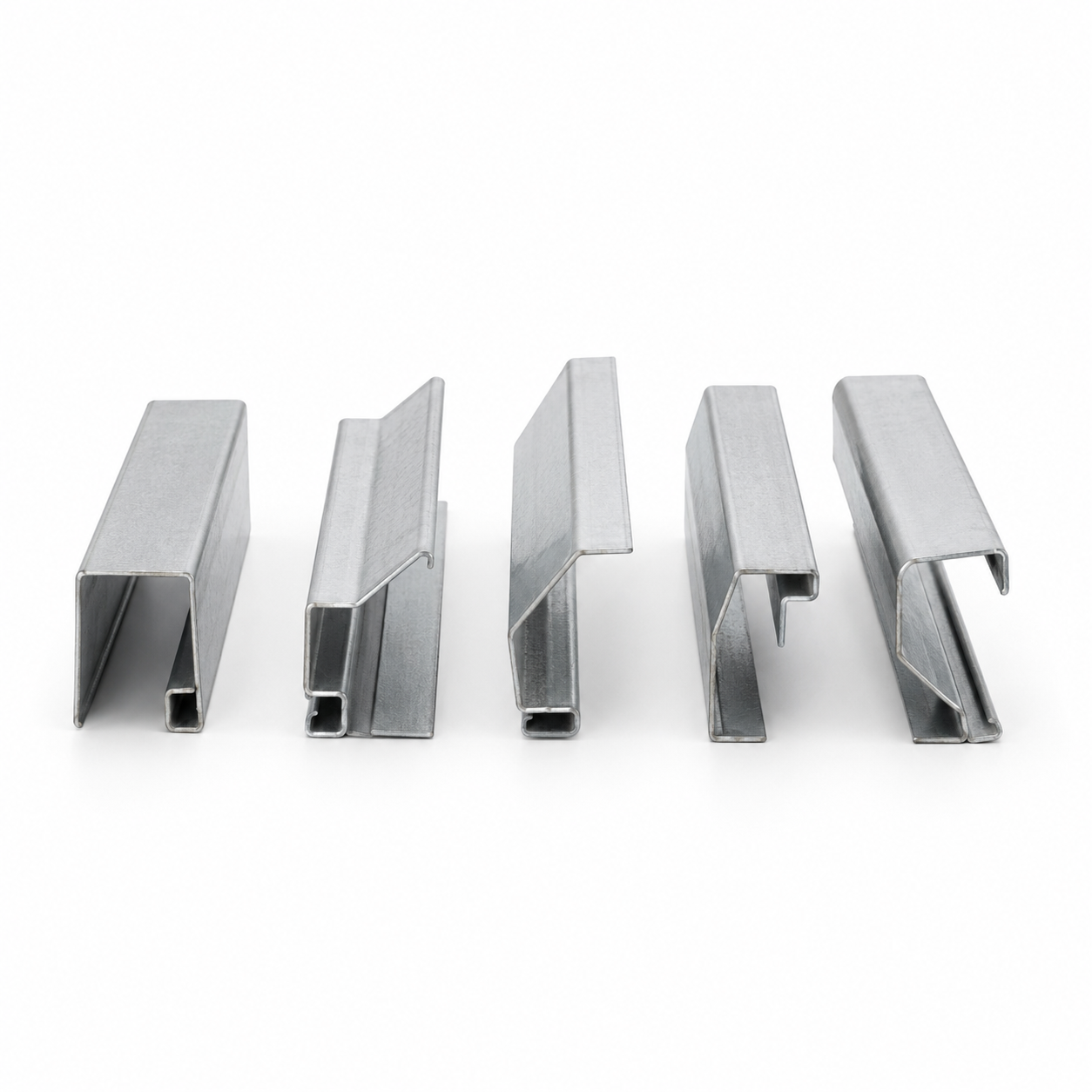

Custom sections	Asymmetric channels, multiple folds, return lips and approved special shapes.

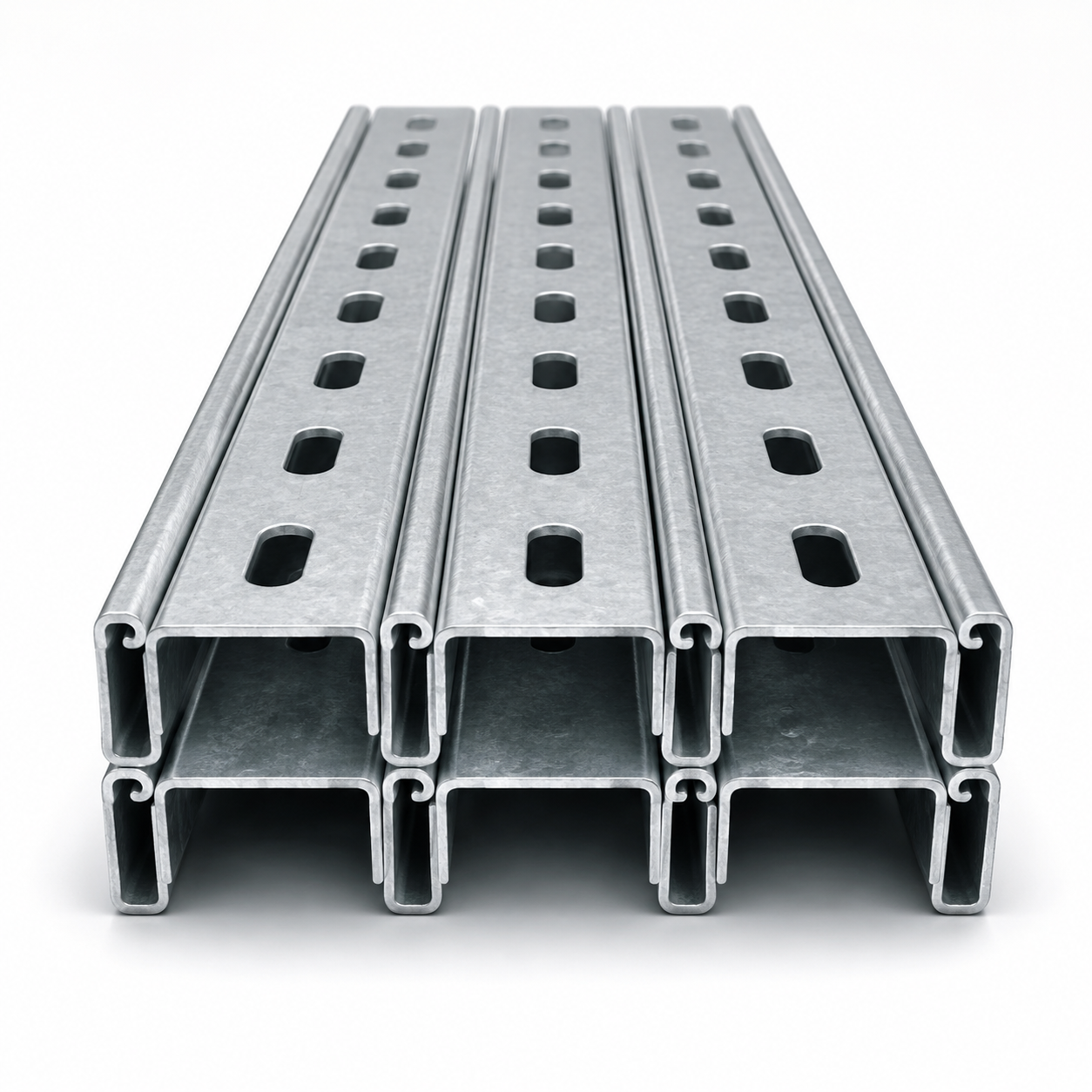

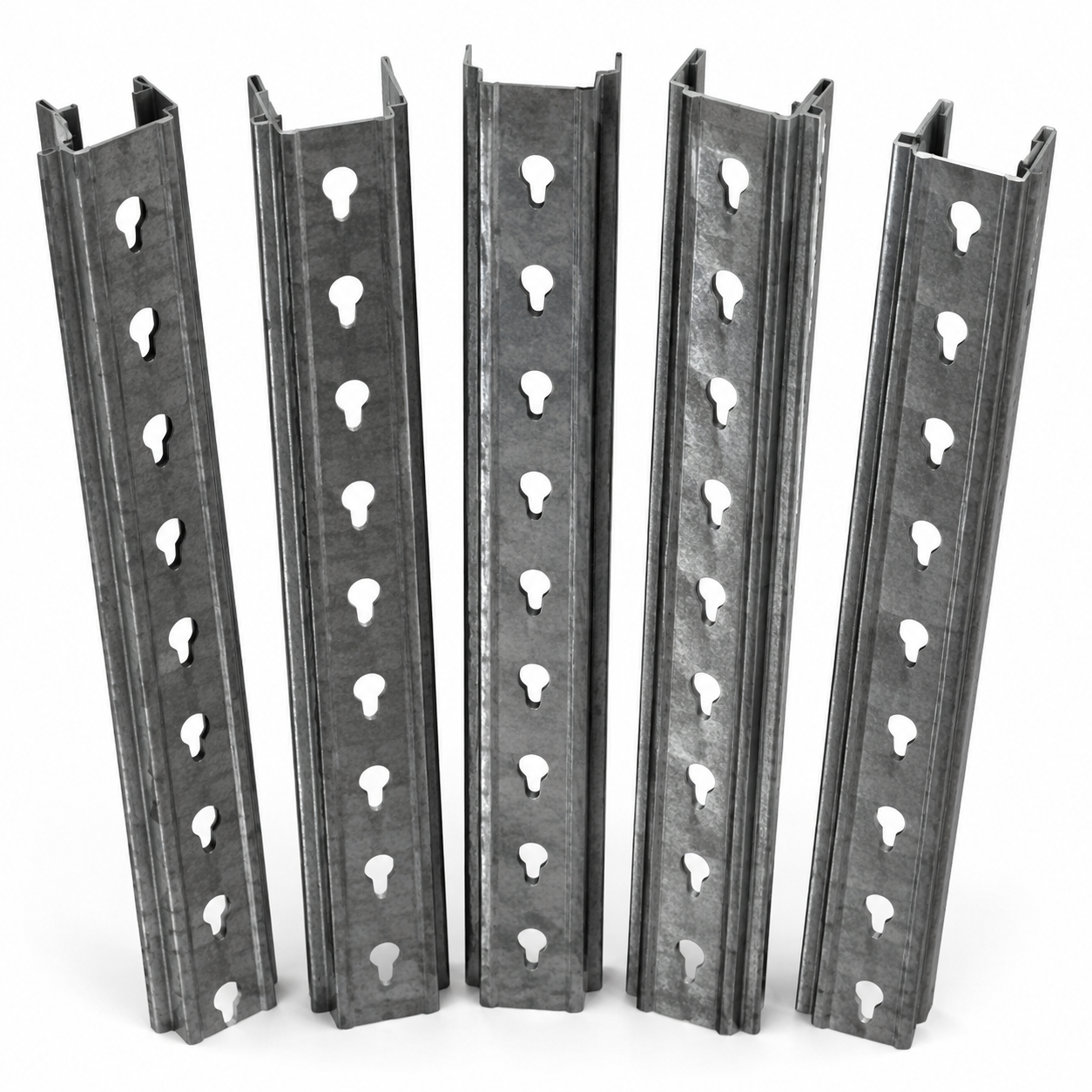

Perforated sections	Repeated round holes, slots, keyholes and mounting patterns.
Reinforced sections	Longitudinal ribs, beads or folded edges designed for the required stiffness.

4 Specifications

Item	Options and requirements
Feedstock	Uncoated carbon steel or metallic-coated coil; confirm the complete product specification.
Common grades	Q235/Q355 and suitable S235/S355 where the coil and forming route are appropriate.
Coated grades	EN 10346 S280GD/S350GD or a suitable ASTM A653 structural grade when specified; identify coating type/mass.
Thickness	Reference 1.0–6.0 mm. Feasibility depends on strength, bend radii, shape and tooling; not every combination is available.
Section dimensions	Drawing-specific depth, flange/lip widths, angles, bend radii, ribs and returns.
Length and holes	Fixed or project-specific lengths; in-line or secondary hole/slot processing where feasible.

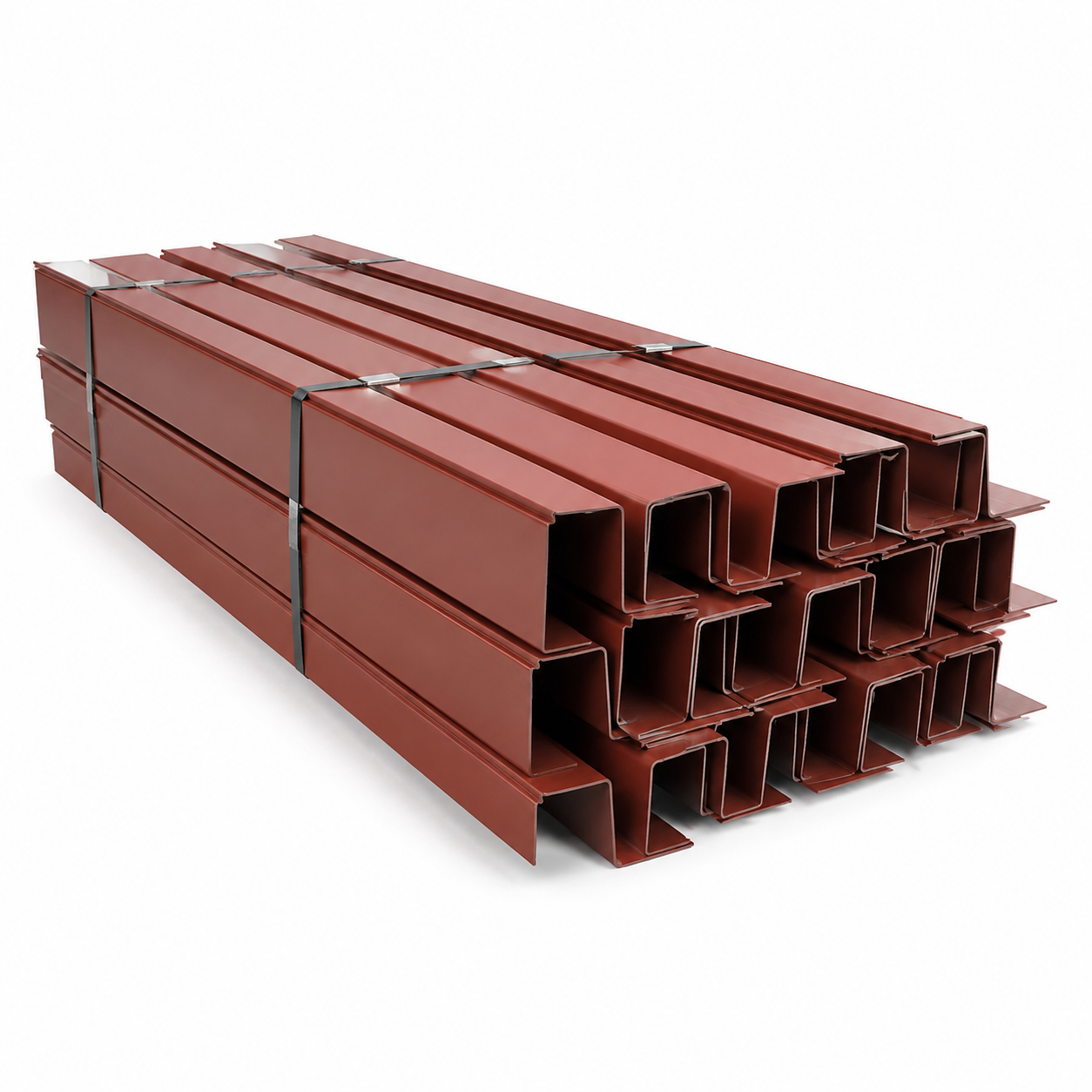

Finish	Pre-galvanized coil, agreed post-fabrication galvanizing, primer, paint or powder coating; colors to specification.
Documentation	Agreed material certificates, dimensional reports, sample records and packing lists.

Cold Formed Steel Section (14)

Cold Formed Steel Section (17)

5 FAQ

Can you manufacture a profile from a physical sample?

Yes. A sample can be used for preliminary evaluation, but a confirmed drawing should be prepared before production to define dimensions, tolerances and material requirements.

How do you control springback during forming?

Tooling and roller positions are adjusted according to steel grade, thickness and bending characteristics. The finished profile is measured against the approved drawing.

Can holes be punched before the profile is formed?

Depending on the design, punching can be completed before or during roll forming. The production sequence is selected according to hole accuracy and profile geometry.
