ZSJH Steel supplies customized bracing members, connection plates and installation accessories based on approved project drawings. Factory-prefabricated holes, threaded ends and welded connections help improve installation accuracy and reduce on-site construction time.

Key Product Features

• Designed for roof and wall stabilization

• Improves the overall rigidity of steel frames

• Transfers lateral forces to the main structure and foundation

• Customized according to structural drawings

• Accurate cutting, drilling, welding and threading

• Bolted or welded connection options

• Suitable for tension-only or tension-compression applications

• Painted or galvanized corrosion protection

• Easy identification, packing and on-site assembly

• Available as individual components or complete bracing packages

Available Bracing Configurations

Diagonal Steel Bracing

Single diagonal members provide a simple solution for stabilizing walls, columns and roof frames in small and medium-sized buildings.

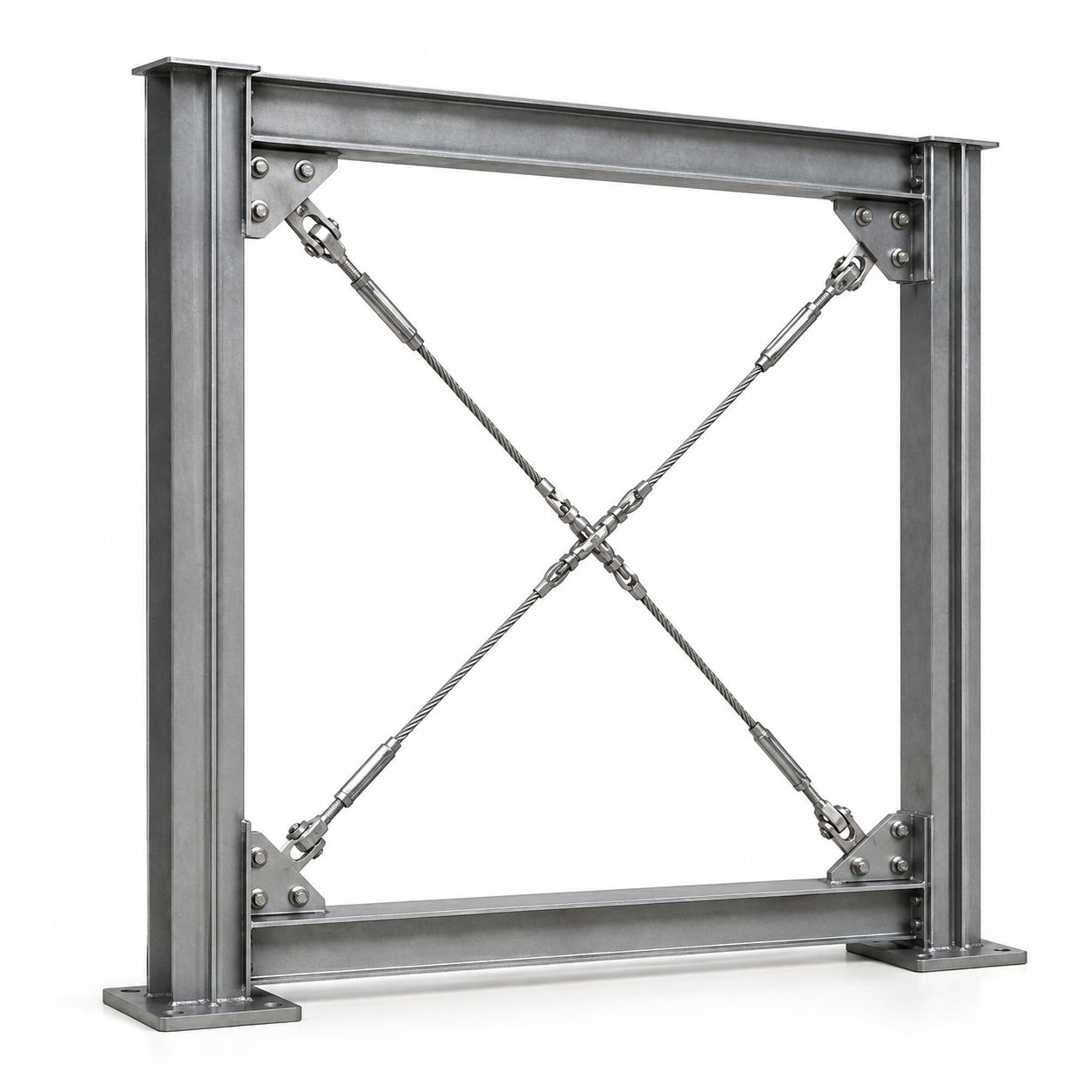

X-Shaped Bracing

Two diagonal members cross within one structural bay to create an efficient lateral-force-resisting system. It is widely used in warehouses, factories and prefabricated steel buildings.

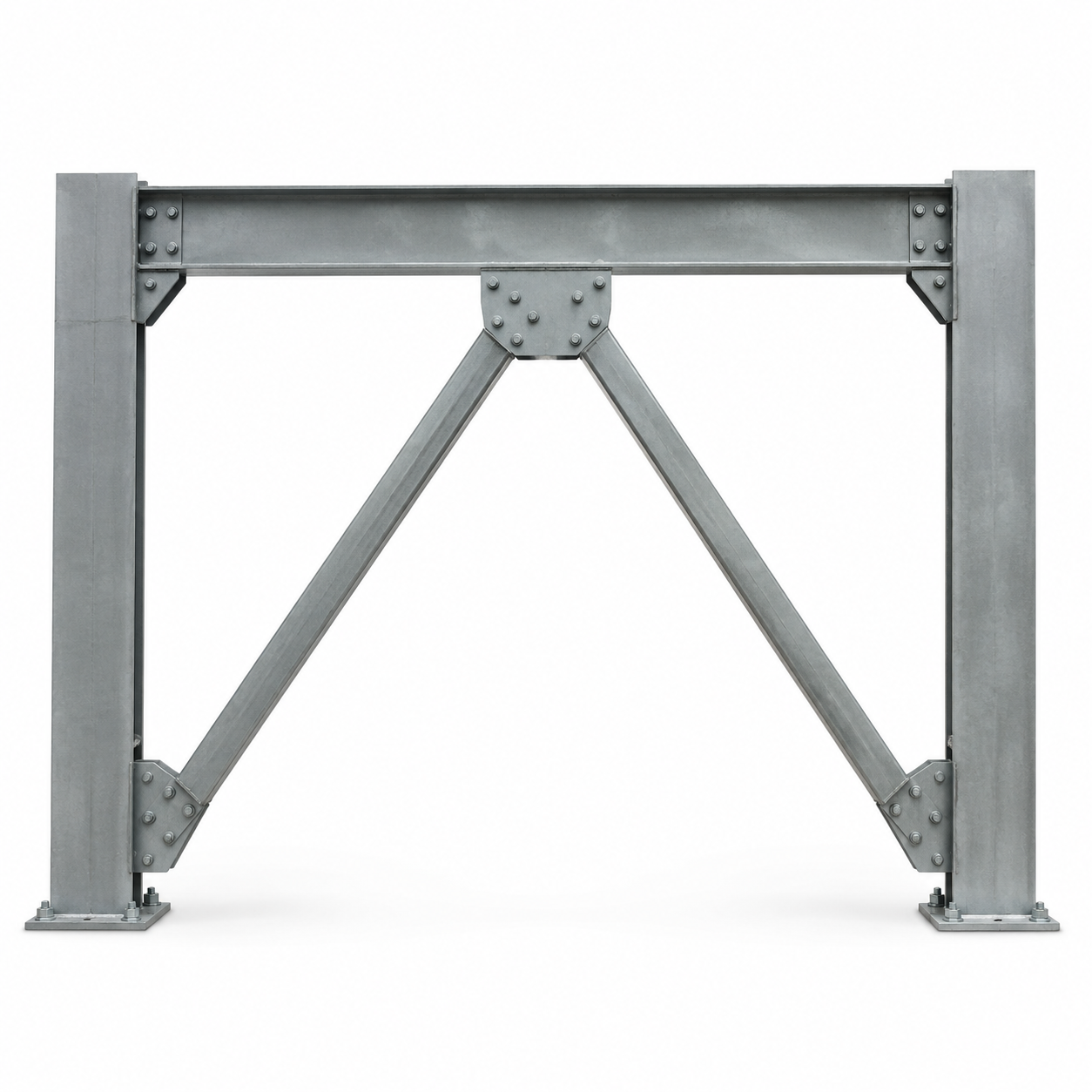

Chevron Bracing

V-shaped or inverted V-shaped braces connect to the beam near the center of the bay. This configuration can provide more usable space for doors, windows and equipment layouts.

Column Bracing

Column bracing connects adjacent steel columns and helps maintain longitudinal stability throughout the building.

Horizontal Roof Bracing

Roof bracing connects rafters or roof trusses and transfers horizontal forces toward the vertical bracing bays.

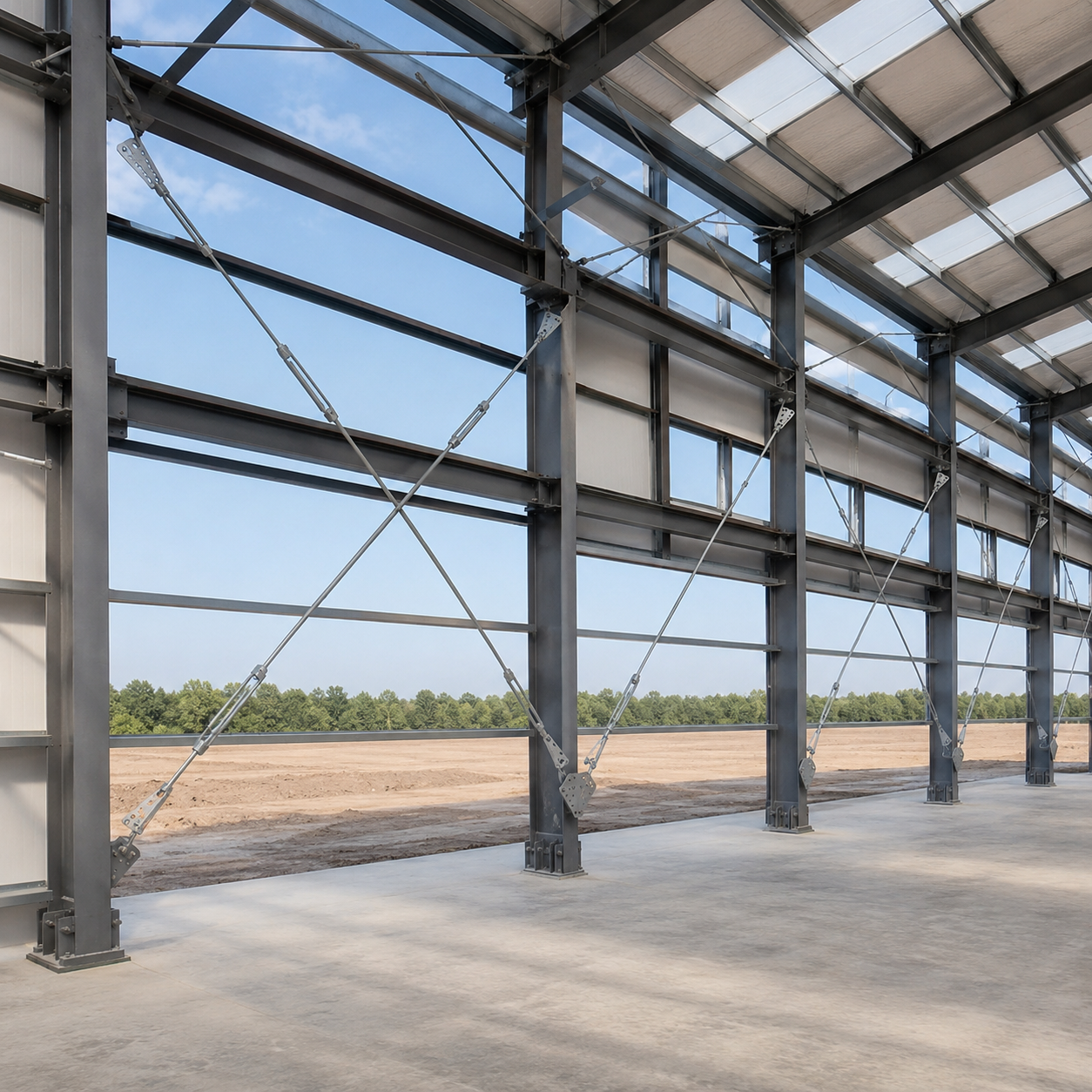

Adjustable Rod Bracing

Threaded steel rods equipped with turnbuckles allow installers to adjust tension and alignment during steel structure erection.

Reference Specifications

Structural Functions

The Steel Bracing System is designed to perform several important functions:

• Maintain the correct position of columns and rafters

• Improve longitudinal and lateral building stability

• Reduce excessive frame movement

• Transfer wind loads through the structure

• Support the frame during erection

• Improve the integrity of roof and wall systems

• Provide additional stiffness in selected structural bays

• Protect the building against distortion under external loads

Manufacturing Process

1. Drawing Review

Our technical team reviews the component dimensions, connection details, materials, quantities and surface-treatment requirements.

2. Material Preparation

Steel materials are checked before cutting. Material certificates can be provided according to the order requirements.

3. Cutting and Forming

Steel rods, angles, tubes and plates are cut to the required dimensions using suitable production equipment.

4. Hole and Thread Processing

Connection holes and threaded ends are processed according to approved fabrication drawings.

5. Welding and Assembly

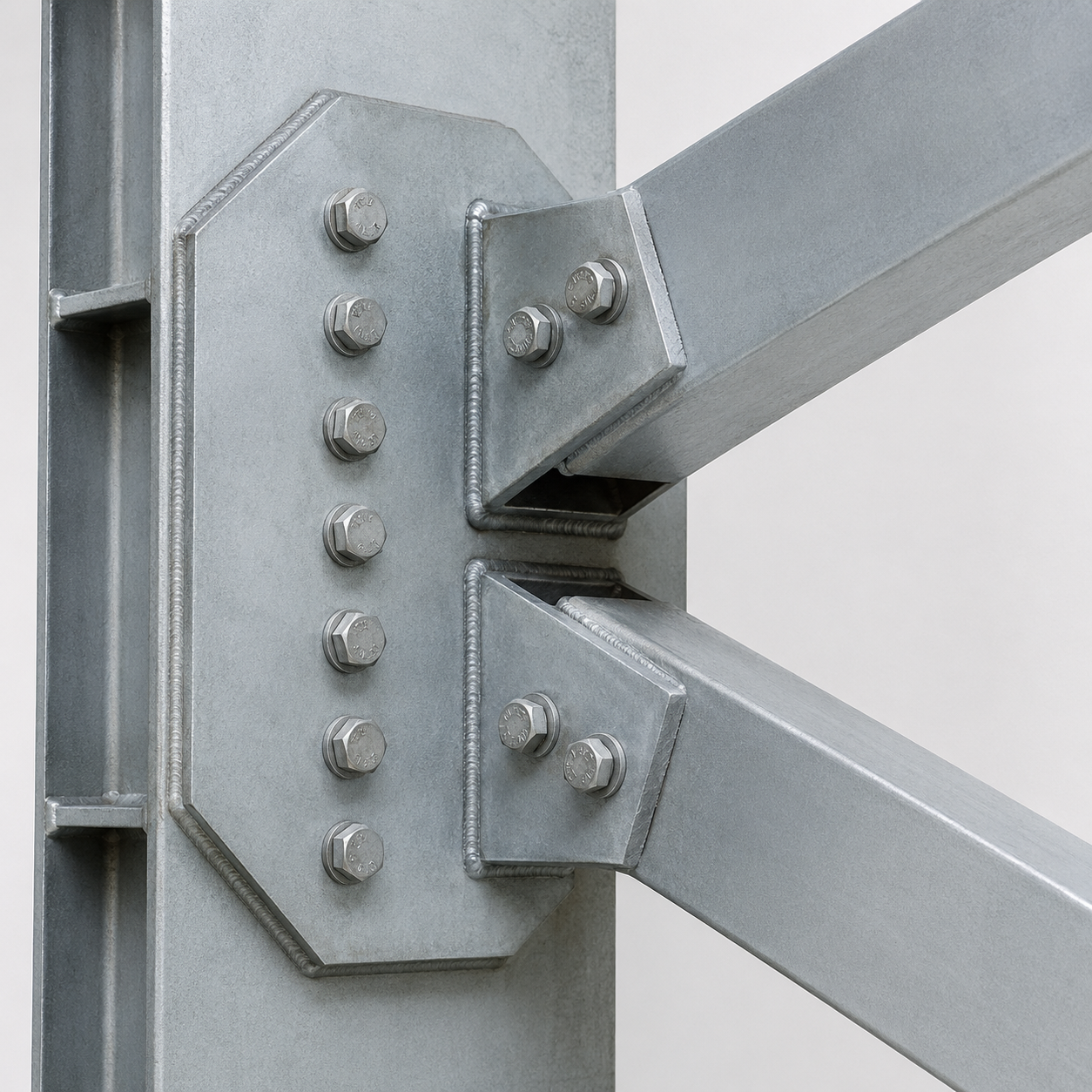

Gusset plates, clevises, brackets and other connection parts are welded or assembled by experienced production personnel.

6. Surface Treatment

Components are cleaned and protected with paint, powder coating or galvanizing according to the project environment.

7. Final Inspection

Dimensions, hole positions, welds, surface quality, quantities and identification marks are checked before packing.

Complete Project Supply

In addition to bracing components, ZSJH Steel can supply matching structural products, including:

• Steel columns and beams

• Roof trusses

• C/Z purlins

• Wall girts

• Connection plates

• Anchor bolts

• High-strength bolts

• Roof and wall panels

• Steel building accessories

This integrated supply service helps ensure component compatibility, simplify purchasing and improve project delivery efficiency.

Why Work With ZSJH Steel?

• Direct supply from an experienced steel fabrication factory

• Production based on customer drawings

• Complete roof and wall bracing solutions

• Strict control of dimensions and connection details

• Flexible materials and surface treatments

• Export-oriented inspection and packaging

• Technical drawings and installation guidance

• Reliable production scheduling

• One-stop steel building component supply

• Professional English-language project support

FAQ

Can you supply only the bracing components?

Yes. We can supply individual rods, angle braces, gusset plates or complete bracing assemblies according to your purchasing requirements.

Can you produce the components from our drawings?

Yes. Please provide structural or fabrication drawings showing dimensions, materials, hole locations and connection requirements.

Can you manufacture galvanized bracing systems?

Yes. Hot-dip galvanized bracing rods, plates and other components can be supplied for outdoor and corrosion-prone environments.

Can turnbuckles and connection accessories be included?

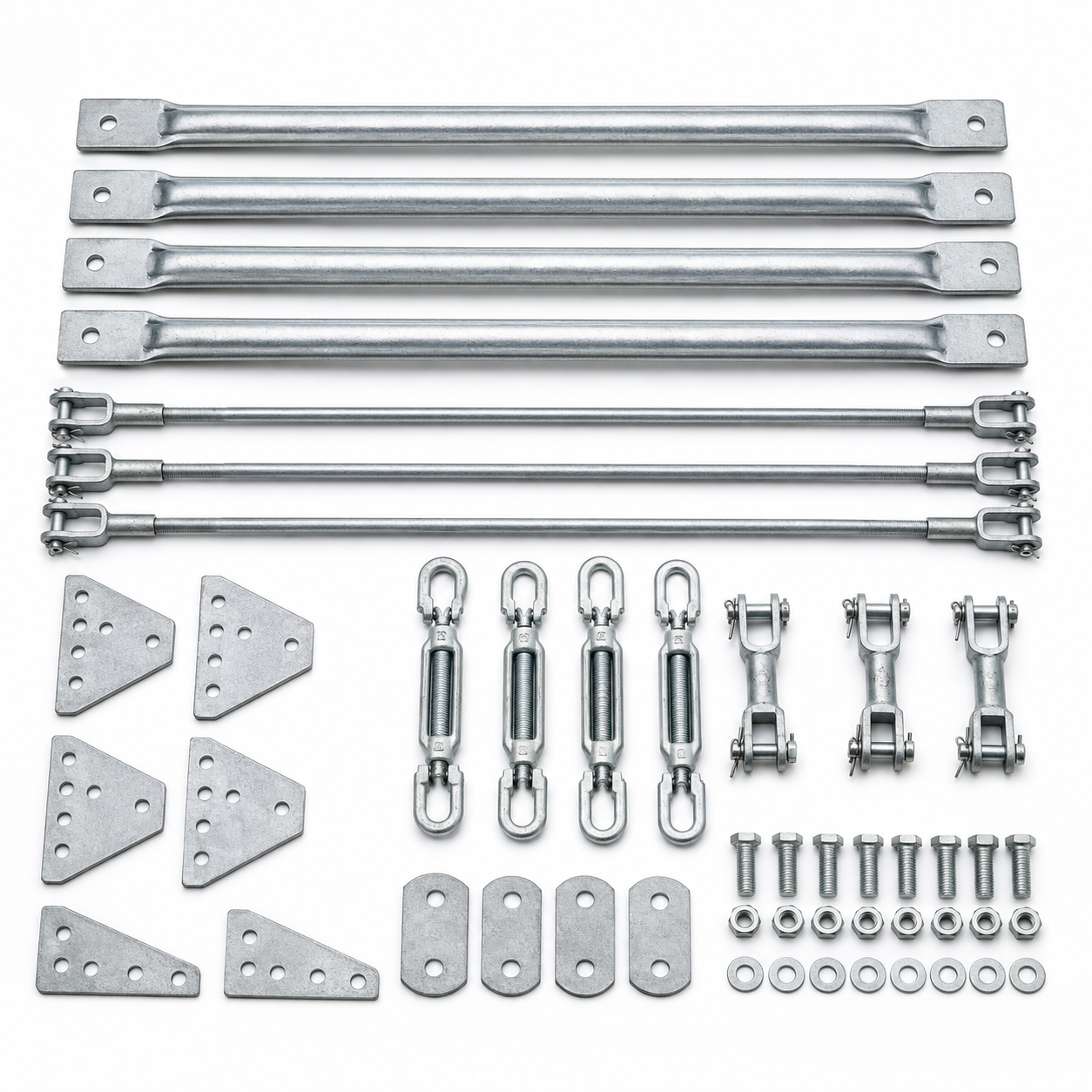

Yes. Turnbuckles, clevises, bolts, nuts, washers and connection plates can be supplied as part of a complete package.

How are the components identified for installation?

Component numbers, labels or packing marks can be added according to the approved packing list and erection drawings.
