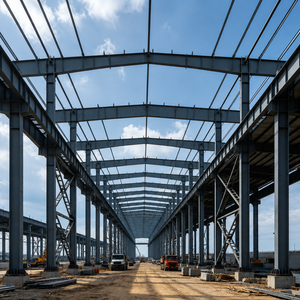

The Steel Bracing System is an important secondary structural system used to connect the main steel frames into a stable three-dimensional structure. It helps control longitudinal movement, supports columns and rafters, and distributes lateral forces through the roof, walls and foundation.
ZSJH Steel provides made-to-order bracing assemblies for different building layouts. From lightweight tension rods to heavy-duty tubular braces, every component can be fabricated according to approved structural drawings and delivered with matching connection plates, bolts and installation accessories.
When a steel building is exposed to wind, vibration or other horizontal forces, the bracing members guide these loads through a planned structural path:
Roof bracing collects and transfers forces between adjacent frames.
Wall or column bracing carries the forces downward.
Gusset plates and bolted connections transfer loads between components.
The primary frame and foundation safely resist the transferred forces.
A correctly configured bracing system improves structural stiffness while minimizing unnecessary steel consumption.

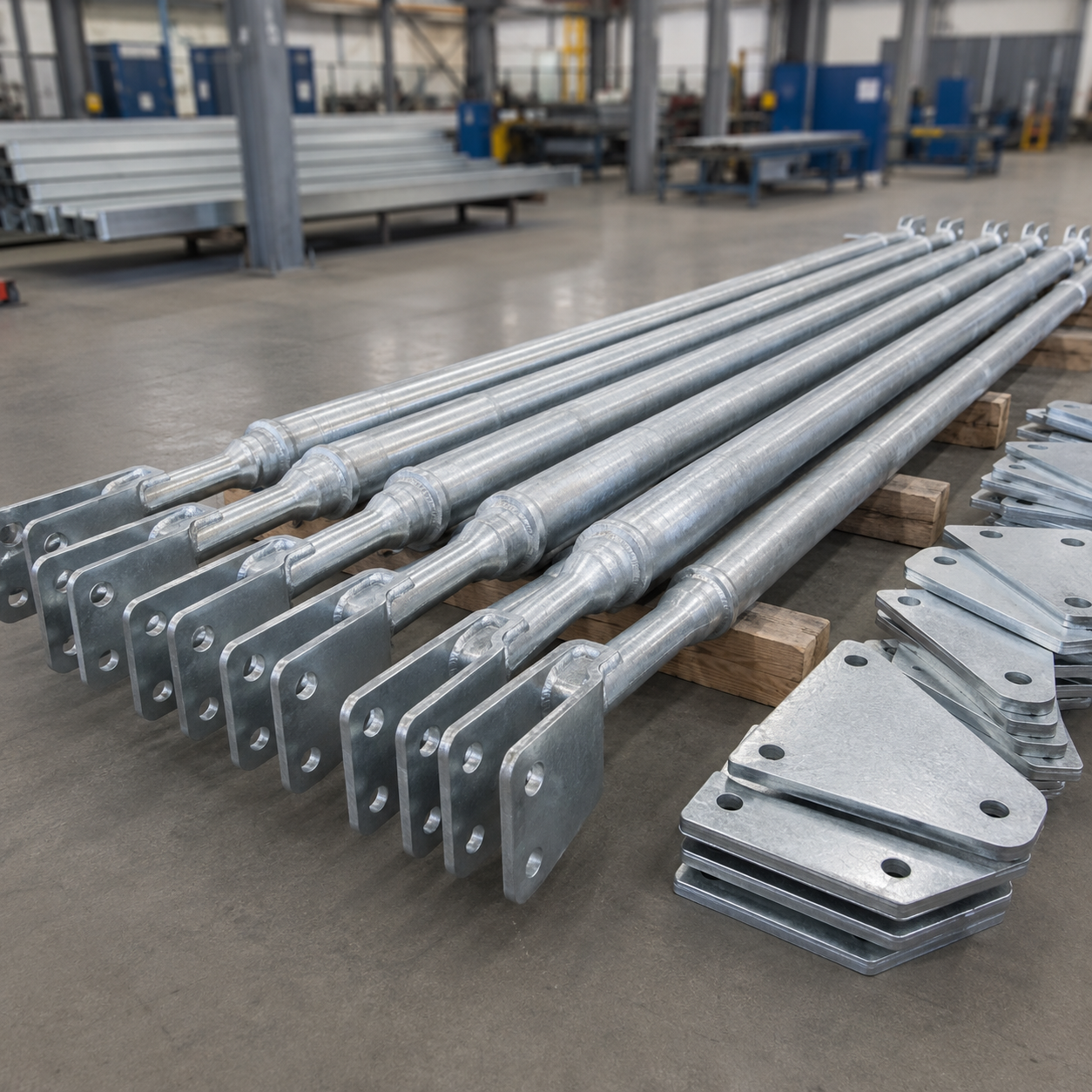

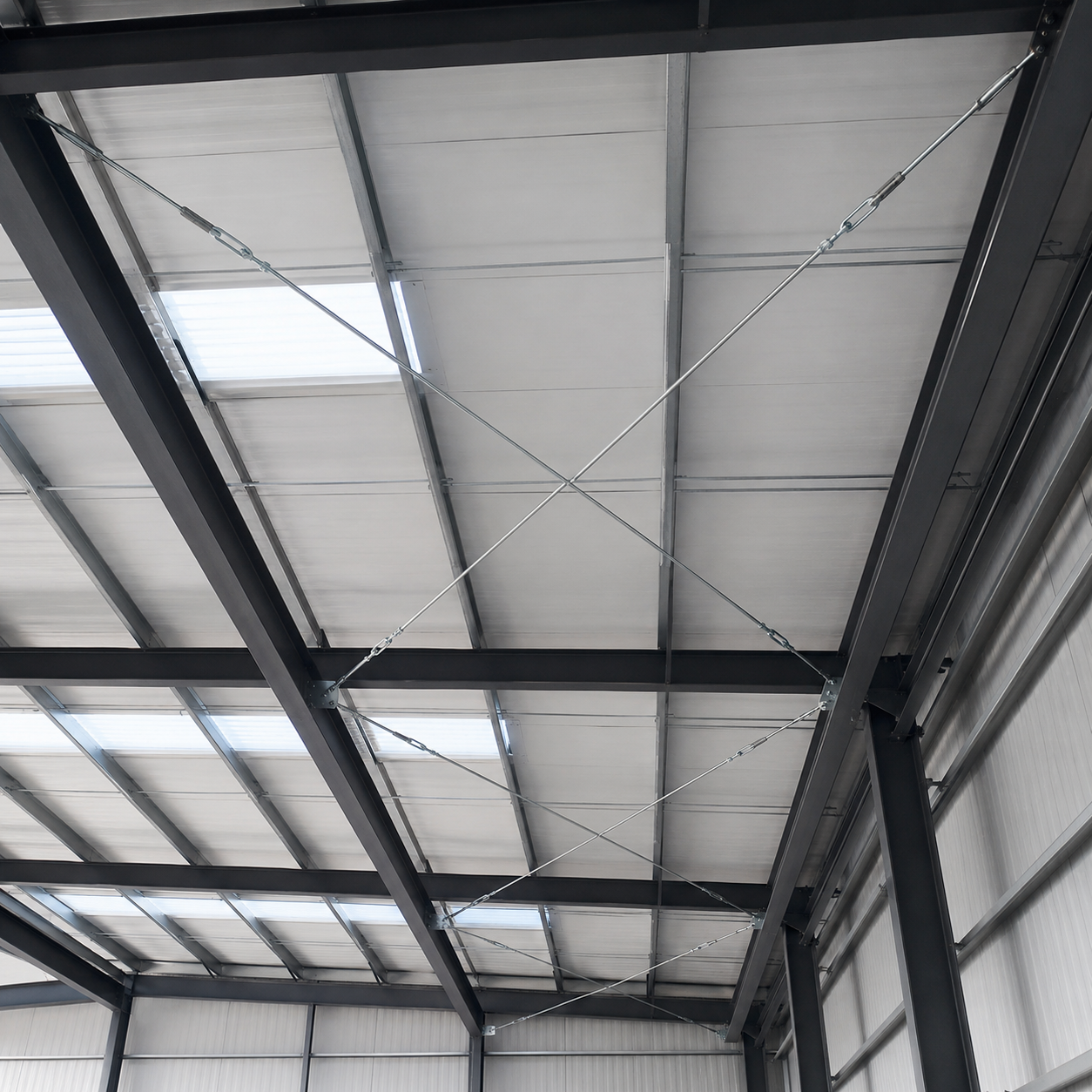

Threaded round bars are installed diagonally between frames. Turnbuckles can be added to adjust tension and correct alignment during erection.
Circular, square or rectangular steel tubes can resist both tensile and compressive forces. This solution is suitable for buildings requiring increased stiffness.
Angle sections offer a practical balance between strength, weight and fabrication cost. They are commonly used in industrial roof and wall systems.
Galvanized steel cables provide a lightweight option for selected metal-building applications. Tensioning accessories can be included.
Portal-type bracing keeps large doorways, loading areas and equipment passages unobstructed where traditional diagonal members cannot be installed.
Rod, angle, tube and portal braces can be combined within one project to meet different functional and architectural requirements.
| Item | Details |
|---|---|
| Product Name | Steel Frame Bracing System |
| Steel Material | Q235B, Q355B, S235, S355 or project-specified grade |
| Member Options | Round rod, angle, flat bar, steel tube or cable |

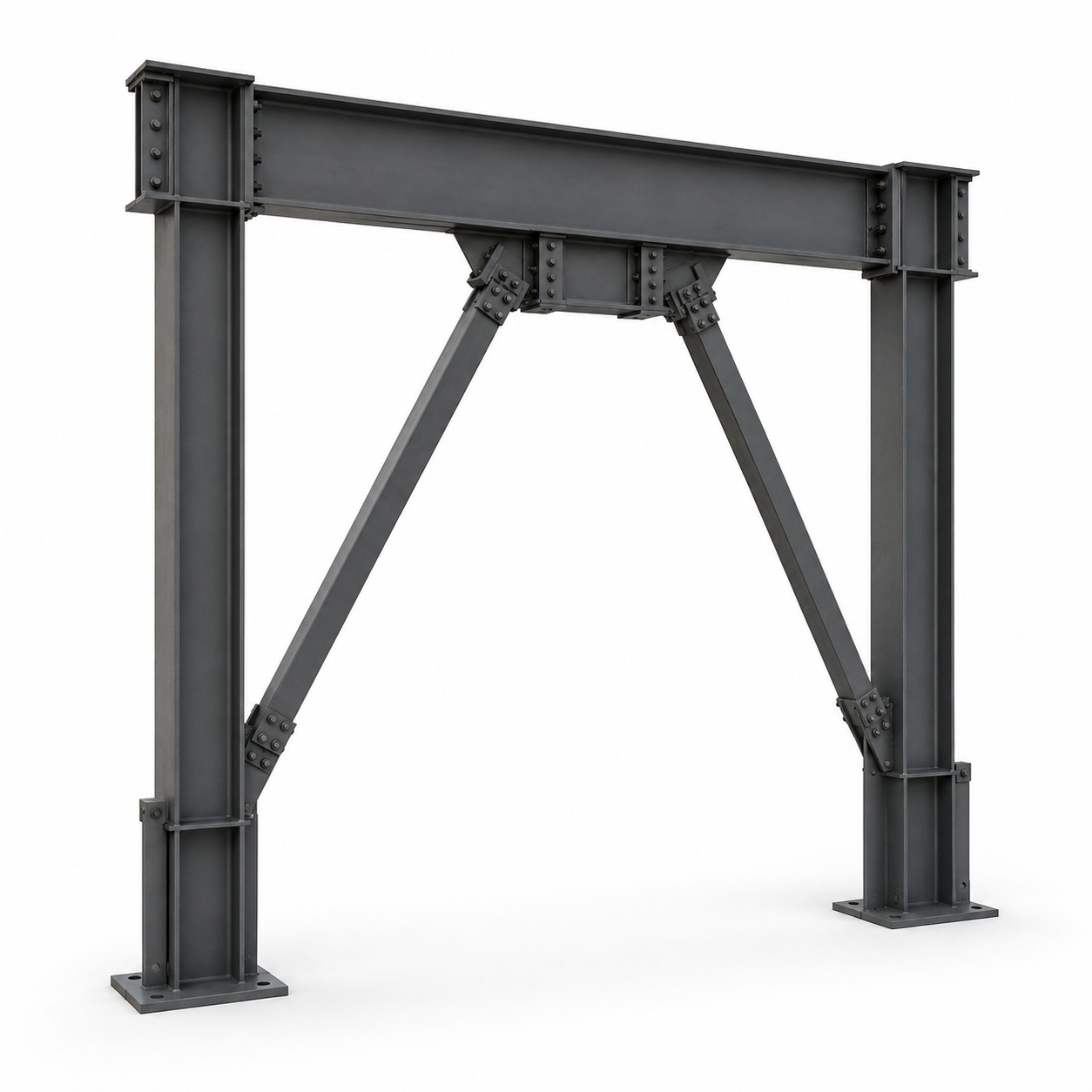

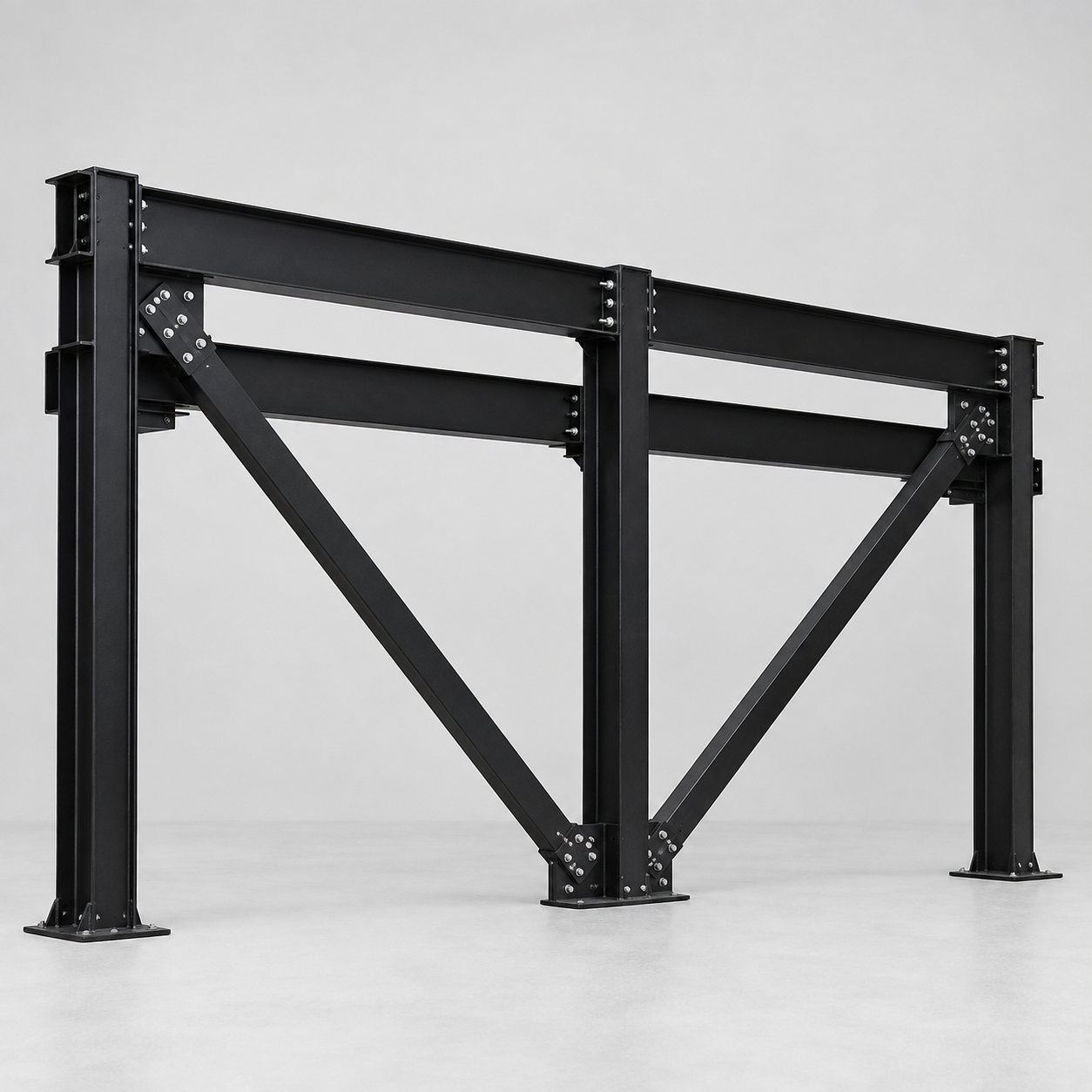

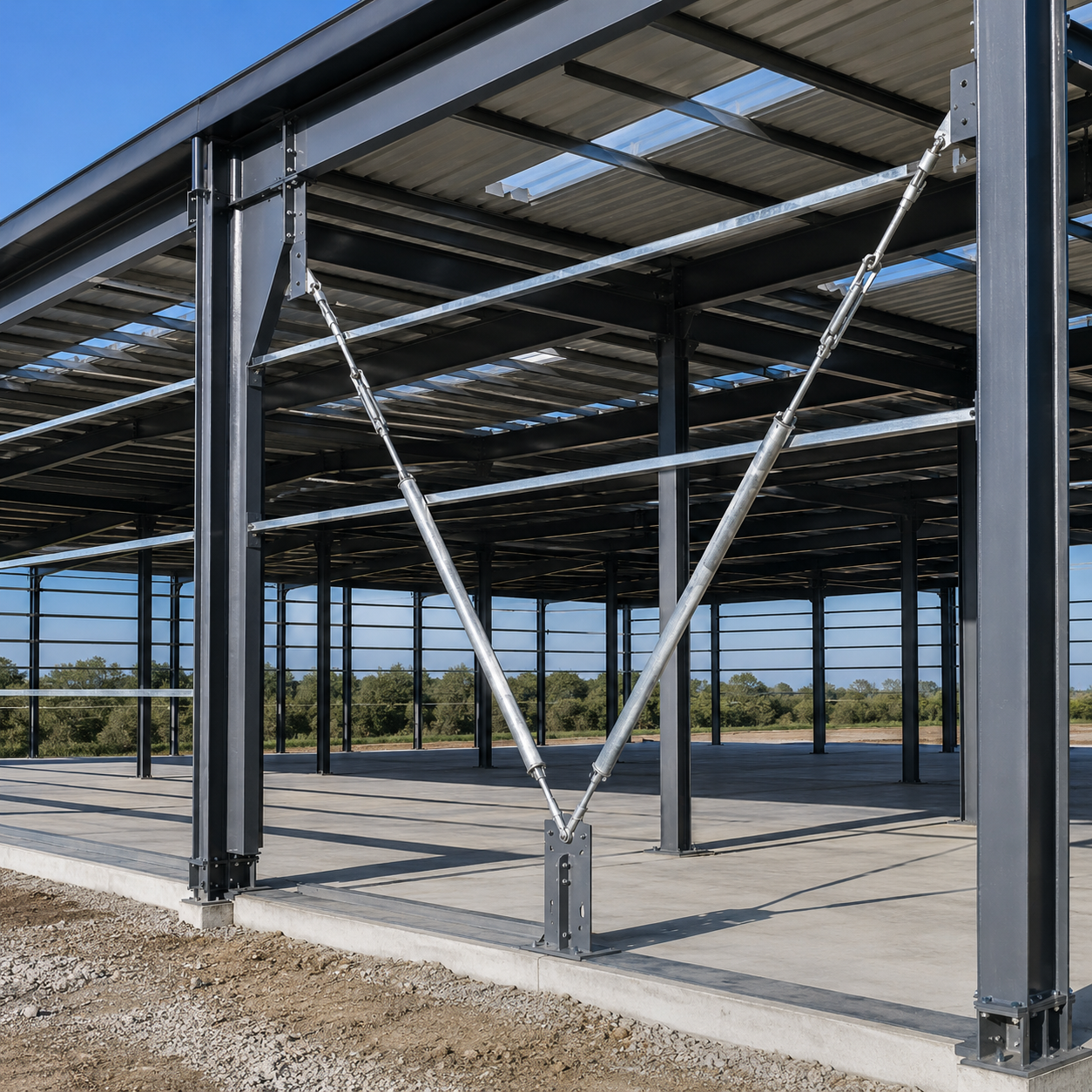

| Structural Form | X, single diagonal, V, inverted V, portal or customized |
| Connection Accessories | Gusset plates, clevises, turnbuckles, bolts and washers |
| Connection Type | Bolted, welded, threaded or combined |
| Dimensions | Produced according to project drawings |
| Hole Processing | CNC drilling or precision punching |
| Surface Finish | Primer, industrial paint, powder coating or hot-dip galvanizing |
| Component Marking | Available according to erection drawings |
| Quality Documents | Material and inspection documents available upon request |
| Packing Method | Bundled, palletized or packed according to export requirements |
The bracing system connects individual steel frames and helps prevent unwanted longitudinal or lateral movement.
A continuous load path allows horizontal forces to pass safely from the roof and walls to the foundation.
Different bracing arrangements can be selected to avoid conflict with doors, windows, production equipment and crane systems.
Factory-processed holes, welded accessories and component markings reduce measurement and modification work at the construction site.
Suitable surface protection helps minimize corrosion and supports long-term use in different service environments.
The bracing section, steel grade and connection form can be selected according to the actual project load instead of using one standard solution for every building.
We can customize the following details:
Member section and steel grade
Brace length and end connection
Thread diameter and thread length
Gusset plate size and thickness
Bolt-hole diameter and spacing
Clevis and turnbuckle configuration
Welding requirements
Surface preparation grade
Coating system and color
Galvanized coating requirements
Component numbering
Packing and loading method
A cost-effective solution for components used in normal indoor environments or requiring final coating after installation.
Primer, intermediate coat and finish coat can be applied for industrial projects requiring improved corrosion resistance.
Galvanized bracing components are suitable for outdoor buildings, coastal areas, agricultural structures and humid operating environments.
Coating type, color and dry-film thickness can be produced according to customer specifications.
We can review project information and assist with bracing configuration and fabrication details. Final structural calculations and designs should be confirmed according to the applicable project requirements.
Yes. Steel columns, beams, trusses, purlins, bracing components, connection plates, bolts and building-envelope materials can be supplied as one package.
Please provide structural drawings, fabrication drawings or connection details showing member sizes, materials, dimensions, hole positions and surface treatments.
Yes. Tubular sections, angles and other rigid steel members can be fabricated for applications requiring both tension and compression resistance.
Yes. Part numbers and assembly marks can be added according to the packing list and erection drawings.
Yes. Hot-dip galvanizing is available for rods, plates, brackets and other bracing components.
Please send the drawings, material grade, quantities, surface treatment, inspection requirements and destination port.
Need a complete bracing package for your steel building?
Send your drawings or project specifications to ZSJH Steel. Our team will review the component details and provide a customized manufacturing solution, quotation and delivery plan.
