ZSJH Steel supplies customized insulated metal wall and roof panels for industrial buildings, warehouses, cold-storage facilities, food-processing plants, logistics centers, workshops and commercial buildings.
Different insulation cores, panel thicknesses, surface profiles, coatings and colors can be selected according to the building design, thermal requirements, fire-performance requirements and local climate conditions.
PIR panels provide excellent thermal insulation with relatively low panel thickness. They are widely used in temperature-controlled warehouses, industrial buildings and cold-chain facilities.
PUR panels offer reliable thermal performance and lightweight construction, making them suitable for warehouses, workshops, prefabricated buildings and commercial facilities.

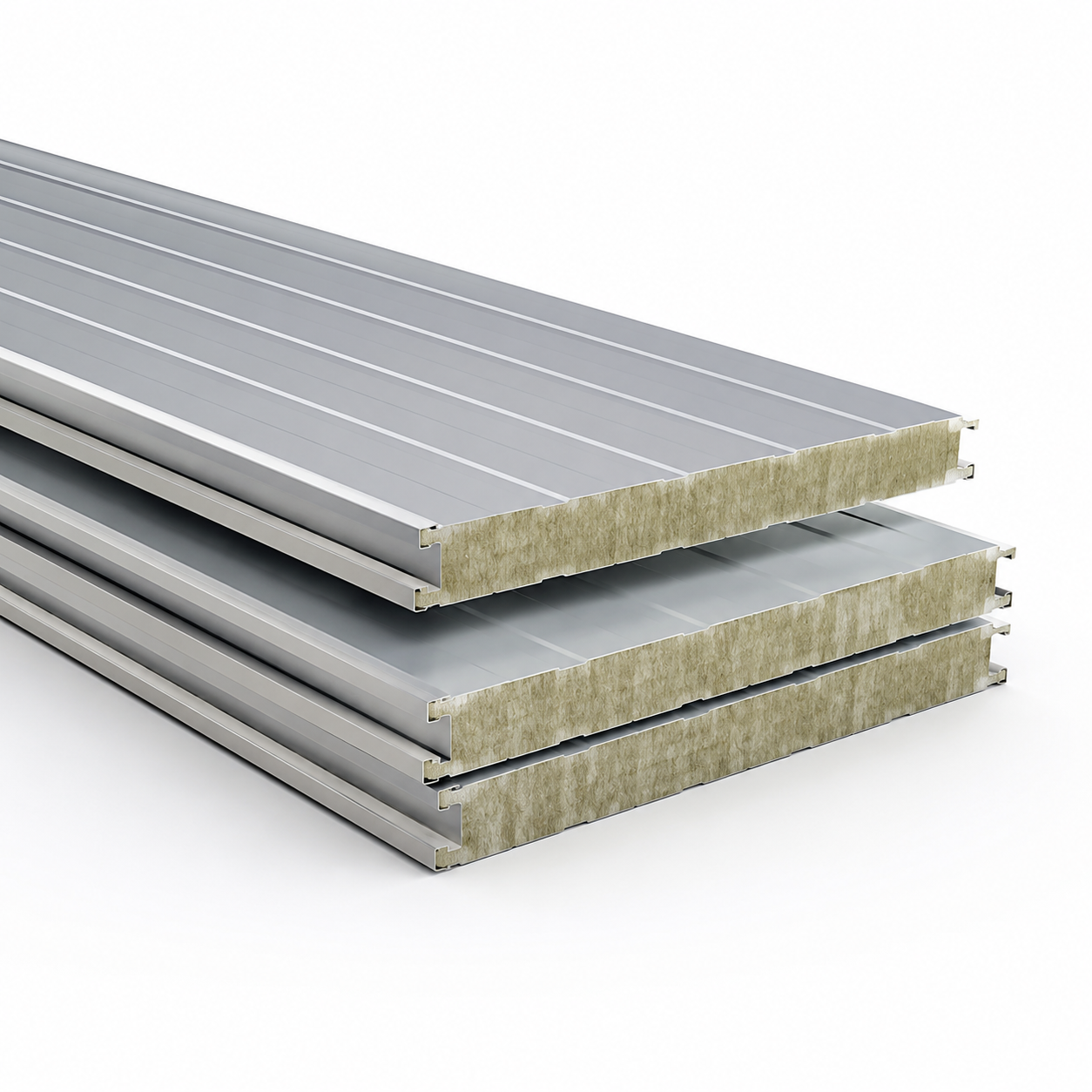

Rock wool panels are designed for projects requiring improved fire resistance, sound insulation and dimensional stability. They are commonly used in factories, power facilities and industrial buildings.
EPS panels provide an economical insulation solution for general industrial buildings, temporary structures, workshops and warehouses.
| Item | Available Options |
|---|---|
| Product Type | Insulated wall panel and insulated roof panel |
| Insulation Core | PIR, PUR, rock wool or EPS |
| Panel Thickness | 50–200 mm, customizable |
| Metal Skin Thickness | 0.4–0.8 mm, customizable |
| Effective Width | 950–1,150 mm, depending on profile |
| Panel Length | Customized according to drawings and transportation limits |
| Facing Material | Pre-painted galvanized steel, Galvalume steel or stainless steel |
| Surface Profile | Flat, micro-ribbed, grooved or corrugated |
| Joint System | Tongue-and-groove or concealed-fastener connection |
| Coating Options | PE, HDP, SMP or PVDF |
| Color | Standard or customized color |
| Installation Direction | Horizontal or vertical |
| Application | Exterior wall, interior partition, roof and cold room |
The continuous insulation core helps reduce heat transfer through the building envelope, supporting stable indoor temperatures and lower heating or cooling demand.
The exterior metal facing, insulation layer and interior surface are combined into one prefabricated component, reducing the number of separate materials required on site.
Factory-produced panels can be installed directly onto the steel supporting structure. Their large coverage area and interlocking joints help shorten construction time.
Precision-formed joints, flashings and sealing components help protect the building against wind, rain, air leakage and moisture penetration.
Insulated metal panels provide thermal and enclosure performance without adding excessive structural weight, helping optimize the secondary steel system.
Multiple colors, profiles and installation directions are available to create modern industrial and commercial façades.
The coated steel surfaces are durable, easy to clean and suitable for industrial buildings that require long-term, low-maintenance enclosure systems.
Panel thickness, core material, connection details, flashings and accessories can be customized according to architectural drawings and project conditions.

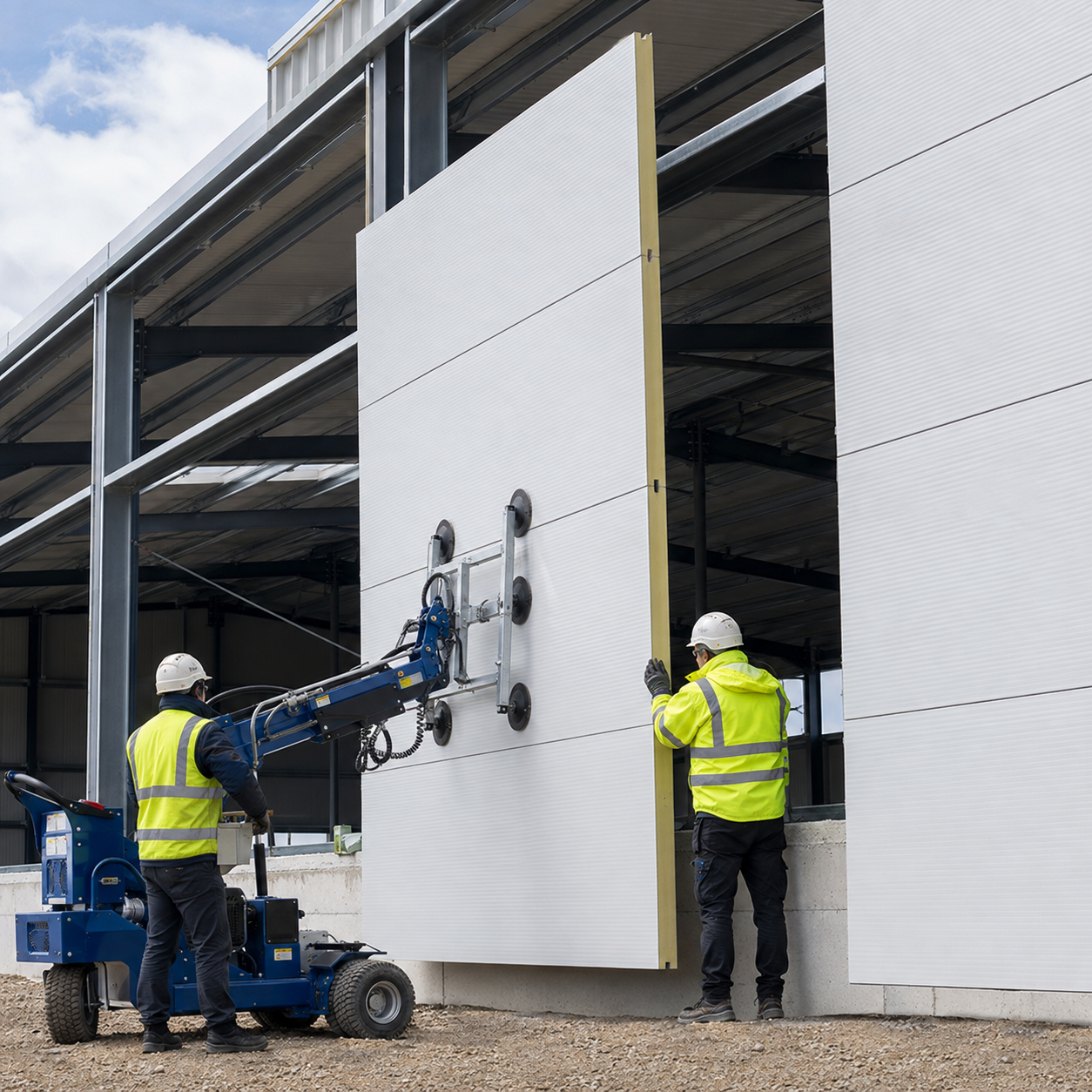

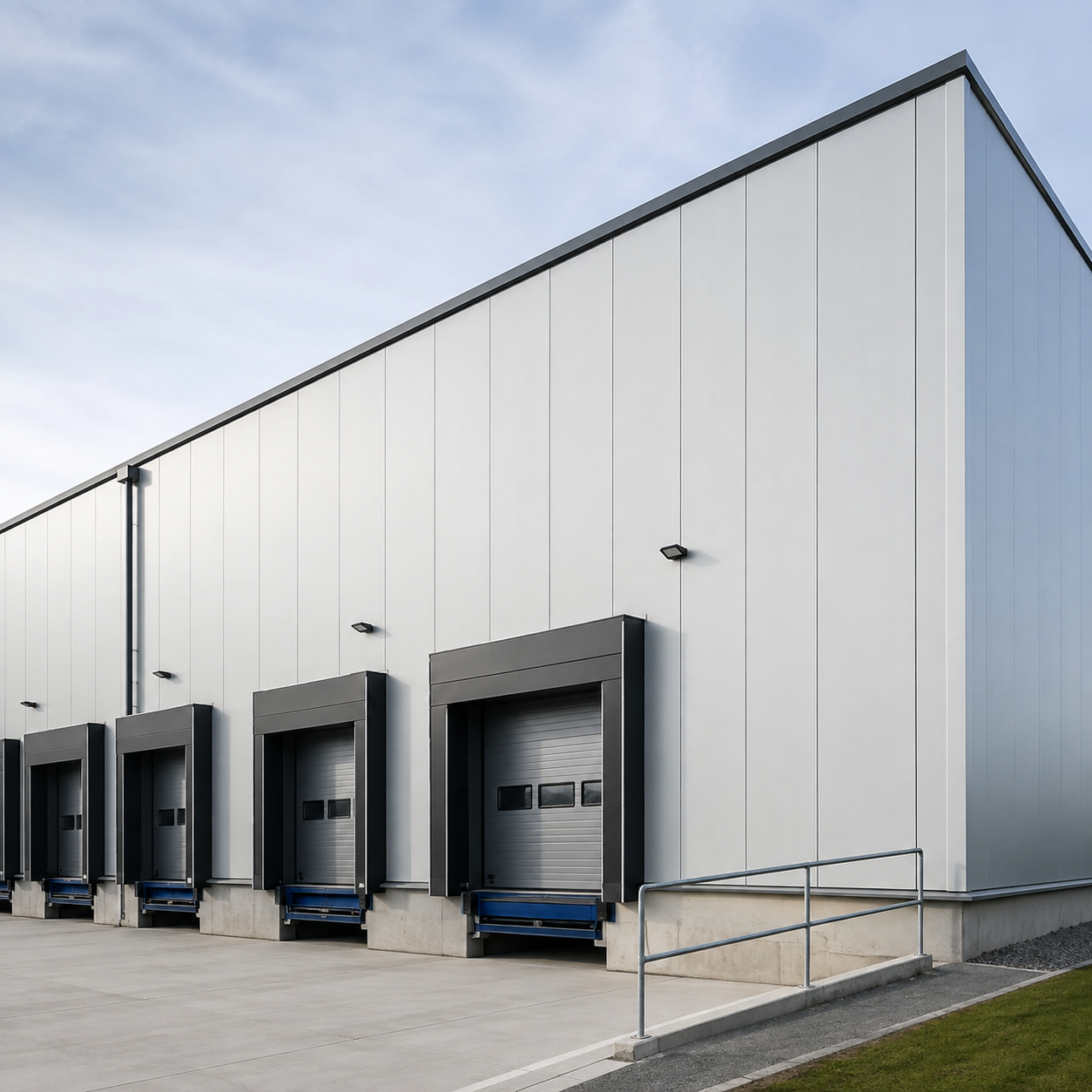

Insulated wall panels can be installed vertically or horizontally and are suitable for both exterior walls and interior partitions.
Concealed-fastener connections create a clean façade while helping reduce the exposure of screws to rain and environmental conditions. Matching corner trims, base flashings, window trims and door flashings are available to complete the wall system.

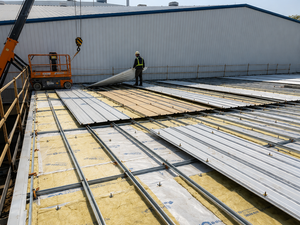

Insulated roof panels combine a profiled exterior steel sheet, insulation core and interior liner into one component. The raised exterior ribs improve drainage and provide suitable fixing positions.
Roof ridge caps, eave flashings, gutters, closure strips, sealants and fasteners can be supplied as part of the complete roofing package.
PIR and PUR panels are commonly selected for projects with high thermal-insulation requirements. Rock wool panels are suitable for projects that prioritize fire resistance and sound insulation. EPS panels are an economical option for general applications. The final selection should follow the project design and local regulations.
Yes. Common panel thicknesses range from 50 mm to 200 mm. Other specifications can be evaluated according to insulation requirements, span, application and production feasibility.
Yes. Different colors, coatings and surface profiles are available. Color selection should be confirmed using an approved color code or physical sample before production.
Yes. Insulated metal panels can be used for cold rooms and temperature-controlled warehouses. Panel thickness, joint sealing and insulation-core selection must be designed according to the required operating temperature.
Yes. We can supply insulated wall panels, insulated roof panels, flashings, fasteners, sealants, gutters and other accessories as a coordinated building-envelope package.
Yes. Please provide architectural drawings, panel layouts, required thickness, core type, metal skin thickness, color and project location. Our team will review the information before confirming production.
