Product Introduction

The Insulated Metal Panel System is a prefabricated enclosure solution developed for buildings that require reliable insulation, rapid construction and a clean finished appearance.

The system uses insulated sandwich panels for roofs, external walls, internal partitions and suspended ceilings. Each panel integrates exterior protection, thermal insulation and an interior metal liner, helping simplify construction and reduce the amount of work required on site.

ZSJH Steel can customize the complete panel package according to architectural drawings, building use, operating temperature, local climate and installation requirements. Wall panels, roof panels, trims, flashings, fasteners, sealants and drainage accessories can be supplied together for improved compatibility.

Where This System Can Be Used

Our insulated panel systems are suitable for:

• Industrial warehouses

• Steel structure workshops

• Refrigerated distribution centers

• Frozen and chilled storage facilities

• Food and beverage factories

• Pharmaceutical production areas

• Clean rooms and laboratories

• Agricultural storage buildings

• Poultry and livestock facilities

• Commercial storage centers

• Aircraft maintenance hangars

• Modular industrial buildings

• Electronics factories

• Temperature-controlled workshops

Insulation Core Selection

Standard Product Range

Insulated Wall Panels

Wall panels are available for vertical or horizontal installation. Concealed joint systems can provide a clean façade with fewer exposed fasteners.

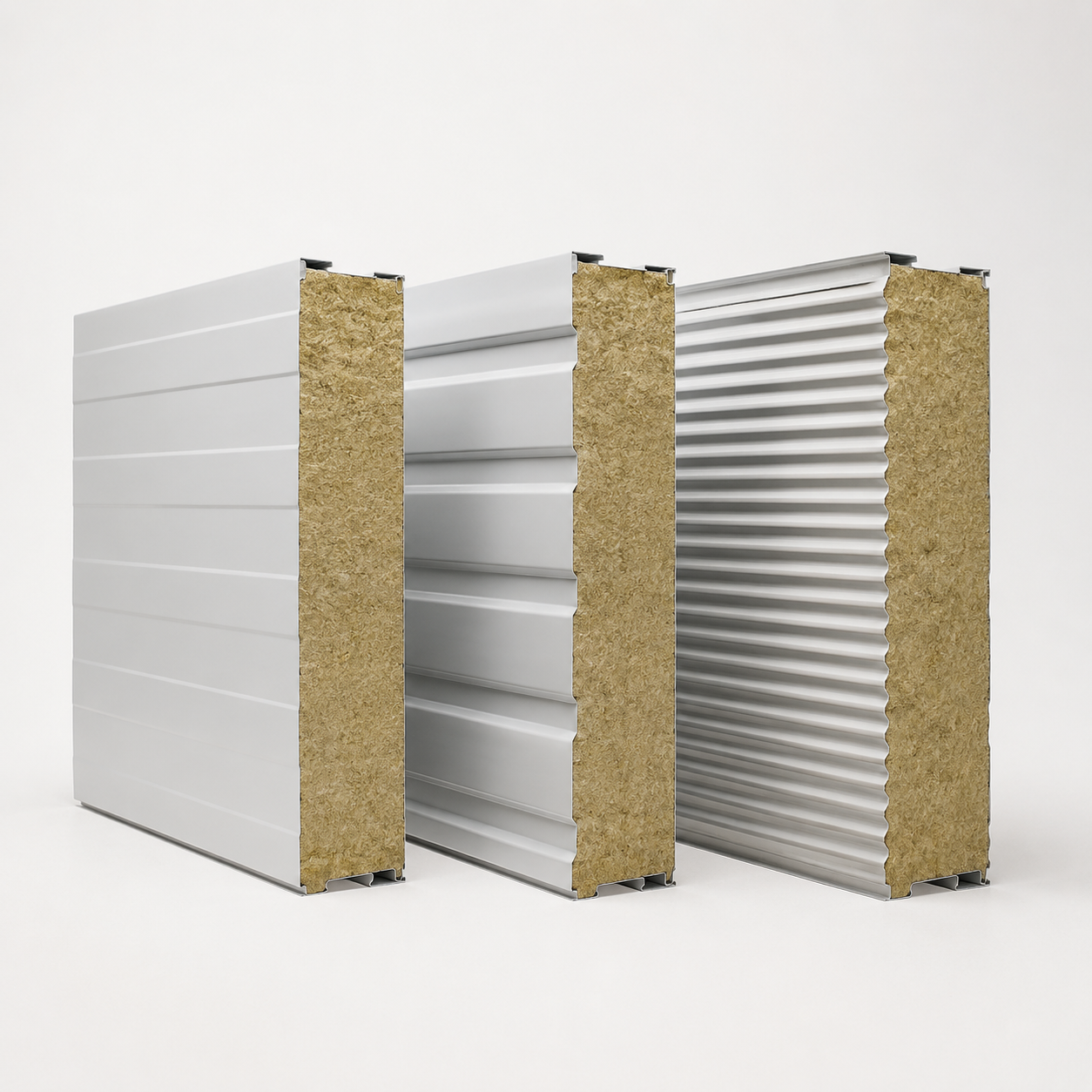

Available surface styles include:

• Flat surface

• Micro-ribbed surface

• Shallow-grooved surface

• Corrugated surface

• Customized architectural profile

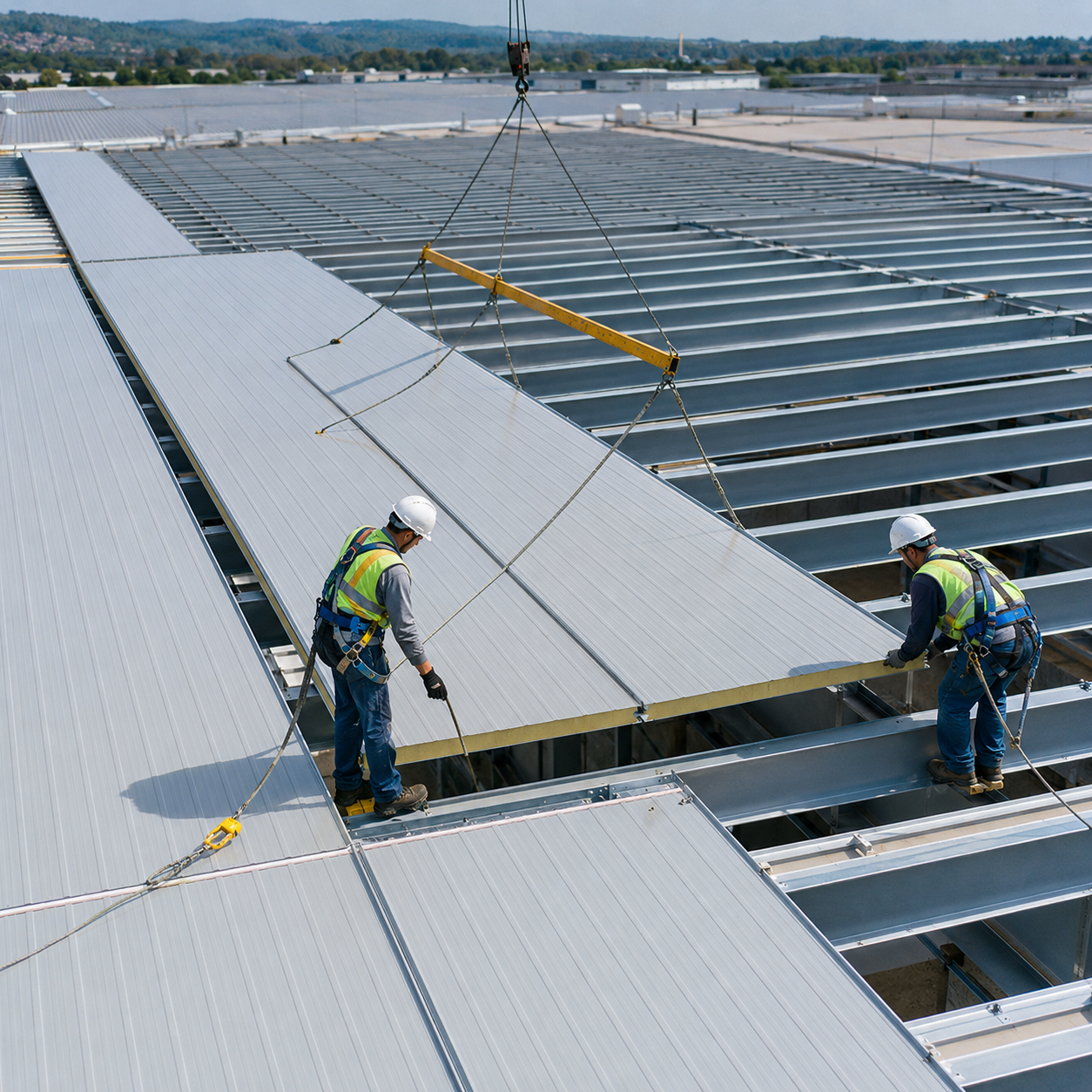

Insulated Roof Panels

Roof panels use raised exterior ribs to support drainage and create secure fixing locations. They can be supplied with compatible ridge caps, eave flashings, gutters and sealing components.

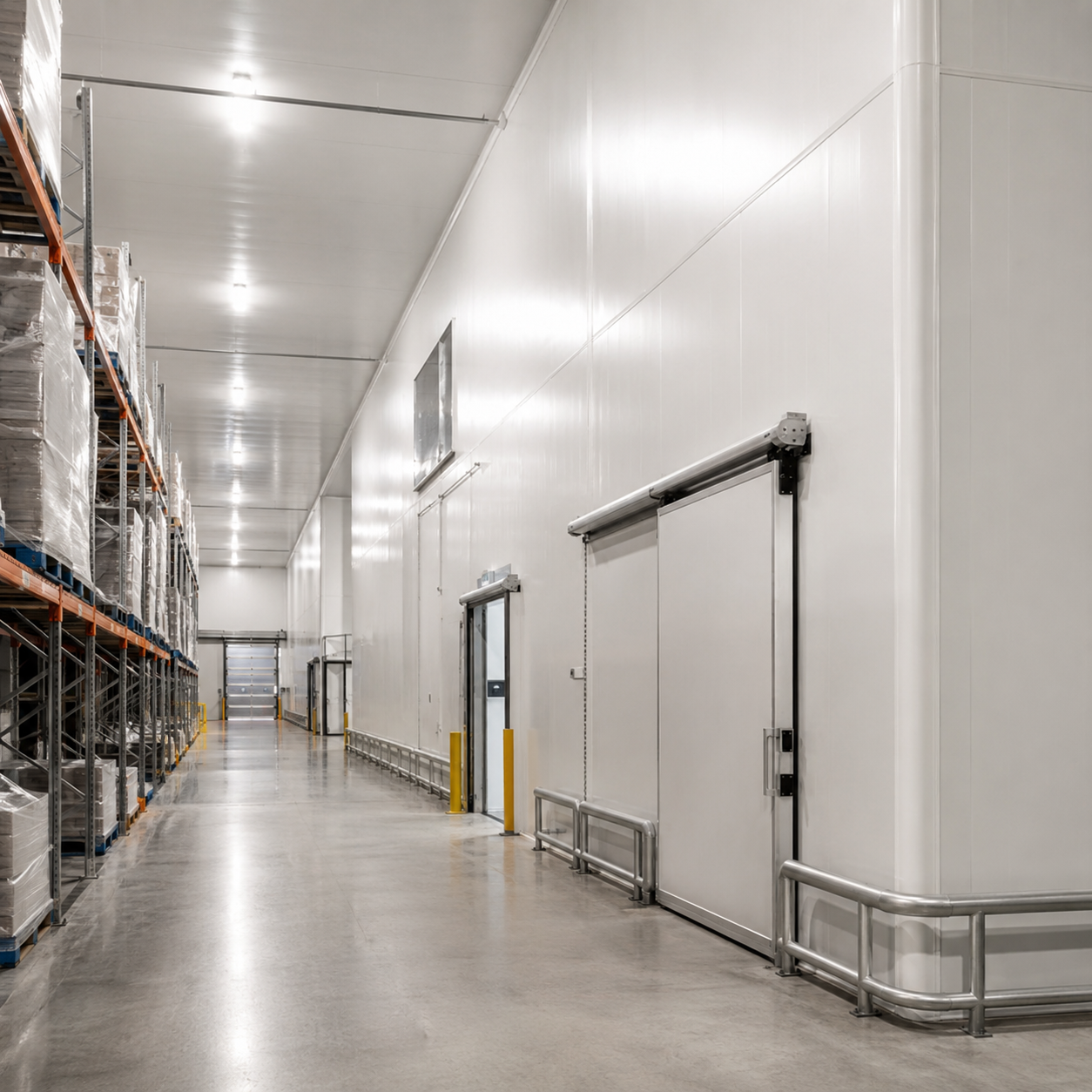

Cold-Room Panels

Cold-room panels are designed for refrigerated and temperature-controlled environments. Wall, ceiling and partition panels can be coordinated with insulated doors and hygienic accessories.

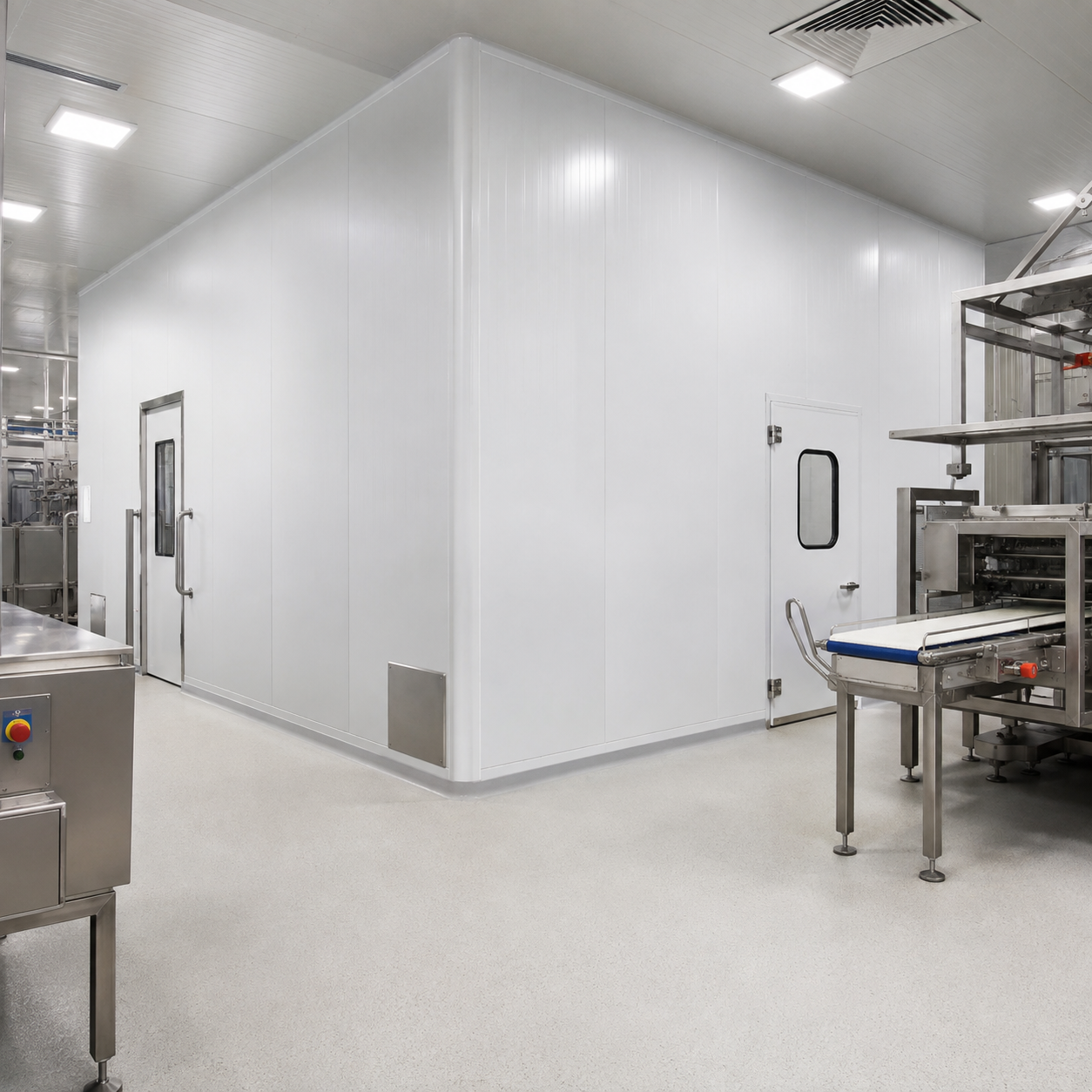

Clean-Room Panels

Smooth-surface panels with sealed joints are available for food, pharmaceutical and electronics facilities requiring clean, easy-to-maintain interior spaces.

General Specifications

Main System Advantages

Faster Building Enclosure

Large prefabricated panels cover the roof and wall areas quickly, allowing the building to become weather-protected earlier in the construction schedule.

Improved Indoor Temperature Control

The continuous insulation layer helps limit heat transfer through the roof and walls, supporting more stable indoor conditions.

Reduced Number of Construction Layers

Metal facing, insulation and interior finishing are integrated into one product, reducing separate on-site insulation and lining operations.

Lightweight Building Solution

The relatively low panel weight reduces the load applied to the secondary steel structure and makes handling more efficient.

Durable Coated Surfaces

Pre-painted steel facings provide a clean finish and can be selected with different coating systems according to the building environment.

Coordinated Joint Design

Interlocking panel edges, flashings and sealants work together to improve weather tightness and installation accuracy.

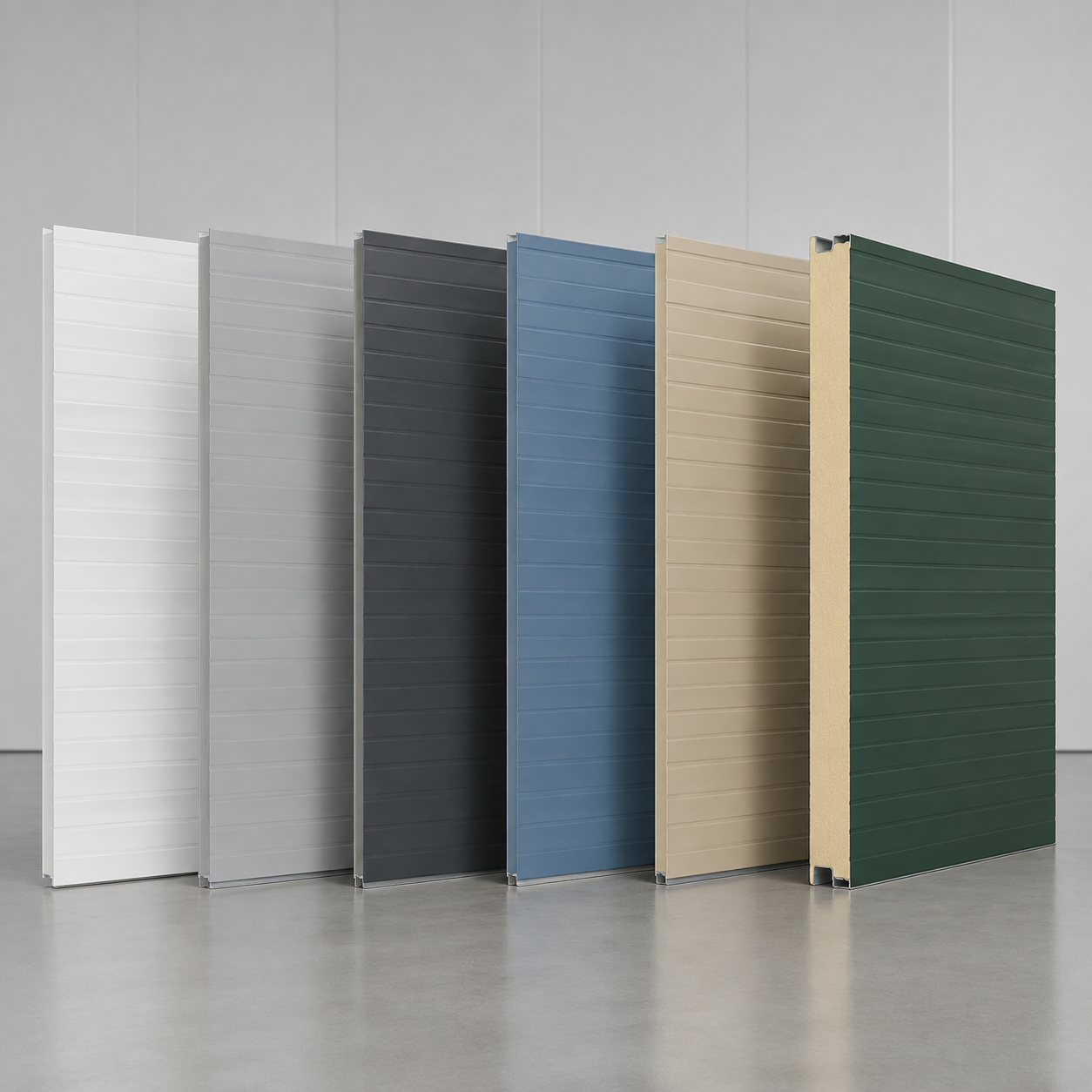

Flexible Appearance

Different panel directions, colors and surface profiles allow the system to match both practical industrial buildings and modern commercial architecture.

Complete Supply Package

Depending on the project, the delivery can include:

• Insulated wall panels

• Insulated roof panels

• Internal partition panels

• Ceiling panels

• Ridge caps

• Eave flashings

• Parapet caps

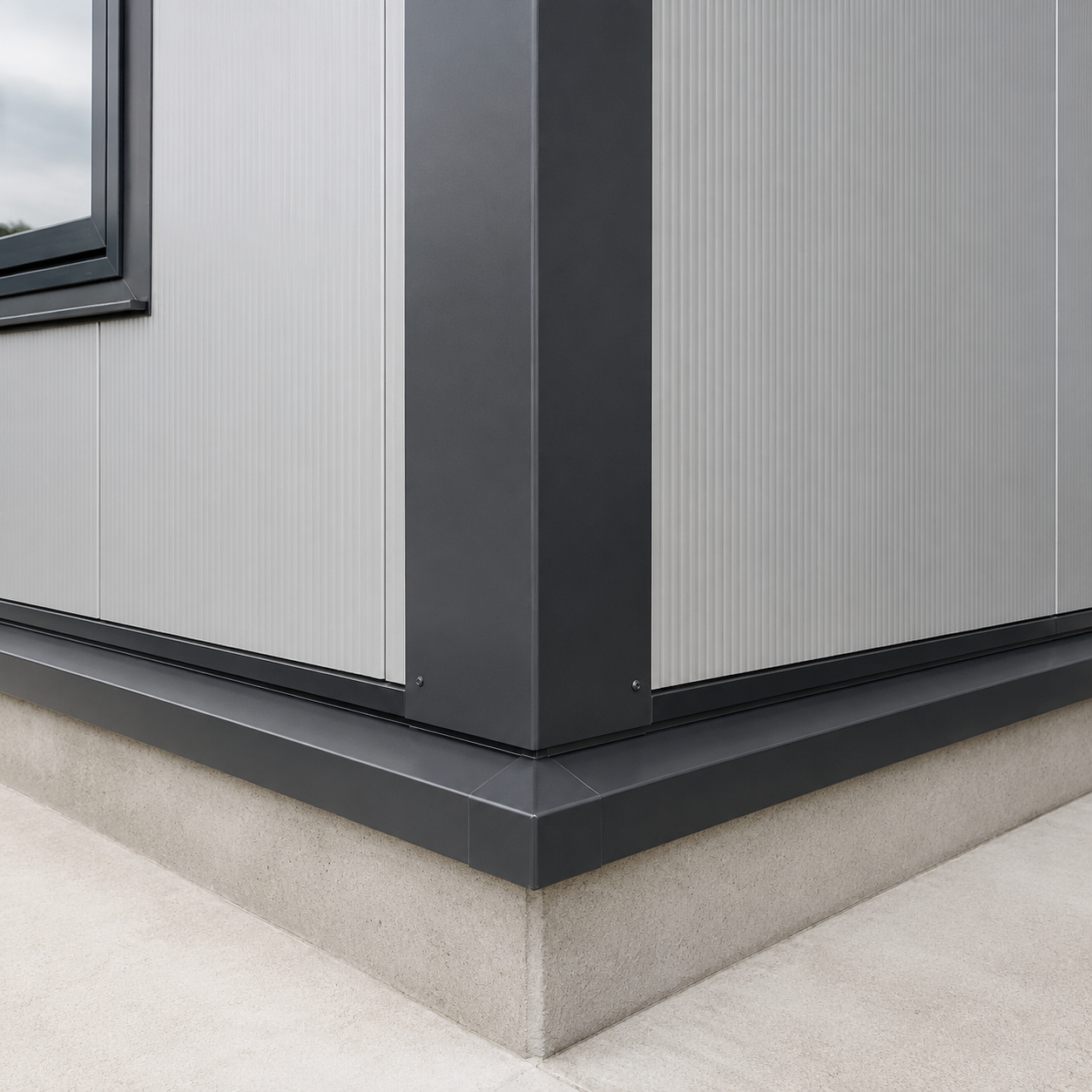

• External corner trims

• Internal corner trims

• Window and door flashings

• Base channels

• Gutters and downpipes

• Self-drilling screws

• Concealed fixing clips

• Butyl sealing tape

• Foam closures

• Compatible sealants

FAQ

1. What is the difference between a wall panel and a roof panel?

Wall panels are designed primarily for vertical or horizontal façades. Roof panels usually have higher external ribs to support drainage and roof fixing requirements.

2. What panel thickness is recommended for a cold room?

The correct thickness depends on the internal temperature, external climate, room size and operating conditions. Chilled storage and frozen storage usually require different configurations.

3. Can the exterior and interior metal surfaces use different colors?

Yes. The two metal facings can be selected separately when required, subject to available coil specifications and minimum production quantities.

4. Can panels be installed horizontally?

Yes. Many insulated wall panels can be installed horizontally or vertically. The supporting structure and flashing details must match the selected direction.

5. How do you prevent water from entering the panel joints?

Weather resistance is achieved through interlocking joints, correctly positioned fasteners, sealing tape, compatible sealant and properly designed flashings.

6. Can you match a specific color code?

Yes. Please provide the required color code or physical sample. Final color approval should be completed before mass production.
