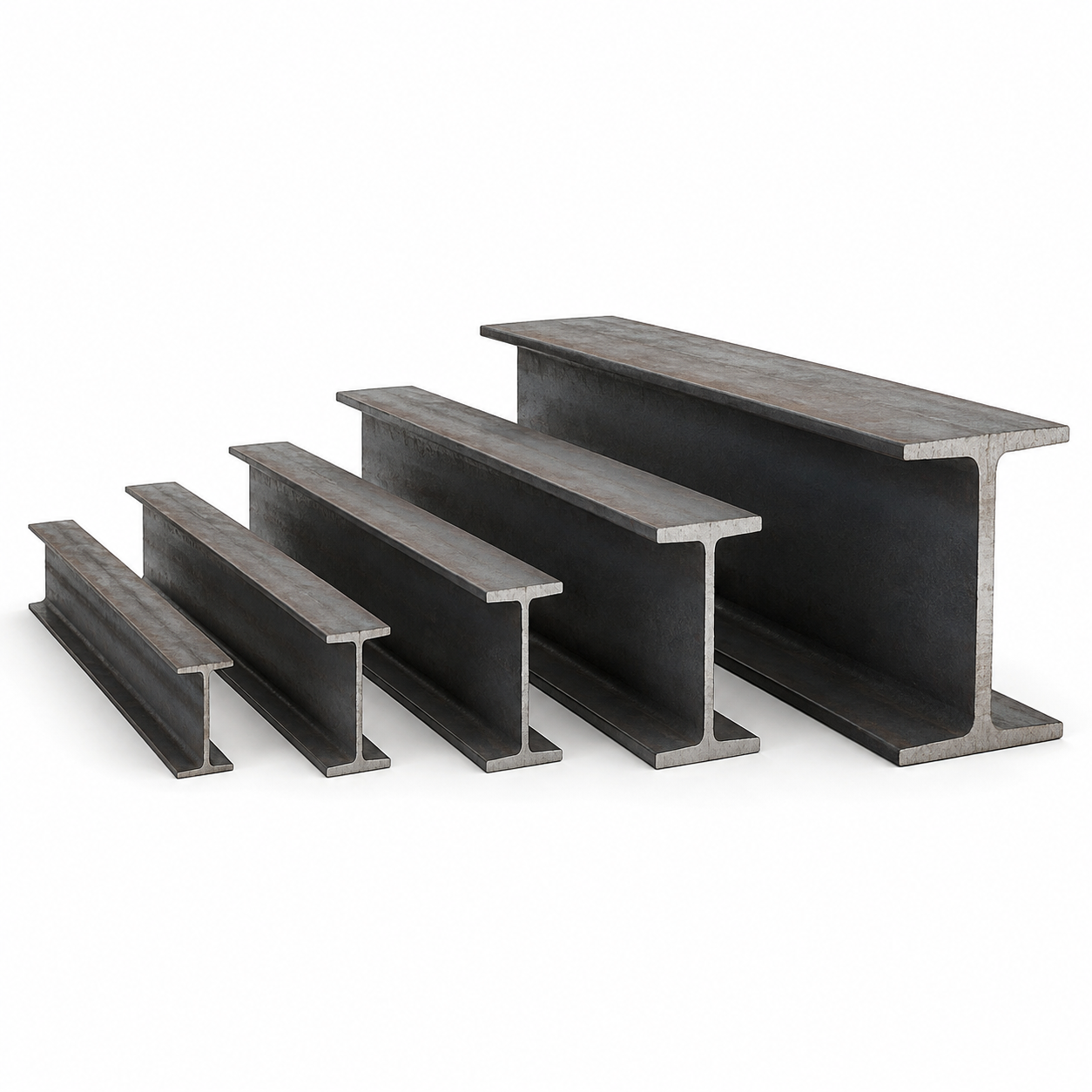

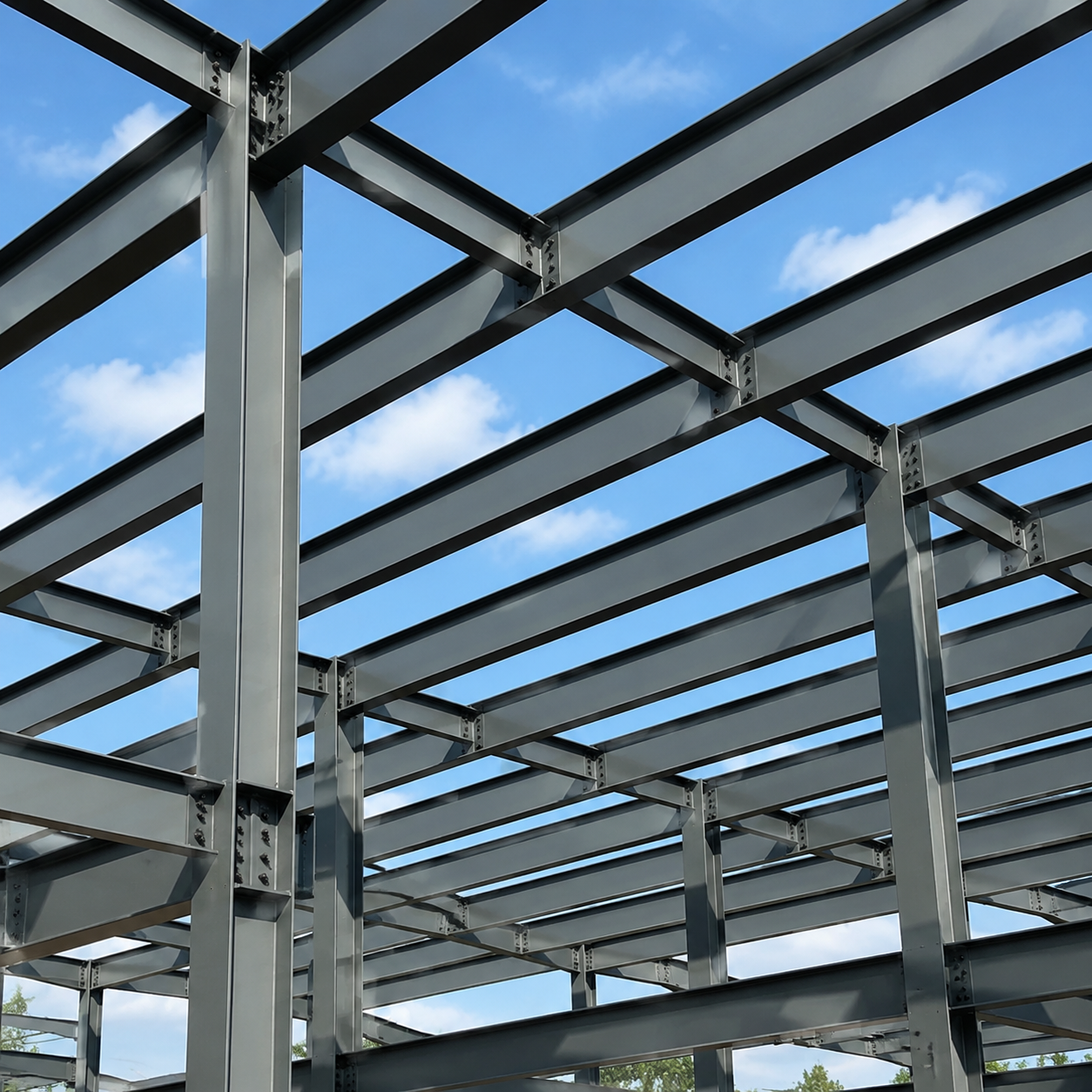

I Section Steel is designed to carry vertical loads efficiently through its two flanges and central web. The flanges resist bending forces, while the web transfers shear forces throughout the member. This makes the section suitable for structural frames that require dependable strength, controlled weight and efficient material utilization.

ZSJH Steel supplies standard and project-specific I sections for industrial, commercial and infrastructure construction. Products can be delivered as raw steel sections or as ready-to-install components with cutting, drilling, welded connection plates, stiffeners and protective surface coatings.

Customers can submit section schedules, fabrication drawings or project specifications for a customized supply proposal.

Key Benefits

Efficient Structural Performance

The section concentrates steel where it contributes most to bending resistance, providing an effective balance between structural capacity and material consumption.

Consistent Section Geometry

Controlled flange width, web thickness and straightness support accurate fabrication, reliable connection alignment and efficient site installation.

Project-Based Customization

Beam length, steel grade, hole pattern, connection plate and coating system can be selected according to the intended application.

Reduced On-Site Processing

Components can be cut, drilled, welded and coated before shipment, helping contractors reduce fabrication work and installation time at the project site.

Suitable for International Delivery

Finished beams are sorted, bundled and protected according to their dimensions, surface condition and transportation method.

Product Specifications

Production and Inspection Process

1. Review project specifications and fabrication drawings

2. Confirm material grade and section dimensions

3. Inspect incoming raw materials

4. Cut sections to the required length

5. Complete drilling and connection plate fabrication

6. Check dimensions and hole positions

7. Perform welding inspection when applicable

8. Apply the required surface treatment

9. Conduct final quality inspection

10. Bundle, protect and prepare the products for shipment

Quality Assurance

Each order can be inspected for:

• Material grade

• Section dimensions

• Beam length

• Straightness

• Flange and web condition

• Cut-end quality

• Hole diameter and position

• Connection plate dimensions

• Welding appearance

• Paint or zinc coating condition

• Product quantity

• Packaging security

Packaging and Transportation

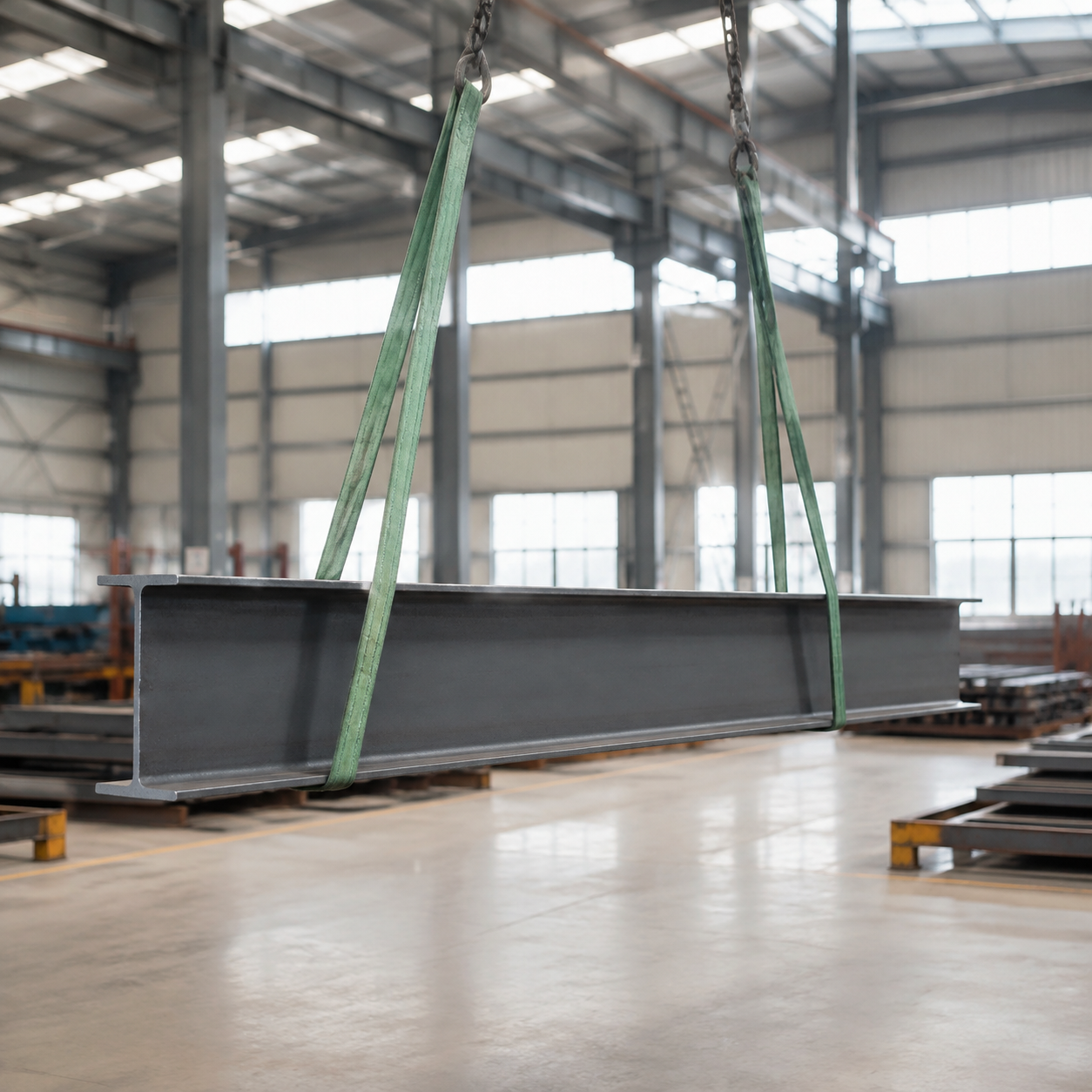

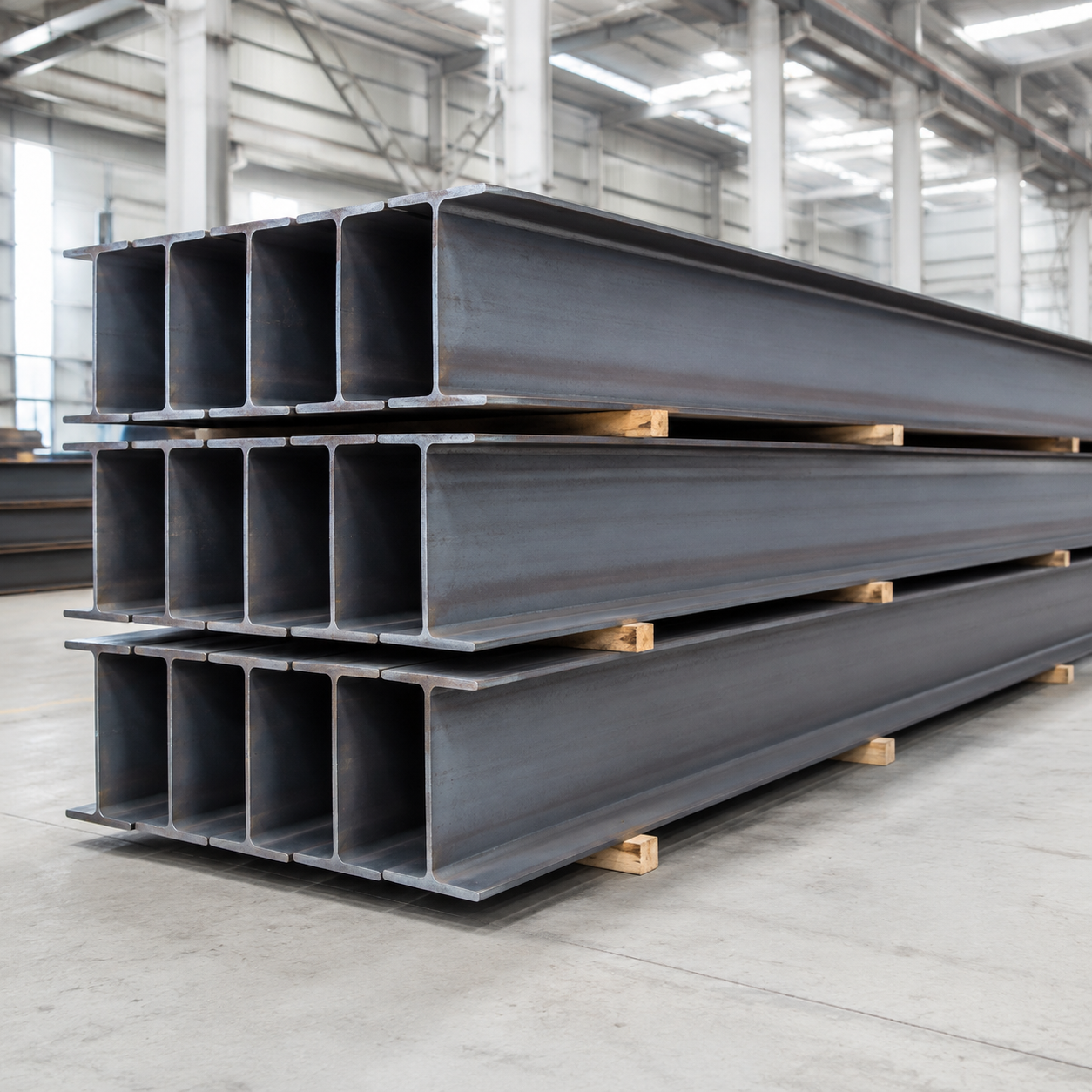

I sections are grouped according to size and length, separated where necessary and secured with steel straps. Timber supports help protect the products and provide suitable lifting clearance.

Long or heavy beams may be shipped using open-top containers, flat-rack containers or break-bulk vessels. The loading plan is prepared according to component length, shipment weight and destination requirements.

Information Required for a Quotation

For an accurate quotation, please provide:

• Required steel grade

• Section dimensions

• Beam length

• Order quantity

• Fabrication drawings

• Hole and connection details

• Surface treatment

• Inspection requirements

• Packaging requirements

• Destination port

FAQ

Can you manufacture I beams according to our drawings?

Yes. We can produce cut-to-length and prefabricated I beam components based on approved drawings, section schedules and connection details.

Are welded connection plates available?

Yes. End plates, stiffeners, brackets and other steel plates can be welded to the beams before painting or galvanizing.

Can different beam sizes be combined in one order?

Yes. Multiple section sizes and lengths can be arranged in one project order. A detailed material list is recommended for quotation and production planning.

How should I select the correct I beam size?

The beam size should be selected by a qualified structural engineer according to span, load, connection method and applicable design requirements.

Is painting available in customized colors?

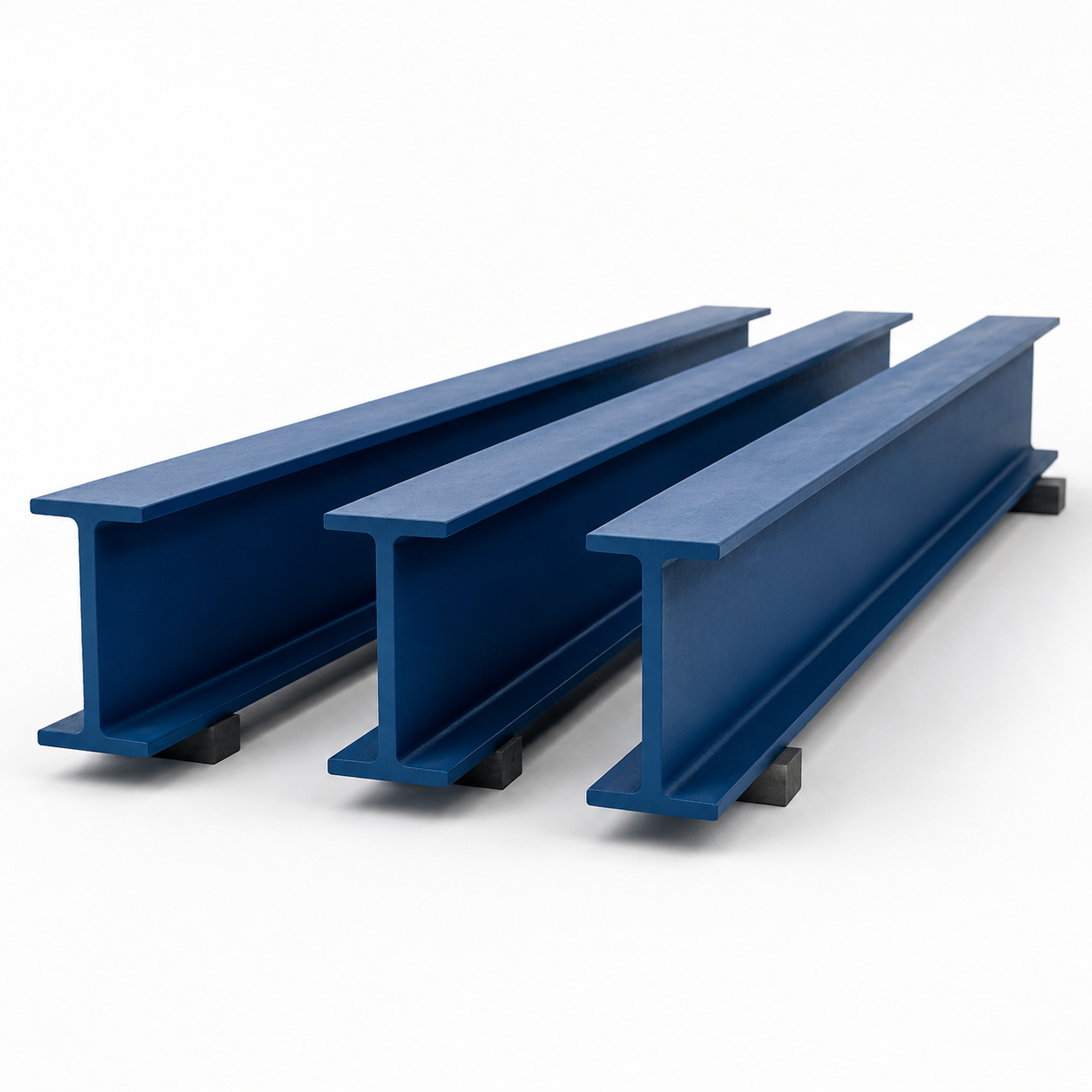

Yes. Coating systems and finish colors can be customized. Please provide the required color reference and corrosion protection specification.

Can galvanized I beams be processed after galvanizing?

Additional cutting or welding may damage the zinc coating. It is generally recommended to complete fabrication before galvanizing whenever possible.
