Steel Truss Structure | Heavy-Duty Industrial & Commercial Building Support System

Steel Truss Structure | Heavy-Duty Industrial & Commercial Building Support System

Configuration: Pratt, Warren, triangular or engineered custom geometry
Member options: H sections, angles, SHS/RHS or CHS to design
Material: Q235B, Q355, Q390 or approved overseas grades
Finish and color: Specified paint colors; galvanizing after node and size review
Supply model: Made-to-drawing assemblies or marked transport segments
Minimum order: Confirmed by truss quantity, geometry and fabrication scope

Brand:
ZSJH


Availability:



Inquire Add to Basket

Product Description

1 Create open space with a designed load path

ZSJH fabricates steel trusses for industrial roofs, commercial halls and designated heavy-duty support structures. Upper/lower chords and web members form a triangulated load path, allowing structural depth to be used across the required span. The arrangement can accommodate roof services and clear areas below when coordinated in design; it does not permit services to cut through members or loads to be added anywhere.

2 Select geometry from use and support conditions

Use case	Truss considerations

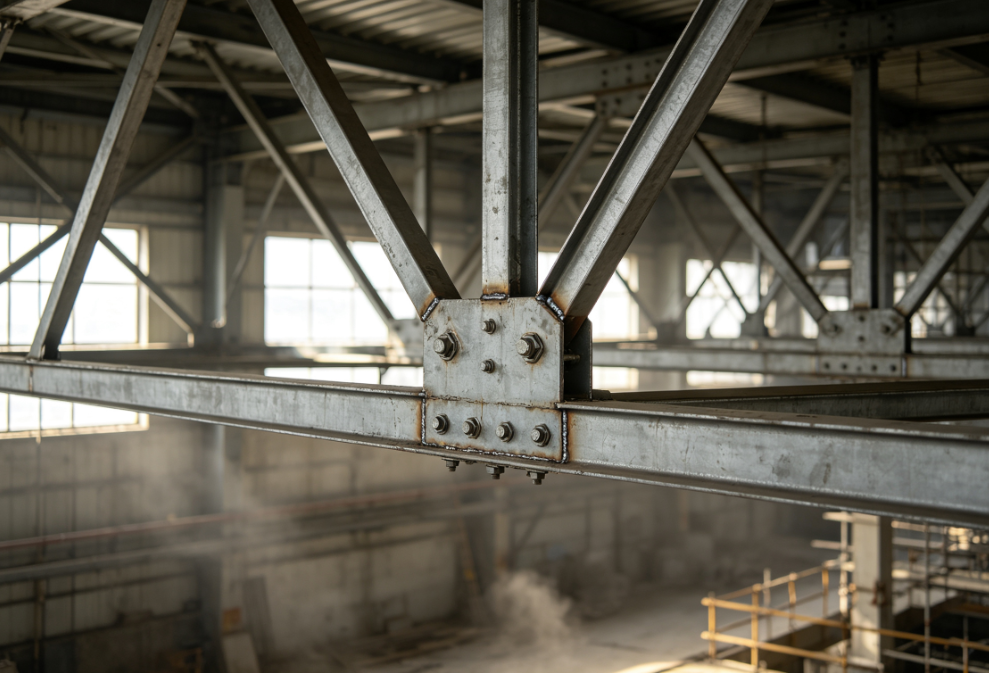

Industrial workshop roofs	Roof dead/live loads, suspended services, crane clearances and permanent bracing interfaces.
Commercial and exhibition halls	Clear span, roof depth, ceiling/service coordination and visible finish.
Sports halls and canopies	Roof geometry, wind uplift, support movements and erection stability.

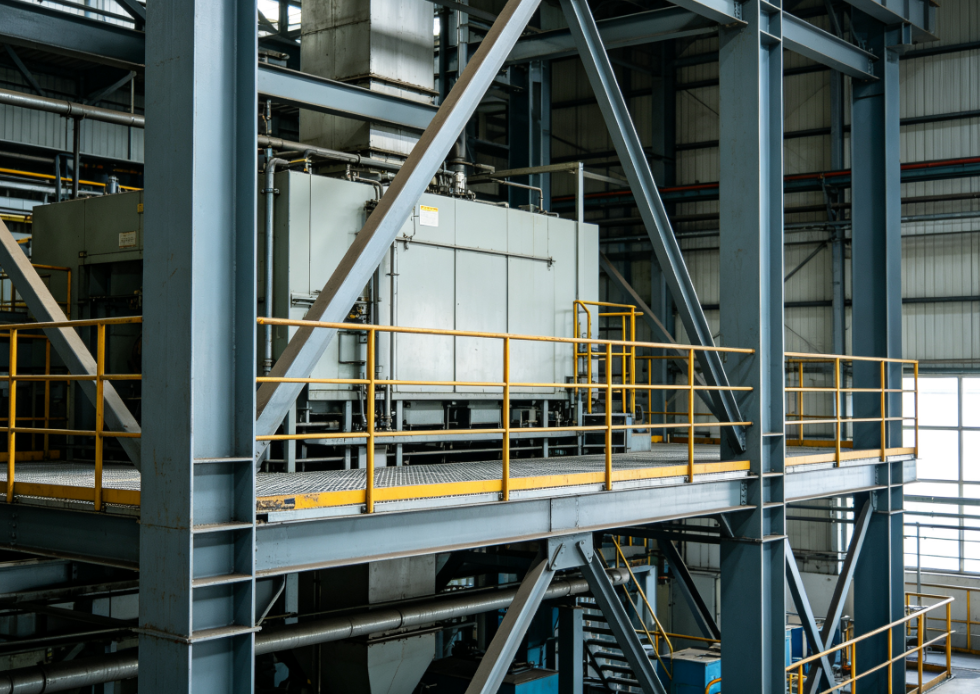

Equipment or transfer supports	Concentrated loads, load introduction points, fatigue where relevant and local reinforcement.

3 Product parameters

Parameter	Details
Material Option	Q235 / Q355 / High-strength structural steel / Galvanized steel
Truss Type	Pratt truss, Warren truss, triangular truss, custom bracing system
Span Range	Customizable, typically from small spans to large industrial spans
Height	Designed according to load and span requirements

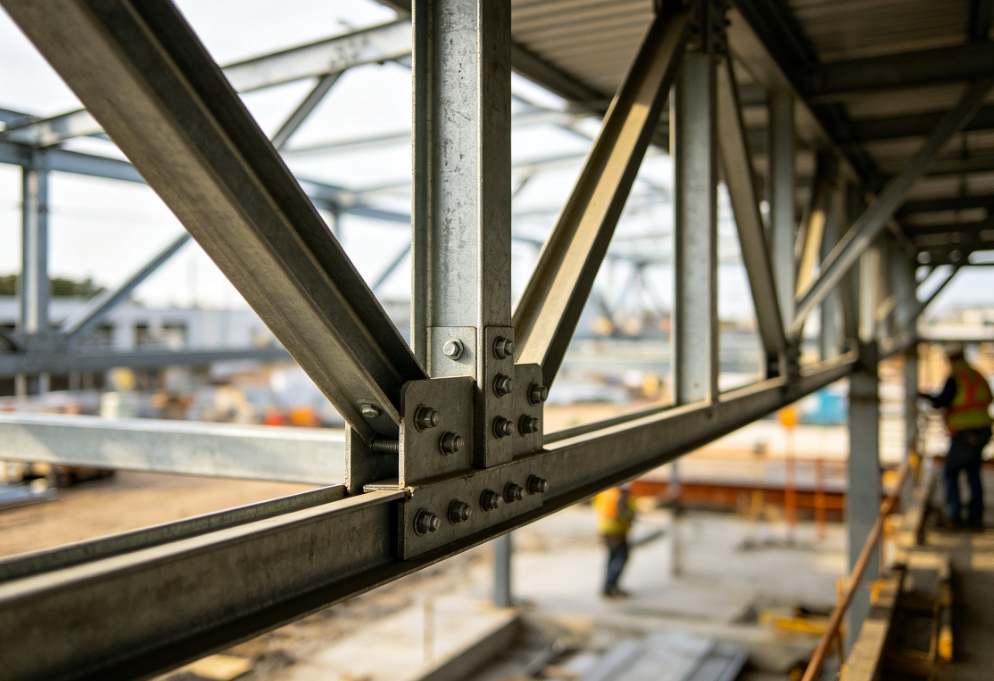

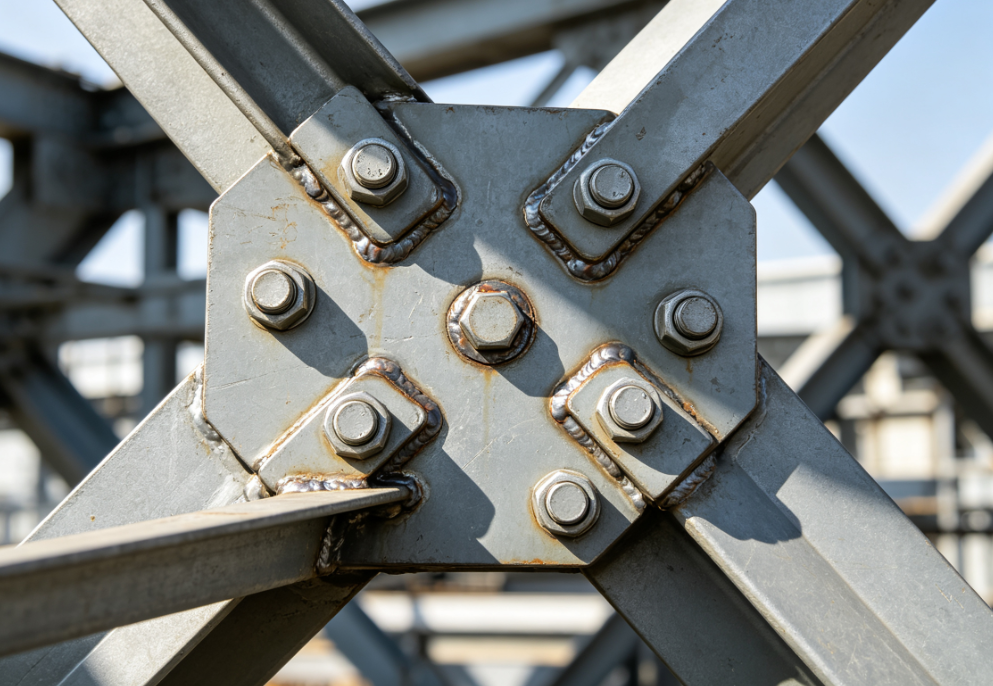

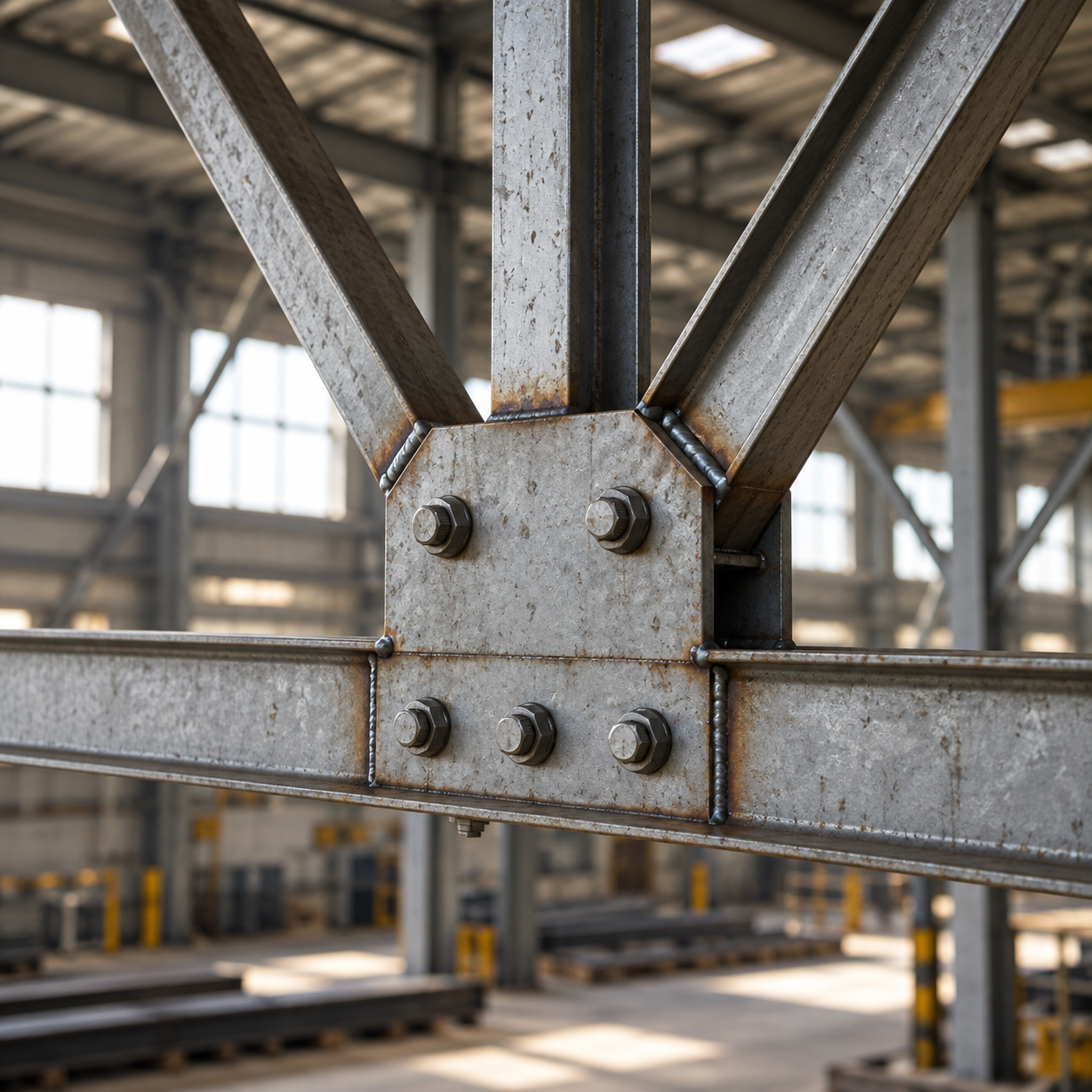

Connection	Welded, bolted, gusset plate connections
Surface Treatment	Hot-dip galvanized, powder coated, painted, raw steel
Load Capacity	Custom-engineered based on project load requirements

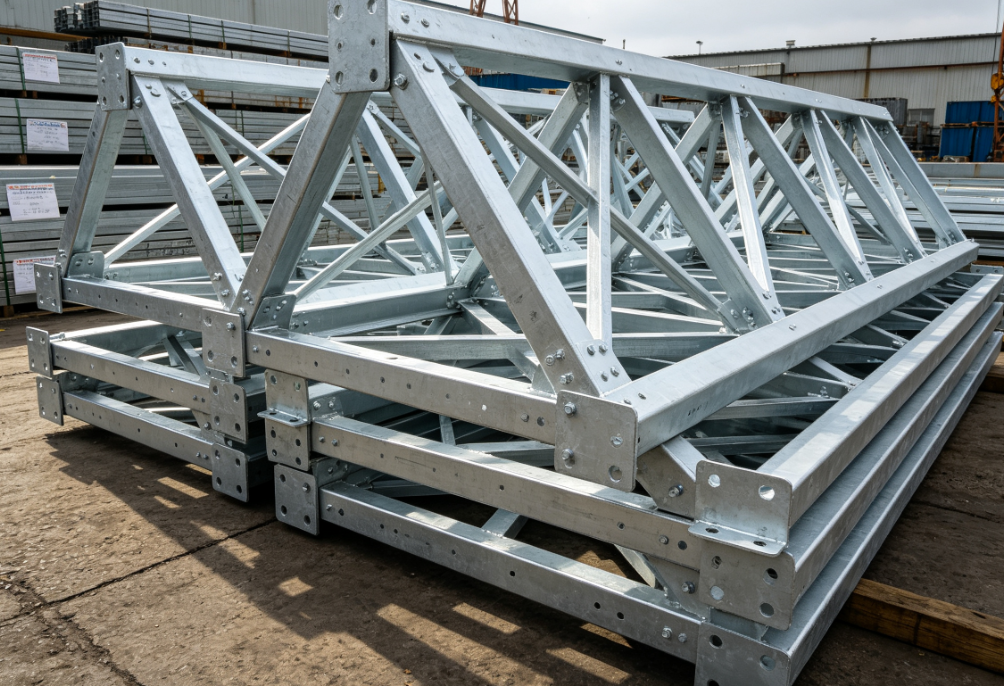

Installation Method	Prefabricated sections assembled on site
Application Temperature	Standard industrial and commercial environment
Certification	Can be produced according to local structural steel standards
