Its triangulated configuration helps achieve excellent structural efficiency, making it especially suitable for buildings that require large open spaces, fewer internal columns and reliable load-bearing performance.

ZSJH Steel provides customized steel truss fabrication based on approved structural drawings, material specifications, connection details and project requirements. Components can be prefabricated in our factory and delivered as complete truss sections or modular segments for efficient site installation.

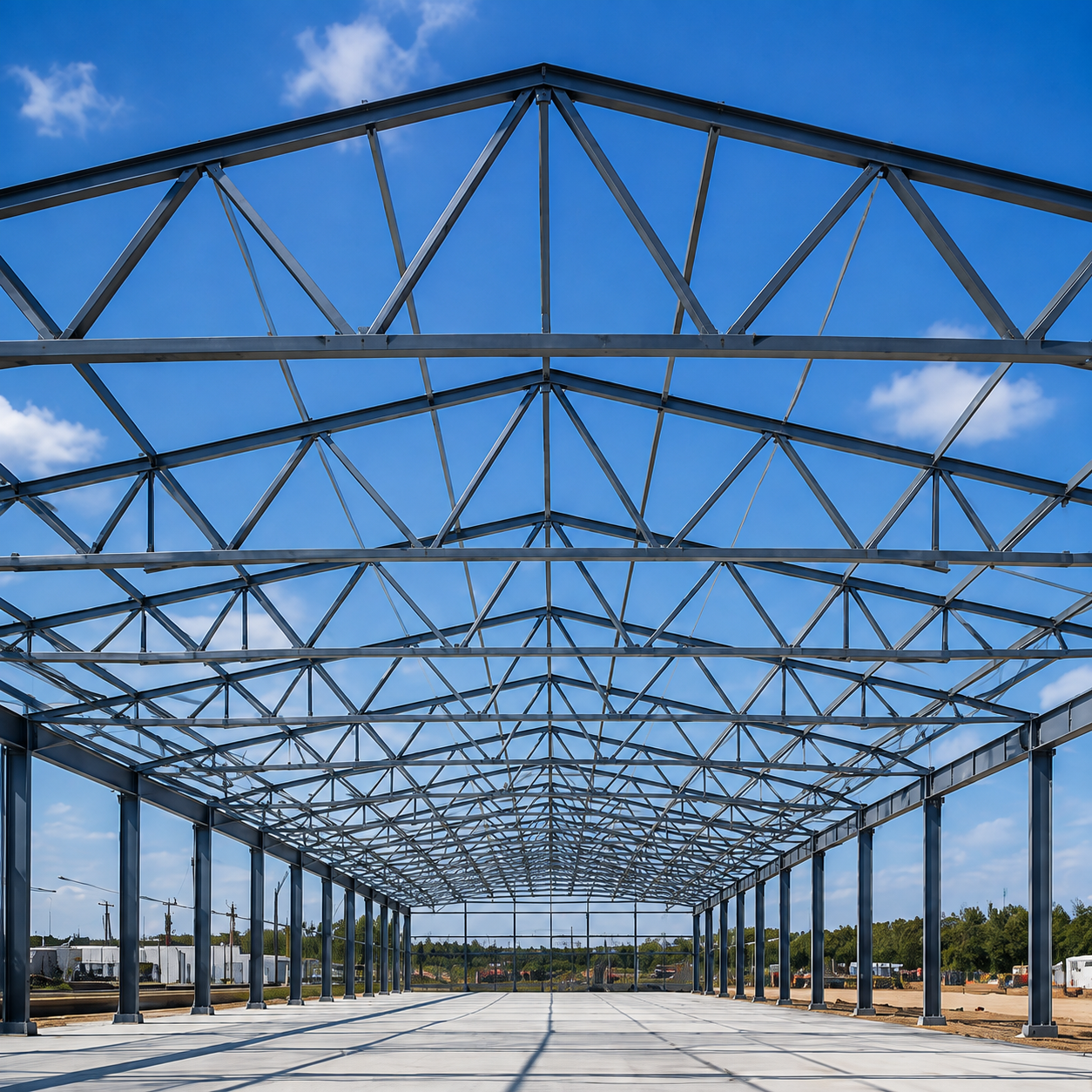

Our steel trusses are widely used in industrial buildings, warehouses, large-span roofs, infrastructure projects and special architectural structures.

Key Benefits

Efficient Load Distribution

The triangular geometry transfers structural loads effectively through the upper chord, lower chord and web members.

Large-Span Performance

Steel trusses are suitable for wide-span spaces where conventional beams may become too heavy or uneconomical.

Reduced Structural Weight

Optimized truss design can reduce overall self-weight while maintaining strong structural capacity.

Factory-Controlled Fabrication

Cutting, drilling, fitting, welding and inspection can be completed under controlled manufacturing conditions.

Easy Site Assembly

Truss sections can be designed for convenient transportation and bolted assembly at the construction site.

Flexible Project Adaptation

Member size, truss geometry, material grade, connection system and finish can be adjusted according to engineering requirements.

Standard Product Data

Custom Fabrication Service

Every project has different span, loading and installation requirements. For this reason, ZSJH Steel provides project-specific fabrication rather than limiting customers to standard truss dimensions.

We can manufacture according to:

• Client Structural Drawings

• Shop Drawings

• BIM Models

• Connection Details

• Bill of Materials

• Steel Grade Requirements

• Welding Specifications

• Bolt Requirements

• Coating Specifications

• Transportation Restrictions

Production Process

Raw Material Preparation

Steel sections and plates are prepared according to the material list and project specifications.

CNC Cutting

Members and connection plates are cut to the required dimensions.

Drilling & Hole Processing

Connection holes are processed according to approved fabrication drawings.

Trial Assembly

Major members are positioned and checked before final welding.

Welding

Structural members and gusset plates are welded according to fabrication requirements.

Correction & Finishing

Members can be straightened, ground and prepared for final inspection.

Surface Preparation

Steel surfaces can be shot blasted before painting or other protective treatment.

Coating

Primer, finishing paint or galvanizing can be applied according to project conditions.

Final Inspection

Dimensions, welds, connections, coating and identification marks are checked before packing.

FAQ

1. What is a steel truss structure used for?

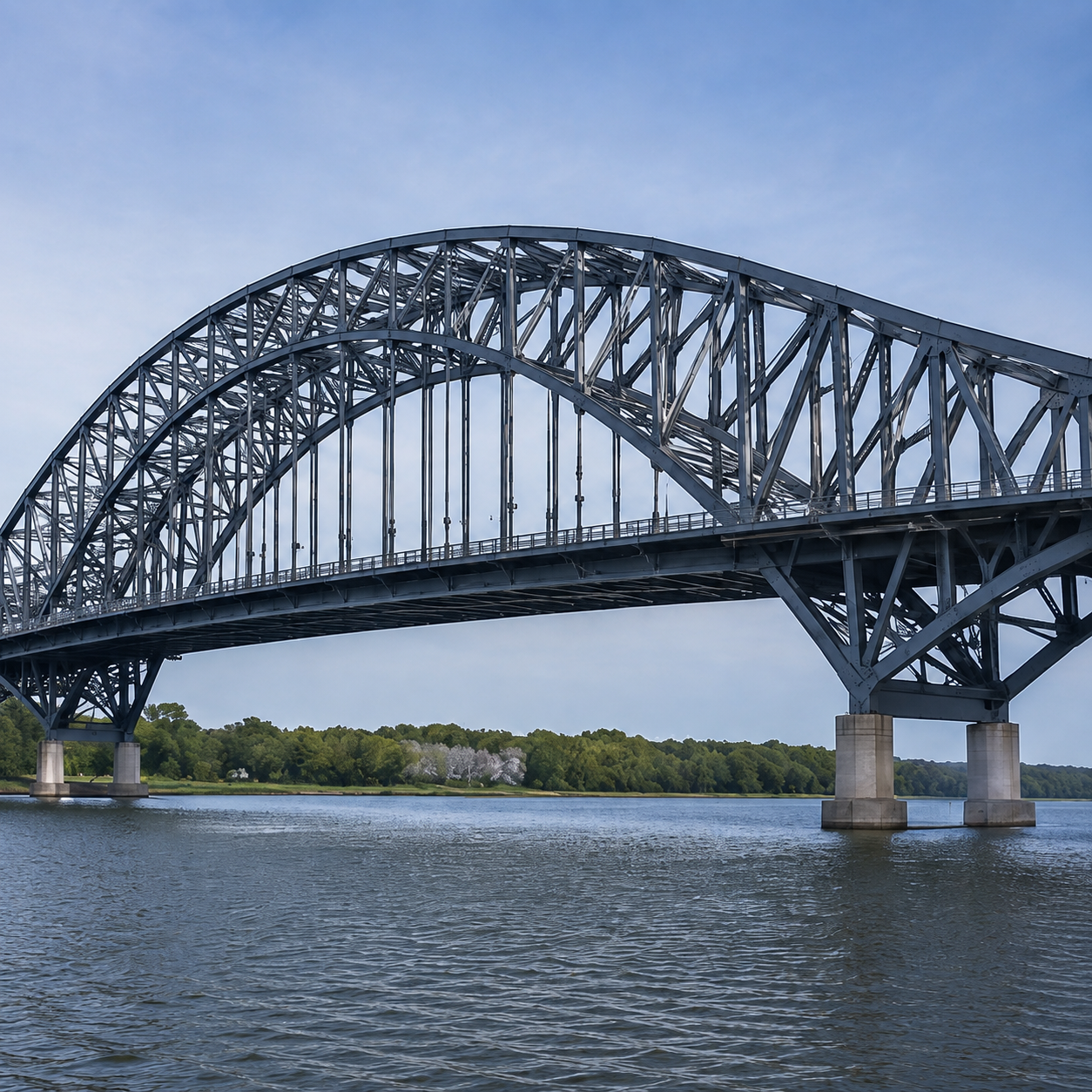

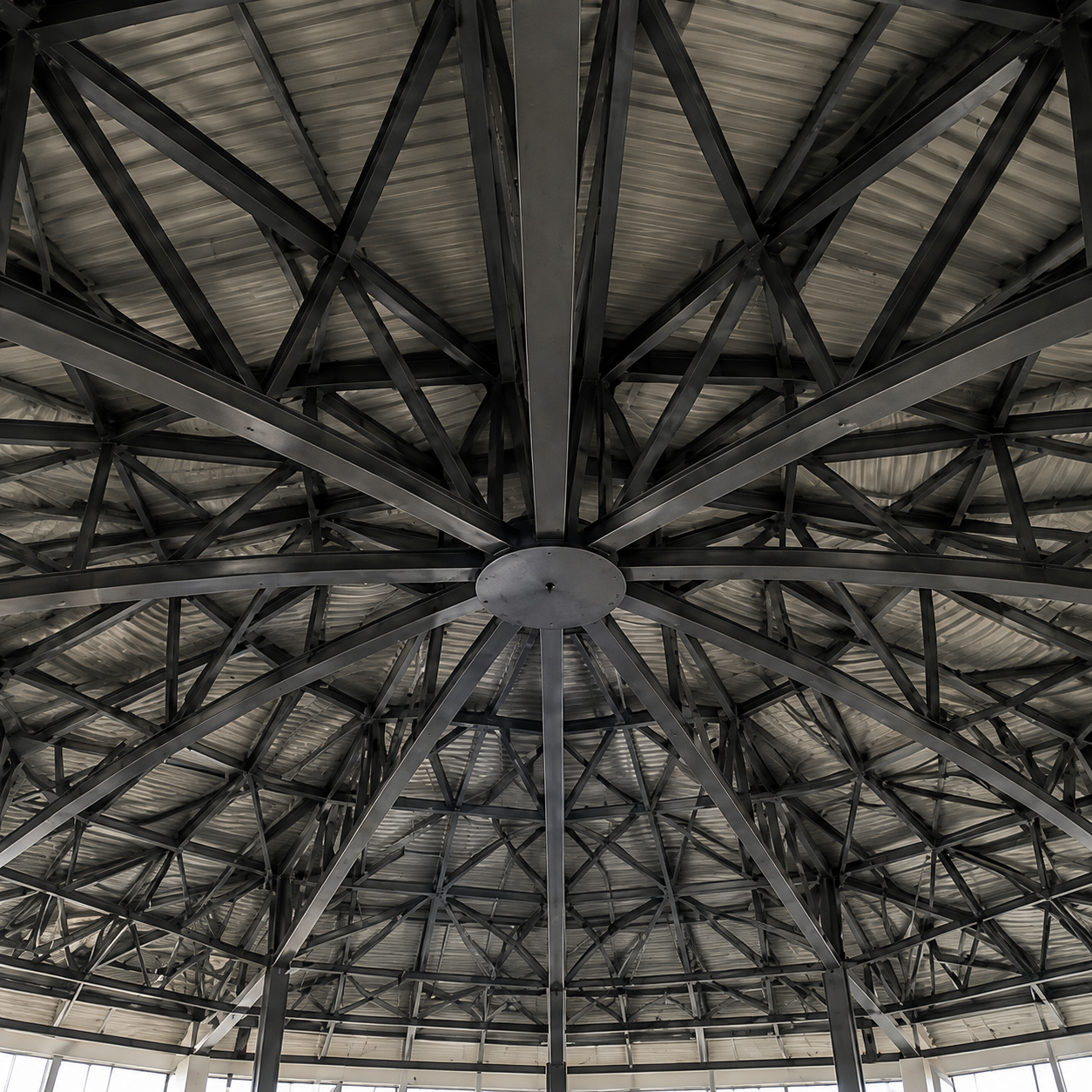

Steel trusses are mainly used to support roofs, floors, bridges and other structures requiring long spans and efficient load distribution.

2. Can you customize the truss according to our project?

Yes. Truss geometry, span, height, steel grade, section type, connection and coating can all be customized.

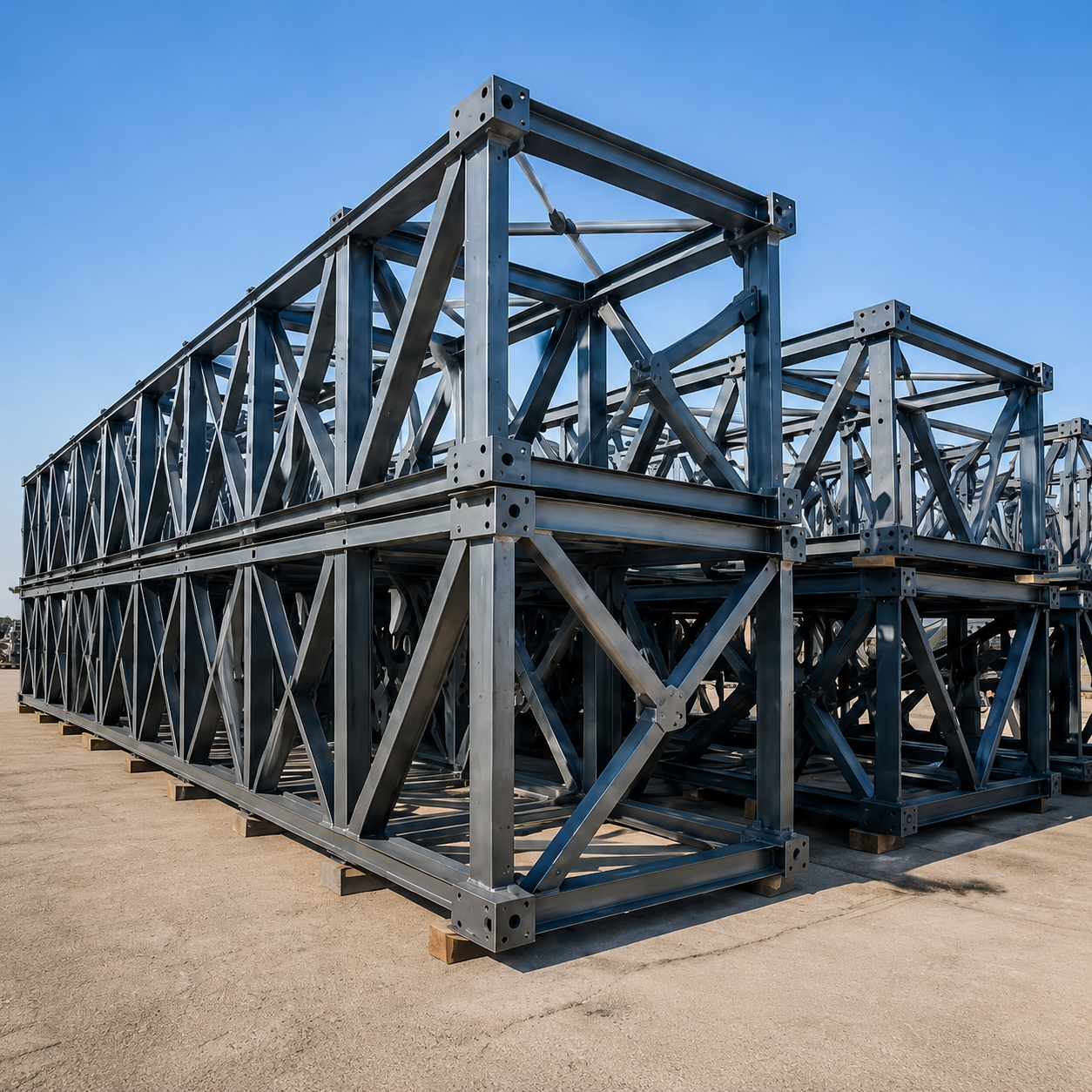

3. Can large trusses be shipped in separate sections?

Yes. Large trusses can be divided into transportable modules and connected on site.

4. What steel sections can be used?

Depending on the structural design, H sections, channels, angles, RHS, SHS, CHS and fabricated box sections can be used.

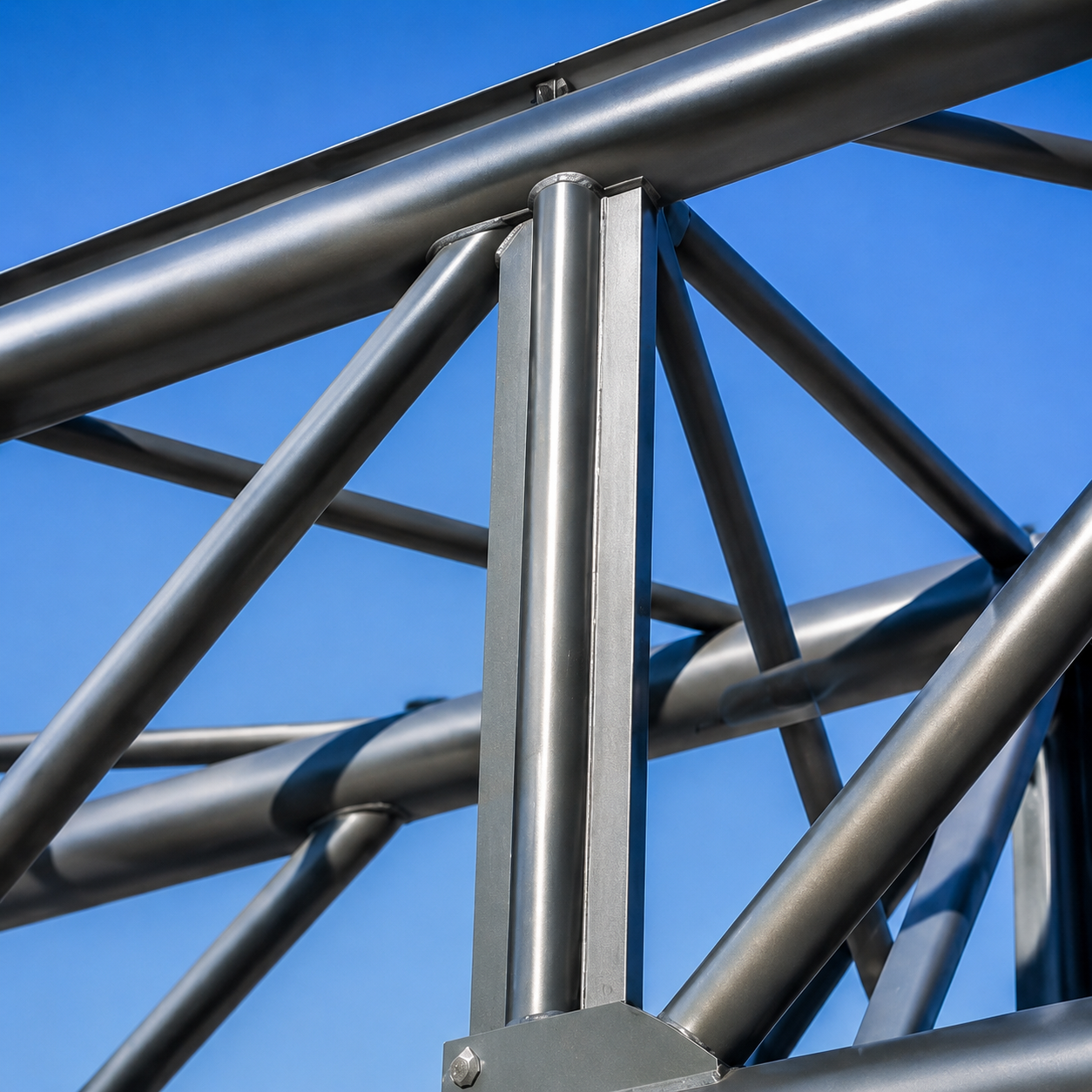

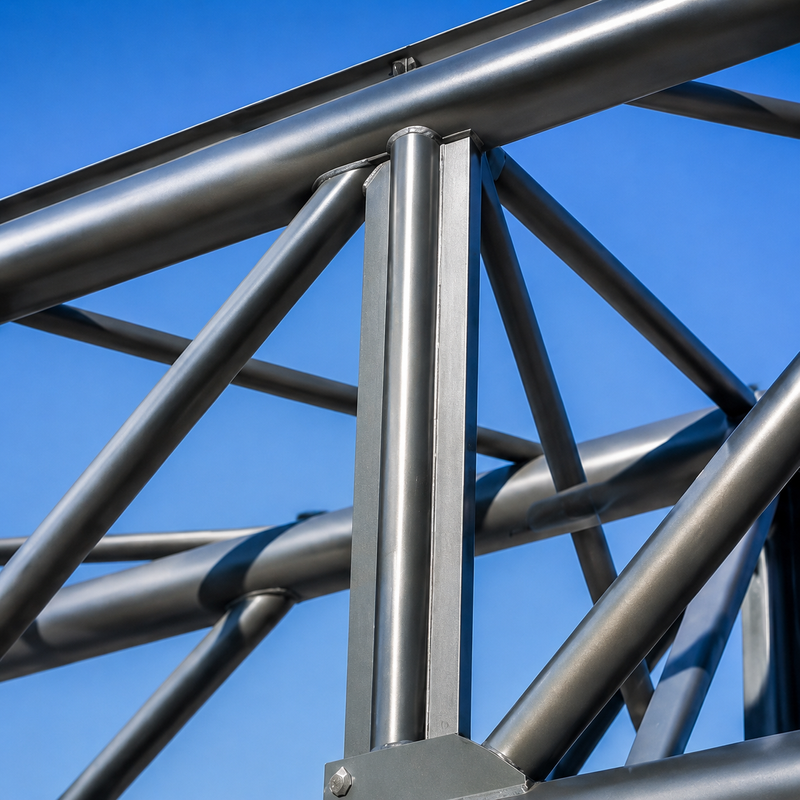

5. Do you support tubular truss fabrication?

Yes. Circular, square and rectangular hollow-section trusses can be manufactured according to approved drawings.

6. What surface treatment do you recommend for outdoor use?

Hot-dip galvanizing or suitable multi-layer anti-corrosion coating systems are commonly used. The final solution should be selected according to the project environment.
