1.Product Overview

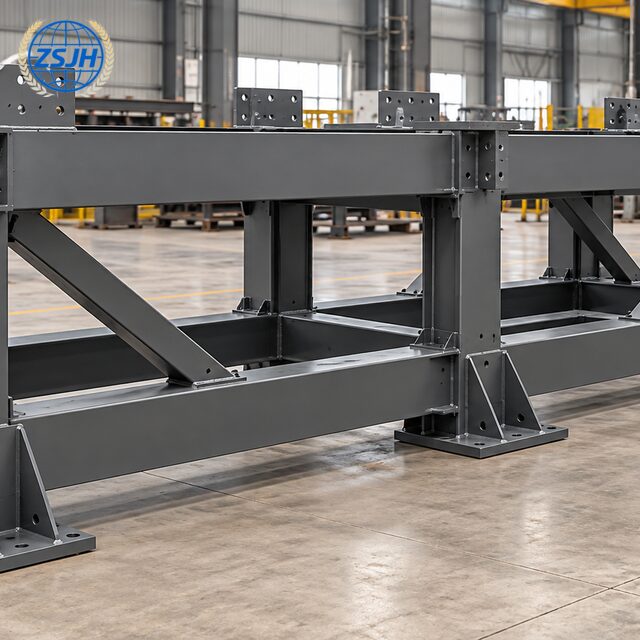

Industrial equipment frequently requires a dedicated structural frame to transfer operating loads to the foundation or surrounding building structure. Custom Industrial Steel Support Frames are fabricated for machinery, production lines, process equipment and elevated systems.

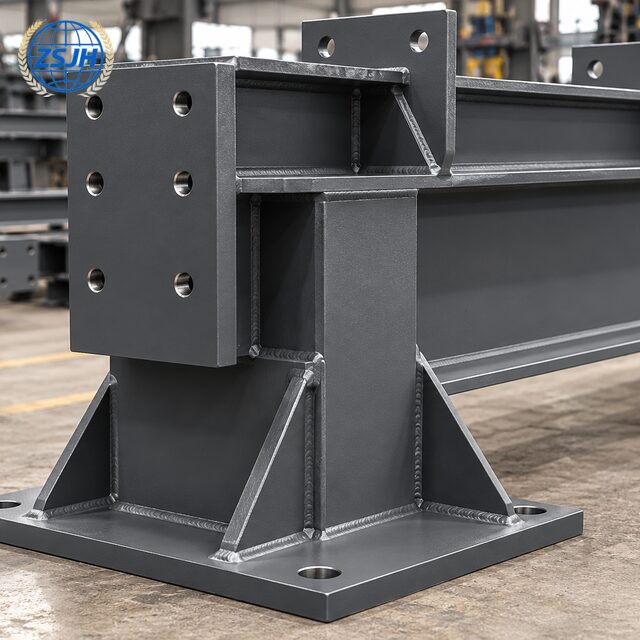

The fabrication scope can include main beams, support columns, bracing, equipment mounting plates, base plates, stiffeners and access-support connections. Hole locations and mounting interfaces are produced according to approved equipment and structural drawings.

For dynamic equipment or heavy loading conditions, the final steel sections, connections and welding requirements must follow the project engineer’s approved design.

2. Product Features

Designed around equipment interface drawings

Custom mounting plates and bolt holes

Load-bearing beams, columns and bracing

Welded or bolted frame construction

Dimensional control for equipment installation

Optional protective coating

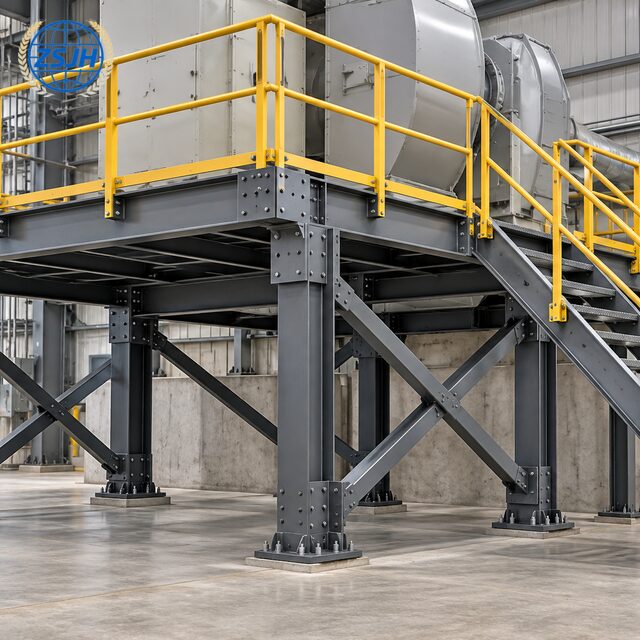

Suitable for integration with platforms and walkways

3. Applications

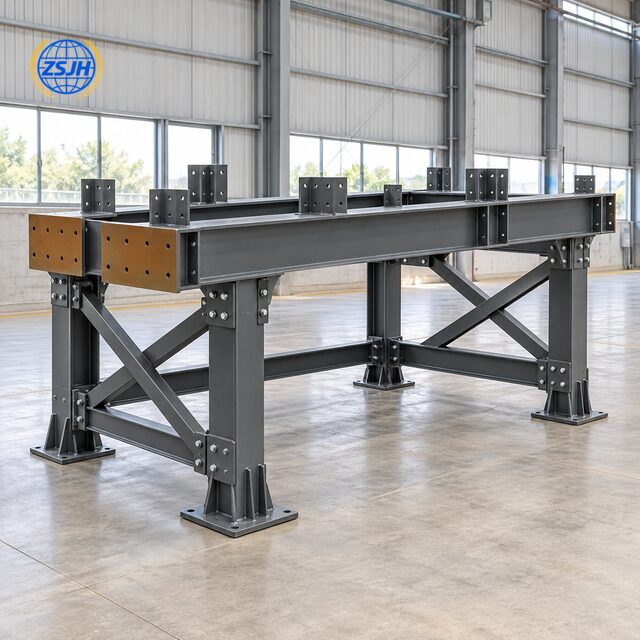

Production equipment supports

Machinery frames

Conveyor support systems

Process equipment structures

Elevated equipment installations

Industrial utility systems

4. Customization Capability

Frame geometry, mounting points, equipment openings, support elevations, steel sections, connection details and coating systems can be customized according to approved drawings.

5. Manufacturing Process

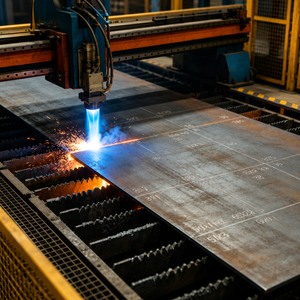

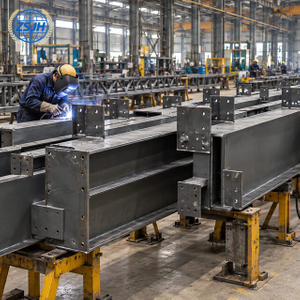

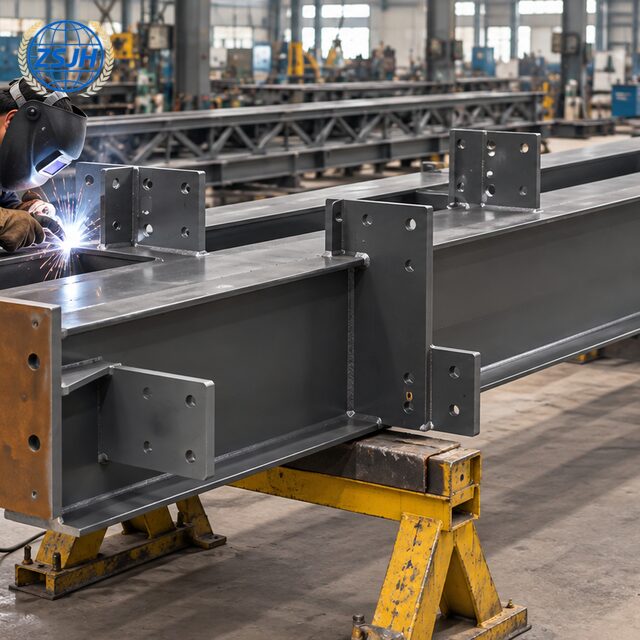

Equipment and Project Requirements Review → Load and Interface Information Confirmation → Drawing Design and Technical Coordination → Fabrication Drawing Preparation → Customer Review and Approval → Material Preparation → CNC Cutting → Drilling → Fit-Up → Welding → Dimensional Verification → Surface Treatment → Final Inspection → Marking → Packing

6.CTA

Send us your equipment and load requirements for a custom steel support frame quotation. Drawing design services are available.
