Commercial and industrial facilities face a high probability of mid-lifecycle reconfiguration. Rigid concrete or masonry construction often forces property owners into costly demolitions or restrictive layouts when operational needs shift. Facility owners, developers, and industrial operators require structural frameworks that accommodate changing load requirements, spatial reconfigurations, and strict seismic codes without triggering catastrophic project delays or budget overruns. A well-engineered Multifunctional steel structure solves this challenge by combining molecular-level ductility with modular assembly. Rather than locking a building footprint into a permanent state, modern steel frameworks provide a dynamic skeleton capable of adapting to future commercial demands. This guide breaks down the structural mechanics, cost-benefit realities, and procurement frameworks for evaluating an adjustable steel frame in modern construction.
Space & Yield Optimization: Steel columns require up to 75% less floor footprint than equivalent load-bearing concrete, maximizing usable commercial or industrial space.
Seismic & Dynamic Resilience: The inherent ductility of a flexible steel structure allows it to absorb environmental loads (wind, seismic) by bending rather than fracturing.
TCO Reduction via Adaptability: Pre-engineered and custom steel frames integrate with BIM to allow rapid mid-construction design changes, avoiding weekly preliminary site delay costs and reducing material waste to approximately 2% (compared to 20% in traditional framing).
Vertical & Horizontal Scalability: High strength-to-weight ratios enable adaptive reuse, including vertical expansions (adding floors) and heavy-duty industrial platform integration, with minimal impact on existing foundation systems.
The core difference in material behavior under stress dictates a building survivability. Steel bends through a property known as ductility. Concrete breaks due to its inherent brittleness. Ductility allows a material to undergo significant plastic deformation before rupture. When extreme forces hit a rigid concrete pillar, it resists until it reaches its breaking point. This results in a sudden, catastrophic fracture. Steel absorbs and dissipates kinetic energy by flexing. This physical property stems from the metallic bonds at the atomic level, which allow atoms to slide past one another without permanently breaking the structural lattice.
Real-world examples illustrate this physical flexibility clearly. Consider an unloaded flatbed truck. Its steel bed often arches upward. When loaded with heavy cargo, the steel flattens out to bear the weight without sustaining damage. Similarly, a steel bridge safely vibrates and deflects as a heavy train passes over it. This physical flexibility is critical for surviving environmental loads. Seismic events and high winds apply massive lateral forces. Dynamic live loads from heavy machinery and overhead cranes introduce continuous vibration. A brittle structure accumulates micro-fractures under these conditions. A ductile structure simply flexes and returns to its baseline state, preserving the integrity of the facility.
Engineers measure this capacity using the yield point and ultimate tensile strength. The yield point marks the stress level where steel begins to deform plastically. Up to this point, deformation is elastic, meaning the steel returns to its original shape once the load is removed. By designing buildings to operate well within the elastic range for standard loads, but allowing for plastic deformation during extreme events like earthquakes, engineers guarantee life safety. This is why a Flexible steel structure remains the standard for high-risk seismic zones globally.
Metallurgical processes allow a High quality Multifunctional steel structure to be precisely tuned. Engineers balance yield strength and flexibility. They manipulate the molecular structure of the metal to meet exact project demands. Carbon content plays a primary role. Low-carbon steel offers maximum ductility, while higher carbon content increases tensile strength at the cost of flexibility. Alloying elements like manganese, silicon, and vanadium are added to achieve specific performance metrics.
Annealing and tempering are critical thermal treatments. Controlled heating and gradual cooling alter the steel crystalline structure. This process relieves internal stresses accumulated during initial forging. It significantly increases the material toughness. When a project involves heavy static dead loads, hardening or quenching processes are applied. Rapid cooling locks the molecules into a tighter grid. This specifies higher rigidity. Engineers must carefully calculate when to specify this rigidity versus when to maintain higher flexibility for dynamic, vibration-heavy industrial environments.
The tuning process also involves selecting the appropriate structural shapes. Wide-flange beams (W-shapes) provide excellent bending resistance for long spans. Hollow structural sections (HSS) offer superior torsional resistance, making them ideal for exposed columns and bracing members. By combining precise metallurgical tuning with optimal geometric profiles, engineers create frameworks that respond predictably to complex load combinations.

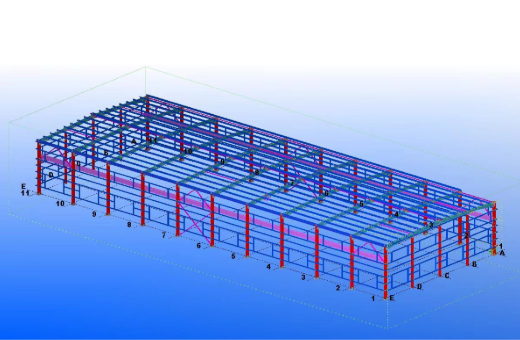

Effective load path management ensures that dead, live, and environmental forces are safely transferred to the foundation. Primary framing consists of the main columns and beams. These typically span 20 to 40 feet. These heavy members bear the brunt of the structural weight. Secondary framing includes purlins and girts. These distribute the loads from the roof and wall panels back to the primary system. A clear, uninterrupted load path prevents localized stress concentrations that could lead to component failure.
To optimize material use, an Adjustable steel frame often utilizes tapered framing. Columns and beams are fabricated to be deeper at high-stress connection points. They are shallower at mid-spans where bending moments are lower. This targeted distribution of mass reduces overall building weight. It maintains maximum structural integrity. Tapered members are particularly common in clear-span rigid frames, where maximizing interior floor space is the primary objective.
Managing lateral loads requires specific bracing strategies. Wind and seismic forces attempt to push the building sideways. Engineers implement cross-bracing, shear walls, or moment-resisting connections to counteract these forces. Moment connections are highly rigid, transferring bending forces between columns and beams. This eliminates the need for diagonal bracing, keeping interior spaces completely open. However, moment connections require precise welding and heavy bolting, increasing fabrication costs. Engineers must weigh these costs against the operational benefits of an unobstructed floor plan.
The market for steel construction generally divides into two primary categories. These are Pre-Engineered Steel Buildings (PESB) and Custom Structural Steel. PESBs dominate the market. They account for over 60% of low-rise commercial builds. They rely on rapid bolted assembly and factory-controlled tolerances. Baseline costs average $15 to $43 per square foot for installation. This makes them highly efficient for warehouses, retail centers, and aircraft hangars.
Custom structural steel focuses on infinite design flexibility. It allows architects to incorporate long spans and unique curves without sacrificing strength. Within custom designs, engineers choose between Moment Frames and Braced Frames. Moment Frames use rigid welded connections to keep spaces completely open. Braced Frames utilize diagonal members for highly economical lateral stability. Selecting the right system depends entirely on the specific operational requirements of the facility.
| Feature | Pre-Engineered Steel Buildings (PESB) | Custom Structural Steel |
Primary Use Case | Warehouses, retail, hangars, logistics centers | High-rises, complex geometries, architectural landmarks |
Cost Efficiency | High (Standardized components, $15-$43/sq ft) | Variable (Higher upfront engineering and fabrication costs) |
Assembly Speed | Extremely fast (Bolted connections, pre-cut) | Moderate to slow (May require complex site logistics) |
Design Flexibility | Limited to efficient rectangular/standard forms | Unlimited (Curved beams, massive clear spans) |
Foundation Requirements | Standardized pier and grade beam systems | Highly customized deep foundations or mat slabs |
The erection process for a PESB follows a strict, sequential methodology to ensure safety and speed. This standardized approach is what drives the cost efficiency of the system.
Anchor Bolt Verification: Surveyors confirm the precise placement of anchor bolts cast into the concrete foundation before any steel arrives on site.
Primary Column Erection: Cranes lift the main columns into place, securing them to the anchor bolts with heavy hex nuts and washers.
Rafter Assembly: Ground crews bolt rafter sections together before cranes hoist the completed span onto the waiting columns.
Secondary Framing Installation: Ironworkers install roof purlins and wall girts, tying the primary frames together and providing the attachment points for cladding.
Plumb and Square: The entire structural skeleton is adjusted using cable bracing to ensure it is perfectly plumb and square before final bolt tightening.
A Multi-functional steel frame frequently incorporates industrial work platforms. These maximize vertical space. These platforms are classified by their support methods. Independent column-supported platforms offer maximum stability. They isolate vibrations from the main building structure. Wall-supported platforms save material by anchoring one side to the existing building structure. Bracket or corbel-supported systems are typically reserved for temporary or light access walkways.
Engineers must strictly differentiate load-bearing standards. Light access platforms generally support around 250 kg/m². This is suitable for foot traffic and basic maintenance. Heavy-duty platforms must be engineered for 1000+ kg/m². Underestimating dynamic loads from automated machinery, forklifts, and heavy conveyors can lead to severe structural fatigue. Catastrophic failure becomes a real risk if vibration isolation pads and heavy-duty decking are not properly specified.
Integrating these platforms requires careful coordination with the primary building frame. If a mezzanine is planned during the initial design phase, the main building columns can be upsized to carry the additional load. If added later, independent columns are usually required to avoid overstressing the existing structure. The flooring material for these platforms also varies based on use. Bar grating allows for ventilation and light transmission. Solid steel plate or concrete over metal deck provides a rigid surface for heavy rolling loads.
Client changes between spatial coordination and practical completion are inevitable. Traditional masonry or concrete construction responds poorly to these shifts. They often require 2 to 4 weeks of delays, wet-trade rework, and costly demolition. A flexible framework mitigates this risk entirely. When operational requirements pivot mid-project, steel allows for rapid adaptation without destroying completed work.
Modifying cold-formed steel via 3D CAD and BIM software is highly efficient. Changes can often be engineered, fabricated, and delivered in under a week. This speed quantifies into massive savings in site preliminary costs. On large commercial projects, avoiding wet-trade delays can save developers $50,000 to $80,000 or more per week. This preserves the project baseline profitability. BIM clash detection ensures that new steel members will not interfere with existing MEP routing.
Consider a scenario where a logistics tenant requires an additional loading dock after the primary frame is erected. With concrete, this requires saw-cutting, demolition, and pouring new lintels. With steel, engineers simply unbolt the wall girts, install a new header beam, and re-clad the opening. The modification takes days instead of weeks. This agility is a primary driver for selecting steel in speculative commercial developments.
High strength-to-weight ratios eliminate the need for internal load-bearing walls. This allows for 100% non-load-bearing interior partitions. These can be completely reconfigured decades later without touching the primary skeleton. Vertical expansion capabilities allow owners to add floors to existing structures with minimal foundation reinforcement. This multiplies the asset value without requiring a new land purchase.
Real-world adaptive reuse strategies highlight this potential. Engineers can jack up existing steel columns to create double-height lobbies in aging office buildings. A building-within-a-building steel framework can be utilized to seismically retrofit historic unreinforced masonry structures. The structural cavities within steel framing allow for the seamless integration of HVAC and MEP systems. This maximizes ceiling heights and improves tenant appeal.
Future-proofing also extends to the end of the building lifecycle. When a steel structure is finally decommissioned, it does not become landfill waste. The components are unbolted, dismantled, and sold as scrap or reused in new construction. This circular economy aspect provides a final financial return on the initial structural investment, a benefit entirely absent in concrete construction.
Procurement success depends on evaluating a Multifunctional steel structure manufacturer based on their end-to-end fabrication workflow. A robust workflow includes automated material procurement, CNC cutting, precision drilling, bending, welding, and factory-applied surface treatments. Galvanizing or intumescent painting must be applied under controlled factory conditions to ensure long-term corrosion and fire resistance.
The manufacturer must demonstrate the ability to seamlessly translate architectural BIM models into millimeter-accurate fabricated components. High-level BIM integration ensures zero on-site welding is required. This guarantees rapid erection. Crews move swiftly from anchor bolt preparation to final weather sealing without dimensional conflicts. The supplier should provide a detailed 3D model for approval before any steel is cut.
Quality assurance protocols during fabrication are non-negotiable. The supplier must employ certified welding inspectors (CWIs) to monitor all structural welds. Non-destructive testing (NDT), such as ultrasonic or magnetic particle inspection, should be standard practice for critical moment connections. Requesting the supplier Quality Assurance/Quality Control (QA/QC) manual provides insight into their commitment to structural integrity.
Stakeholders must verify that a Multifunctional steel structure supplier adheres strictly to AISC (American Institute of Steel Construction) standards or equivalent local building codes. This compliance guarantees the metallurgical quality and structural integrity of the primary framing. ISO 9001 certification indicates a mature quality management system.
Lifecycle sustainability is another major evaluation metric. Steel components are 100% recyclable. They possess high end-of-life scrap value. Factory-controlled fabrication generates approximately 2% material waste. This compares favorably to the 20% waste typical of traditional site-cut timber or concrete methods. This near-zero demolition waste profile significantly boosts a project green building certifications, such as LEED or BREEAM.
Furthermore, the supplier should source steel from mills utilizing Electric Arc Furnaces (EAF). EAF steelmaking relies heavily on recycled scrap metal and generates significantly lower carbon emissions compared to traditional Basic Oxygen Furnaces (BOF). Verifying the supplier supply chain sustainability adds another layer of value to the procurement process.
To maximize the value and adaptability of your next commercial or industrial facility, follow these critical next steps:
Engage a certified structural steel manufacturer during the conceptual design phase to accurately model load paths and optimize primary framing.
Mandate full BIM integration from your supplier to ensure millimeter-accurate fabrication and eliminate costly on-site welding or rework.
Specify high-ductility steel grades and bolted moment connections if your facility requires future vertical expansion or heavy dynamic load integration.
Request documented QA/QC manuals and non-destructive testing (NDT) reports for all critical structural welds before accepting delivery of materials.
A: It is a highly adaptable framework engineered to support diverse load types, integrate heavy industrial platforms, and allow for non-destructive interior reconfigurations without compromising the building primary structural integrity.
A: Steel possesses high ductility, allowing it to absorb and dissipate seismic energy by bending and flexing. Rigid concrete lacks this flexibility and is prone to sudden, brittle fracture under severe lateral forces.
A: Yes. Utilizing bolted connections and non-load-bearing interior partitions allows for easy spatial reconfiguration. Existing steel members can also be reinforced to support vertical expansions or heavy adaptive reuse.
A: Factory-controlled precision in steel fabrication yields approximately 2% material waste. Traditional site-cut methods for timber and concrete often result in up to 20% waste. Steel is also 100% recyclable.
A: Look for a supplier with AISC certification, advanced in-house CNC and BIM capabilities, and a proven history of dynamic load engineering specifically tailored for heavy machinery and industrial platforms.
