Introduction

Selecting the right building envelope is one of the most important decisions in a steel building project.

The cheapest roof or wall system is not always the most economical solution over the full service life of the building.

Selection should follow a structured process.

Step 1: Understand the Building Application

First determine how the building will be used.

Examples include:

• Warehouse

• Industrial workshop

• Logistics center

• Food processing facility

• Pharmaceutical plant

• Cold storage

• Commercial building

• Office and production complex

Different applications require different levels of insulation, hygiene, ventilation, fire performance and durability.

Step 2: Review the Project Climate

Important climate information includes:

• Rainfall intensity

• Temperature range

• Humidity

• Wind speed

• Snow

• Salt spray

• UV exposure

• Industrial pollution

Climate influences nearly every envelope decision.

Step 3: Confirm Local Requirements

Review the applicable:

• Building code

• Wind load standard

• Fire requirements

• Energy code

• Material certification requirements

• Environmental regulations

Overseas projects should not rely solely on design experience from another market.

Step 4: Define Functional Requirements

The owner and engineering team should confirm:

• Thermal insulation

• Fire performance

• Waterproofing

• Daylighting

• Ventilation

• Acoustic performance

• Appearance

• Expected service life

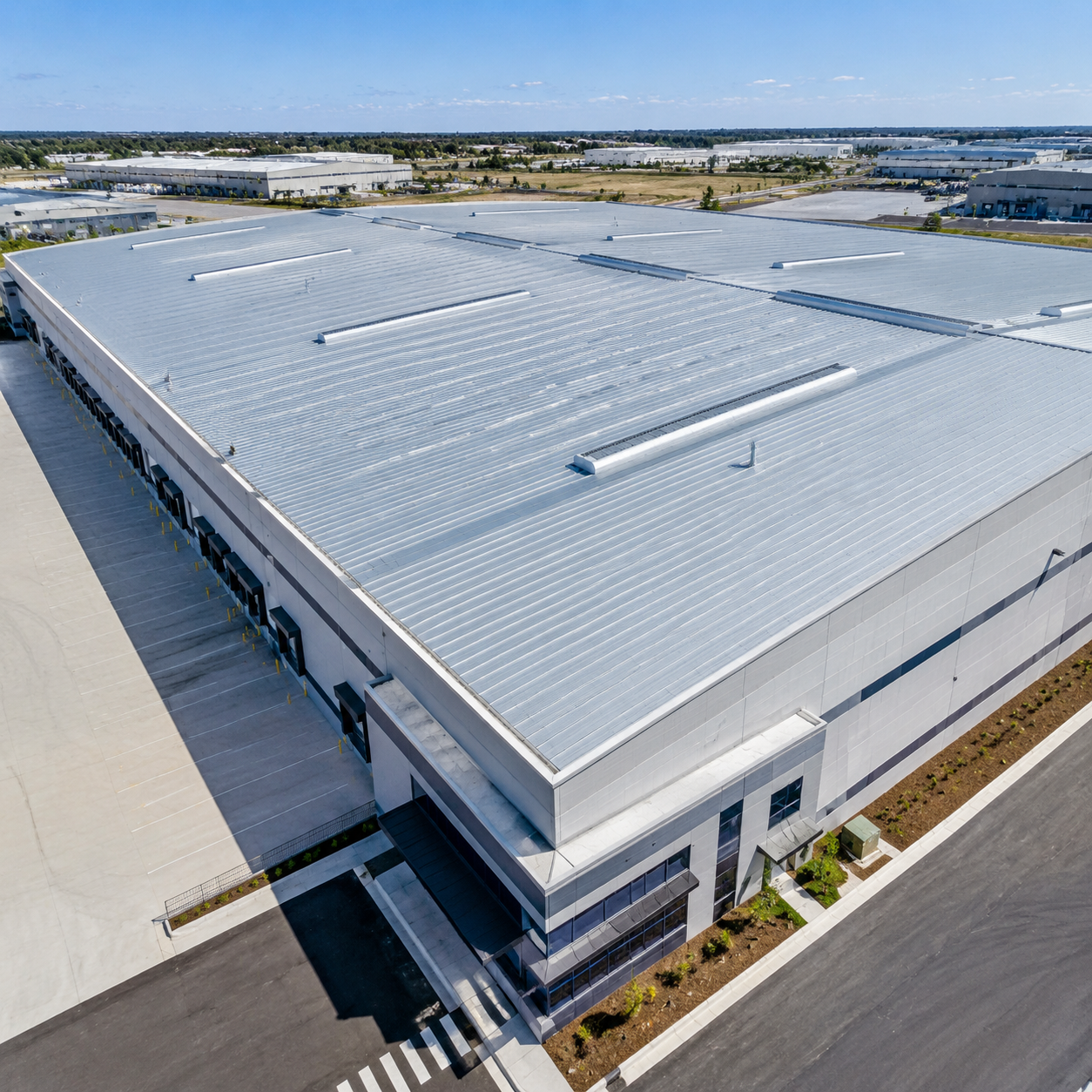

Step 5: Select the Roof System

Possible roof systems include:

• Single-skin profiled steel sheet

• Profiled sheet with insulation

• Sandwich panel roof

• Concealed-fix roof

• Standing seam metal roof

The correct solution depends on project performance and budget.

Step 6: Select the Wall System

Wall options can include:

• Single-skin profiled steel

• Corrugated steel panels

• Insulated wall systems

• Sandwich panels

• Composite architectural façades

Step 7: Determine Material Parameters

Parameters may include:

• Panel thickness

• Insulation thickness

• Insulation type

• Metallic coating

• Paint coating

• Fastener material

• Flashing material

Each should be matched to the project environment.

Step 8: Design Drainage and Ventilation

Drainage design should consider:

• Roof catchment area

• Rainfall intensity

• Gutters

• Downpipes

Ventilation design should consider:

• Building volume

• Heat sources

• Occupancy

• Pollutants

• Air change requirements

Step 9: Consider Transportation and Installation

Export projects may involve:

• Container loading

• Long-distance sea transportation

• Maximum panel lengths

• Site lifting conditions

• Local installation equipment

• On-site roll forming

Transportation can influence the final panel and system selection.

Typical Solutions by Project Type

Simple Warehouse

Possible solution:

• Single-skin profiled roof

• Single-skin wall cladding

Key concern:

• Drainage and waterproofing

Standard Industrial Workshop

Possible solution:

• Insulated metal roofing

• Rock wool sandwich panel walls

Key concerns:

• Thermal bridges

• Waterproofing

• Ventilation

Food or Pharmaceutical Facility

Possible solution:

• High-performance insulated panels

Key concerns:

• Cleanability

• Airtightness

• Insulation

• Fire compliance

Cold Storage

Possible solution:

• Thick insulated PU-type panel systems where compliant

Key concerns:

• Thermal continuity

• Vapor control

• Condensation

Large High-End Industrial Building

Possible solution:

• Standing seam roofing

• Composite wall system

Key concerns:

• Waterproofing

• Long-term durability

• Architectural appearance

Tropical Overseas Project

Possible solution:

• Insulated profiled roof or suitable sandwich system

• Insulated wall panels

Key concerns:

• Heavy rainfall

• High humidity

• Drainage

• Coating durability

• Corrosion

Common Building Envelope Problems

Roof Leakage

Possible causes:

• Poor overlap sealing

• Incorrect flashing

• Fastener problems

• Damaged sealant

Panel Corrosion

Possible causes:

• Insufficient metallic coating

• Inappropriate paint system

• Salt or industrial exposure

Condensation

Possible causes:

• Thermal bridges

• Discontinuous vapor control layer

• Insufficient insulation

• High indoor humidity

Gutter Overflow

Possible causes:

• Insufficient gutter capacity

• Inadequate downpipes

• Blockages

Panel Damage

Possible causes:

• Improper handling

• Walking directly on unsupported panels

• Installation damage

Fastener Corrosion

Possible causes:

• Incorrect fastener material

• Incompatible materials

• Damaged protective coatings

Four Principles for a Reliable Steel Building Envelope

1. Think in Systems

Roofing, walls, insulation, drainage, ventilation and sealing must work together.

2. Prioritize Waterproofing

Water ingress can quickly affect insulation, corrosion protection and interior finishes.

3. Adapt to the Local Climate

The same specification should not automatically be used in every country or climate zone.

4. Pay Attention to Details

Many building envelope failures occur at flashing, joints, fasteners, windows, doors and other small interfaces.

Conclusion

A reliable steel building envelope is the result of coordinated engineering rather than the selection of a single product.

The correct approach is:

Project Requirements → Climate Analysis → System Selection → Material Selection → Detailing → Manufacturing → Installation → Quality Control
