Product Features

• High tensile strength and structural stability

• Effective resistance to wind and lateral loads

• Helps reduce roof deformation and frame displacement

• Accurate hole positioning for easy installation

• Compatible with different steel building systems

• Available with painted or galvanized finishes

• Custom sizes, connection plates and bolt configurations

• Suitable for new construction and building reinforcement

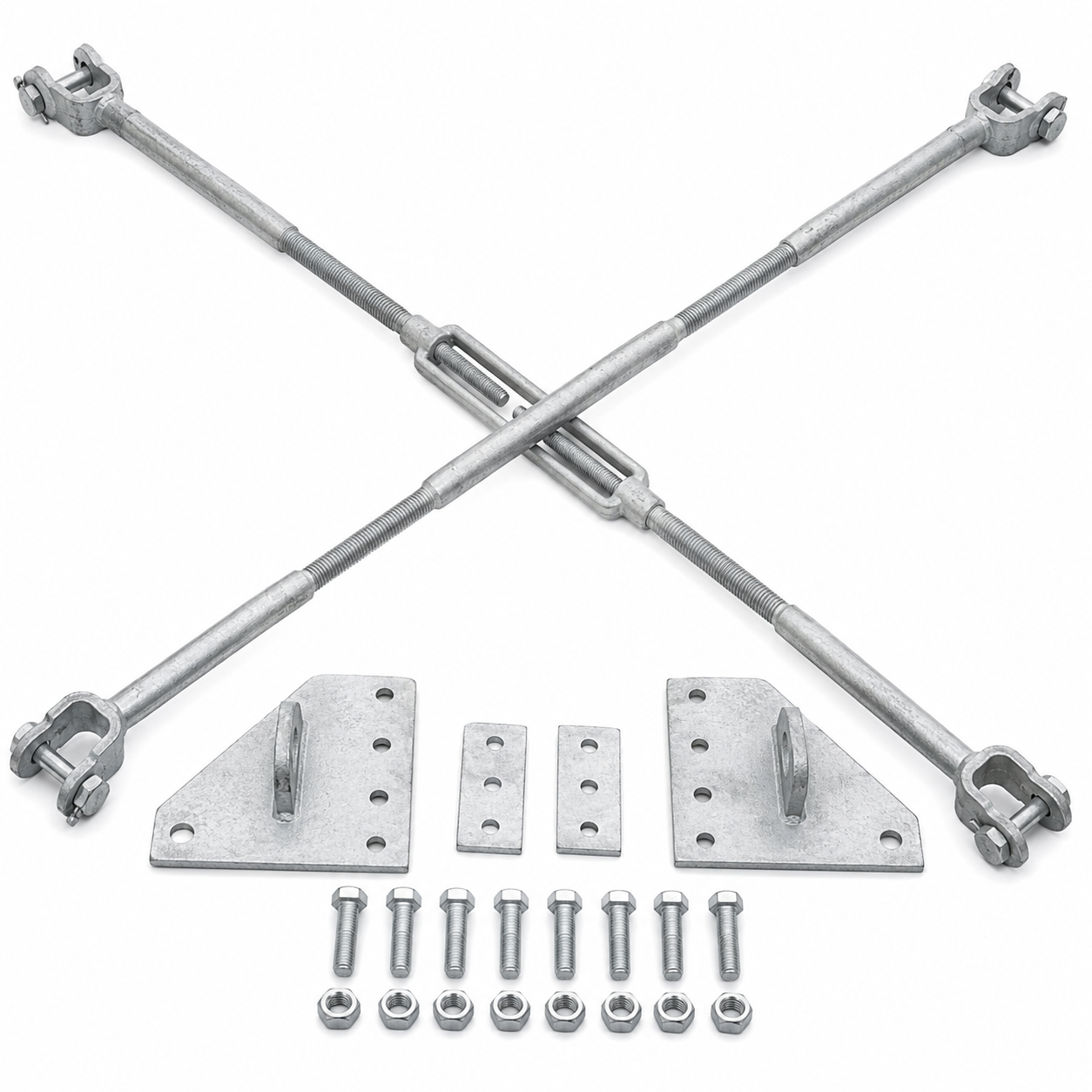

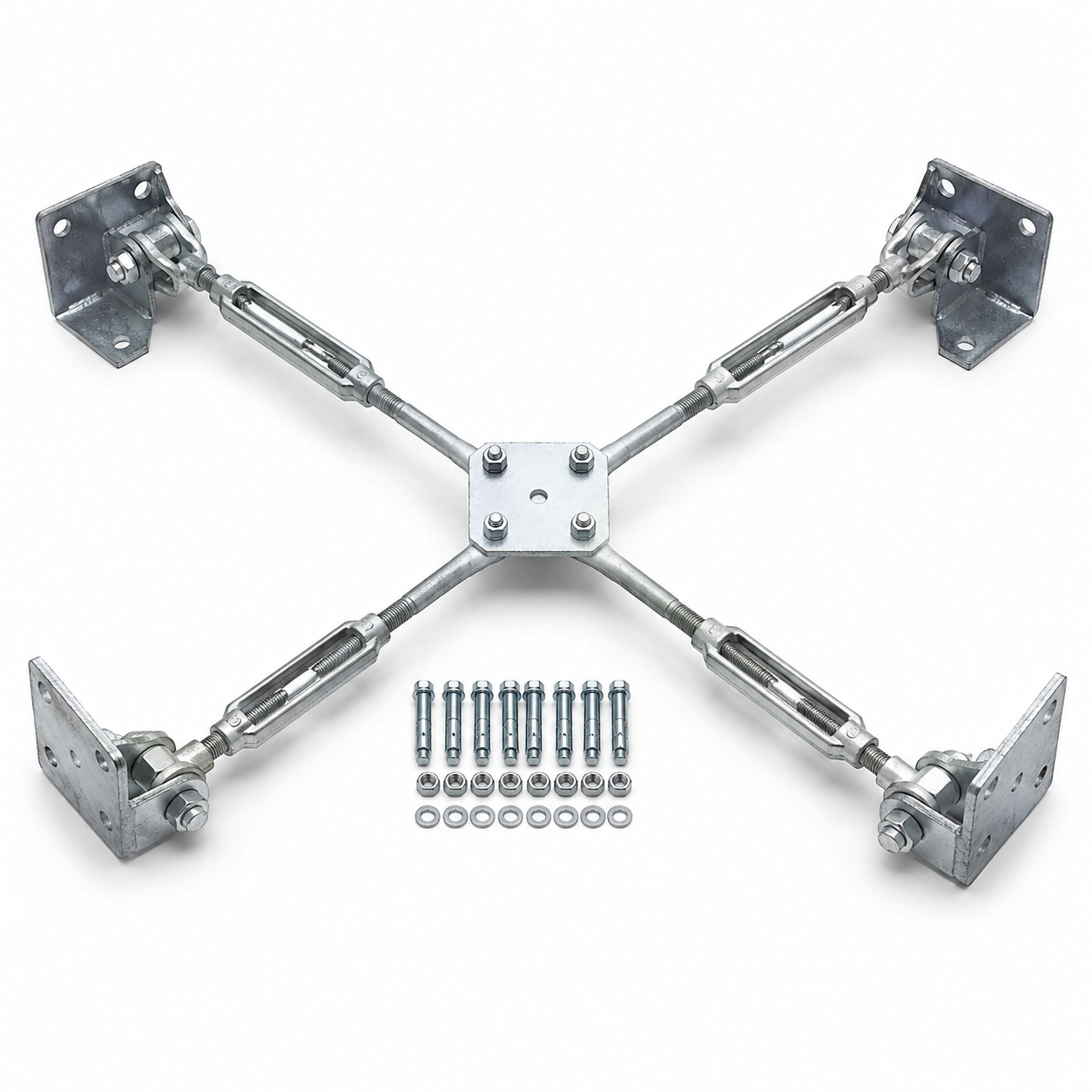

Main System Components

A complete roof bracing system may include:

• Cross bracing rods

• Steel tie rods

• Angle steel bracing

• Round bar bracing

• Steel cable bracing

• Turnbuckles

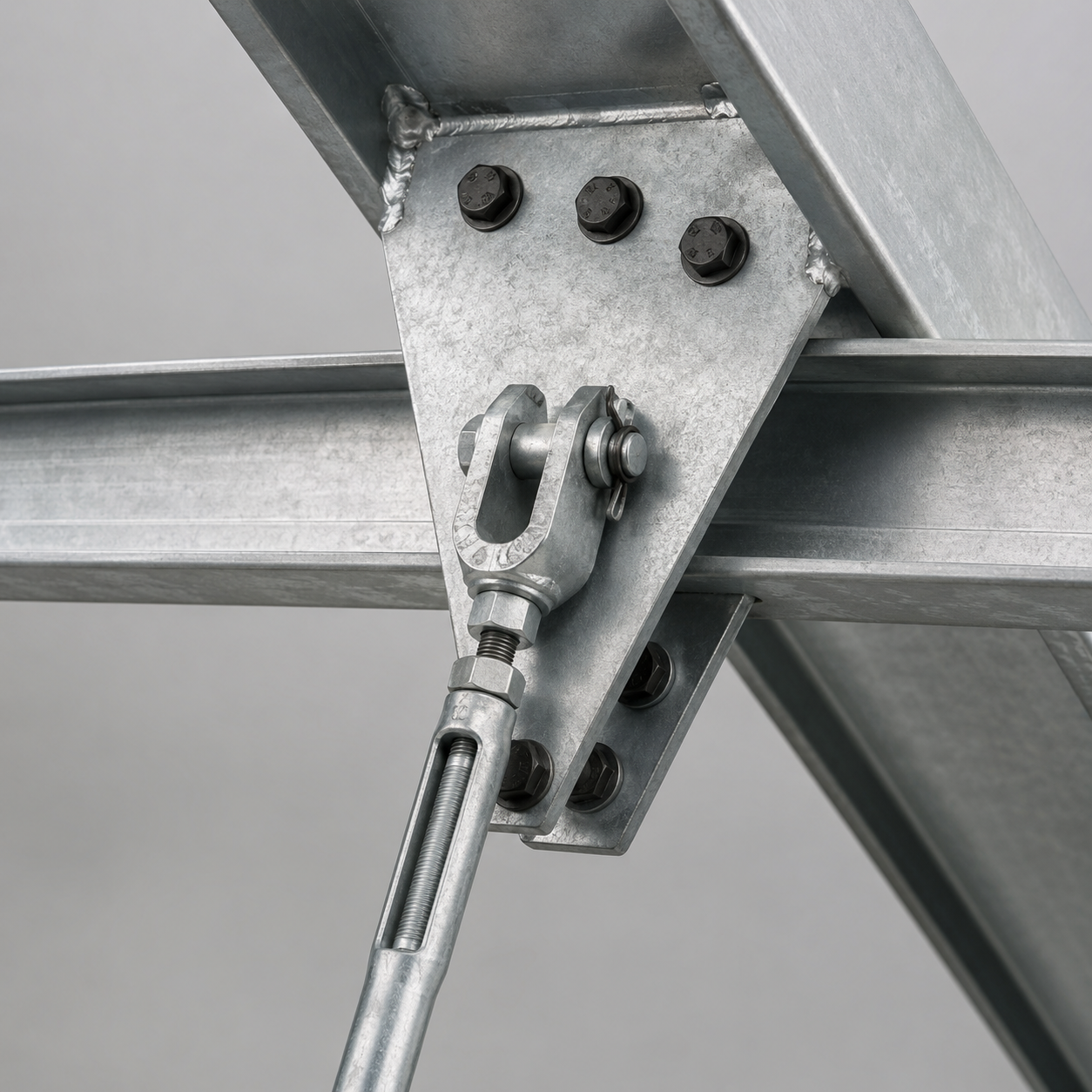

• Gusset plates

• Connection plates

• Anchor brackets

• High-strength bolts, nuts and washers

The component configuration is determined according to the building span, roof structure, load requirements and engineering design.

Technical Specifications

Surface Treatment Options

Painted Finish

Steel components can be shot blasted and coated with primer and finishing paint. Different coating systems are available according to the installation environment and required corrosion protection level.

Hot-Dip Galvanized Finish

Hot-dip galvanizing provides reliable corrosion resistance for humid, coastal, agricultural and outdoor environments. Galvanizing thickness can be customized according to project specifications.

Powder-Coated Finish

Powder coating provides an even and attractive surface with good durability. A wide range of colors is available for projects requiring a specific appearance.

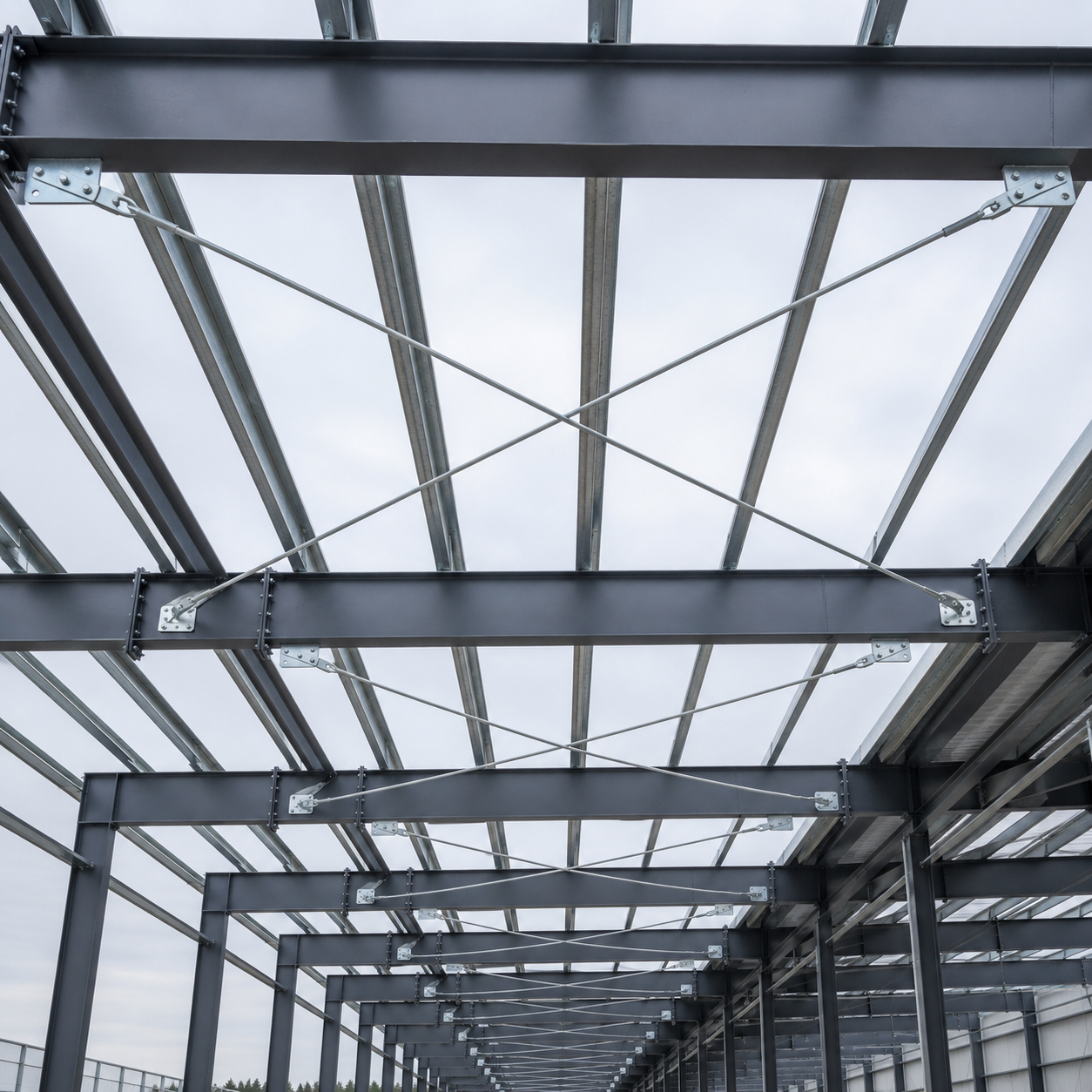

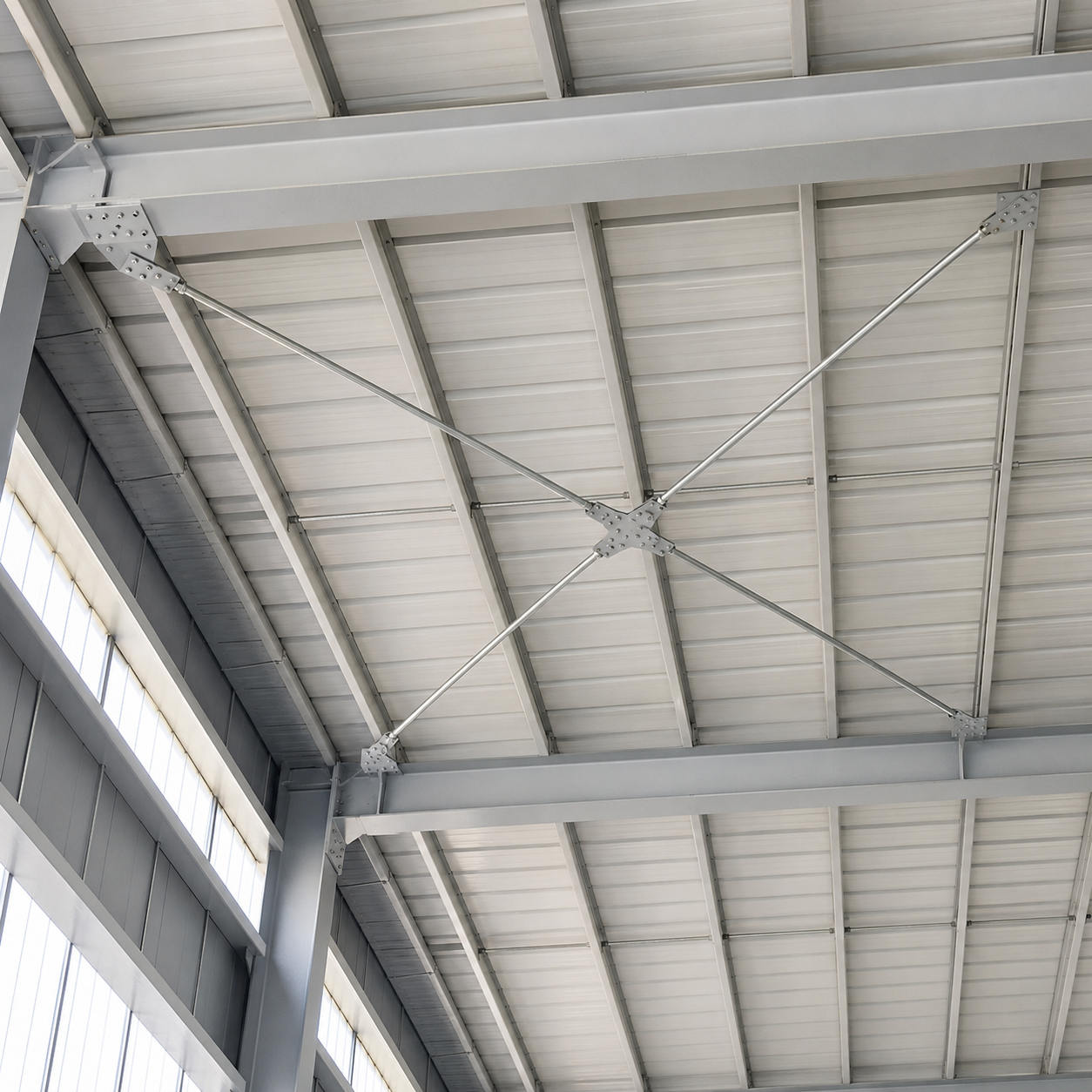

Applications

Our roof bracing systems are widely used in:

• Steel structure warehouses

• Industrial workshops

• Manufacturing plants

• Logistics and distribution centers

• Agricultural buildings

• Aircraft hangars

• Commercial steel buildings

• Cold storage facilities

• Pre-engineered metal buildings

• Large-span roof structures

• Steel building renovation projects

Manufacturing Process

1. Project drawing and specification review

2. Raw material inspection

3. CNC cutting and plate preparation

4. Drilling and hole positioning

5. Welding and component assembly

6. Surface cleaning and shot blasting

7. Painting or hot-dip galvanizing

8. Dimensional and coating inspection

9. Component marking and export packaging

10. Container loading and shipment

Why Choose ZSJH Steel?

• Factory-direct steel structure supply

• Customized production according to drawings

• Integrated design and fabrication services

• Automated cutting, drilling and welding equipment

• Strict quality control throughout production

• Export-standard marking and packaging

• Reliable delivery for international projects

• Technical drawings and installation guidance

• One-stop supply of steel frames, bracing and accessories

Packaging and Delivery

Roof bracing components are clearly numbered according to the installation drawings. Small connection parts and fasteners are packed in reinforced boxes or on pallets, while long rods and steel members are securely bundled for container transportation.

Customized packaging, shipping marks and loading plans are available to simplify on-site identification and installation.

FAQ

1. Can the roof bracing system be customized?

Yes. The material, dimensions, connection plates, bolt holes, coating and component configuration can be manufactured according to your project drawings.

2. What information is required for a quotation?

Please provide the structural drawings, component dimensions, material grade, required quantity, surface treatment and project location. If drawings are unavailable, you can provide the building size and design requirements for evaluation.

3. Which surface treatment is recommended?

Painted systems are commonly used for indoor and general industrial buildings. Hot-dip galvanizing is recommended for humid, coastal or highly corrosive environments.

4. Do you provide installation drawings?

Yes. We can provide component drawings, identification marks, connection details and installation guidance according to the project requirements.

5. Can you supply bolts and connection accessories?

Yes. High-strength bolts, nuts, washers, turnbuckles, gusset plates and other connection accessories can be supplied as a complete package.

6. How do you ensure installation accuracy?

Components are manufactured according to approved drawings. Hole positions, dimensions and connection details are inspected before shipment, and each component is marked for easier on-site assembly.
