ZSJH Steel manufactures complete roof bracing assemblies according to structural drawings and project load requirements. Available configurations include cross rods, angle bracing, steel cables, tie bars, gusset plates and adjustable turnbuckles. Accurate fabrication, clear component marking and reliable surface protection help reduce installation time and improve long-term performance.

Key Benefits

• Improves the lateral stability of steel roof structures

• Transfers wind and seismic loads to the main frame

• Reduces excessive roof movement and structural deformation

• Maintains correct spacing between rafters and roof beams

• Supports stable installation of purlins and roof panels

• Prefabricated components simplify on-site assembly

• Adjustable connections allow accurate tension control

• Painted and galvanized finishes are available

• Custom production based on project drawings

• Suitable for new buildings and structural reinforcement

Available Bracing Configurations

Cross Rod Bracing

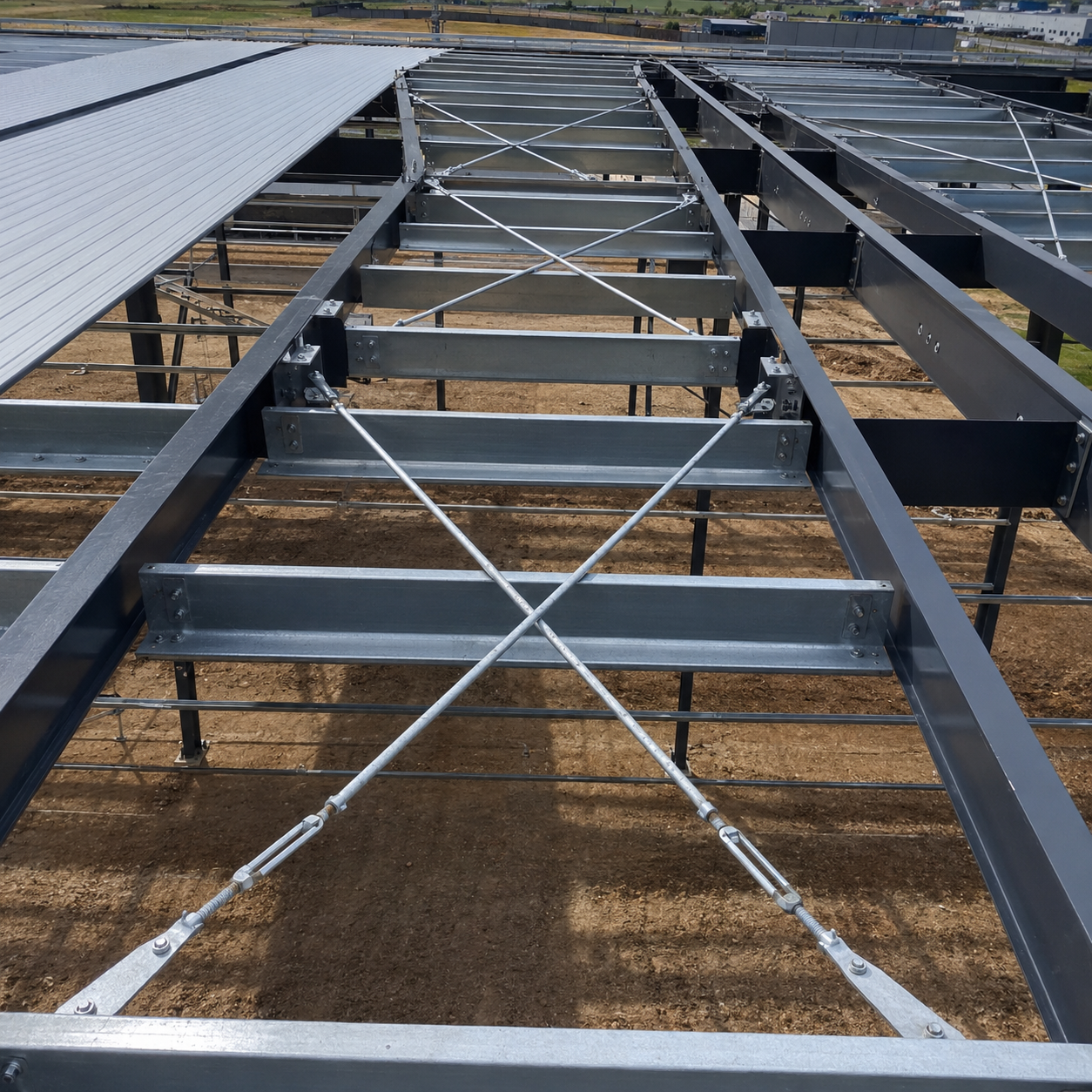

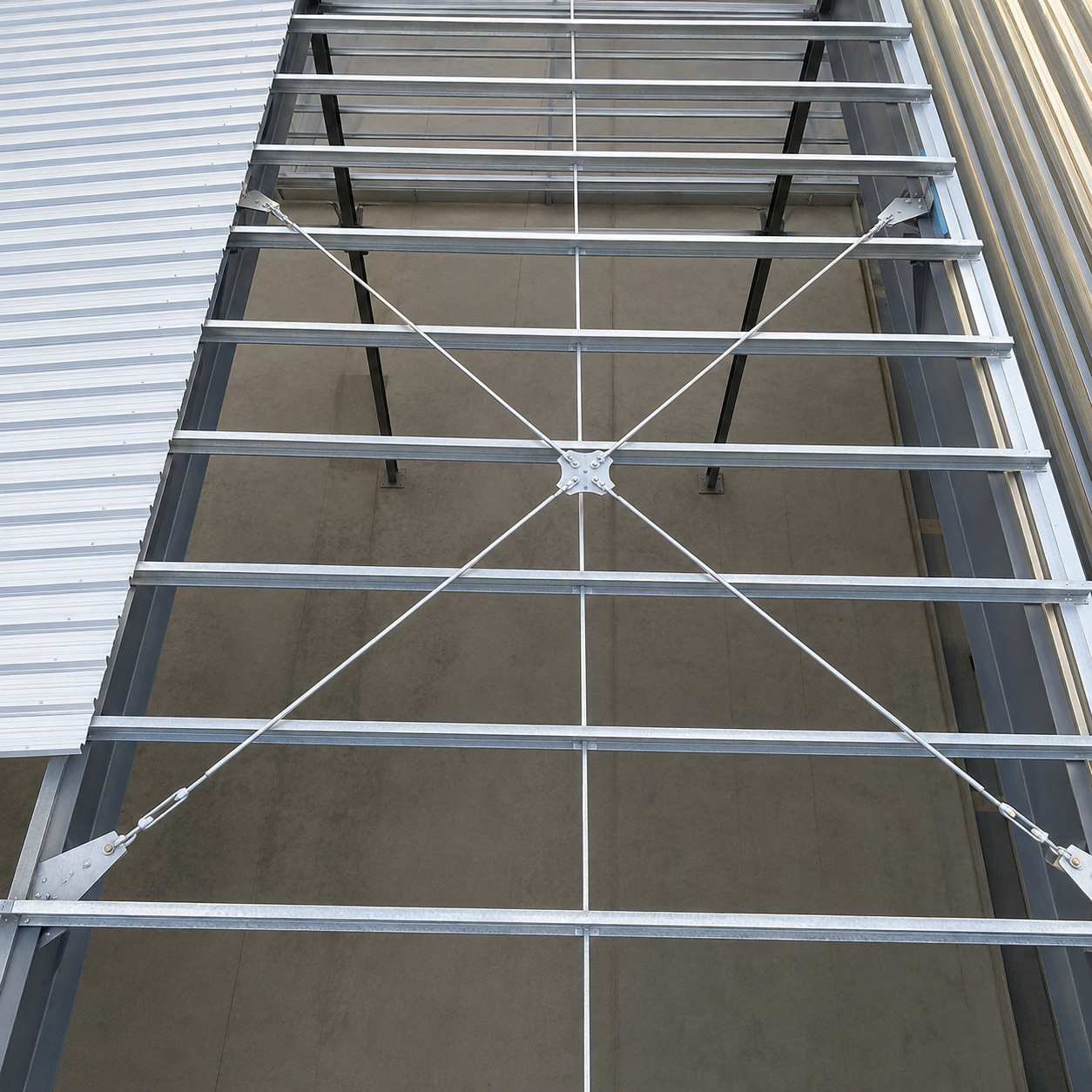

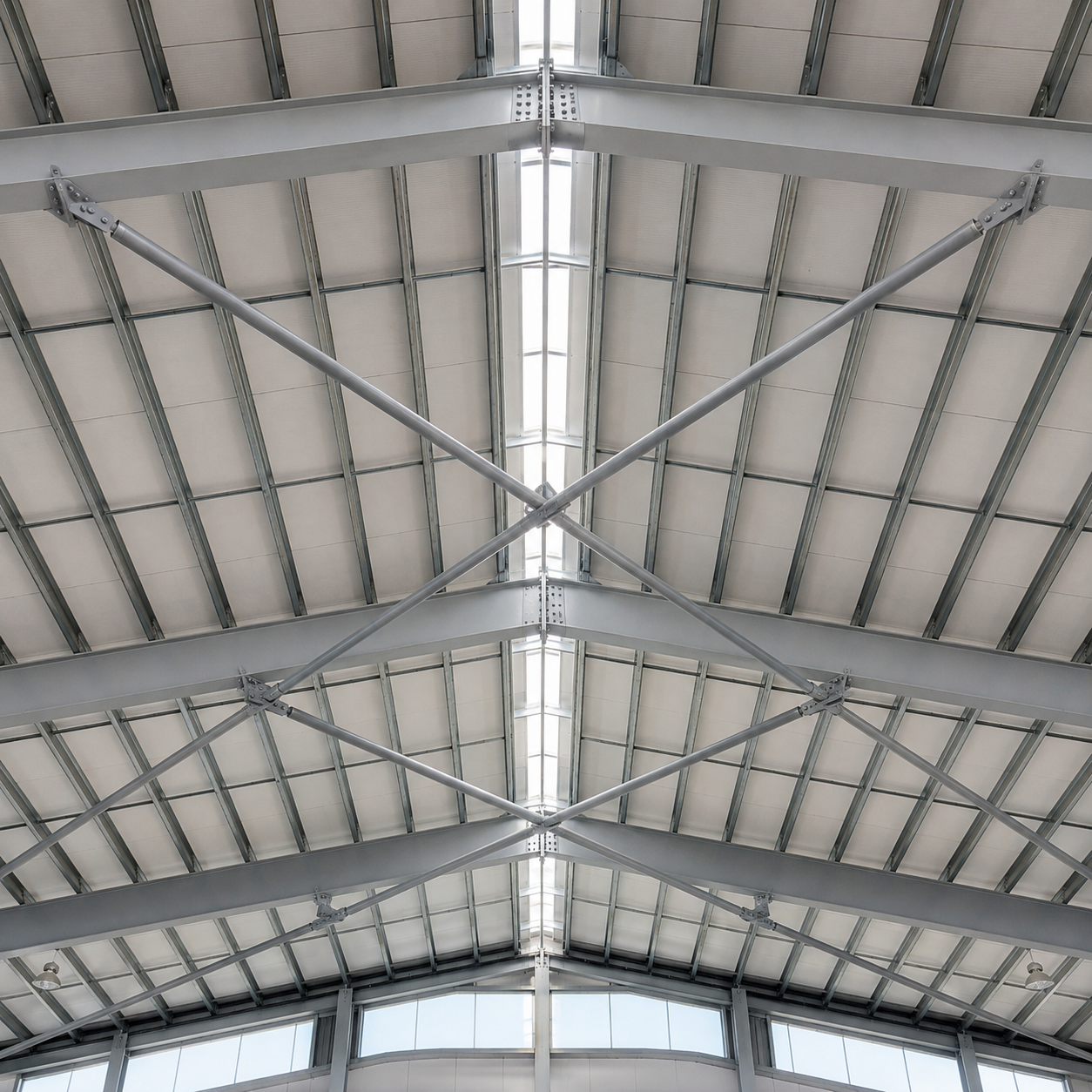

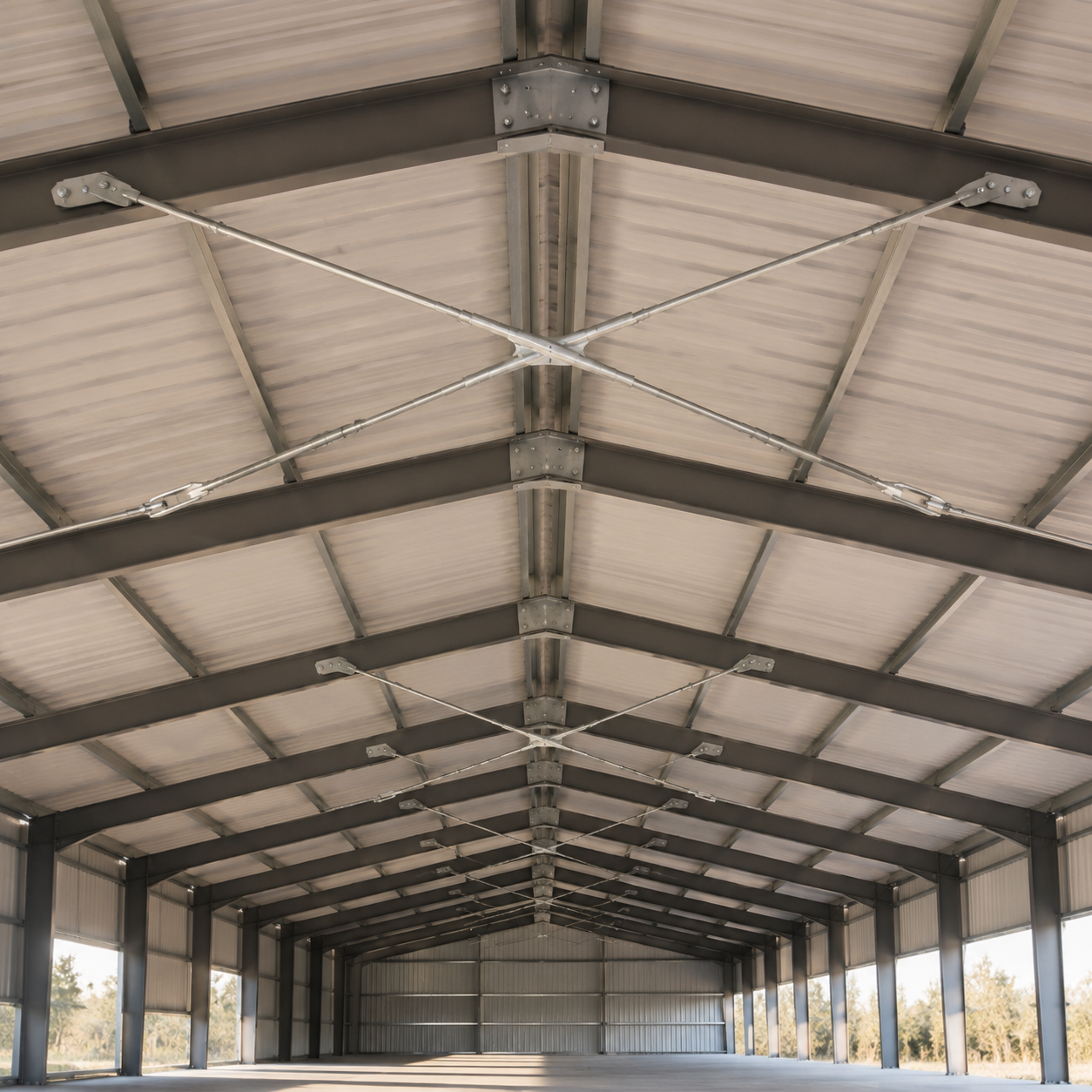

Steel rods are installed diagonally between roof frames to form an X-shaped support system. This configuration is widely used in warehouses, workshops and pre-engineered steel buildings.

Angle Steel Bracing

Angle sections provide high rigidity and are suitable for projects requiring stronger compression and tension resistance.

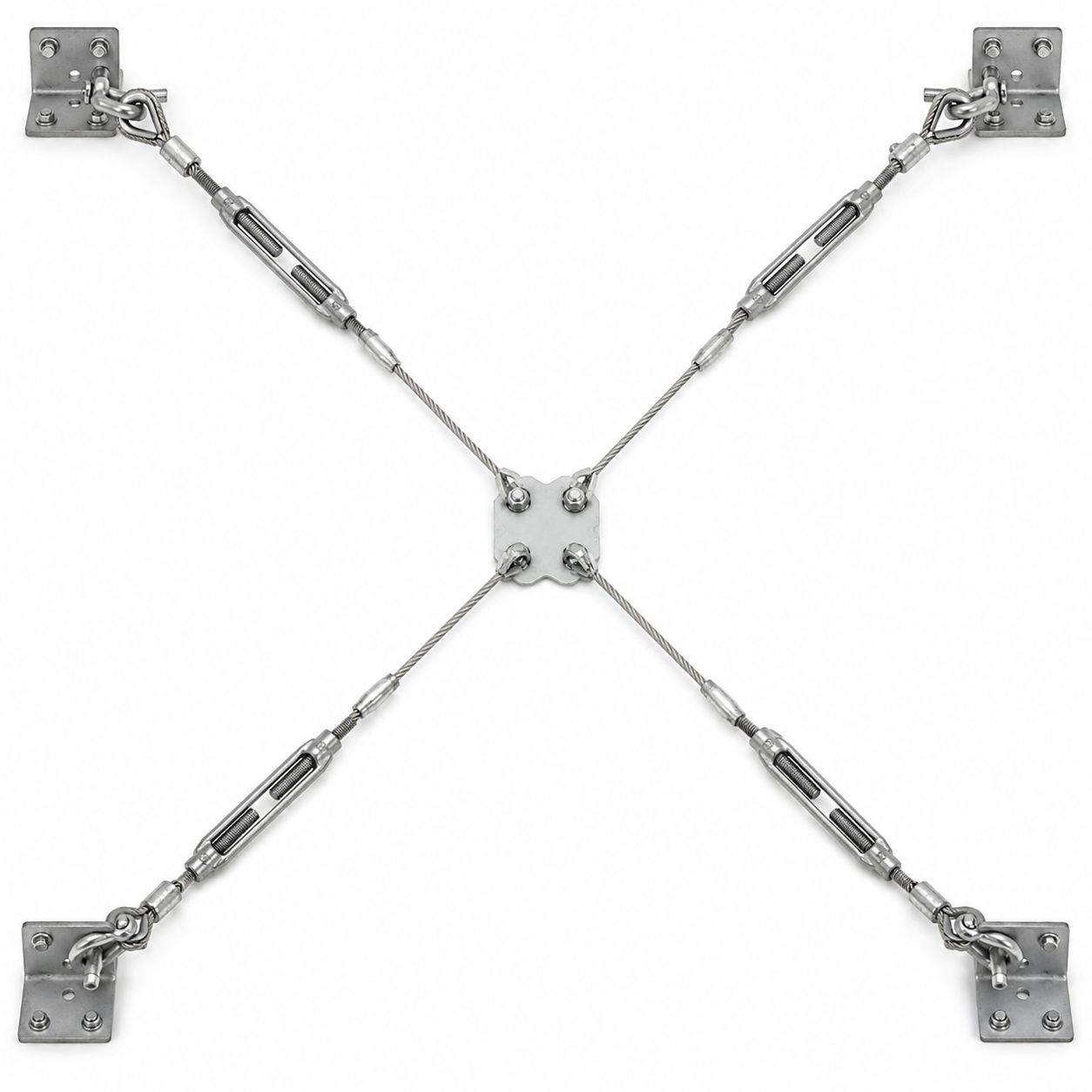

Steel Cable Bracing

Lightweight steel cables are suitable for long-span roofs and projects where reduced structural weight and flexible installation are important.

Tie Bar Bracing

Tie bars connect adjacent frames and help maintain structural alignment during installation and service.

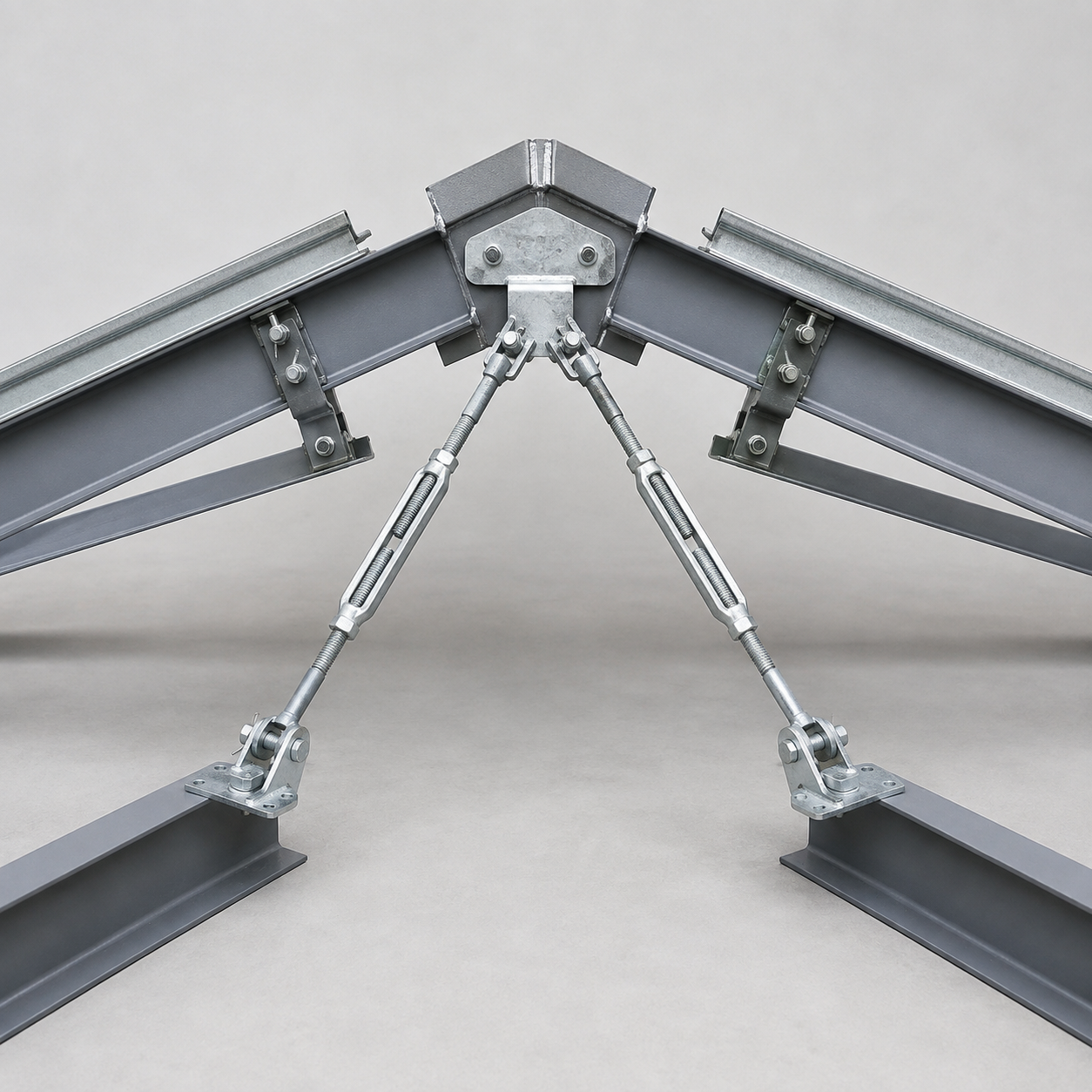

Adjustable Turnbuckle Bracing

Turnbuckles allow installers to adjust bracing tension on site, helping achieve accurate alignment and stable load distribution.

Product Specifications

Materials and Surface Protection

Roof bracing components can be manufactured from different structural steel grades according to the required strength and service environment.

Available surface treatments include:

• Primer painting: Suitable for general indoor industrial buildings.

• Multi-layer coating: Provides improved protection for demanding environments.

• Hot-dip galvanizing: Recommended for humid, coastal, agricultural and outdoor applications.

• Customized coating: Coating color and thickness can be produced according to project specifications.

Before coating, steel surfaces can be cleaned by shot blasting to remove rust, scale and contaminants, helping improve coating adhesion and durability.

Production Process

1. Structural drawing and technical specification review

2. Raw material selection and certificate verification

3. CNC cutting of rods, angles and connection plates

4. Precision drilling and hole-position inspection

5. Welding and assembly of connection components

6. Dimensional and straightness inspection

7. Shot blasting and surface preparation

8. Painting or hot-dip galvanizing

9. Final inspection and component marking

10. Export packaging and container loading

Easy Installation

Every roof bracing component can be numbered according to the erection drawings. Matching accessories are packed separately and clearly identified, allowing installers to quickly locate the correct rods, plates, turnbuckles and bolts.

Installation drawings, connection details and remote technical support can also be provided to help reduce errors and improve construction efficiency.

FAQ

1. What is the purpose of roof bracing?

Roof bracing stabilizes the roof frame, transfers horizontal loads and reduces unwanted movement caused by wind, seismic activity and other external forces.

2. Which type of roof bracing should I choose?

The appropriate type depends on the building span, structural layout, design load, local climate and connection requirements. Our technical team can review your drawings and recommend a suitable solution.

3. Can you manufacture according to our drawings?

Yes. We can produce the rods, cables, gusset plates, turnbuckles and connection accessories according to approved drawings and specifications.

4. Can the bracing dimensions be customized?

Yes. Rod diameter, member length, plate thickness, hole position and connection configuration can all be customized.

5. Do you provide hot-dip galvanized roof bracing?

Yes. Hot-dip galvanized systems are available for outdoor, humid, coastal and corrosive environments.

6. Are bolts and turnbuckles included?

They can be supplied as part of a complete package. Please indicate the required accessories when requesting a quotation.
