High-velocity e-commerce fulfillment needs more than a large shell. It needs a warehouse planned from the operation outward. The safest approach is to define SKU velocity, order profiles, returns volume, material handling equipment, staging depth, and floor loading before finalizing spans, bay spacing, or dock placement. When teams reverse that order, they lock in narrow marshalling areas, awkward columns, weak slabs, and travel paths that increase touches, labor, and delay.
For an e-commerce logistics storage center, the practical answer is an inside-out design method. It sizes the building by usable cube, throughput, and load demand rather than footprint alone. A modern Commercial steel structure is often the best shell because it supports long clear spans, phased expansion, and heavy storage systems. The design still succeeds only when layout, slab performance, dock math, rack loads, and reverse logistics are coordinated from the start.
Inside-Out Engineering Wins: Design around SKU profiles, storage media, WMS logic, picking methods, and MHE first—then fit the steel shell around the operation.
Think in Cubic Capacity, Not Just Floor Area: E-commerce warehouse sizing must be based on usable cube, clear height, rack configuration, and work zones—not only square footage.
Flow Beats Storage Density: One-way flow and low-touch handling outperform "maximum rack count" layouts that create cross-traffic and labor waste.
The 85% Capacity Redline: Designing for full slot utilization guarantees operational paralysis; reserve 15-20% empty storage locations to avoid multiple handling.
Add a Separate Overflow Buffer: Beyond empty rack slots, plan ~10% extra floor area for seasonal overflow, sortation, packing accumulation, and surge staging.
Super Flat Floors Are Non-Negotiable for Dense Automation: VNA and AS/RS zones require C30-C40 slabs and strict flatness tolerances, often 1mm per 1000mm.
Reverse Logistics Must Be Physically Isolated: With e-commerce return rates reaching 30%, returns need a dedicated closed-loop zone separated from outbound flow.
The first design decision is not span length or roof pitch. It is the facility role. A site can operate as a regional fulfillment center, an omnichannel node, a same-day urban hub, or a hybrid B2B/B2C location. Each model changes dock demand, storage media, staffing patterns, and automation depth. If the role is vague, the building will be vague too.
SKU count, velocity bands, and seasonal concentration.
Inventory mix by pallet, carton, tote, and each-pick.
Peak inbound, peak outbound, and peak returns by day and hour.
Required order cut-off times and service-level commitments.
Planned picking method, replenishment logic, and labor model.
Target equipment list, including forklifts, conveyors, sorters, and robotics.
Average-day planning creates fragile warehouses. E-commerce facilities fail during promotions, launches, and holiday peaks, not on quiet Tuesdays. Capacity should be checked against statistical peaks, plus a contingency margin. That is especially important for receiving, returns, sortation, and shipping, where queues expand quickly once one area falls behind.
| Design Input | Why It Matters | Typical Building Impact |
SKU velocity | Determines hot-pick and reserve split | Changes zoning, aisle count, and pick-face depth |
Returns rate | Adds reverse logistics workload | Requires isolated processing space and extra docks |
Equipment type | Sets turning radius and lift height | Changes aisle widths, slab flatness, and clear height |
Order profile | Defines pick method and packing demand | Changes workstation count and conveyor layout |
Peak volume | Reveals real bottlenecks | Changes staging depth, labor support, and yard size |
Capacity should be measured in usable cube, not only square meters. Clear height, rack configuration, and slot count determine how much inventory the building can hold without choking flow. A larger footprint with poor height utilization often underperforms a smaller, taller facility with better slotting and staging. Strong projects also aim to limit goods handling to roughly three to five touches from receiving to shipping. Once touches climb higher, labor cost and damage risk rise fast.
Inside-out engineering starts with the work, not the envelope. It avoids the common mistake of placing a generic shell on the site and forcing operations to adapt to columns, roof geometry, and misplaced docks. That mistake is expensive because it is hard to fix later.
Analyze SKU velocity, order-line profile, and returns mix.
Define storage media and picking methodology.
Map MHE, conveyors, robotics, and workstation locations.
Establish dock count, staging depth, and traffic flow.
Engineer the steel frame, slab, and envelope around those needs.

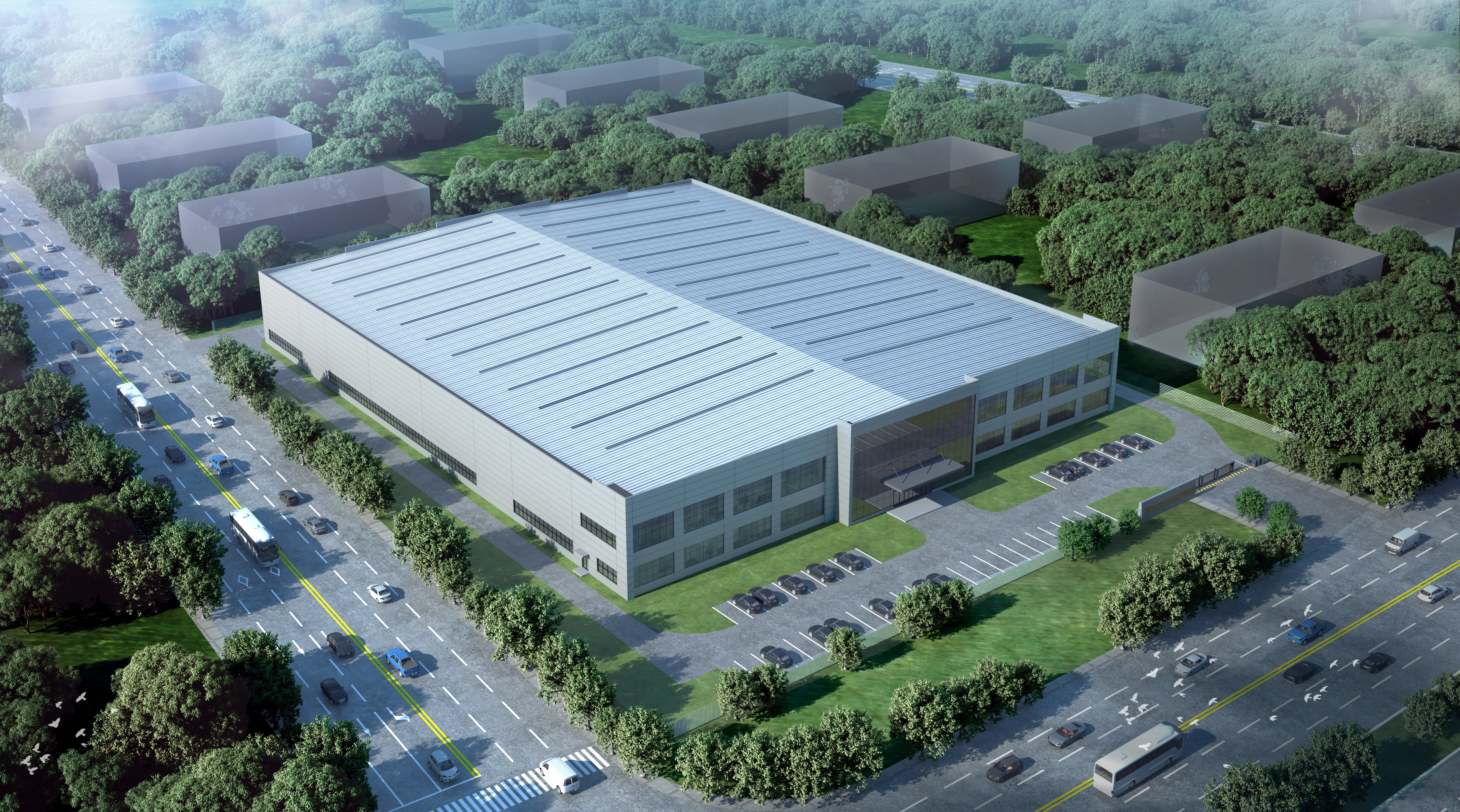

A steel warehouse is usually preferred for this sequence because it supports long clear spans, fast erection, and future bay additions. It also adapts well when operations change. Prefabricated systems reduce schedule pressure, while heavier structural steel grades such as Q355 or Q235 are better suited to mezzanines, conveyors, suspended services, and heavy racking. Light-gauge systems may work for lighter-duty use, but they are rarely the right answer for dense fulfillment with automation.
The clear-span benefit is similar to what designers value in an Exhibition Hall Steel Structure or a Shopping Mall Structure. The difference is performance demand. A logistics center needs stronger slabs, stricter tolerances, rack anchoring, dock engineering, and fire planning around storage geometry. Open space alone is not enough.
Layout geometry should support one-way movement for people, pallets, totes, and vehicles. Crossing paths create avoidable delay and safety risk. The best layout is usually the one that removes backtracking, shortens walking, and separates inbound from outbound at busy hours.
| Layout Model | Best Fit | Main Advantage | Main Risk |
U-shaped | Mid-sized sites with limited yard depth | Short external travel and compact land use | Inbound and outbound congestion on the same side |
I-shaped | High-volume flow-through facilities | Clean separation of receiving and shipping | Longer building footprint and higher site demand |
L-shaped | Sites with angled traffic patterns or cross-dock activity | Good directional flow with flexible zoning | Can create blind corners if staging is weak |
The I-shaped plan is often the strongest choice for a high-throughput Commercial Warehouse because it separates inbound and outbound traffic physically. That reduces queue conflict and simplifies staging control. U-shaped layouts remain useful where land is constrained, but they need disciplined dock scheduling. L-shaped layouts work well when part of the inventory bypasses storage and moves through cross-dock lanes.
Keep reserve storage behind, not across, the primary pick face.
Place hot SKUs closest to packing and sortation.
Do not use travel aisles as overflow staging.
Keep returns physically outside outbound lanes.
Protect replenishment routes from pedestrian congestion.
Designers should also avoid fixed obstacles in the operational center. A rigid temperature room, maintenance cage, or battery area placed in the middle of the warehouse can force long detours for years. What looks efficient on a drawing often becomes the daily bottleneck once forklifts, replenishment, and pick carts share the space.
The storage system is not a procurement detail. It changes slab design, anchor patterns, aisle widths, sprinkler layout, and future flexibility. The right choice depends on SKU mix, pick frequency, rotation rules, and the labor model.
| Storage System | Density | Accessibility | Inventory Logic | Structural Effect |
Selective racking | Moderate | High | FIFO or random access | Baseline rack-leg loading and standard aisle planning |
Double-deep racking | Higher | Medium | Lane-based access | Higher reach demand and tighter tolerance control |
Drive-in racking | Very high | Low | LIFO | Heavier concentrated loading in deep lanes |
Drive-through racking | Very high | Low | FIFO | Needs disciplined traffic routing and fire review |
Mobile racking | Very high | Variable | Controlled access | Special rail, power, and maintenance requirements |
Dense bin automation | Maximum cube use | Automated | System-managed | Flatness, charging, and workstation integration become critical |
Selective racking remains the safest baseline for mixed e-commerce because it gives direct access to a broad SKU range. Double-deep improves cube efficiency but reduces immediate access. Drive-in and drive-through systems fit low-SKU reserve stock better than fast each-pick demand. Dense bin automation is strong for small-item profiles with many orders and few lines per order.
Storage choice also changes fire design. Flue spaces, sprinkler penetration, commodity class, and rack height must be reviewed together. A density upgrade that ignores these checks can slow approval, increase system cost, or force later redesign. That is one reason a racking decision should never be detached from structural and fire coordination.
E-commerce warehouses differ from traditional pallet facilities because they process many small orders, frequent exceptions, and a high volume of returns. Efficient zoning keeps those flows from colliding.
Receiving and inbound quality control.
Reserve pallet storage.
Primary pick faces for fast movers.
Packing, labeling, and parcel induction.
Outbound staging and route marshalling.
Returns inspection, grading, and disposition.
The 80/20 rule is useful here. A minority of SKUs often drives the majority of order volume. Those items belong in ergonomic pick positions near pack-out stations. Primary pick faces should usually hold about one week of average demand for active SKUs, which reduces replenishment disruption without overloading the floor with duplicate inventory.
Reverse logistics needs its own closed loop. With return rates often reaching 30%, the project team should provide stations for opening, inspection, grading, repacking, relabeling, quarantine, and final disposition. They should not send returned goods through outbound staging or primary pick aisles. That mixing creates contamination risk, delays, and poor labor visibility.
Unload and identify the returned unit.
Inspect condition and verify order linkage.
Grade it for restock, repair, liquidation, or disposal.
Repack or relabel where needed.
Send it to quarantine, reserve stock, or outbound disposition.
A WMS should govern slotting, replenishment triggers, and task sequencing. The physical layout should support the software logic, not contradict it. Facilities also need space for scanners, RFID points, handheld charging, and network cabinets from the beginning. Retrofitting that infrastructure later is disruptive and usually more expensive.
Forklifts, conveyors, robots, and workstations define the shell more than drawings do. Their turning radius, mast height, maintenance access, and power needs determine aisle dimensions, clear height, battery rooms, and equipment pads.
Counterbalance forklifts for receiving and yard transfer.
Reach trucks for narrower reserve aisles.
VNA turret trucks for high-bay dense storage.
Conveyors and sorters for parcel flow.
Packing benches, scales, printers, and label applicators.
Stretch wrappers, dimensioners, and scan tunnels.
Conveyor design should be checked against parcel size range, hourly throughput, merge logic, and end-of-line accumulation. A conveyor system without enough accumulation will push stoppages upstream into picking and packing. Workstations also need ergonomic depth, line-side supplies, and clear operator circulation. If benches block replenishment lanes, the layout is already compromised.
Battery charging, power distribution, IT rooms, and maintenance access should sit outside primary flow paths. Mezzanines are useful above lower-clearance functions such as packing, kitting, or light value-added service. That internal support area often follows an Office Steel Building approach, where the upper level adds support space without interfering with the high-bay storage zone below.
Aisle width is a direct trade-off between selectivity and density. Standard counterbalance operations often need about 12 feet. Narrow-aisle layouts may use 9 to 10 feet. VNA systems can shrink that to about 6 feet, but only when guidance systems, truck selection, and slab tolerances support it.
| Aisle Strategy | Typical Width | Illustrative Capacity | Main Requirement |
Standard | 12 ft | About 3,800 pallets | General-purpose forklifts |
Narrow aisle | 9-10 ft | About 5,050 pallets | Reach trucks and better slot discipline |
VNA | 6 ft | About 6,300 pallets | Guidance system and super-flat slab |
Clear height matters just as much. Older facilities often targeted 24 to 34 feet. Modern high-bay fulfillment centers increasingly target 45 feet or more when automation or VNA storage is planned. The additional cube is valuable only if the slotting plan, sprinkler design, and equipment selection can use it safely.
The practical utilization limit is usually below total theoretical capacity. Once usable storage rises above about 80% to 85%, workers start moving pallets only to create space. That is the multiple-handling trap. It burns labor, blocks aisles, and hides problems in the WMS. Strong designs keep 15% to 20% empty storage positions and also reserve about 10% of floor area for overflow, seasonal staging, and pack-out accumulation.
High-density storage and automation produce both distributed loads and concentrated point loads. The structure has to resist them without compromising flatness, durability, or future adaptability.
C30 to C40 concrete for heavy-duty warehouse areas.
150 to 200 mm slab thickness, adjusted by load case and soil condition.
Dual-layer, bi-directional steel mesh reinforcement where required.
Well-compacted sub-base with geotechnical verification.
Moisture barrier below the slab to reduce vapor-related damage.
Flatness should be matched to the operating zone. General warehouse areas can tolerate wider variation. VNA, AS/RS, and robotic zones often need super-flat performance, commonly around 1 mm deviation per 1000 mm. Without that control, mast sway, guidance errors, and equipment faults become frequent. It is cheaper to engineer the slab correctly before construction than to grind, patch, or rework it later.
Rack-leg point loads and slab punching resistance.
Anchor bolt design and pull-out verification.
Mezzanine live loads, including concentrated workstation loads.
Conveyor support loads and suspended service loads.
Dynamic forklift loading and turning effects near docks.
Column placement relative to rack runs and fire protection coverage.
The building envelope matters too. Standing seam metal roofs are widely preferred for long-term water tightness. Roof pitch should reflect local climate, with moderate slopes for heavy rain and steeper logic where snow governs. Dock platforms typically sit around 1.2 to 1.4 meters high and should include seals, shelters, anti-slip surfaces, and safe truck interfaces. These are operating features, not architectural extras.
Bad math creates expensive bottlenecks. If dock doors, staging depth, or labor support areas are undersized, detention fees, congestion, overtime, and missed cut-offs follow. Simple formulas are useful, but they only work when the surrounding process is realistic.
Required dock doors = V / (H / R)
V = total daily container or trailer volume
H = operating hours per day
R = average processing hours per unit
Example: if a site handles 48 trailers per day, runs 16 hours, and averages 2 hours per trailer, the theoretical minimum is 48 / (16 / 2) = 6 dock doors. In practice, the project team should add margin for schedule variability, labor breaks, late arrivals, quality checks, and seasonal peaks. Door count without staging depth is incomplete.
Inbound and outbound staging should separate live loads, drop trailers, and quality holds where needed. Sortation lines need accumulation buffers so temporary downstream delays do not stop upstream picking. Lighting also affects performance. Picking, packing, and QC areas often need 50 to 75 foot-candles, while bulk storage and forklift aisles may need 15 to 30. LED systems lower energy use and can reduce scanning and picking errors caused by poor visibility.
Total cost should be assessed over years, not only at tender stage. Labor usually dominates warehouse operating cost. A slightly higher initial investment in slab quality, flow layout, or dock depth often produces a better return than squeezing the first budget. For phased expansion, a modular frame strategy similar to a Retail Prefab Building is useful because it supports future bay additions, dock knock-outs, and growth with less disruption.
Compliance and safety requirements should be built into the concept, not checked at the end. Rack anchoring, posted load ratings, mezzanine edge protection, marked pedestrian paths, and vehicle separation all affect layout. Dense storage also requires attention to flue spaces, sprinkler coverage, smoke movement, and emergency egress widths.
Automation needs its own risk review. Maintenance access, emergency stops, recovery procedures, and spare-parts storage should be planned before commissioning. High density is not the same as resilience. If one robotic zone fails and there is no bypass path, the building may have no operational fallback.
Future-proofing should be based on a ten-year growth view. That includes SKU growth, peak order expansion, returns growth, packaging complexity, and channel mix changes. Phased automation is usually safer than a one-shot build. It allows the operator to add capacity when data justifies it. Sustainability measures such as LED lighting, durable envelope systems, recycling zones, and efficient equipment are helpful when they support service and cost goals rather than distract from them.
A logistics storage center performs well when the building follows the operation. The most reliable path is to size the warehouse by throughput, usable cube, equipment, returns, and load-bearing demand first, then finalize the steel shell.
Run a peak-volume workflow study using hourly inbound, outbound, and returns data.
Compare storage systems against SKU mix, fire code, slab tolerance, and labor model.
Complete geotechnical and slab-load verification before freezing rack and equipment layouts.
Validate docks, staging, automation, and WMS logic with structural and fire stakeholders before procurement.
A: Cubic capacity is the better measure. Footprint alone ignores clear height, rack configuration, slot count, mezzanines, and usable vertical space. Two buildings with the same floor area can deliver very different storage and throughput performance.
A: Older facilities often used 24 to 34 feet. Many current projects target 45 feet or more when VNA storage, mezzanines, or AS/RS readiness is planned. The final number depends on fire design, equipment reach, and the operating model.
A: A common formula is V / (H / R), where V is daily trailer volume, H is operating hours, and R is average processing hours per trailer. The result should then be checked against staging depth, labor coverage, arrival variability, and peak-season demand.
A: A practical target is 15% to 20% empty storage locations inside the racking plus about 10% extra floor area for overflow, sortation accumulation, and seasonal staging. Full utilization looks efficient on paper but usually slows the operation.
A: VNA trucks, AS/RS systems, and robots rely on predictable travel surfaces. Flatness around 1 mm per 1000 mm is often required in those zones to reduce mast sway, tracking errors, equipment faults, and safety issues at height.
A: It occurs when practical occupancy rises above about 80% to 85%. Workers then move existing stock only to create space for incoming stock. That adds touches, blocks aisles, increases labor cost, and reduces service reliability.
A: There is no single winner. Selective racking suits broad SKU variety and direct access. Double-deep improves density with less accessibility. Drive-in fits low-SKU reserve stock. AS/RS or dense bin automation works best when order profile, labor cost, and throughput justify the investment.
