In heavy-duty engineering fields such as bridges, large industrial plants, wind turbine towers, offshore platforms, mining facilities, and energy projects, steel structures are widely used as primary load-bearing systems because of their high strength, long-span capability, construction efficiency, and design flexibility.
These projects place extremely demanding requirements on the load-bearing capacity, dimensional accuracy, connection quality, fatigue resistance, and overall stability of steel components. Conventional steel fabrication methods may result in dimensional deviations, inconsistent weld quality, assembly difficulties, or excessive residual stress, making it difficult to meet the strict requirements of complex heavy-duty projects.
High-precision steel structure fabrication technology combines digital design, precision machining, automated production, accurate assembly, controlled welding, and full-process quality inspection. It significantly improves the dimensional accuracy, connection reliability, and performance consistency of steel components.
By accurately matching the structural, load-bearing, and safety requirements of heavy-duty engineering projects, high-precision fabrication provides a solid foundation for construction quality, installation efficiency, structural stability, and long-term service performance.
This article explains the key technologies used in high-precision steel structure fabrication and examines how they enhance structural stability and meet the demanding requirements of heavy-duty engineering projects.
High-precision steel fabrication is based on three fundamental principles:
Precise dimensional control
Refined manufacturing processes
Full-process quality traceability
The fabrication process covers material selection, digital design, cutting and blanking, forming, assembly, welding, surface treatment, dimensional inspection, and final delivery.
Each stage must be carefully controlled to ensure that the finished steel components meet the applicable design specifications, engineering standards, and installation requirements.
Accurate digital design and appropriate material selection are the foundations of high-precision steel structure fabrication.
BIM, Tekla Structures, and other three-dimensional modeling technologies can be used to create detailed digital models of steel structures. These models clearly display component dimensions, connection methods, bolt-hole positions, welding details, and installation nodes.
Digital modeling allows engineers to identify design conflicts, connection problems, and installation risks before fabrication begins. It also provides accurate production data for CNC cutting, component assembly, welding, inspection, and on-site installation.
Depending on the load requirements, operating environment, and applicable construction standards, suitable structural steel grades should be selected. High-strength steels such as Q355 and Q460 may be used in heavy-duty projects where higher load-bearing capacity and structural performance are required.
All incoming steel materials should be inspected before production. Typical inspection procedures include:
Material certificate verification
Chemical composition analysis
Mechanical property testing
Dimensional inspection
Surface quality inspection
Ultrasonic testing when required
Material identification and traceability control
Strict incoming material inspection ensures that the mechanical properties and chemical composition of the steel meet the project requirements, preventing quality problems from entering the fabrication process.
Cutting and blanking are among the first stages of steel fabrication, and their accuracy directly affects forming, assembly, welding, and final installation.
High-precision cutting equipment may include:
CNC plasma cutting machines
Fiber laser cutting machines
CNC flame-cutting machines
Automatic band saws
Robotic profile-cutting systems
The cutting path, kerf compensation, cutting speed, gas pressure, heat input, and plate deformation should be controlled through optimized software programming and process parameters.
Under suitable production conditions and depending on the plate thickness and cutting method, dimensional deviations may be controlled within approximately ±0.5 mm for certain components.
Precision cutting helps reduce:
Dimensional deviations
Excessive burrs
Slag adhesion
Thermal deformation
Irregular edges
Material waste
Rework during assembly
After cutting, each component should be clearly marked and classified according to the project number, component number, material grade, and installation position.
Proper identification and storage prevent component mixing, handling damage, and traceability problems during subsequent production and delivery.
Heavy steel structures often include curved, tapered, folded, rolled, or other specially shaped components. Accurate forming and assembly are essential for ensuring that these components meet the required geometry.
Typical forming equipment includes:
CNC hydraulic press brakes
Plate rolling machines
Section bending machines
Hydraulic straightening machines
Specialized forming dies and fixtures
Digital controls can be used to manage bending angles, rolling radii, component curvature, and forming sequences. This helps reduce deformation and ensures that the final geometry complies with the design drawings.
During assembly and fit-up, positioning fixtures, assembly platforms, laser measurement systems, total stations, and specialized jigs can be used to achieve accurate alignment.
The assembly gap should be maintained within the range specified by the welding procedure and project standards. For certain welded joints, the fit-up gap may be controlled within 2 mm, although the final requirement must always follow the approved drawings and welding specifications.
For large steel components, modular assembly is often recommended. Smaller modules are first assembled and inspected individually before being combined into a complete structure.
This approach improves:
Overall dimensional accuracy
Assembly efficiency
Welding accessibility
Component interchangeability
Transportation planning
On-site installation accuracy
Pre-assembly may also be conducted for complex structures to verify connection accuracy before shipment.
Welding is one of the most critical processes in steel structure fabrication. The quality of welded connections directly affects structural strength, fatigue resistance, deformation control, and long-term stability.
Common welding processes used in heavy steel fabrication include:
Submerged arc welding
Gas metal arc welding
Flux-cored arc welding
Manual arc welding
Robotic welding
Semi-automatic welding
Laser welding for suitable applications
Before welding begins, the welding groove, joint surface, assembly gap, and component alignment should be carefully inspected and cleaned.
Welding operations should be conducted according to approved Welding Procedure Specifications. Welding personnel should also hold the qualifications required by the applicable project standard.
Important welding parameters include:
Welding current
Arc voltage
Welding speed
Heat input
Preheating temperature
Interpass temperature
Welding sequence
Number of welding passes
Real-time monitoring and process control help prevent welding defects such as:
Lack of fusion
Incomplete penetration
Porosity
Cracks
Slag inclusions
Undercutting
Excessive deformation
For long or complex welded components, an optimized welding sequence should be developed to balance heat input and minimize residual stress and distortion.
After welding, visual inspection and nondestructive testing should be performed according to the required quality level.
Common nondestructive testing methods include:
Ultrasonic testing
Radiographic testing
Magnetic particle testing
Penetrant testing
These inspection methods help identify internal and surface defects without damaging the steel components, ensuring that critical welds meet the specified quality standards.
Surface treatment protects steel components from corrosion and extends their service life, especially in marine, humid, cold, dusty, industrial, or chemically aggressive environments.
Depending on the project environment, the following surface protection methods may be used:
Shot blasting
Sandblasting
Anti-corrosion primer application
Multi-layer protective coating
Fire-resistant coating
Hot-dip galvanizing
Metal spraying
Marine-grade protective coating systems
Before coating, the steel surface should be cleaned to the specified preparation grade. Oil, grease, rust, welding spatter, dust, and other contaminants must be removed.
The coating process should be controlled to ensure:
Uniform coating thickness
Strong adhesion
Complete surface coverage
Proper drying and curing
Adequate corrosion resistance
Compliance with the specified coating system
Dry film thickness, surface cleanliness, environmental conditions, and coating adhesion should be inspected and recorded.
After fabrication, high-precision measuring equipment should be used to verify the final geometry of each component.
Typical measurement tools include:
Three-dimensional laser scanners
Laser trackers
Total stations
Digital measuring instruments
Specialized inspection templates
The inspection should cover critical dimensions such as:
Component length and width
Cross-sectional dimensions
Straightness
Flatness
Verticality
Curvature
Bolt-hole spacing
Connection plate position
Assembly interface accuracy
Overall component geometry
Any component that does not meet the required tolerances should be corrected before it enters the packing and delivery stage.
Final dimensional verification helps prevent installation conflicts, excessive on-site adjustment, and delays during construction.
High-precision steel structure fabrication improves component accuracy, connection quality, and performance consistency. These improvements enhance the stability of heavy-duty engineering structures in several important ways.
Dimensional deviations, uneven connection gaps, and inaccurate component alignment may cause additional installation stress and local stress concentration.
High-precision fabrication ensures that component dimensions and connection interfaces match the design requirements. Accurate welding and assembly also allow loads to be transferred more evenly between beams, columns, braces, trusses, and connection nodes.
This reduces excessive local stress and improves the overall load-bearing stability of the structure.
For bridges, industrial plants, wind turbine towers, and offshore platforms that are continuously exposed to static and dynamic loads, accurate load transfer is particularly important.
Accurate assembly and controlled welding allow individual steel components to form a strong and integrated structural system.
High-precision fabrication minimizes connection gaps, component misalignment, and relative movement between connected members. It also controls fabrication deformation so that the completed structure can achieve the intended stress condition after installation.
As a result, the structure can provide improved resistance to:
Wind loads
Seismic loads
Dynamic loads
Vibration
Settlement
Torsion
Bending deformation
Fatigue loading
This is essential for the safe and stable operation of heavy-duty structures throughout their service life.
Reliable weld quality and uniform surface protection help reduce corrosion, cracking, fatigue damage, and premature deterioration.
Accurate component dimensions and connection interfaces also reduce the need for extensive adjustment, cutting, or re-welding during installation.
This can lower future maintenance requirements and reduce the possibility of defects caused by uncontrolled on-site modification.
By improving manufacturing consistency and durability, high-precision fabrication contributes to:
Lower maintenance costs
Longer service life
Reduced repair frequency
Improved operational safety
More predictable structural performance
Heavy-duty engineering projects involve larger components, higher loads, more complicated environments, and stricter installation requirements.
High-precision steel structure fabrication can be adapted to these conditions through specialized process design and quality control.

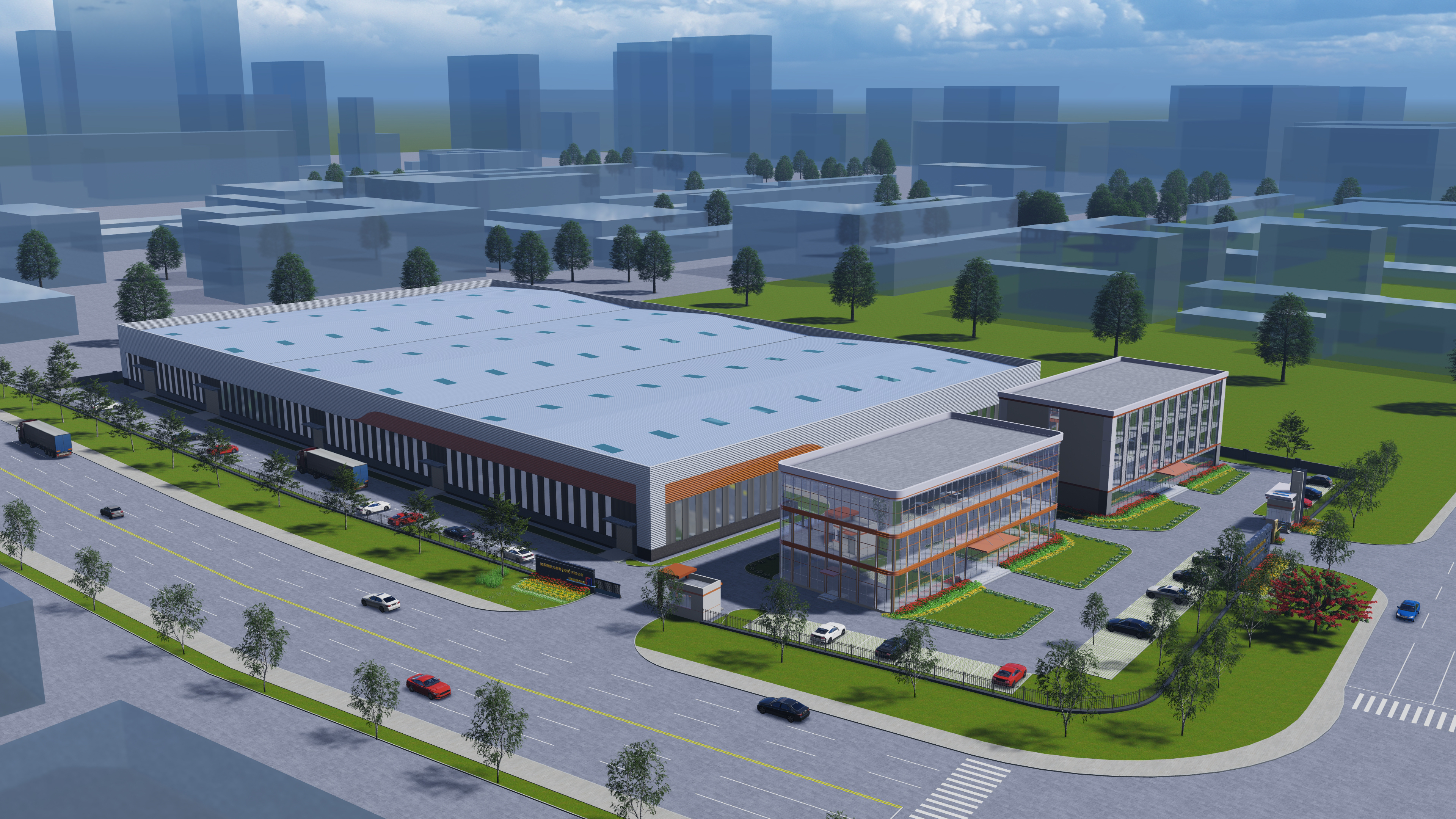

Bridges, large industrial workshops, power plants, warehouses, and transportation facilities often require long-span steel components and high-capacity load-bearing systems.
High-precision fabrication enables manufacturers to produce large beams, columns, trusses, box girders, and customized structural components with controlled geometry and consistent mechanical performance.
Through accurate structural calculation, material selection, cutting, assembly, welding, and inspection, these components can safely resist bending, shear, compression, tension, and torsional forces.
For projects exposed to dynamic loads, such as wind turbine towers and offshore platforms, accurate welding and dimensional control also improve fatigue resistance.
This allows structural components to withstand long-term cyclic loading caused by wind, waves, equipment operation, traffic, or rotating machinery.
Offshore platforms, coastal facilities, high-altitude wind power projects, mining projects, and energy facilities often operate in harsh environments.
Steel components may be exposed to:
Salt spray
High humidity
Low temperatures
Strong ultraviolet radiation
Dust and sand
Chemical corrosion
High wind loads
Limited installation space
High-precision fabrication improves environmental adaptability through suitable material selection, corrosion protection systems, sealed connection design, and accurate component interfaces.
Because precisely fabricated components have smaller dimensional deviations, they are easier to install under difficult site conditions.
This reduces the amount of cutting, drilling, correction, and re-welding required on site, improving installation efficiency and helping the project maintain its quality standards even in challenging environments.
Modern heavy-duty engineering projects increasingly use modular construction methods to shorten construction periods and improve project control.
Modular construction requires a high level of component interchangeability and connection accuracy.
High-precision fabrication enables standardized and repeatable production, ensuring that components in the same batch have consistent dimensions and compatible connection interfaces.
This supports:
Rapid on-site assembly
Accurate module connection
Reduced installation errors
Shorter construction schedules
Better quality consistency
Improved structural stability
Factory-based modular production also transfers more construction work from the project site to a controlled manufacturing environment, reducing the influence of weather, site limitations, and labor variability.
To obtain the full benefits of high-precision steel structure fabrication, manufacturers and project teams should consider the following requirements.
Quality inspection points should be established throughout the entire production process, including:
Raw material receiving
Material preparation
Cutting
Forming
Assembly
Welding
Nondestructive testing
Surface treatment
Dimensional inspection
Packing and delivery
Inspection and test records should be maintained to ensure full traceability.
High-precision inspection equipment should be used for critical components, and nonconforming products should be identified, isolated, corrected, and reinspected before delivery.
Operators should be properly trained in the use of CNC machines, digital programming systems, welding equipment, measuring instruments, and quality inspection tools.
They should also understand the applicable drawings, fabrication tolerances, welding procedures, inspection standards, and equipment operating requirements.
Effective training reduces human error and ensures that advanced machinery can deliver the expected level of accuracy.
High-precision production does not mean that the most expensive or advanced equipment must be used for every project.
The fabrication method should be selected according to:
Component size
Steel grade
Plate thickness
Structural complexity
Required tolerance
Production quantity
Welding requirements
Project schedule
Quality standards
A suitable balance should be achieved between fabrication accuracy, production efficiency, project cost, and technical requirements.
Fabrication and installation teams should communicate before production begins.
The manufacturer should understand the construction sequence, lifting method, transportation limitations, site access, temporary support requirements, and installation environment.
Connection details, lifting points, component segmentation, transportation dimensions, and installation tolerances should be reviewed during the design and detailing stages.
This coordination ensures that finished components can be transported, lifted, positioned, and connected efficiently at the project site.
High-precision steel structure fabrication technology significantly improves the dimensional accuracy, connection reliability, and performance stability of steel components through digital design, precise machining, controlled welding, advanced inspection, and full-process quality management.
Its core value lies in improving the load-bearing capacity, structural integrity, installation efficiency, environmental adaptability, and long-term stability of heavy-duty engineering projects.
For bridges, large industrial facilities, wind turbine towers, offshore platforms, energy projects, and other complex structures, the proper application of high-precision fabrication technology can:
Improve structural safety
Reduce installation errors
Shorten construction schedules
Minimize on-site modification
Lower maintenance costs
Extend structural service life
As digital manufacturing, automation, BIM, intelligent welding, and three-dimensional inspection technologies continue to develop, high-precision steel structure fabrication will become increasingly efficient, intelligent, and traceable.
For heavy-duty projects such as offshore platforms, long-span bridges, industrial plants, and wind power structures, fabrication processes should be developed according to the specific design parameters, operating environment, construction standards, and installation conditions of each project.
Working with an experienced steel structure engineering and fabrication company helps ensure that every component meets the project’s technical, quality, safety, and delivery requirements.
