Steel structure detailing is a critical link between structural engineering, steel fabrication, and on-site installation. High-quality detailing drawings clearly present the dimensions, connections, fabrication requirements, and installation information of each steel component.
These drawings provide the technical basis for material preparation, cutting, drilling, welding, assembly, trial assembly, transportation, and site erection.
Steel structure design is generally divided into two main stages.
The first stage is normally completed by an architectural or structural engineering design institute.
Based on the building function, structural system, project location, design loads, seismic requirements, wind conditions, and applicable engineering standards, structural engineers carry out the overall structural analysis.
The main work includes:
Determining the structural system
Calculating dead loads, live loads, wind loads, seismic loads, and other applicable loads
Analyzing structural forces under different load combinations
Selecting the appropriate sections for steel columns, beams, trusses, and bracing systems
Checking structural strength, stability, stiffness, and deformation
Preparing the preliminary structural design drawings
The structural design drawings produced at this stage provide the primary technical basis for the subsequent steel structure detailing work.
The second stage is generally completed by a professional steel structure detailing team, fabrication company, or construction contractor.
Detailing engineers convert the structural design drawings into complete and accurate fabrication and erection drawings that can be directly used by the steel fabrication workshop and installation team.
Steel structure detailing drawings usually include:
General arrangement drawings
Assembly drawings
Single-part fabrication drawings
Steel beam and column drawings
Truss fabrication drawings
Connection detail drawings
Bolt arrangement drawings
Welding detail drawings
Material lists and part lists
Erection drawings
Site connection details
Because every component, connection plate, bolt hole, weld, and assembly position must be clearly shown, steel structure detailing normally involves a large number of drawings.
All dimensions, materials, connection methods, weld requirements, bolt specifications, surface treatment requirements, and installation marks must be clearly indicated.
Steel component detailing is carried out according to the structural design drawings and applicable steel structure design standards.
The main detailing work includes the following items.
Detailing drawings must clearly show:
Overall component dimensions
Steel section sizes
Plate thicknesses
Base plates and top plates
Stiffener locations
Splice positions
Bolt-hole dimensions
Welding requirements
Connection plate arrangements
Component identification marks
For steel trusses, the detailing team must determine:
Truss geometry
Member lengths
Connection angles
Gusset plate dimensions
Bolt and weld arrangements
Assembly sequence
Fabrication tolerances
Camber requirements for long-span trusses
Bracing detailing may include:
Roof bracing
Wall bracing
Column bracing
Horizontal bracing
Adjustable round-bar bracing
Tension rods
Turnbuckles
Connection plates
Slotted-hole connections
The connection method and installation sequence must be carefully considered to ensure that the bracing system can be installed and adjusted efficiently on site.
For built-up steel components and large welded sections, detailing may include:
Bearing stiffeners
Transverse stiffeners
Longitudinal stiffeners
Batten plates
Packing plates
Diaphragm plates
Internal stiffeners
Variable-section transitions
The arrangement of these parts must meet structural requirements while also considering welding accessibility and fabrication efficiency.
Connection detailing is one of the most important parts of steel structure detailing.
The drawings should clearly indicate:
Bolt diameter
Bolt grade
Bolt quantity
Bolt spacing
Edge distance
Hole diameter
Standard holes or slotted holes
Weld type
Weld length
Weld size
Groove angle
Root gap
Welding sequence
The detailing team must ensure that bolt groups and weld groups can safely transfer the required structural forces.
Depending on the project requirements, steel structure detailing may also include:
Haunch connections
Knee bracing
Pinned connections
Hinge plates
Roller supports
Spring connections
Slotted-hole connections
Adjustable supports
Special bearing systems
Expansion-joint details
These special details must be coordinated with the structural engineer and installation team before fabrication.

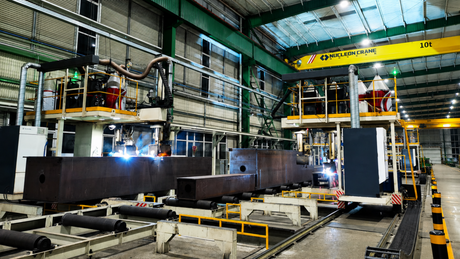

Steel structure detailing must consider not only factory fabrication but also transportation and on-site installation.
A component that can be fabricated successfully may still be difficult to transport, lift, position, or connect on site. Therefore, erection requirements should be considered during the detailing stage.
Common installation-related details include:
Temporary fixing plates
Lifting holes and lifting points
Erection tabs
Positioning plates
Alignment devices
Temporary bracing connections
Welding access openings
Installation clearances
Bolt-tightening spaces
Field splice locations
Site welding details
Assembly reference lines
Before the permanent connections are completed, steel components may require temporary fixing to maintain their position and stability.
Common temporary measures include:
Temporary bolts
Positioning plates
Erection clips
Welding tabs
Temporary stiffeners
Installation clamps
Temporary support frames
These temporary components must be designed to facilitate installation without affecting the final structural performance.
For large or complex components, the detailing drawings should provide clear positioning information, such as:
Centerlines
Elevation references
Grid-line positions
Installation directions
Component numbers
Assembly sequences
Splice locations
Accurate positioning details can reduce installation errors and improve erection efficiency.
The detailing engineer must also consider whether workers and equipment have enough space to complete the connections.
For example, sufficient space must be provided for:
Installing high-strength bolts
Operating torque wrenches
Performing field welding
Inspecting welds
Installing connection plates
Adjusting component positions
If the connection area is too narrow, the design may be structurally correct but difficult to construct.
Some connection details cannot be determined only by drawing experience. Structural calculations may be required to verify the strength and performance of the connections.
Connection calculations may include:
Beam-to-column connections
Beam splice connections
Column splice connections
Column base connections
Truss-node connections
Bracing connections
Gusset plate calculations
Bolt-group calculations
Weld-group calculations
Base-plate calculations
Anchor-bolt calculations
Stiffener calculations
The calculations should verify the load-bearing capacity, stiffness, stability, and deformation of each connection.
When a project includes special structural systems or connection forms that are not fully covered by standard design methods, the detailing team should coordinate with the structural designer, project owner, fabrication company, and construction contractor.
Where necessary, finite element analysis, computer simulation, laboratory testing, or connection-performance testing may be used to provide technical support.
Camber is commonly used for long-span steel beams, trusses, and other horizontal load-bearing components.
During fabrication, the component is manufactured with a slight upward curvature to compensate for deflection caused by:
Self-weight
Roofing materials
Equipment loads
Service loads
Construction loads
Proper camber can improve the appearance and service performance of the completed structure.
The required camber should be determined according to the structural design, calculated deflection, span length, load conditions, fabrication method, and installation requirements.
The camber value and measuring method should be clearly indicated on the fabrication drawings.
Excessive camber may cause installation difficulties, while insufficient camber may result in visible downward deflection after construction. Therefore, camber must be carefully calculated and controlled during fabrication.
A complete steel structure detailing process should focus on the following requirements.
All dimensions, elevations, hole positions, cutting angles, plate thicknesses, and connection details must be accurate and consistent with the structural design.
The details must be practical for material cutting, drilling, welding, assembly, transportation, lifting, and installation.
Structural drawings, architectural drawings, mechanical and electrical drawings, equipment layouts, and building-envelope drawings should be reviewed together to avoid conflicts.
Standardized connections, component sizes, plate specifications, and fabrication methods can reduce production costs and improve fabrication efficiency.
Each component should have a unique identification mark that corresponds with the fabrication drawing, material list, inspection record, packaging list, and erection drawing.
All detailing work should comply with the applicable structural design standards, fabrication requirements, welding standards, quality-control procedures, and project specifications.
Common detailing problems include:
Missing dimensions
Inconsistent component numbers
Incorrect bolt-hole positions
Insufficient bolt-tightening space
Unclear welding symbols
Conflicts between structural and architectural drawings
Inadequate installation clearances
Unreasonable splice locations
Components that exceed transportation limits
Insufficient consideration of the erection sequence
These issues may lead to material waste, fabrication rework, delayed installation, and increased project costs.
A professional detailing team should conduct drawing reviews and interference checks before issuing drawings for production.
A typical steel structure detailing workflow includes:
Reviewing structural and architectural drawings
Confirming the applicable design standards and project specifications
Building the three-dimensional structural model
Checking component layouts and connection conditions
Designing and calculating structural connections
Preparing assembly and fabrication drawings
Generating material and bolt lists
Conducting model-interference and constructability checks
Submitting drawings for review and approval
Issuing approved drawings for fabrication
Providing technical support during production and installation
Professional detailing software such as Tekla Structures, BIM platforms, and structural-analysis programs can help improve drawing accuracy, component coordination, material management, and fabrication efficiency.
Steel structure detailing is much more than simply converting design drawings into fabrication drawings. It requires a comprehensive understanding of structural design, connection calculation, steel fabrication, transportation, lifting, and site installation.
High-quality detailing drawings can reduce fabrication errors, prevent site conflicts, shorten the construction period, control project costs, and ensure that the completed steel structure meets the original design requirements.
