Steel structures are widely used in industrial buildings, warehouses, bridges, commercial facilities, infrastructure projects, and large-span construction. Their key advantages include high strength, excellent load-bearing capacity, flexible design, fast installation, and long service life.
However, the performance and safety of a steel structure depend heavily on fabrication quality. Among all fabrication stages, cutting, welding, and assembly are three of the most critical processes. Any dimensional error, welding defect, or assembly deviation may affect the structural accuracy, installation efficiency, and long-term reliability of the completed building.
This article explains the standardized procedures for steel structure cutting, welding, and assembly, covering preparation, operation, inspection, and quality-control requirements.
Cutting is one of the first major steps in steel structure fabrication. Its purpose is to cut steel plates, sections, and other materials into the required dimensions and shapes according to approved drawings.
Accurate cutting provides a reliable foundation for drilling, beveling, welding, assembly, and final installation.
Before cutting begins, all steel materials should be inspected and verified.
The inspection normally includes:
Steel grade and material specification
Plate or section thickness
Heat number and batch number
Material certificates
Surface condition
Dimensional accuracy
Visible deformation or damage
The steel must comply with the approved design drawings, material specifications, and applicable project standards.
The surface should also be checked for excessive corrosion, cracks, laminations, deformation, deep scratches, or other defects. Minor surface imperfections may be repaired by approved grinding methods, while materials with serious defects should be isolated and evaluated before use.

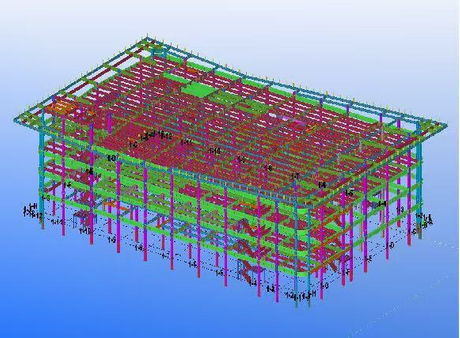

After material inspection, the cutting layout is prepared according to the fabrication drawings. Cutting lines, hole locations, centerlines, bevel positions, reference points, and component identification marks should be clearly indicated.
When preparing the cutting layout, the fabrication team should consider:
Cutting allowance
Machining allowance
Welding shrinkage
Thermal deformation
Edge preparation requirements
Material utilization
Accurate nesting and layout planning can reduce material waste and improve production efficiency.
The cutting method should be selected according to the steel grade, plate thickness, component shape, required accuracy, and edge-quality requirements.
Common steel cutting methods include:
Flame cutting is widely used for carbon steel plates, especially medium-thickness and heavy steel plates.
During operation, the gas pressure, cutting speed, flame condition, and cutting direction should remain stable. Incorrect parameters may result in excessive slag, rough edges, uneven kerfs, or excessive heat deformation.
Plasma cutting is suitable for carbon steel, stainless steel, aluminum, and other conductive metals. It offers relatively high cutting speed and can produce accurate profiles for a wide range of plate thicknesses.
Proper ventilation and fume-extraction systems should be used during plasma cutting to protect workers and maintain a safe production environment.
Laser cutting is commonly selected for thin and medium-thickness steel plates requiring high dimensional accuracy, narrow kerfs, and smooth cutting edges.
It is particularly suitable for complex profiles, small components, and projects with strict fabrication tolerances.
CNC cutting systems may use flame, plasma, or laser technology. The cutting path is controlled by programmed fabrication data, allowing complex shapes to be produced with consistent accuracy and high production efficiency.
Before production, the program, cutting sequence, machine calibration, and material position should be carefully checked.
Cutting equipment should be inspected and calibrated before use. Operators must confirm that the equipment is working properly and that the cutting program matches the approved fabrication drawings.
During cutting, operators should monitor:
Cutting speed
Gas pressure or power settings
Cutting-edge condition
Plate movement
Thermal deformation
Cutting path accuracy
Equipment alarms or interruptions
Where possible, cutting should be arranged symmetrically to reduce heat concentration and plate distortion.
Sudden stops, unstable cutting speeds, incorrect equipment settings, or repeated heating of the same area should be avoided.
After cutting, the component should be checked for dimensional accuracy and edge quality.
The inspection may include:
Overall length and width
Diagonal dimensions
Hole and slot positions
Bevel dimensions
Cutting-edge straightness
Edge perpendicularity
Surface roughness
Local deformation
Cutting edges should be smooth and free from excessive burrs, slag, deep grooves, cracks, or visible damage.
Minor burrs and slag may be removed using an angle grinder or other approved tools. Components that exceed the permitted dimensional tolerances should be corrected, re-cut, or rejected according to the quality-control procedure.
After inspection, each component should be clearly marked with its part number, project number, orientation, and assembly reference. Components should then be classified and stored properly to prevent confusion, damage, deformation, or corrosion.
Welding connects individual steel parts into structural components such as columns, beams, trusses, frames, brackets, and built-up sections.
Because weld quality directly affects the load-bearing capacity and structural safety of the completed steel structure, welding must be performed according to approved procedures by qualified personnel.
Before welding begins, the welding materials must be selected according to:
Base-metal grade
Steel thickness
Joint type
Welding position
Design requirements
Required mechanical properties
Applicable welding standards
Welding electrodes, wires, fluxes, and shielding gases should have valid quality documentation and should be stored under controlled conditions.
Consumables that require drying or temperature-controlled storage must be handled according to the manufacturer's instructions and the approved Welding Procedure Specification, or WPS.
The welding area must be clean and free from:
Rust
Oil
Grease
Moisture
Paint
Mill scale
Dirt
Other contaminants
Contamination near the joint may cause porosity, cracking, lack of fusion, or other welding defects.
The joint preparation should match the approved drawings and WPS. Common groove types include:
Single-V groove
Double-V groove
U groove
Bevel groove
Square groove
The groove angle, root opening, root face, alignment, and backing arrangement must comply with the approved welding procedure.
Before welding, the fit-up condition should also be inspected. Excessive misalignment or inconsistent joint gaps should be corrected before the joint is welded.
Welding machines, cables, torches, wire-feeding systems, grounding devices, and measuring instruments should be inspected before operation.
The following parameters must be controlled according to the WPS:
Welding current
Arc voltage
Travel speed
Wire-feed speed
Heat input
Preheat temperature
Interpass temperature
Welding sequence
Number of welding passes
Shielding-gas flow rate
Operators should not change approved welding parameters without authorization.
Common welding methods used in steel structure fabrication include:
Shielded metal arc welding is flexible and suitable for many fabrication and repair applications. The operator must maintain a stable arc, appropriate electrode angle, uniform travel speed, and correct bead placement.
Gas-shielded welding methods provide high production efficiency and stable weld quality when operating conditions are properly controlled.
Wind, moisture, contamination, and unstable gas flow must be prevented because they may affect shielding performance and cause welding defects.
Submerged arc welding is commonly used for long, straight welds in built-up H-sections, box columns, heavy beams, and thick steel plates.
The wire-feed speed, flux coverage, welding speed, joint alignment, and heat input should remain stable throughout the welding process.
Welding produces concentrated heat, which may cause shrinkage, angular distortion, bending, or twisting.
To reduce welding deformation, the fabrication team may use:
Balanced welding
Symmetrical welding
Back-step welding
Skip welding
Multi-layer and multi-pass welding
Controlled welding sequence
Temporary fixtures and strongbacks
Preset deformation compensation
Long welds should be completed using an approved welding sequence rather than welding continuously from one end to the other without considering heat distribution.
After each welding pass, slag, spatter, and surface contamination should be removed before the next pass is deposited.
For thick plates, high-strength steel, restrained joints, or low-temperature working conditions, preheating may be required. The preheat and interpass temperatures should be controlled according to the WPS and project requirements.
After welding, the welds should first undergo visual inspection.
The inspector normally checks for:
Surface cracks
Porosity
Undercut
Overlap
Incomplete filling
Excessive reinforcement
Arc strikes
Irregular weld profiles
Excessive spatter
Visible lack of fusion
The weld should have a consistent profile and should meet the dimensional and appearance requirements stated in the drawings, WPS, and applicable standards.
Minor surface defects may be repaired by approved grinding or welding procedures. Serious defects must be completely removed before repair welding.
Where required by the project inspection plan, non-destructive testing may be performed to identify internal or surface-breaking weld defects.
Common methods include:
Ultrasonic testing
Radiographic testing
Magnetic-particle testing
Liquid-penetrant testing
The testing method and inspection percentage depend on the weld type, structural importance, design requirements, and applicable standards.
Critical full-penetration welds or highly stressed joints may require a higher inspection percentage, including 100% testing where specified.
Any weld that fails inspection must be evaluated and repaired according to an approved repair procedure. The repaired area should then be re-inspected.
Post-weld treatment is not required for every steel component. It may be specified for certain materials, plate thicknesses, joint configurations, or service conditions.
Depending on the project requirements, post-weld treatment may include:
Controlled cooling
Hydrogen-release treatment
Stress-relief heat treatment
Weld grinding
Surface finishing
Weld toe improvement
All heat-treatment parameters should be properly recorded and controlled.
Assembly is the process of positioning and connecting individual steel parts to form complete structural components.
Typical assembled components include:
H-section columns
Built-up beams
Box columns
Roof trusses
Steel frames
Brackets
Platforms
Stairs
Complex fabricated modules
The main purpose of assembly is to ensure that the finished component meets the required dimensions, geometry, alignment, and connection conditions before final welding, painting, packing, and delivery.
The assembly area should be clean, level, stable, and large enough for the component being fabricated.
Assembly platforms may be made of steel or concrete. The platform should provide sufficient strength and flatness to prevent inaccurate measurements or component deformation.
Before assembly, all component parts should be checked for:
Correct part number
Material specification
Dimensional accuracy
Cutting quality
Hole position
Bevel preparation
Welding quality
Straightness and flatness
Surface condition
Any part with unacceptable deformation should be corrected before assembly.
Common correction methods include mechanical straightening, press correction, and controlled flame straightening. All correction work should follow an approved procedure to avoid damaging the steel.
Assembly tools and equipment may include:
Positioning fixtures
Clamps
Jacks
Pulling devices
Levels
Measuring tapes
Laser instruments
Total stations
Welding gauges
All measuring instruments should be calibrated and suitable for the required accuracy.
Assembly should follow the principle of establishing the main reference before positioning secondary details.
Depending on the component type, the reference may be:
An end face
A centerline
A flange surface
A web centerline
A symmetrical axis
A designed datum point
The main part should be securely positioned on the assembly platform using suitable fixtures. The reference line and orientation should be verified before the remaining parts are installed.
The remaining parts should be installed in the sequence shown on the approved fabrication drawings.
During assembly, the team should continuously check:
Overall length
Overall width and height
Diagonal dimensions
Web and flange alignment
Verticality
Parallelism
Squareness
Joint gaps
Connection positions
Hole alignment
Camber or preset deformation
Jacks, clamps, wedges, and pulling devices may be used for fine adjustment. Excessive force should be avoided because it may create residual stress or permanent deformation.
Dimensional tolerances must follow the approved drawings, project specifications, and applicable fabrication standards.
Once the parts are correctly positioned, tack welding may be used to hold them in place before final welding.
Tack welds should:
Use compatible welding consumables
Be made by qualified welders
Have sufficient length and strength
Be free from cracks and other defects
Avoid interfering with the final weld
Follow the approved welding procedure
Defective tack welds should be removed before final welding.
The location and sequence of tack welds should prevent component movement and help control welding distortion.
After assembly, the complete component should undergo dimensional and visual inspection.
The inspection should verify:
Overall component dimensions
Connection positions
Hole alignment
Verticality and straightness
Diagonal differences
Flange and web alignment
Joint gaps
Camber
Tack-weld quality
Component orientation
Components that meet the inspection requirements may proceed to final welding, surface preparation, coating, or trial assembly.
Components that do not meet the requirements should be adjusted, corrected, or disassembled and reassembled.
After final acceptance, each component should be permanently marked with its project number, component number, installation direction, and other required identification information.
The finished components should be stored on suitable supports and protected against deformation, impact damage, water accumulation, and corrosion.
Quality control should not be limited to final inspection. It must be implemented throughout material receiving, cutting, welding, assembly, surface treatment, and shipment.
Important quality-control documents may include:
Material certificates
Material traceability records
Cutting inspection reports
Dimensional inspection records
Welding Procedure Specifications
Welder qualification records
Welding inspection reports
Non-destructive testing reports
Repair records
Coating inspection reports
Final acceptance records
A complete documentation system helps ensure product traceability and consistent fabrication quality.
Operators involved in cutting, welding, assembly, inspection, and equipment operation should have the appropriate training, skills, and qualifications.
Welding work should be performed by qualified welders using approved procedures.
Regular training should cover:
Fabrication procedures
Drawing interpretation
Equipment operation
Quality requirements
Welding control
Measurement methods
Safety procedures
Defect prevention
Clear work instructions and technical briefings should be provided before production begins.
Cutting machines, welding machines, lifting equipment, assembly fixtures, and inspection instruments should be regularly maintained.
Maintenance normally includes:
Checking machine accuracy
Inspecting electrical connections
Cleaning cutting nozzles and welding torches
Replacing worn components
Testing safety devices
Calibrating measuring instruments
Recording maintenance activities
Equipment should be checked before use, cleaned after operation, and stored properly.
Poorly maintained equipment may cause dimensional errors, unstable welding parameters, production delays, and safety risks.
Steel fabrication involves high temperatures, electrical equipment, heavy components, fumes, sparks, and lifting operations. Comprehensive safety controls are therefore essential.
The workshop should be equipped with:
Fire extinguishers
Welding screens
Ventilation and fume-extraction systems
Emergency exits
Warning signs
Grounding and electrical-protection systems
Approved lifting equipment
Personal protective equipment
Workers should use suitable protective equipment, including welding helmets, safety glasses, heat-resistant gloves, protective clothing, safety shoes, hearing protection, and respiratory protection where required.
Cutting and welding operations must not be performed near flammable or explosive materials unless appropriate control measures have been implemented.
Heavy components should be lifted only with inspected lifting equipment and approved lifting procedures.
Cutting, welding, and assembly are closely connected stages in steel structure fabrication.
Accurate cutting ensures that every component begins with the correct dimensions and edge conditions. Controlled welding provides reliable structural connections and minimizes defects and deformation. Precise assembly ensures that completed components match the approved drawings and can be installed efficiently at the construction site.
By implementing standardized procedures, qualified personnel, calibrated equipment, continuous inspection, and complete quality documentation, steel structure manufacturers can improve fabrication accuracy, structural reliability, production efficiency, and project safety.
A well-controlled fabrication process not only improves the quality of individual steel components but also reduces installation difficulties, shortens the construction schedule, and supports the long-term performance of the completed steel structure.
ZSJH Steel Group provides integrated steel structure services covering structural design, detailed engineering, steel cutting, welding, assembly, surface treatment, quality inspection, packing, and international delivery.
Our fabrication solutions can be customized for industrial workshops, warehouses, logistics centers, commercial buildings, public facilities, steel platforms, large-span structures, and other international construction projects.
Contact our team with your drawings, technical specifications, or project requirements to receive a customized steel structure fabrication solution.
