Products are manufactured according to customer drawings and project specifications. Different materials, plate thicknesses, welding details, connection-hole arrangements and corrosion-protection systems are available.

Whether your project requires a single prototype, repeated connection parts or complete building-based component packages, we can provide coordinated manufacturing and export services.

Connection Components Designed for Your Project

Every steel structure has different load conditions, connection details and installation requirements. Instead of offering only fixed-size products, we manufacture each connection component according to the approved project drawings.

Customizable details include:

• Component dimensions

• Steel grade

• Plate thickness

• Hole size and spacing

• Slotted-hole configuration

• Stiffener quantity and position

• Weld type and weld size

• Connection angle

• Surface-treatment system

• Component identification

• Inspection documentation

• Packaging method

Our engineering and production teams review these details before fabrication to reduce manufacturing errors and installation problems.

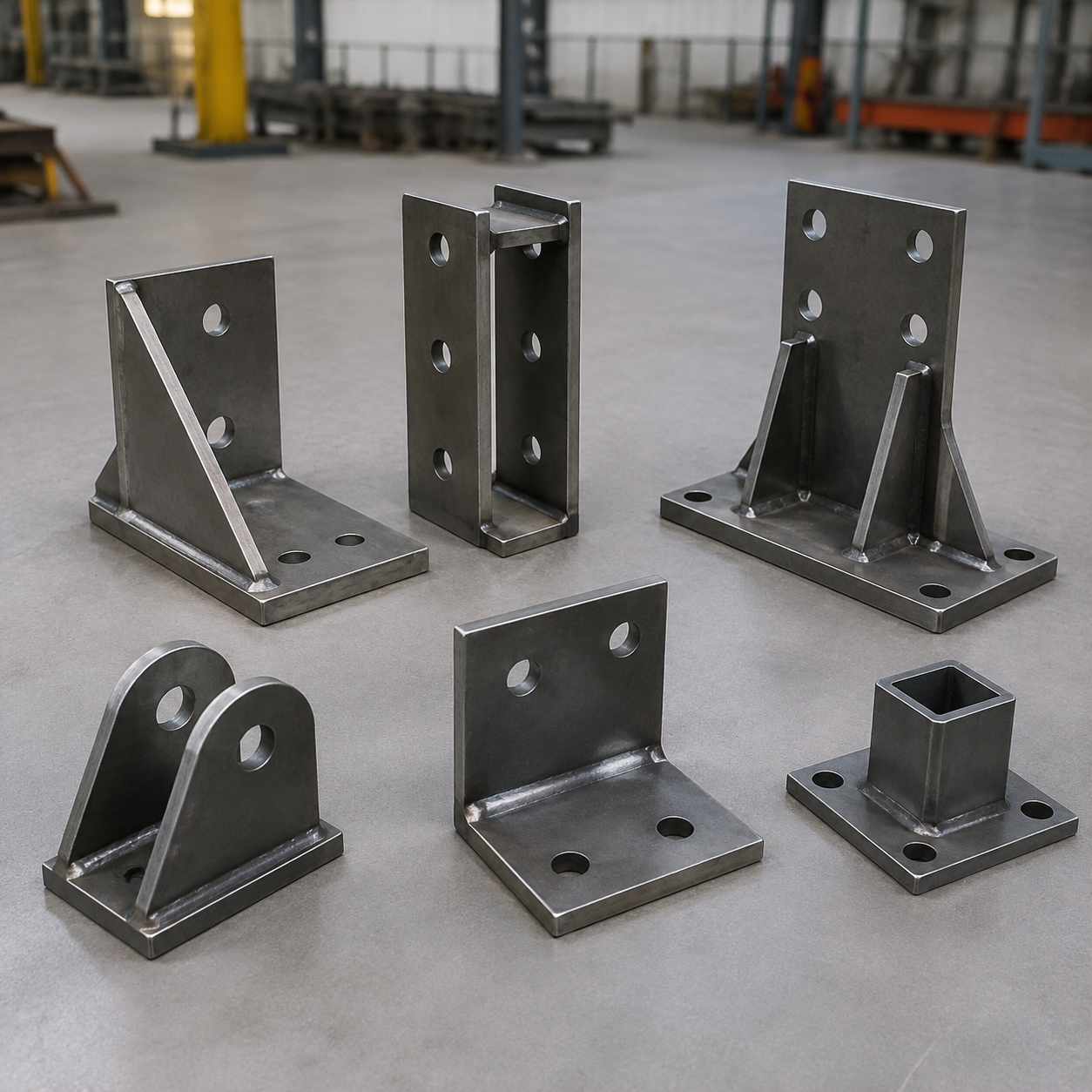

Main Connection Categories

Welded Beam Connectors

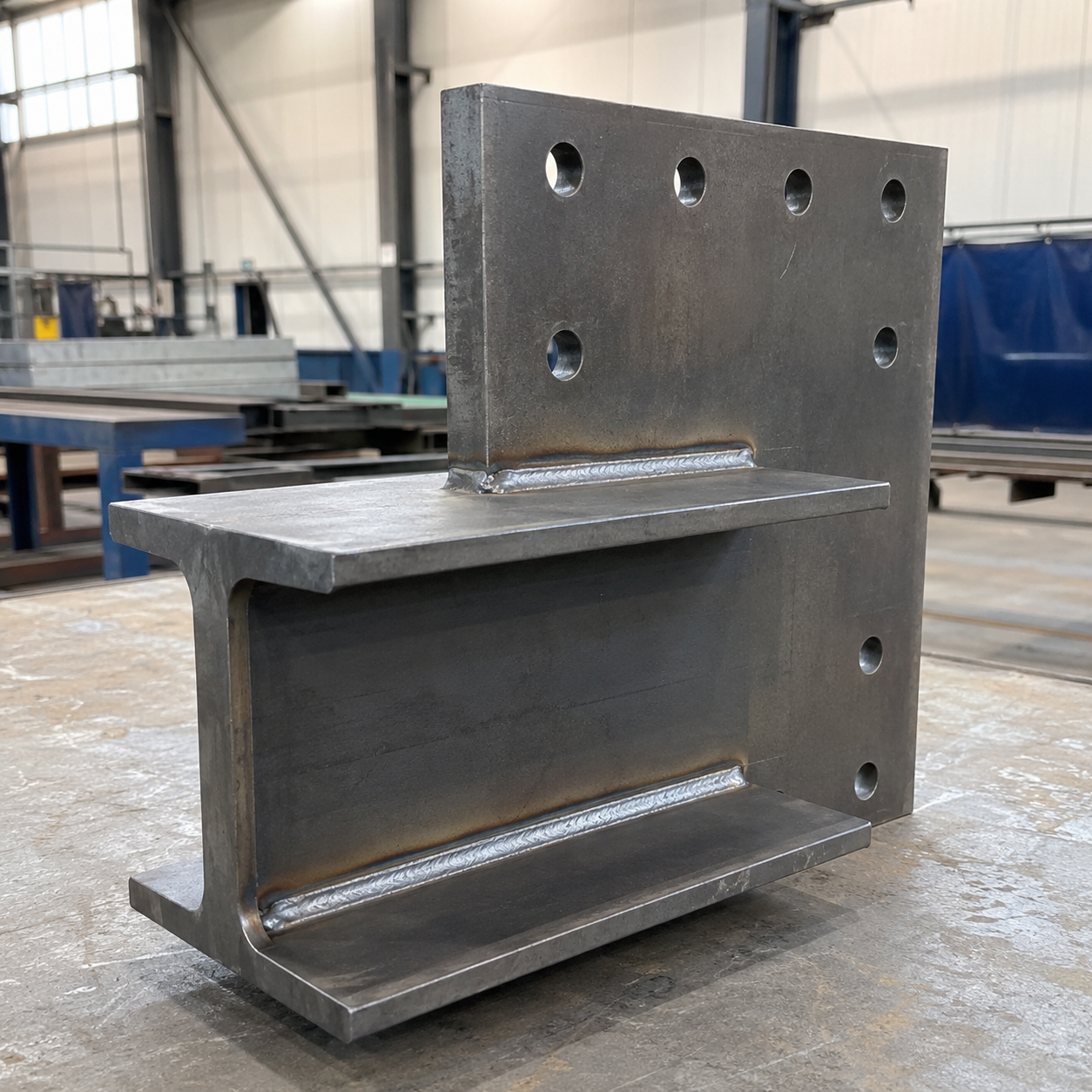

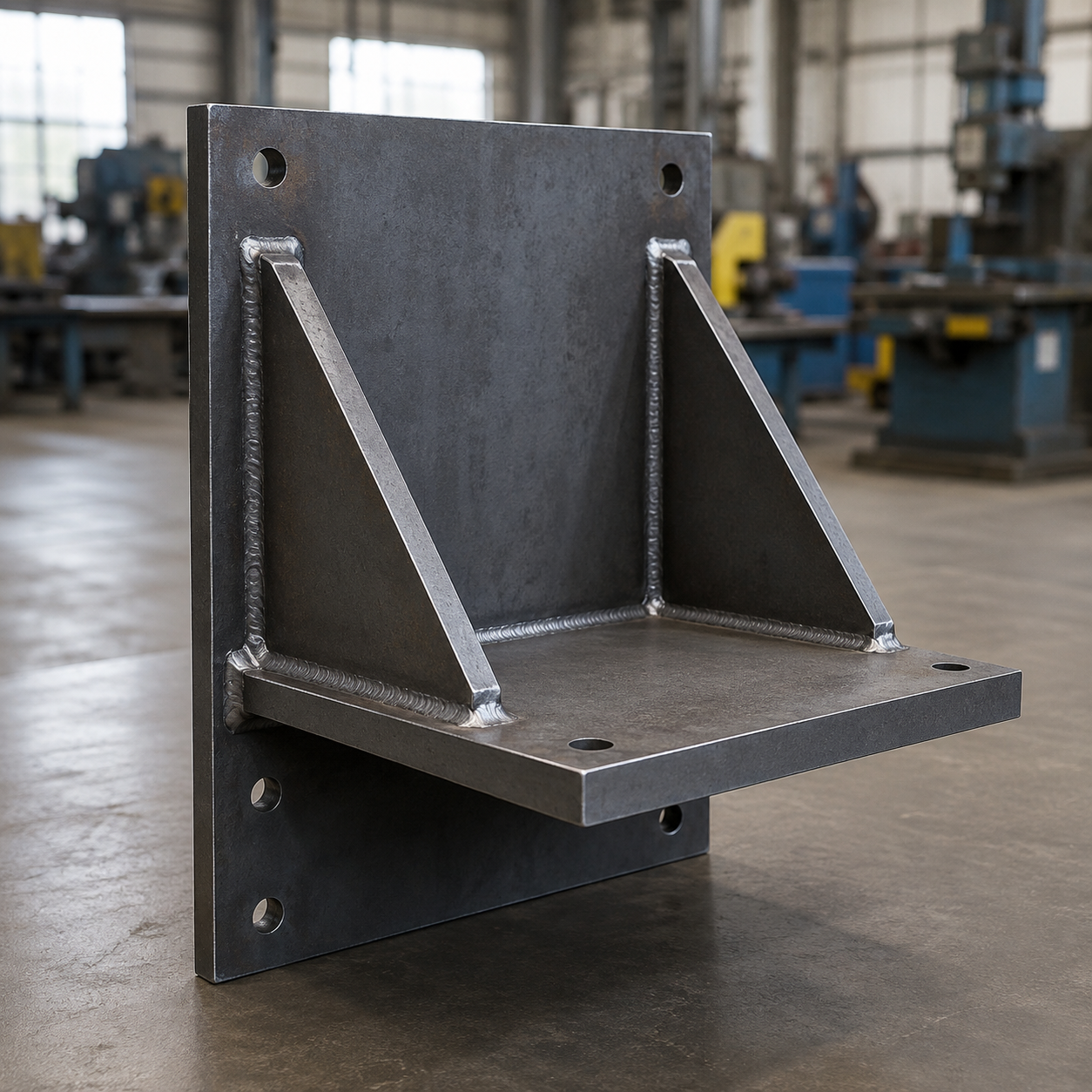

Beam connectors include shear tabs, welded end plates, stiffened seats, splice assemblies and supporting brackets. They are used in beam-to-column and beam-to-beam connections.

Column Joint Components

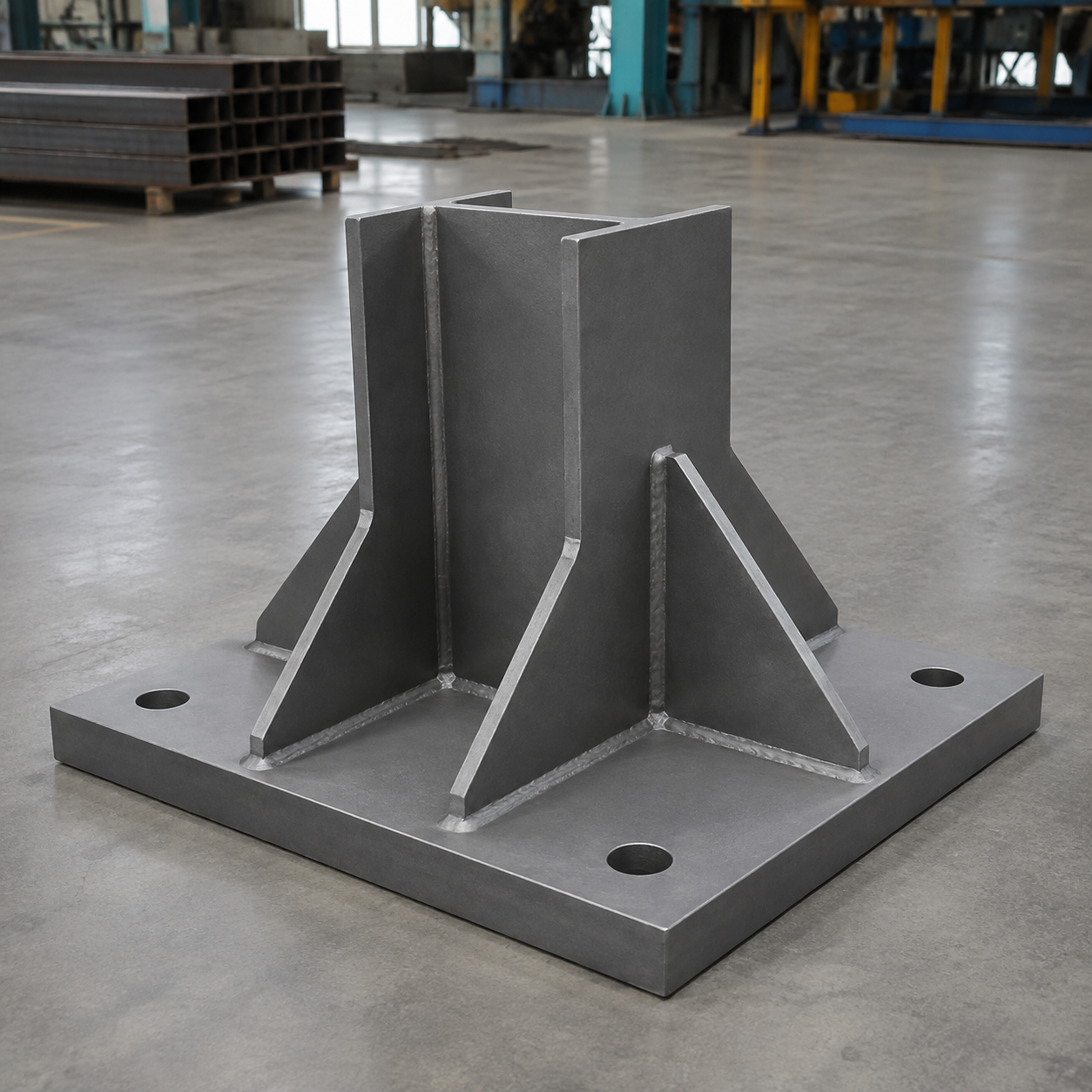

Column connection products include welded base assemblies, column shoes, splice joints, stiffened base plates and customized column-support components.

Bracing Connection Assemblies

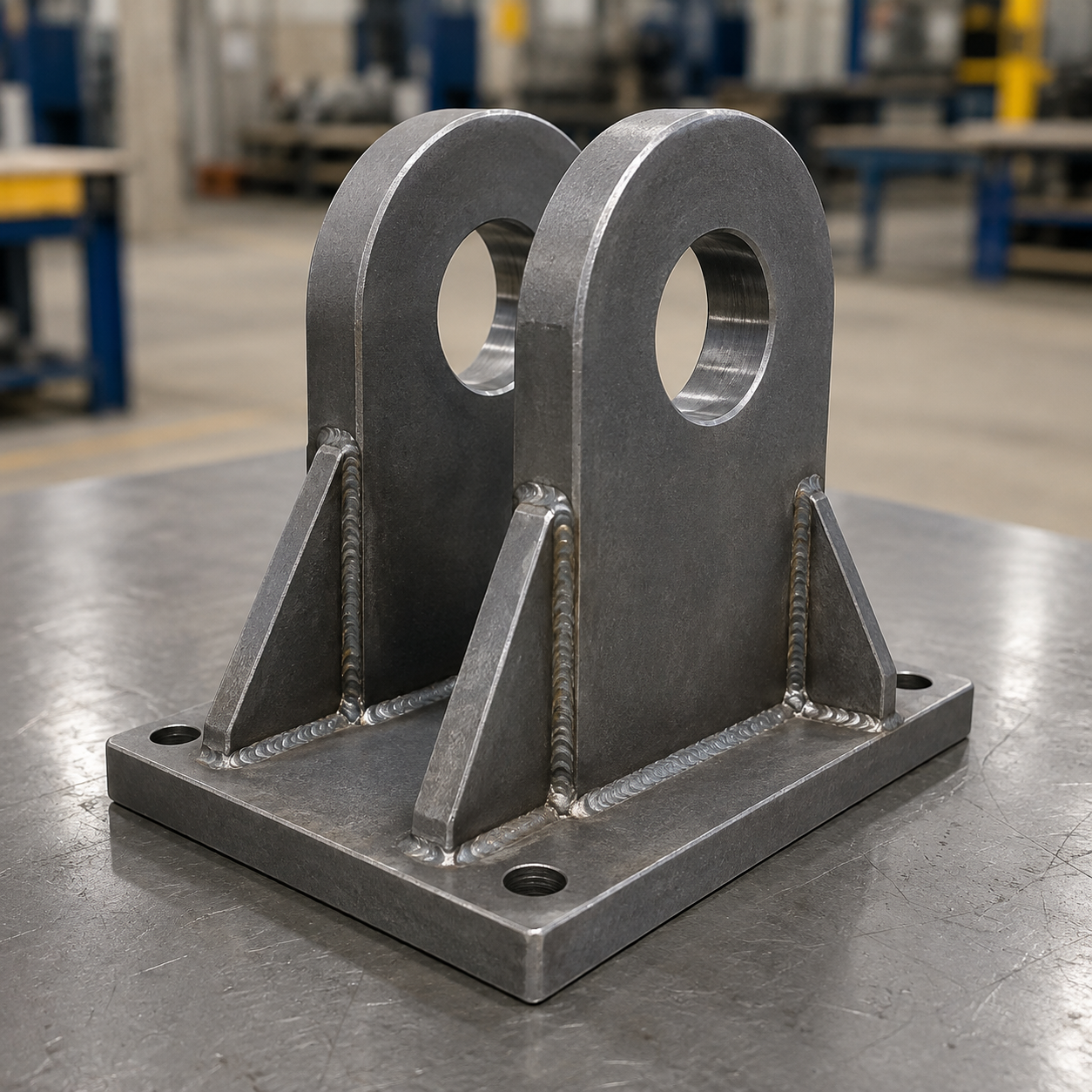

Brace connectors include gusset assemblies, clevis brackets, welded lugs and end-connection plates for roof, wall and cross-bracing systems.

Truss and Tubular Nodes

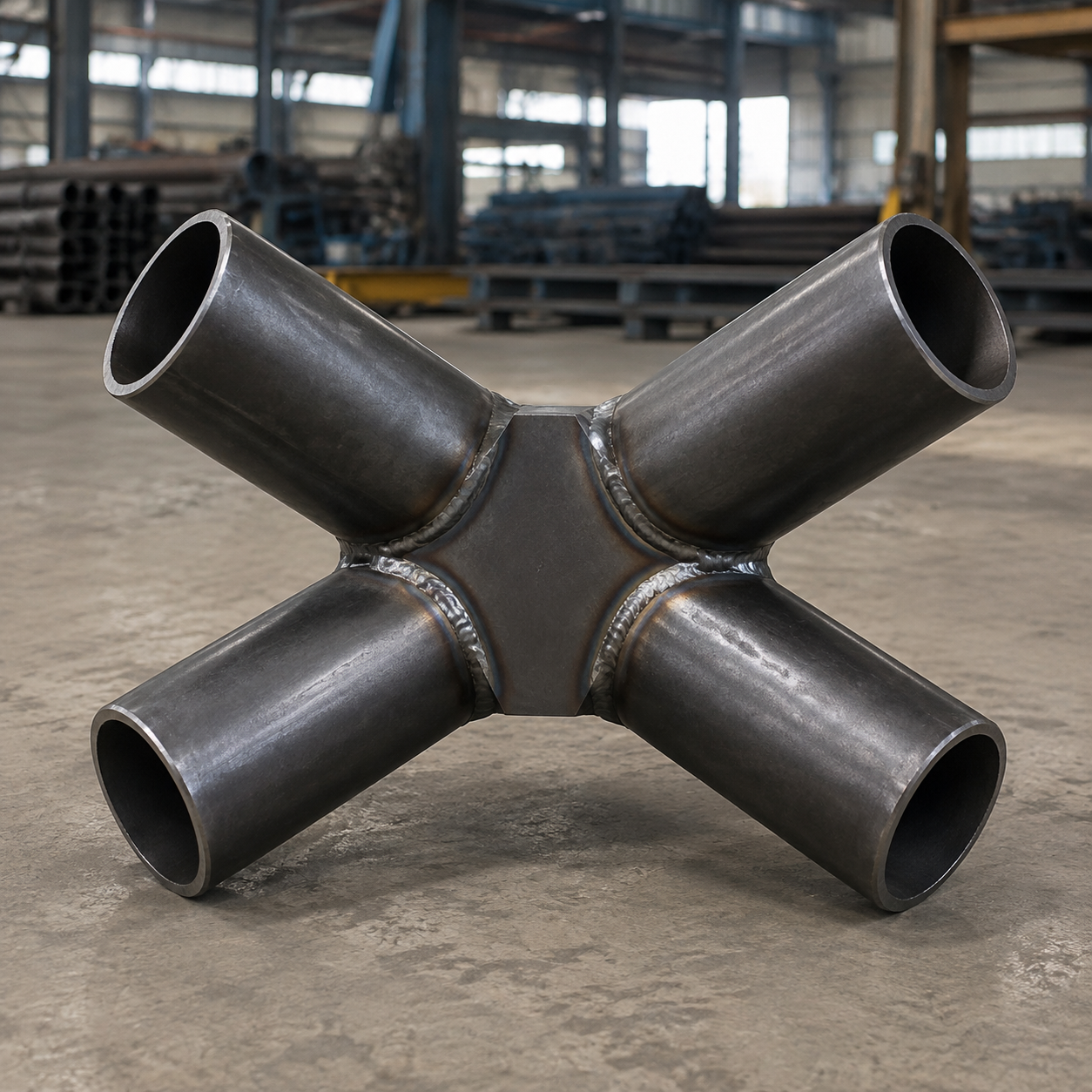

Specialized welded nodes can be produced for circular tubes, square tubes, roof trusses, lattice structures and other large-span structural systems.

Platform and Equipment Brackets

Heavy welded brackets are available for mezzanines, maintenance platforms, industrial equipment, pipe supports and machinery-support structures.

Customized Fabricated Joints

Complex or non-standard welded assemblies can be manufactured from project drawings, 3D models or approved samples.

General Product Parameters

Functional Benefits

Dependable Load Transfer

Properly designed and fabricated welded joints help distribute structural loads between connected steel members.

Improved Fit-Up Accuracy

Controlled cutting, drilling and assembly help maintain correct interface dimensions and bolt-hole positions.

Faster Site Installation

Pre-fabricated connection assemblies reduce cutting, welding and drilling work at the construction site.

Lower Rework Risk

Drawing review, in-process inspection and final dimensional verification help reduce mismatch and installation delays.

Flexible Project Supply

Components can be supplied individually or organized as complete connection packages for different building areas.

Suitable for Repeated Production

Fixtures and production templates can be used to maintain consistency when manufacturing large quantities of identical connection parts.

Drawing Review and Production Preparation

Before production begins, our team checks the drawings and confirms:

• Material specifications

• Component quantities

• Critical dimensions

• Connection directions

• Hole locations

• Weld symbols

• Surface-treatment requirements

• Inspection requirements

• Product-marking rules

• Packing and shipping conditions

If a detail may affect fabrication, galvanizing or transportation, our team will communicate with the customer before production.

Production Quality Management

Quality control is performed from material receipt to final shipment.

Material Verification

Steel type, plate thickness, surface condition and material documentation are checked before cutting.

Fabrication Inspection

Cut profiles, bevels, holes, component dimensions and assembly positions are checked during production.

Welding Inspection

Weld location, continuity, appearance and specified dimensions are inspected after welding. Additional testing can be arranged for critical joints.

Surface Inspection

Coating appearance, galvanizing condition and protective-layer thickness can be checked according to project requirements.

Final Verification

Finished components are checked against approved drawings before marking, packing and loading.

FAQ

Do you sell standard-size connection components?

We primarily manufacture components according to project drawings. Standard or repeated designs can also be produced in batches after the specifications are confirmed.

Can you manufacture both small brackets and large connection assemblies?

Yes. Our capabilities cover small plate connectors, medium-sized welded brackets and heavy structural joint assemblies.

What drawing formats can you accept?

Common formats include PDF, DWG, DXF and 3D model files. Clear dimensional drawings are required before production approval.

Can you help optimize a component for manufacturing?

Yes. Our team can review cutting, hole processing, welding access, galvanizing and packaging considerations and provide manufacturing suggestions.

Can components be supplied by installation area?

Yes. Products can be classified, marked and packaged according to building section, floor, axis or installation sequence.
