Steel Structure Construction under a general contracting model is a single-source delivery approach for owners comparing one accountable contractor with separate design, fabrication, and erection vendors. It connects design coordination, detailing, procurement, fabrication, logistics, installation, quality control, and handover. The business problem is usually not steel price alone. It is schedule slippage, design-to-fabrication gaps, cost creep, and unclear responsibility when complex steel packages move from calculations to site work.
The decision lens should cover delivery scope, engineering depth, factory capability, erection planning, compliance, and lifecycle cost. Technical variables such as loads, connections, fabrication sequence, fire protection, coatings, and lifting methods directly affect commercial results. This guide explains how general contracting works across design, procurement, fabrication, logistics, erection, QA/QC, and handover, so bidders can be judged by installed risk rather than headline tonnage. It also sets practical evidence requirements before award for industrial, warehouse, and tall building projects.
Steel structure construction is fastest and lowest-risk when engineering, detailing, fabrication, and erection are coordinated under one accountable delivery model
The right contractor is not just a steel supplier; they need proven steel structure engineering, shop capability, erection planning, and standards-based quality control
Cost should be judged by total installed cost and schedule certainty, not only per-ton steel price; connection design, coatings, logistics, crane plans, and rework risk materially change TCO
Steel is often the better choice for long spans, industrial buildings, and high-rise steel frame projects, but fire protection, corrosion exposure, and code requirements must be priced honestly upfront
A credible bid should prove code compliance, traceable materials, qualified welding and bolting procedures, factory capacity, realistic fabrication lead time, and a clear responsibility matrix
General contracting in steel structure work means one delivery chain manages the steel package from early definition to final acceptance. The scope may include concept support, structural design coordination, connection design, detailing, procurement, fabrication, transport, erection, inspection support, and handover documentation.
This differs from material-only supply or fabrication-only contracts. Under split procurement, design intent, shop detailing, fabrication sequence, and field erection may sit with different parties. When a connection conflicts with a crane runway, roof opening, or anchor bolt location, responsibility can become disputed. Under an integrated model, the contractor coordinates RFIs, drawing revisions, shop priorities, shipping marks, and site responses through one controlled workflow.
The model is most valuable when the project has compressed dates, heavy trade interfaces, export logistics, phased handover, or limited owner-side steel expertise. It also helps when repeated buildings must carry lessons learned from one phase to the next.
| Party | Typical responsibilities | Risk if responsibility is unclear |
Owner | Defines building use, operating loads, budget, expansion plans, and decision deadlines | Late changes, redesign, and unclear acceptance criteria |
Architect | Coordinates layout, clear height, access, envelope, occupancy, and code-driven space needs | Conflicts between usable space and structural efficiency |
Structural engineer | Designs framing for safety, stability, serviceability, and code compliance | Unsafe, overbuilt, or difficult-to-erect framing |
Steel detailer | Produces shop drawings, connection details, bolt lists, erection drawings, and mark numbers | Fabrication delays, missing parts, and field fit-up failures |
Procures materials, fabricates members, maintains traceability, applies coatings, and packs by erection zone | Quality variation, coating defects, and disordered delivery | |
General contractor | Coordinates foundations, cladding, MEP, inspections, safety, RFIs, schedule, and handover | Interface failures between steel and other trades |
Erector | Controls lifting, temporary stability, bolting, field welding, alignment, and site safety | Unsafe erection, tolerance failures, and rework |
Authority or third-party inspector | Verifies code compliance, special inspections, acceptance records, and closeout documents | Failed inspections, permit issues, and delayed occupancy |
Integrated steel delivery is common for warehouses, logistics centers, industrial halls, aircraft hangars, sports facilities, and hybrid steel-concrete buildings. It also fits a Steel structure workshop where crane beams, mezzanines, ventilation, process equipment, and expansion bays must be coordinated early.

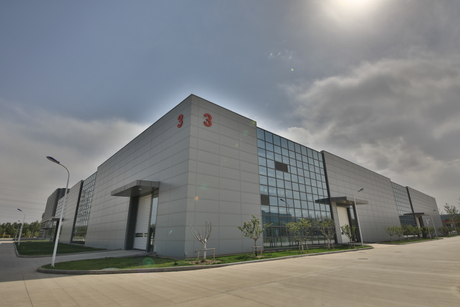

A Prefabricated steel structure can shorten site duration when repeated bays, standardized members, and clear mark numbering are agreed before fabrication. A High-rise Steel Frame project may benefit from lighter structural weight, rapid tier erection, and ductile seismic behavior, but it requires stronger controls over fireproofing, tolerances, and connections.
It fits projects with aggressive schedules, phased occupancy, or cross-region logistics.
It fits buildings where steel, foundations, cladding, cranes, MEP, and fireproofing overlap.
It fits owners that need one party to control detailing, fabrication, delivery, and erection sequencing.
It may not fit very small buildings where local trade coordination is simple.
It may not fit owners that require separate multi-bid procurement at every phase.
Steel is often selected for long spans, lighter foundations, faster assembly, future expansion, and better adaptability. Concrete can be stronger commercially where fire resistance, acoustic mass, vibration damping, or local material economics dominate. The correct answer depends on use, loads, code, site access, and lifecycle strategy.
| Factor | Steel structure | Reinforced concrete |
Weight | Usually much lighter; some comparisons cite suitable steel framing as roughly 60% lighter | Heavier, often increasing foundation reactions |
Indicative floor dead load | Often around 60 to 75 psf, depending on system design | Often around 110 to 130 psf, depending on slab and beam design |
Span capability | Strong for large grids, clear spans, trusses, and portal frames | Can span well, but may become deeper or heavier |
Schedule | Off-site fabrication and fast field assembly can shorten the site critical path | Formwork, staged pours, and curing time can extend sequencing |
Seismic behavior | Ductile when designed and detailed under the governing code | Higher mass can increase seismic demand |
Fire strategy | Often needs intumescent coating, cementitious fireproofing, encasement, or another approved system | Concrete mass can provide inherent fire resistance |
Future changes | Generally easier to modify, reinforce, extend, or partially relocate | Alterations can be more disruptive and labor intensive |

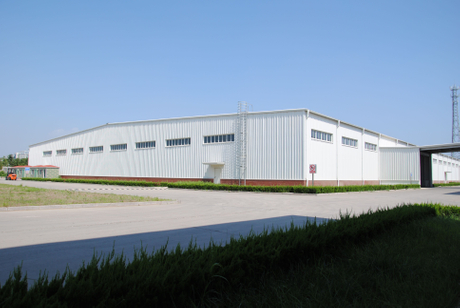

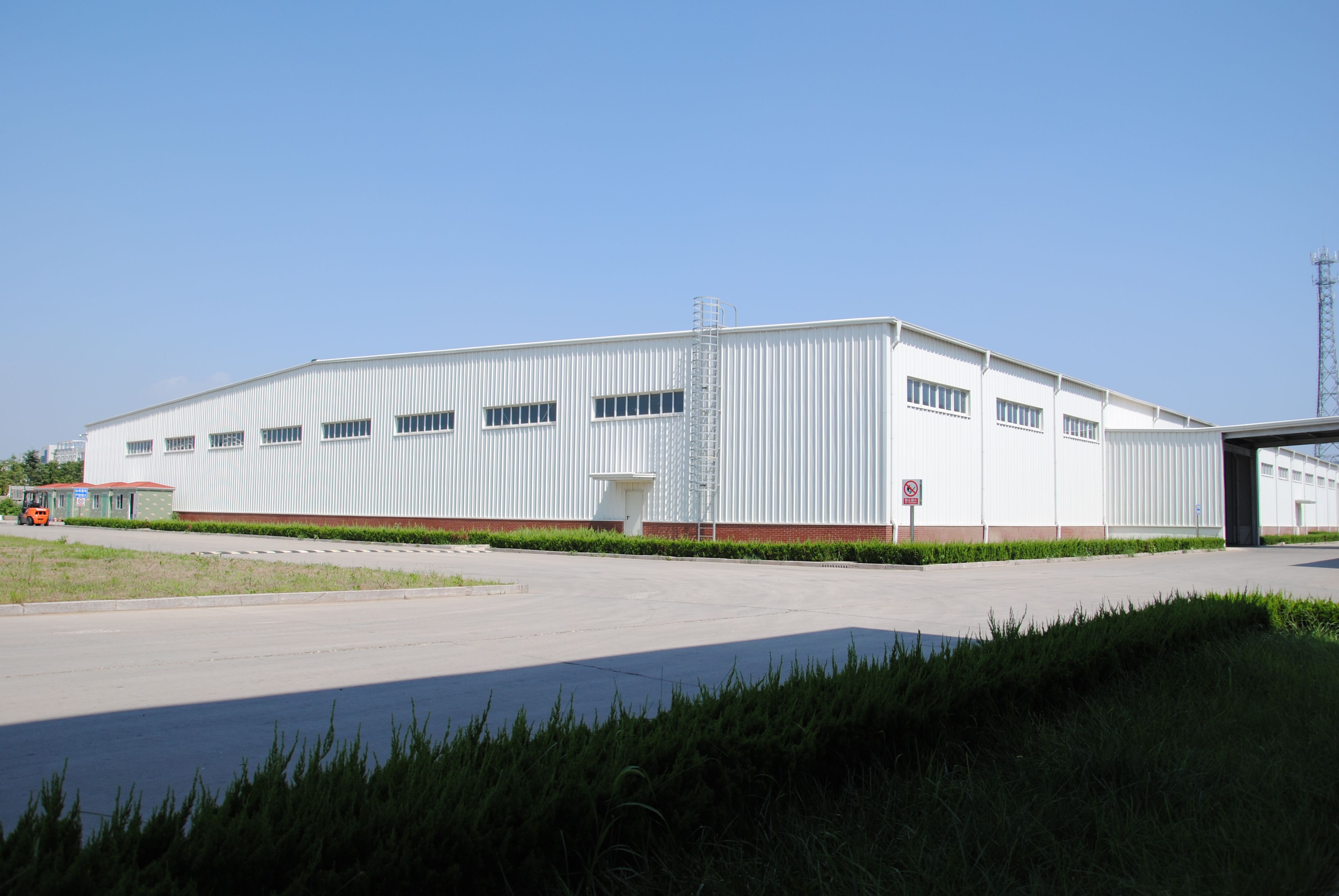

Long-span production halls, logistics centers, warehouses, and workshops needing open space.
Industrial buildings where downtime, speed-to-operation, and future line changes affect ROI.
High-rise or urban projects where lighter members and faster erection improve access planning.
Repeatable prefabricated programs with standardized bays and expansion phases.
Buildings using efficient grids, such as approximately 42 ft by 30 ft where engineering validates the layout.
| Category | Commercial effect | Contractor response |
High strength-to-weight ratio | Can reduce foundations and support long spans | Validate bay spacing, member sizes, and lateral system early |
Factory fabrication | Improves repeatability and inspection access | Use traceable materials, calibrated equipment, and shop QA records |
Fire protection | Adds cost, inspection steps, and trade coordination | Define fire rating and compatible systems before final pricing |
Corrosion exposure | Raises coating, galvanizing, and maintenance requirements | Classify coastal, chemical, humid, or interior exposure correctly |
Buckling and vibration | Can affect comfort, machinery operation, and serviceability | Control bracing, stiffness, deflection limits, and connection detailing |
The front-end stage converts business needs into engineering criteria. The project team should confirm building use, grid, clear height, floor loads, roof loads, crane loads, equipment loads, vibration limits, expansion strategy, access restrictions, and permit route. These items affect tonnage, member selection, foundation reactions, fabrication sequence, and erection method.
Commercial assumptions should also be fixed early. They include target completion date, steel price validity, fabrication slots, coating class, fire rating, export packing, shipping distance, and inspection scope. A design basis memorandum gives bidders the same load assumptions, deflection limits, corrosion class, fire criteria, and code basis.
Steel structure engineering is both concept development and member sizing. The engineer must balance strength, stability, serviceability, constructability, inspection access, maintenance, and cost. The workflow should be visible before fabrication release.
Confirm occupancy, building use, operational loads, and performance criteria.
Develop grid, bay spacing, clear heights, roof slope, and expansion assumptions.
Select the primary frame and lateral-resisting system.
Define dead, live, roof live, wind, snow, seismic, crane, equipment, and collateral loads.
Analyze the structure and complete preliminary member sizing.
Design beams, columns, bracing, trusses, girders, base plates, and key secondary members.
Design connections and verify shop and field practicality.
Check transportation limits, crane access, erection sequence, and fabrication feasibility.
Issue calculations, drawings, specifications, and inspection requirements for approval.
Load definition can change the budget more than a small steel price difference. Dead loads include steel self-weight, decks, roof systems, cladding, ceilings, fireproofing, and fixed equipment. Live loads include occupancy, storage, vehicles, maintenance access, movable equipment, and cranes. Environmental loads include wind, snow, rain, temperature, exposure, and seismic action.
The code basis must be declared before bid comparison. Depending on jurisdiction, common standards include AISC, ASCE/SEI 7, IBC, Eurocode, GB, AWS, RCSC, ASTM, or local equivalents. Where LRFD is adopted, design resistance must exceed factored load effects. Load combinations, resistance factors, serviceability limits, and special inspection rules must come from the governing code.
Braced frames are efficient for many industrial and warehouse buildings. Moment frames preserve open layouts where diagonal bracing is not acceptable. Portal frames, rigid frames, trusses, composite beams, metal deck, and hybrid systems can fit workshops, high-rise projects, and long-span buildings.
Core steel members include tension members, compression members, beams, beam-columns, trusses, girders, purlins, girts, platforms, stairs, ladders, and handrails. Secondary steel still requires coordination because it affects access, MEP routing, shipping marks, and site labor.
Connections deserve early review. Simple bolted shear connections are usually fast to erect. Moment connections transfer bending and shear, so they add fabrication hours, fit-up controls, and inspection steps. Field welding may solve geometry problems, but it can also increase weather risk, access risk, and non-destructive testing requirements.
Common bolt categories include A307 for limited light-duty uses where allowed, plus ASTM F3125 Grade A325 and A490 high-strength bolts.
Common installation checks include turn-of-nut, calibrated wrench, twist-off tension-control bolts, and direct tension indicator washers.
Common welding processes include SMAW, FCAW, and GMAW/MIG, subject to procedure qualification and site conditions.
BIM should coordinate steel with foundations, embeds, anchor bolts, cladding, roof systems, cranes, MEP, stairs, platforms, and fireproofing.
Model reviews should resolve clashes, connection congestion, inaccessible welds, coating conflicts, and truck-by-truck shipping sequence.

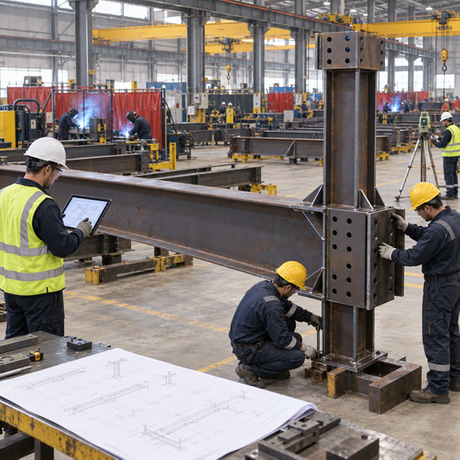

A skilled design team cannot fully offset weak fabrication control. Factory capacity affects lead time, dimensional consistency, coating quality, packaging order, and site fit-up. In-house processes also change risk. Outsourced cutting, drilling, galvanizing, or painting can work, but responsibilities and inspection points must be documented.
The contractor should prove that the shop can handle the required member sizes, plate thicknesses, hole tolerances, welding demand, cambering needs, and trial assembly requirements. Complex trusses, heavy nodes, crane beams, and export packages need stronger shop planning than simple columns and rafters.
Plate and section cutting, sawing, drilling, punching, beveling, fitting, assembly, and welding.
Hydraulic bending or cambering where preset deflection control is required.
Blasting, primer application, painting, fire-resistant coating, and optional galvanizing coordination.
CNC equipment and digital production tracking for repeatability and mark control.
Material traceability for grades, heat numbers, mill certificates, weld records, and coating batches.
Trial assembly capability for complex geometry or long-distance shipment.
Packaging systems that match erection zones, lifting order, and truck or container loading.
A standard fabrication flow starts with material procurement and mill certificate verification. It then moves through cutting, hole making, fitting, tack welding, dimensional checks, shop welding, straightening, cambering, grinding, trial assembly where needed, surface preparation, coating, final inspection, marking, packing, and dispatch.
Many building projects fall within an approximate 3 to 8 week fabrication window. The actual duration depends on approval speed, shop utilization, automation, coating system, galvanizing queues, heavy section availability, high-strength bolt procurement, and export packing. Sequencing by erection zone is more useful than planning by total tonnage alone.
What is the monthly tonnage capacity, and what is the current utilization?
Which processes are in-house, and which are subcontracted?
What steel grades, plate thicknesses, and member sizes can the facility process?
How are WPS/PQR records, welder qualifications, and calibration logs maintained?
Can the factory provide mill certificates, coating records, inspection reports, and shipping lists?
Can complex assemblies be trial-fitted before shipment?
How are nonconformities documented, corrected, and closed out?
Site execution starts before steel arrives. Foundations and anchor bolts should be surveyed against approved tolerances. The contractor should confirm haul routes, unloading method, laydown area, crane selection, lift studies, exclusion zones, wind limits, access control, and work-at-height procedures.
Temporary stability planning is necessary because a partially erected frame may not yet have its final lateral strength. The erection method statement should define bracing sequence, bolt-up requirements, release criteria, inspection hold points, and emergency procedures.
| Method | Typical use | Planning concern |
Tier erection | Multi-story and high-rise frames progressing floor by floor | Vertical logistics, splice locations, and tolerance stacking |
Billboard-style erection | Full-height bays advanced sequentially | Trade access behind completed zones |
Modular or preassembled lifts | Repeatable steel packages where crane capacity allows | Lift weight, rigging, temporary bracing, and transport size |
Stick-built erection | Constrained sites, lighter members, or smaller projects | Longer field labor and more individual lifts |
Erection zones should match crane reach, access roads, laydown space, and follow-on trade sequencing. Shipping by zone helps ensure that the first delivered members are the first required for installation. On suitable projects, a zone may represent several truckloads, sometimes around 10 truckloads where project scale supports it.
Field checks include anchor bolt location, projection, base plate fit-up, column plumbing, frame alignment, bolt installation records, field welding conditions, preheat requirements, and required NDT. Practical column plumbing benchmarks may include horizontal deviation around plus or minus 1 inch or height divided by 500 where the applicable standard and project specification permit.
Workshop and factory buildings need extra attention to crane runway alignment, process platforms, roof penetrations, ventilation equipment, pipe racks, and production-line access. Prefabricated systems depend on accurate foundations, clear mark numbering, and disciplined packaging. High-rise work adds urban staging, fireproofing sequence, facade interfaces, composite deck coordination, wind controls, and public protection.
A credible contractor should identify the standards governing design, material supply, bolting, welding, coatings, erection, and acceptance. Common references include AISC 360, ASCE/SEI 7, AWS D1.1/D1.1M, RCSC requirements for high-strength bolted joints, ASTM product standards, IBC special inspection provisions, OSHA or local safety rules, and local fire or seismic regulations.
Inspection roles should be named early. Shop inspection, field inspection, welding inspection, bolting inspection, coating inspection, and final acceptance may involve internal QC staff, third-party inspectors, owner representatives, or authority-required special inspectors. Relevant credentials may include AWS Certified Welding Inspector, ICC structural steel and bolting or welding special inspector credentials, or local equivalents.
| Control area | Documents or checks to request |
Materials | Mill certificates, heat-number traceability, grade verification, and receiving inspection records |
Dimensional control | Fit-up checks, hole size, spacing, edge distance, alignment, and trial assembly records |
Welding | WPS/PQR records, welder qualifications, visual inspection, and specified UT, MT, PT, or RT reports |
Bolting | Bolt certificates, installation method, tension verification, and inspection hold points |
Coatings | Surface profile, cleanliness, dry film thickness, curing, adhesion, and repair records |
Field erection | Anchor surveys, plumbness checks, alignment records, touch-up repairs, and punch-list closeout |
Fire rating and corrosion exposure should be confirmed before final pricing and fabrication release. Intumescent coatings, cementitious fireproofing, board systems, encasement, galvanizing, and paint systems have different inspection, repair, appearance, and compatibility requirements. Primer, topcoat, galvanizing, and fireproofing layers should be checked as a complete system.
No written inspection and test plan, WPS/PQR records, or inspection matrix.
Vague answers on bolting method, weld inspection, tolerances, or field repairs.
No material traceability, calibrated equipment records, or qualified welder evidence.
Bid exclusions for NDT, coating repair, fireproofing coordination, or special inspections.
Frequent reliance on site fixes for avoidable shop errors.
Total cost is driven by steel grade, tonnage, section availability, market price, span length, bay spacing, clear height, lateral system, connection density, coatings, fireproofing, fabrication complexity, transport limits, crane time, safety controls, inspections, and trade interfaces. Local wind, snow, seismic, crane, equipment, and serviceability requirements can materially change member sizes and connection demand.
Lowest per-ton price can be misleading. A low quote may exclude detailing iterations, erection aids, realistic field welding allowances, NDT, special inspections, touch-up painting, fireproofing coordination, or packaging by erection sequence. Lower tonnage is not always cheaper if it requires complex nodes, heavy welding, difficult lifts, or inaccessible inspection points.
Earlier production or occupancy because erection can be faster than concrete-heavy work.
Reduced foundation volume where lighter framing lowers reactions.
Future expansion through added bays, mezzanines, equipment supports, or modified openings.
Lower disruption during production-line changes or building reconfiguration.
Reduced site labor on repeatable prefabricated programs when detailing and logistics are controlled.
Recyclability, salvage value, or reuse potential where lifecycle planning supports it.
| Project type | Potential value | Cost risk to price honestly |
High-rise steel frame | Faster erection, lighter structure, and good seismic behavior | Fireproofing, connection complexity, inspections, and urban logistics |
Prefabricated industrial building | Lower site labor and faster assembly | Higher up-front coordination and stricter foundation tolerances |
Workshop | Efficient clear spans and future production flexibility | Crane beams, process loads, ventilation penetrations, and platforms |
Factory building | Operational flexibility and expansion potential | Equipment loads, corrosion exposure, embedded items, and line access |
Hybrid steel-concrete system | Balanced stiffness, speed, fire resistance, and cost | Interface management between trades and structural systems |
Normalize bids by design basis, code assumptions, loads, deflection limits, fire rating, and corrosion class.
Confirm steel grade, coatings, galvanizing, fireproofing, metal deck, shear studs, stairs, handrails, crane beams, and secondary steel.
Separate material escalation terms from fabrication labor, erection labor, transport, and crane pricing.
Request assumptions, exclusions, alternates, unit rates, and change-order rules.
Tie payment to measurable milestones such as design approval, procurement, fabrication, shipment, erection progress, inspection acceptance, and handover.
Technical risks include incomplete loading data, anchor bolt misalignment, connection conflicts, late fire strategy decisions, unresolved vibration issues, corrosion exposure errors, and MEP clashes discovered after fabrication. Field risks include unsuitable crane access, poor laydown planning, weather delays, difficult field welding, temporary stability gaps, and missing inspections.
Commercial risks include steel price volatility, fabrication slot shortages, permit delays, owner changes after shop approval, coating bottlenecks, customs delays, oversize transport restrictions, and unrealistic schedules that ignore RFIs, inspection hold points, and weather downtime.
Require an approved design basis memorandum and a written responsibility matrix.
Set BIM clash review, connection review, and shop drawing approval milestones.
Maintain a procurement register for heavy sections, custom plates, bolts, coatings, and deck.
Complete anchor bolt surveys before steel shipment.
Approve factory and site inspection and test plans with witness points.
Confirm erection method statements, lift studies, temporary bracing, and safety plans.
Track RFIs, submittals, NCRs, shipments, erection progress, inspections, and closeout through a shared dashboard.
Shortlisting should begin with relevant portfolio evidence. The contractor should show experience with the same building type, span range, tonnage, code basis, wind or seismic category, corrosion exposure, crane loads, and logistics conditions. Engineering depth matters because calculations, connection design, detailing, BIM coordination, and code familiarity directly affect fabrication and erection risk.
Factory capability should be verified through capacity data, equipment lists, quality records, trial assembly examples, coating systems, and traceability procedures. Site capability should be verified through lift studies, sequencing plans, temporary works, tolerance control, safety record, and inspection coordination.
Commercial review should test scope completeness, exclusions, payment milestones, steel price validity, escalation clauses, warranty terms, defect response, and post-handover support. A complete bid should include calculations, shop drawings, erection drawings, mill certificates, WPS/PQRs, welder qualifications, NDT reports, coating records, NCR closeouts, and maintenance recommendations.
Engineering scope, code basis, connection responsibility, detailing, and BIM coordination are defined.
Wind, snow, seismic, equipment, crane, roof, floor, and serviceability requirements are frozen.
Coatings, galvanizing, fireproofing, inspection, temporary works, delivery, unloading, and erection are included or clearly excluded.
Foundation tolerances, anchor bolt requirements, cladding interfaces, MEP penetrations, and roof openings are coordinated.
Factory capacity, fabrication lead time, shipping sequence, and mark numbering are verified.
Total installed cost is compared instead of per-ton steel price alone.
Steel structure general contracting creates value when speed, span efficiency, seismic performance, and future adaptability matter. Project owners should move forward only when the contractor can prove accountable engineering, traceable fabrication, realistic erection planning, and standards-based inspection.
Freeze the design basis, loading criteria, code assumptions, fire rating, and corrosion class.
Issue a normalized RFQ with a responsibility matrix and clear exclusions schedule.
Audit the factory and review sample calculations, shop drawings, QA records, and coating documents.
Validate fabrication lead time, shipping sequence, crane plan, and erection method statement.
Award based on risk-adjusted installed value, not headline tonnage or per-ton price.
A: It commonly includes design coordination, structural analysis support, detailing, material procurement, fabrication, logistics, erection, inspection support, and handover records. Foundations, cladding, MEP, fireproofing, cranes, or galvanizing may be separate unless the contract includes them. A written responsibility matrix should define every interface.
A: Not always. Steel is often faster and lighter, which can reduce foundations and site labor. Final cost depends on spans, fire rating, corrosion exposure, local pricing, inspection scope, and erection complexity. The fair comparison is total installed cost, schedule value, lifecycle maintenance, and future expansion flexibility.
A: Timing depends on design approval, plant capacity, fabrication complexity, coating scope, shipping distance, and erection method. Fabrication for many standard building packages may fall within roughly 3 to 8 weeks. Complex structures can take longer, so the full design-to-handover schedule should control planning.
A: The governing standards depend on jurisdiction. Common references include AISC, ASCE/SEI 7, AWS D1.1, RCSC, ASTM, IBC, OSHA, and local building, fire, seismic, coating, and safety codes. Bidders should state which standards govern design, welding, bolting, erection, inspection, and acceptance.
A: A steel structure factory may mean the fabrication facility that produces steel members. A steel structure workshop usually means the end-use industrial building for manufacturing, repair, assembly, or production. Contractor evaluation should check both shop fabrication capability and project experience with completed workshop buildings.
A: It is usually best when speed, repeatability, and lower site labor are priorities. It fits standardized bays, warehouses, workshops, logistics centers, and expansion programs. It also requires accurate foundations, coordinated shop drawings, disciplined mark numbering, and shipping sequences matched to erection zones.
A: Main risks include connection complexity, tolerance accumulation, fireproofing coordination, urban staging, crane planning, temporary stability, and public protection. They are manageable when BIM coordination, factory quality control, special inspections, lift planning, and multi-trade sequencing are completed before field erection accelerates.
