Product Description

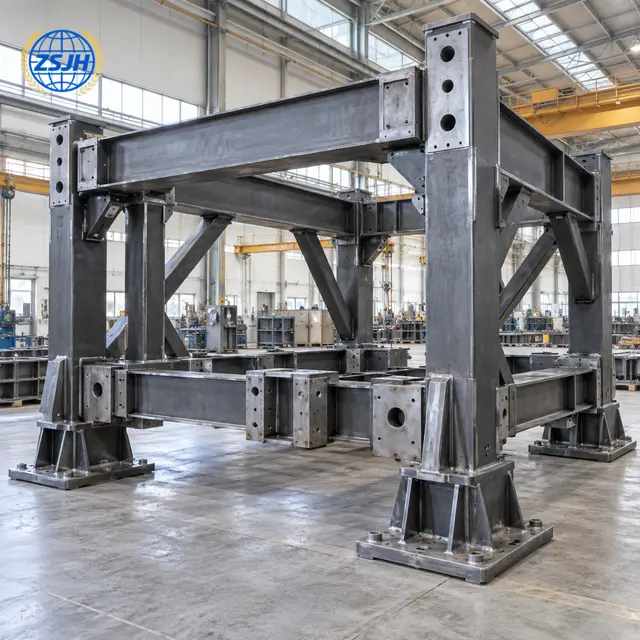

Frames may include heavy base skids, vertical columns, deep beams, cross bracing, gusset plates, bearing seats, machined mounting pads and removable connection sections. Layouts are customized around equipment dimensions, load paths, maintenance access, lifting points and transportation limits.

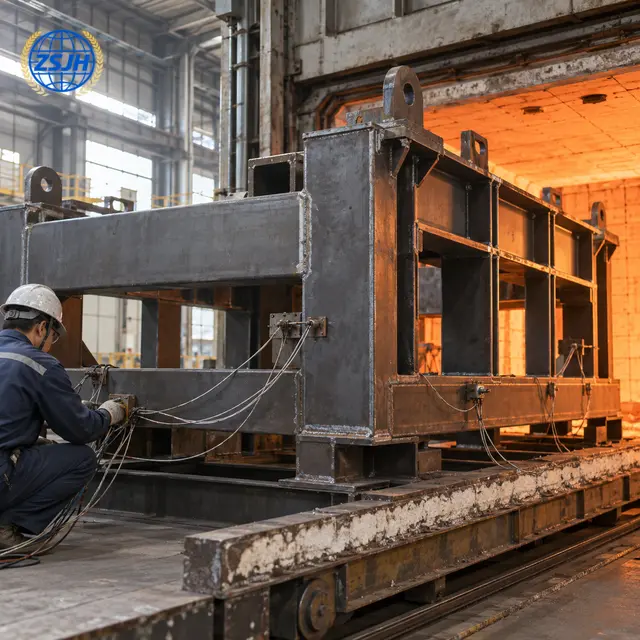

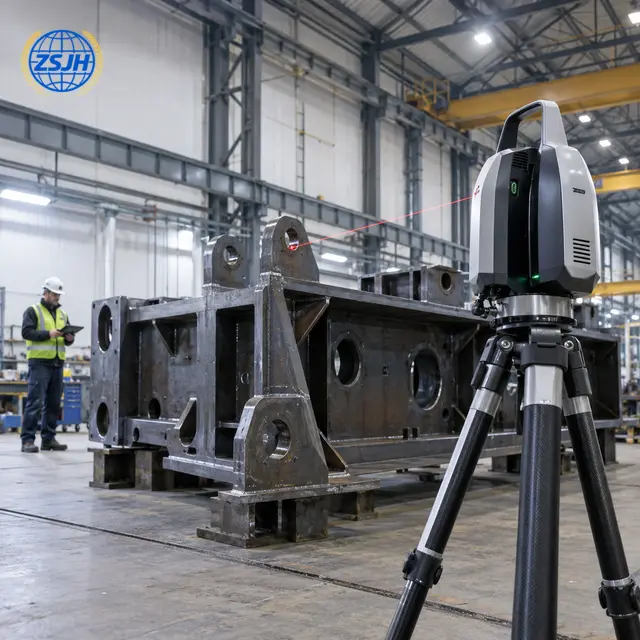

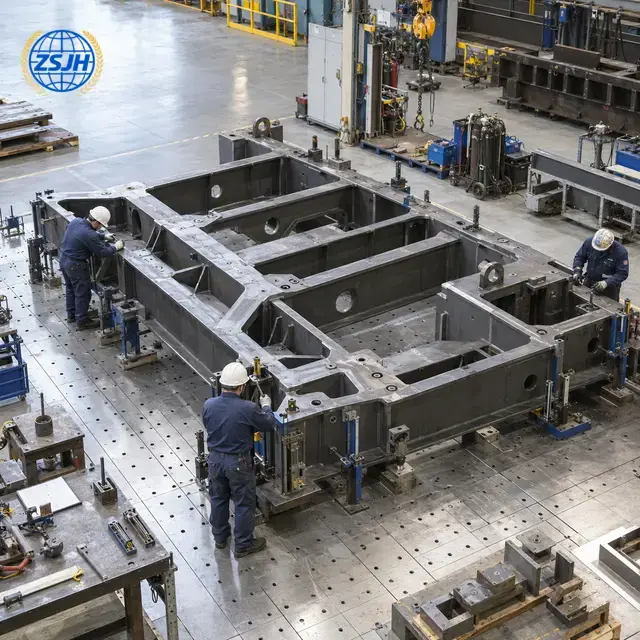

ZSJH Steel controls fit-up and welding sequence to reduce deformation and maintain critical interface dimensions. Mounting holes, bearing surfaces and equipment connection points are checked against approved drawings. Large frames may be trial assembled and divided into transportable sections before coating and shipment.\

Typical Specifications

Product Features

• High rigidity for heavy machinery and dynamic service conditions

• Precision control of mounting and connection interfaces

• Thick-plate construction with reinforced load-transfer zones

• Custom lifting, handling and installation provisions

• Modular delivery for large or complex frames

Applications

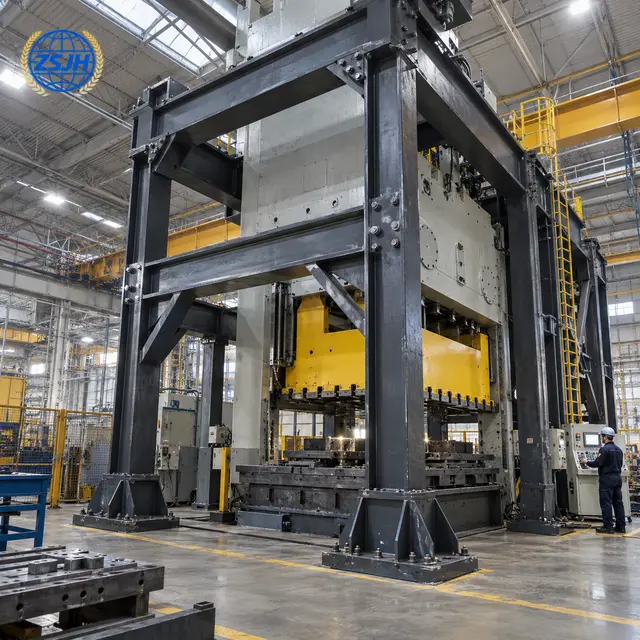

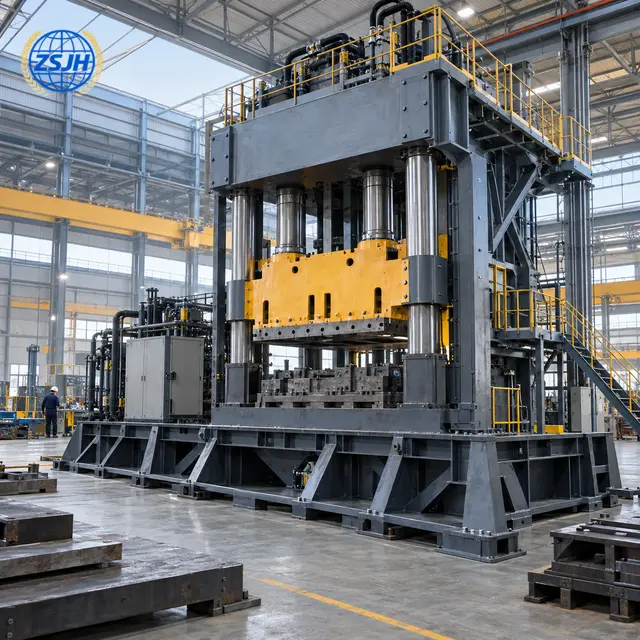

Machine tools, presses, compressors, turbines, crushers, production lines, metallurgical equipment, material-handling systems and process machinery.

Drawing-Based Customization

Manufacturing can follow customer GA drawings, fabrication drawings, interface data and tolerance requirements. Design details affecting fabrication or transportation are reviewed before production.

Manufacturing Process

Drawing review → material preparation → CNC cutting → subassembly fit-up → controlled welding → straightening → interface inspection → trial assembly → surface treatment → packing.

Meta Description

Custom heavy-duty industrial equipment frames manufactured to customer drawings for machinery, process systems and high-load industrial applications.

CTA

Share your equipment frame drawings, loads and interface requirements to receive a manufacturing proposal.
