Product Description

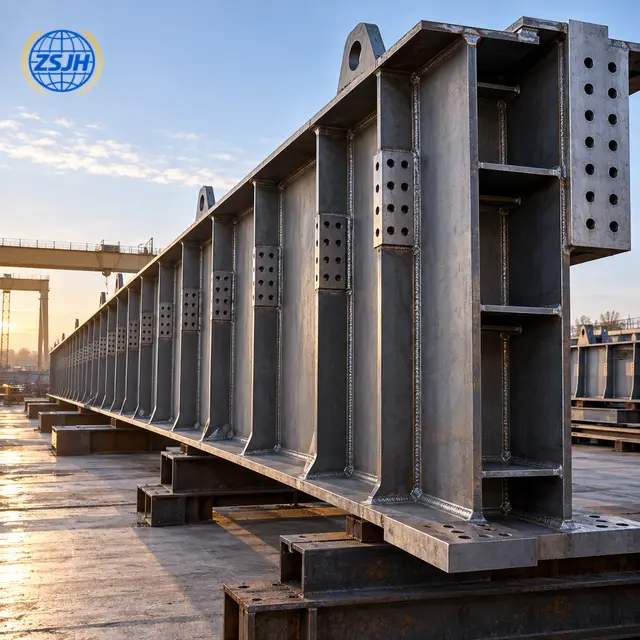

Bridge components demand accurate alignment, controlled welding and consistent connection geometry. Fabricated sections can incorporate deep webs, heavy flanges, longitudinal and transverse stiffeners, internal diaphragms, splice plates, bearing zones and lifting attachments.

ZSJH Steel reviews plate layout, weld access, assembly sequence and transport segmentation before fabrication. CNC-cut plates are prepared and assembled using controlled fixtures. Dimensional inspection, weld examination and trial assembly can be performed according to project requirements. Finished components are marked and supported to protect critical edges during shipment.

Typical Specifications

Product Features

• Heavy plate fabrication for bridge load requirements

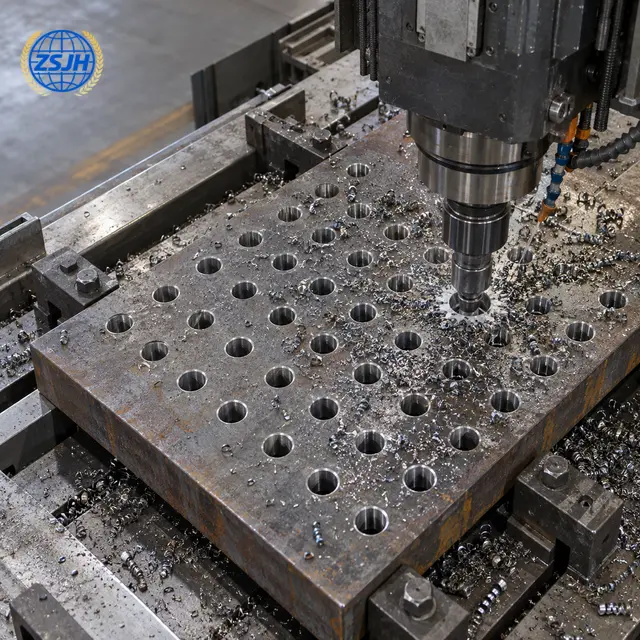

• Precise stiffener, diaphragm and splice-hole positioning

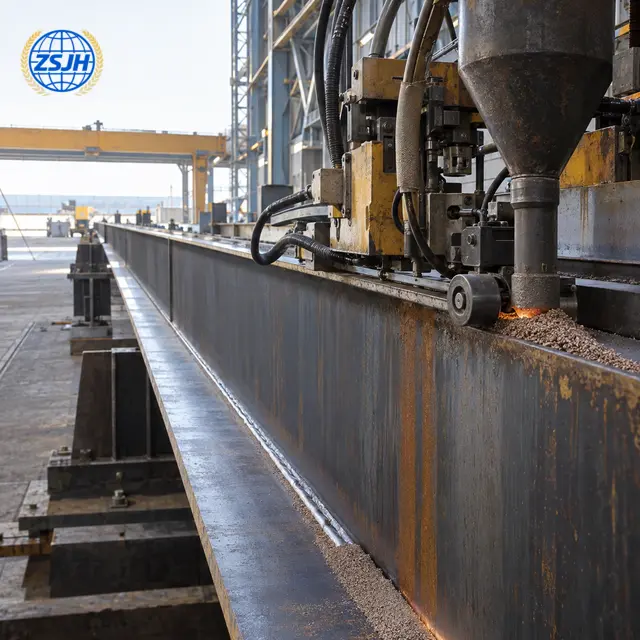

• Controlled welding sequence and deformation management

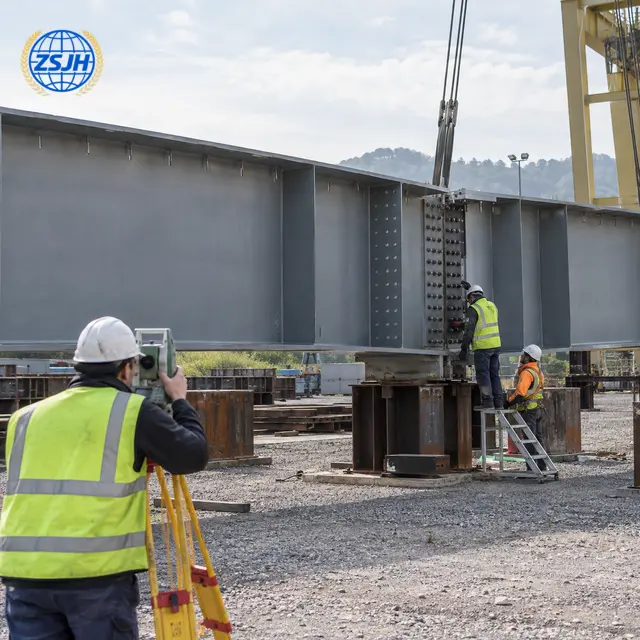

• Trial assembly and match-marking available

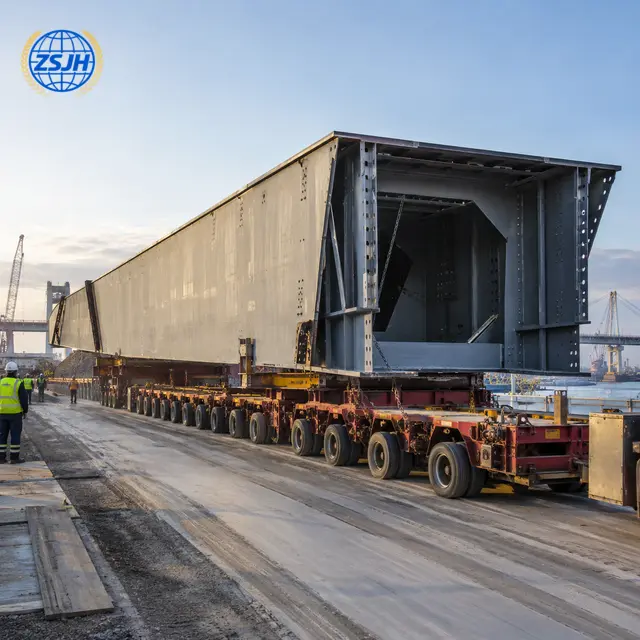

• Shipment planning for oversized bridge components

Applications

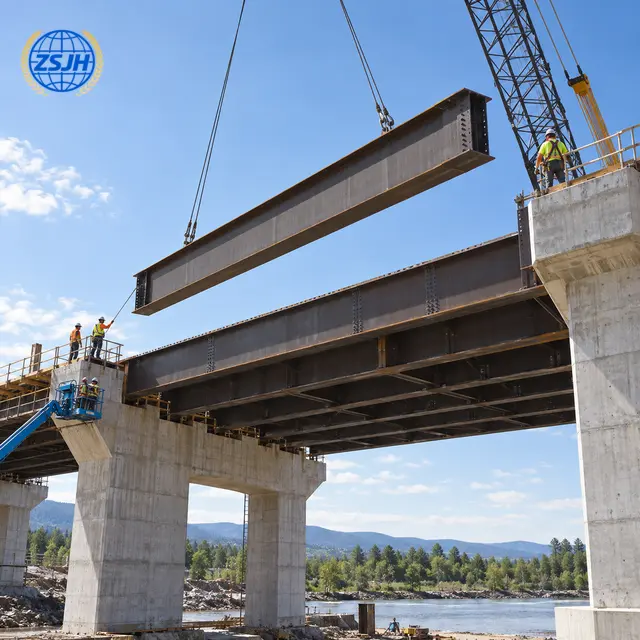

Road bridges, railway bridges, pedestrian bridges, flyovers, viaducts, marine crossings and infrastructure rehabilitation.

Drawing-Based Customization

Components are manufactured according to approved bridge drawings, welding details, tolerance requirements and inspection documentation supplied or confirmed by the customer.

Manufacturing Process

Technical review → material traceability → CNC cutting and beveling → girder assembly → controlled welding → correction → NDT and dimensional inspection → trial assembly → coating → transport supports.

CTA

Submit your bridge component drawings, material standard and inspection requirements for technical review.
