Bolted connections are one of the most important parts of an overseas steel structure project.
For international projects, two commonly encountered systems are:
ASTM F3125/F3125M Grade A325 in projects following U.S.-based structural bolting practice
EN 14399 high-strength structural bolting assemblies in projects using European standards
At first glance, both appear to be high-strength structural bolts.
However, they should not be treated simply as equivalent bolt grades.
They belong to different standards systems with different requirements for:
Bolt assemblies
Mechanical properties
Dimensions and threads
Pretensioning
Installation
Testing
Inspection
Documentation
Selecting the correct system should therefore begin with the project drawings, specifications, applicable design standard and Engineer of Record requirements.
The designation A325 is still widely used in the steel construction industry.
However, the former standalone ASTM A325 specification has been consolidated into ASTM F3125/F3125M, which now covers several grades of high-strength structural bolts and assemblies.
Grade A325 is intended for structural connections using high-strength bolting.
Typical applications include:
Industrial steel buildings
Warehouses
High-rise steel structures
Bridges
Steel platforms
Heavy structural connections
Infrastructure projects
ASTM F3125 Grade A325 heavy-hex bolts are available in inch sizes, while the metric Grade A325M system covers metric sizes.
For U.S.-style structural joints, installation and inspection requirements are commonly coordinated with the RCSC Specification for Structural Joints Using High-Strength Bolts.
EN 14399 is not simply one bolt grade.
It is a series of European standards covering high-strength structural bolting assemblies suitable for preloading.
Several systems are included in the series.
EN 14399-3 covers System HR hexagon bolt and nut assemblies.
Depending on the system configuration, HR assemblies may use property classes such as:
8.8/8
10.9/10
The system obtains its required ductility primarily through elongation of the bolt.
EN 14399-4 covers System HV hexagon bolt and nut assemblies.
HV assemblies generally achieve their ductile behavior through deformation of the engaged threads.
HV should not be confused with a tension-control or twist-off bolt.
EN 14399-10 covers System HRC bolting assemblies with calibrated preload.
HRC assemblies use a spline or break-neck arrangement and are commonly compared with Tension Control Bolts (TCBs).
A special installation wrench reacts against the spline while tightening the nut. The spline shears off at the end of the tightening process.
| Item | ASTM F3125 Grade A325 | EN 14399 |
|---|---|---|
| Standards system | U.S. ASTM / RCSC | European EN / Eurocode system |
| Main use | High-strength structural connections | Preloaded structural bolting assemblies |
| Typical bolt forms | Heavy hex; related F3125 tension-control systems also exist | HR, HV, HRC and related assemblies |
| Common dimensions | Inch Grade A325; metric Grade A325M also available | Primarily metric M12–M36 depending on system |
| Pretension control | RCSC-approved installation methods | EN 1090-2 compatible tightening methods |
| Thread system | Inch or metric according to specified F3125 grade | ISO metric |
| Installation control | Turn-of-nut, calibrated wrench, twist-off TC bolts, DTI and combined methods | Torque, combined, HRC, DTI and other permitted methods depending on specification |
| Main selection basis | Project specification and U.S.-based connection design | Eurocode / EN project requirements |
| Substitution | Requires engineering and specification review | Requires engineering and specification review |
Important: ASTM Grade A325 and EN 14399 assemblies should not be substituted for one another solely because their nominal strength appears similar.
The first question should not be:
“Which bolt is cheaper?”
It should be:
“Which bolting system is specified for this project?”
Check:
Structural drawings
Connection details
Project specification
Applicable design code
Tender documents
Owner requirements
Engineer of Record requirements
If the project follows a U.S.-based structural connection specification, ASTM F3125 Grade A325 or another specified F3125 grade may be required.
For Eurocode projects using preloaded structural bolting, EN 14399 assemblies are commonly specified.
Two bolts can have similar tensile strengths and still not be directly interchangeable.
Differences may include:
Thread geometry
Nut geometry
Washer requirements
Dimensional tolerances
Mechanical properties
Bolt assembly testing
Preload characteristics
Tightening procedure
Inspection method
Any proposed substitution should therefore be reviewed by the responsible project engineer before procurement or installation.
High-strength structural bolts may be installed as:
Snug-tightened joints
Pretensioned joints
Slip-critical joints
The required condition depends on connection design and the applicable project specification.
Pretensioning creates a defined clamping force between the connected steel plates.
This clamping force is especially important in connections where:
Slip must be controlled
Fatigue is significant
Load reversal occurs
Pretension is specifically required by the design
For RCSC structural joints, minimum required pretension is specified according to bolt group and nominal diameter.
For Group 120 bolting, which includes Grade A325-type assemblies, typical minimum pretension values from the RCSC system are approximately:
| Nominal Bolt Diameter | Minimum Pretension |
|---|---|
| 1/2 in. | 12 kip |
| 5/8 in. | 19 kip |
| 3/4 in. | 28 kip |
| 7/8 in. | 39 kip |
| 1 in. | 51 kip |
| 1-1/8 in. | 64 kip |
| 1-1/4 in. | 81 kip |
| 1-3/8 in. | 97 kip |
| 1-1/2 in. | 118 kip |
These values refer to specified minimum bolt pretension—not universal installation torque.
The actual installation procedure must follow the approved pretensioning method and project requirements.
EN 14399 assemblies intended for preloading are designed around a specified preload concept.
A commonly referenced minimum preload relationship is:
Fp,C = 0.7 × fub × As
Where:
Fp,C = specified preload
fub = ultimate tensile strength of the bolt
As = tensile stress area of the bolt
The actual installation procedure depends on:
EN 14399 system
Property class
K-class
Tightening method
EN 1090-2 execution requirements
Project specification
For this reason, bolt preload should not be converted into an installation torque using a generic coefficient without verifying the actual bolting assembly.
A frequently used engineering approximation is:
T = K × D × F
Where:
T = tightening torque
K = nut factor or torque coefficient
D = nominal bolt diameter
F = target bolt tension
This equation is useful for understanding the relationship between torque and bolt tension.
However, it should not automatically be used as a universal field installation rule.
The torque-tension relationship can vary significantly because of:
Thread condition
Lubrication
Coating
Surface contamination
Nut condition
Washer condition
Bolt lot
Installation equipment
A change in lubrication alone can significantly change the amount of bolt tension produced by the same torque.
For this reason, project installation procedures should rely on the approved standard method and verified bolting assemblies rather than a generic internet torque table.
The RCSC specification recognizes several methods for pretensioning high-strength structural bolts.
The bolts are first brought to the required snug-tight condition.
The nut or bolt head is then rotated by a specified additional amount depending on:
Bolt length
Connection geometry
Surface orientation
Match marking can be used to verify rotation.
An important advantage of the turn-of-nut method is that final pretension is controlled primarily by bolt elongation rather than relying entirely on torque.
A calibrated installation wrench is used to produce the required pretension.
However, the required installation torque should be established through pre-installation verification for the actual bolts and installation conditions.
Important variables include:
Bolt lot
Nut lot
Lubrication
Surface condition
Tool condition
The wrench and installation procedure must be controlled according to the applicable specification.

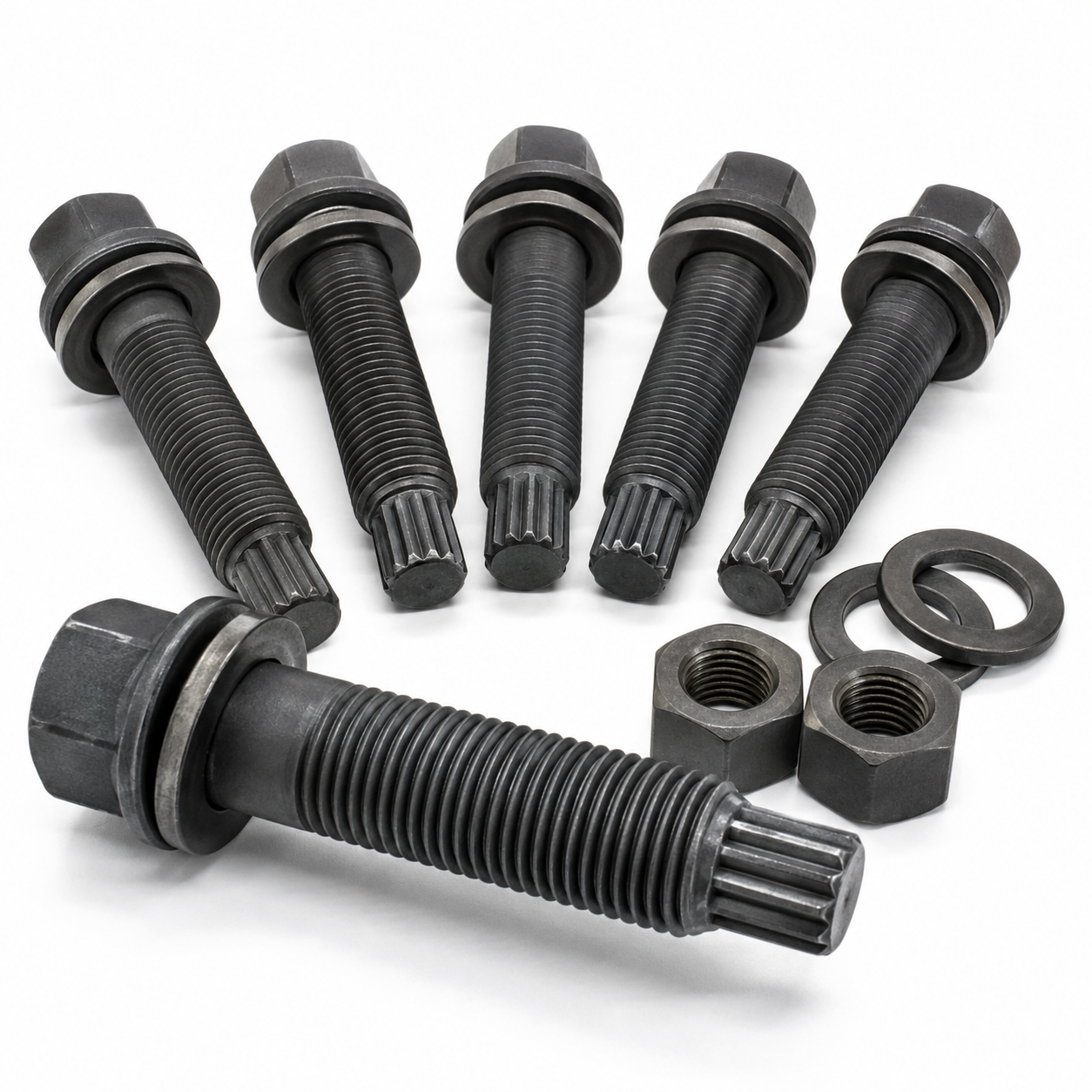

Special tension-control bolt assemblies use a splined end.
The installation tool tightens the nut while reacting against the spline.
When the designed installation condition is reached, the spline twists off.
These systems provide a convenient visual indication that the installation operation has been completed.
Direct tension indicators, or DTIs, are specially designed washers or load-indicating devices.
Their deformation provides an indication of bolt tension during installation.
DTIs can be useful where direct verification of the clamping condition is required.
The combined method uses an initial controlled tightening step followed by specified rotation.
The exact procedure should follow the relevant RCSC project requirements.
European preloaded bolting systems use tightening procedures coordinated with EN 1090-2 and the appropriate EN 14399 assembly.
Common methods include:
Torque-controlled installation requires a suitable bolting assembly and defined calibration characteristics.
The assembly's K-class is important when selecting the installation method.
For example, torque-based installation typically requires tighter control of the torque/preload relationship.
The combined method uses both torque and controlled rotation.
It normally includes:
Snug-tightening
Preliminary tightening
Final controlled rotation
Match marking can assist with inspection.
HRC bolts are installed using a dedicated shear-wrench-type tool.
The spline at the end of the bolt is sheared during the final tightening operation.
The HRC system should not be confused with the EN 14399 HV system.
Direct tension indicators can also be incorporated into EN 14399 HR or HV assemblies where permitted.
They provide a direct indication related to bolt preload.
The European system classifies certain bolting assemblies according to their tightening characteristics.
Common designations include:
K0
K1
K2
The required K-class depends on the chosen tightening method.
For example, torque-controlled methods generally require more tightly controlled torque/preload characteristics than methods that rely less heavily on torque.
This is why the installation method should be determined together with the actual EN 14399 bolting assembly rather than after the bolts have already arrived on site.
Pre-installation verification is an important part of high-strength bolting quality control.
For U.S.-style structural bolting, verification can help confirm:
Suitability of the complete bolting assembly
Lubrication condition
Ability to reach the required pretension
Correct operation of tightening equipment
Suitability of the selected installation method
This should be completed before installing verified bolt lots into the permanent structure where required.
Inspection should focus on whether the approved installation procedure has been correctly followed.
The method depends on the selected bolting system.
Typical inspection items include:
Confirmation of snug-tight condition
Match marks
Required nut or head rotation
Installation sequence
Typical inspection items include:
Pre-installation verification
Wrench calibration
Correct bolt lot
Installation procedure
Tool settings
Tightening sequence
A simple post-installation “torque check” should not automatically be treated as proof of actual bolt pretension.
Typical checks include:
Correct bolt assembly
Proper snug tightening
Condition of the spline before final tightening
Completion of the prescribed installation procedure
Visual confirmation of spline twist-off where applicable
Inspection verifies that the indicator has achieved the required condition according to its specified installation procedure.
Ultrasonic bolt elongation measurement can be used in specialized applications to estimate bolt tension.
It may be considered for:
Critical structures
Special industrial equipment
Research or verification programs
Projects with specific owner requirements
However, ultrasonic measurement should not automatically be considered the standard acceptance method for every ASTM F3125 or EN 14399 connection.
Its use should be defined by the project specification, test procedure and responsible engineer.
Do not select bolts only by comparing nominal tensile strength.
A325 and EN 14399 assemblies belong to different systems.
HV is an EN 14399 hexagon bolting system.
The European system with a shear-off spline is HRC.
A fixed torque value can produce very different bolt tension depending on lubrication and assembly condition.
Use the approved installation procedure instead.
Lubrication affects friction.
Changing the lubricant can change the torque required to produce the same preload.
Any lubrication change should therefore be controlled according to the relevant installation procedure.
High-strength bolting should be treated as an assembly.
Bolts, nuts and washers should conform to the specified system and project requirements.
For international projects, quality documentation can be as important as the physical bolt itself.
Typical documentation may include:
Material certificates
Product identification
Lot traceability
Pre-installation verification records
Tool calibration records
Installation inspection records
| Project Requirement | Recommended Approach |
|---|---|
| U.S.-specified structural bolting | Check ASTM F3125 grade and RCSC requirements |
| Eurocode preloaded connection | Check applicable EN 14399 assembly and EN 1090-2 |
| Heavy hex bolt required | A325 heavy hex or EN HR/HV as specified |
| Tension-control installation required | Use the specified ASTM TC assembly or EN 14399 HRC system |
| Slip-critical connection | Confirm required pretension, faying surface and installation procedure |
| Coastal environment | Confirm coating compatibility and corrosion requirements |
| Galvanized bolts | Verify lubrication, assembly compatibility and installation procedure |
| Standard substitution proposed | Obtain engineering approval before procurement |
Before placing an order for an overseas steel structure project, confirm:
ASTM / AISC / RCSC or Eurocode / EN system?
Snug-tight
Pretensioned
Slip-critical
ASTM F3125 Grade A325
Other ASTM F3125 grade
EN 14399 HR
EN 14399 HV
EN 14399 HRC
Other specified system
Confirm:
Diameter
Length
Thread length
Washer requirements
Examples may include:
Plain
Galvanized
Approved protective coating
Project-specific corrosion protection
Confirm before shipment:
Turn-of-nut
Calibrated wrench
Tension-control
DTI
Combined method
Other approved procedure
Determine which records and tests must be provided to:
Owner
Engineer
Inspector
EPC contractor
Local authority
Choosing structural bolts for an overseas steel project is not simply a matter of comparing bolt strength.
The correct process is:
Project Standard → Connection Design → Bolt Assembly → Pretensioning Method → Installation Verification → Inspection → Documentation
For U.S.-based projects, ASTM F3125 Grade A325 and RCSC requirements are commonly encountered.
For European projects, EN 14399 bolting assemblies together with EN 1090-2 execution requirements form the key framework for preloaded structural connections.
Most importantly, ASTM and EN bolting systems should not be mixed or substituted solely on the basis of nominal strength.
For international steel structure projects, bolt selection should always be coordinated with the approved drawings, technical specification and responsible structural engineer.
ZSJH STEEL supports customized steel structure projects with services covering:
Design Coordination → Engineering Detailing → Structural Steel Fabrication → Quality Inspection → Packaging → Export → Installation Guidance
If you have structural drawings or bolt connection requirements for an overseas project, send us your project specifications for technical review and quotation.
Send Your Drawings & Connection Requirements
